AIDA Imaging HDMI to Genlock SDI/HDMI Converter

AIDA Imaging HDMI to Genlock SDI/HDMI Converter
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States

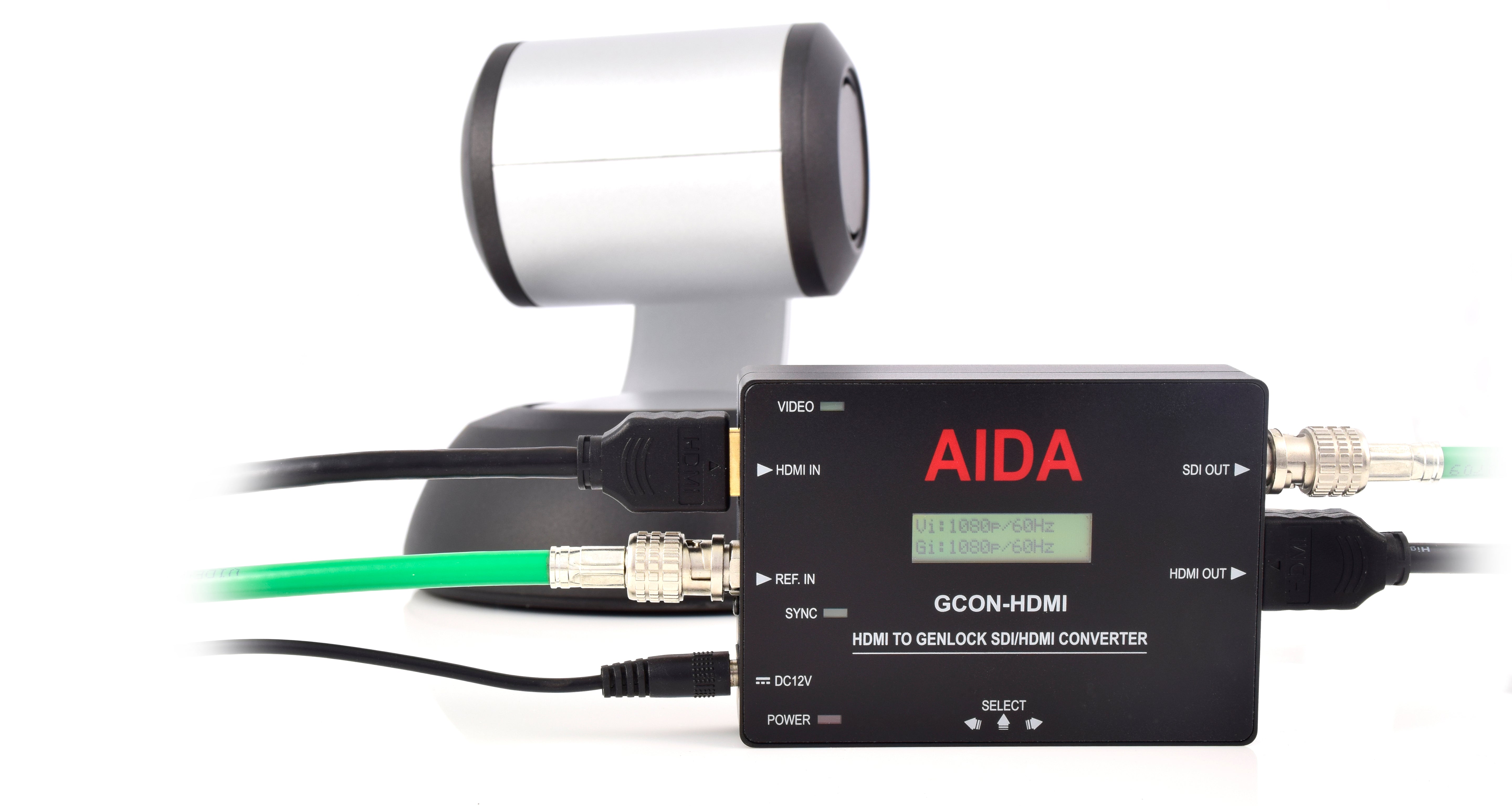

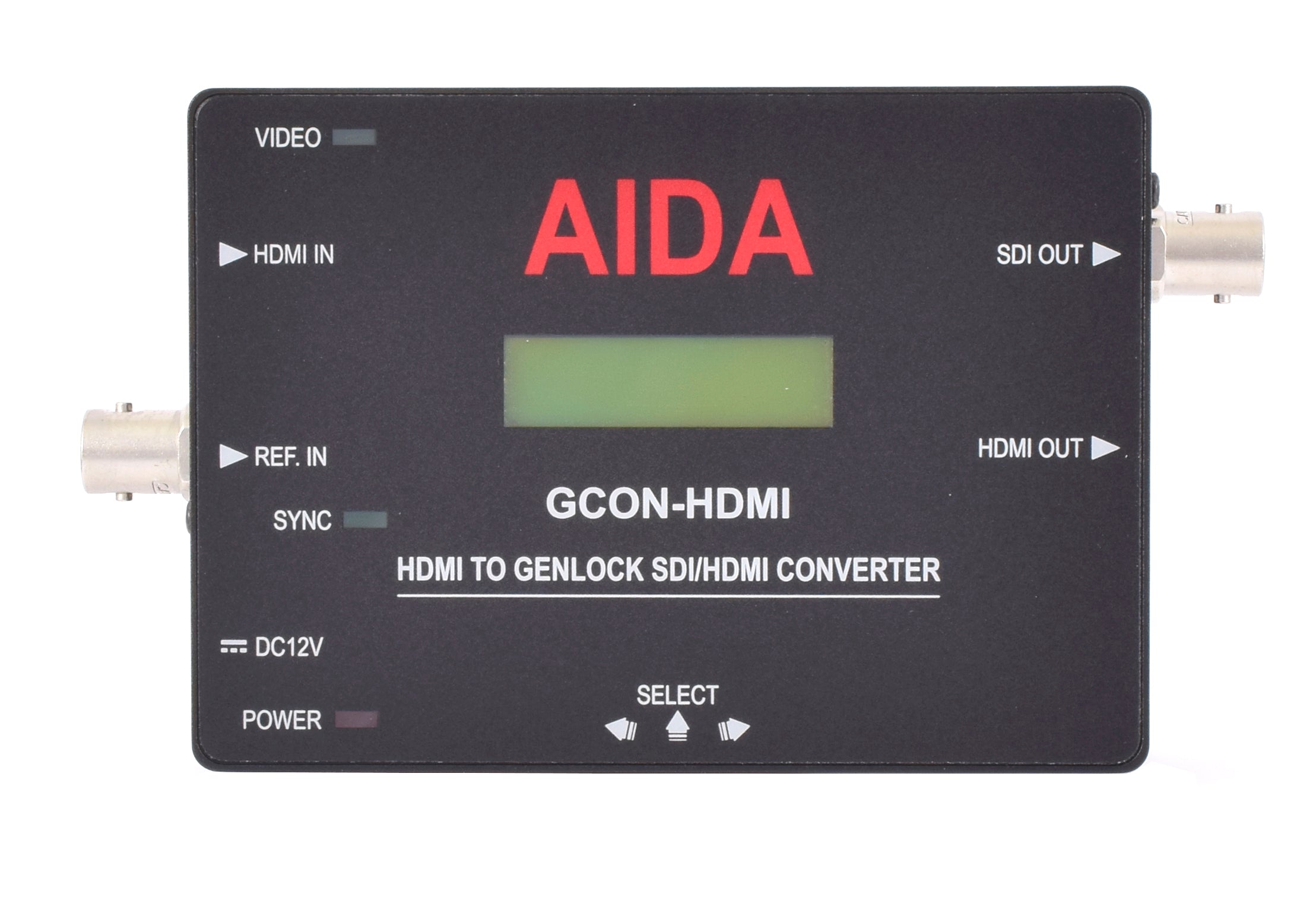

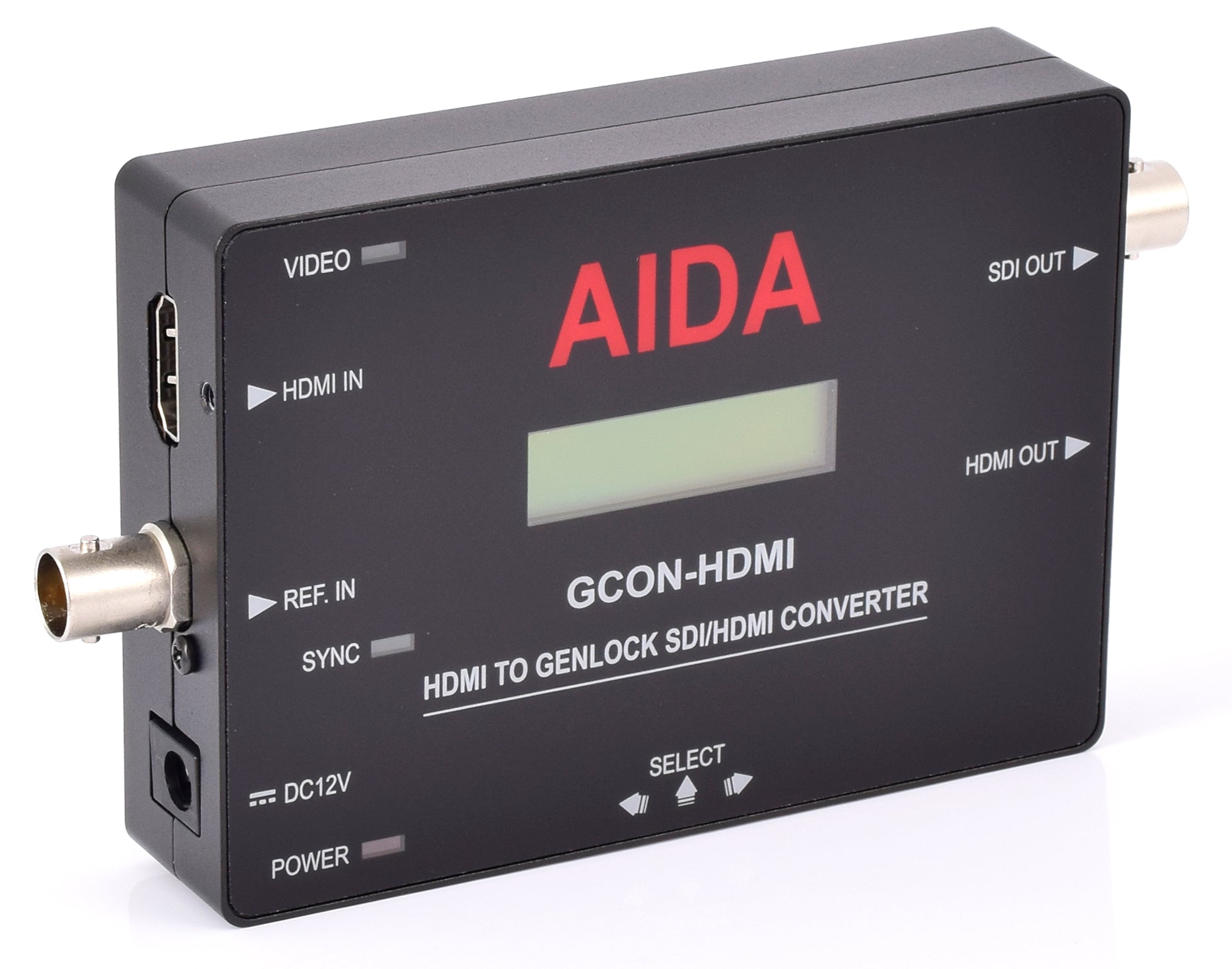

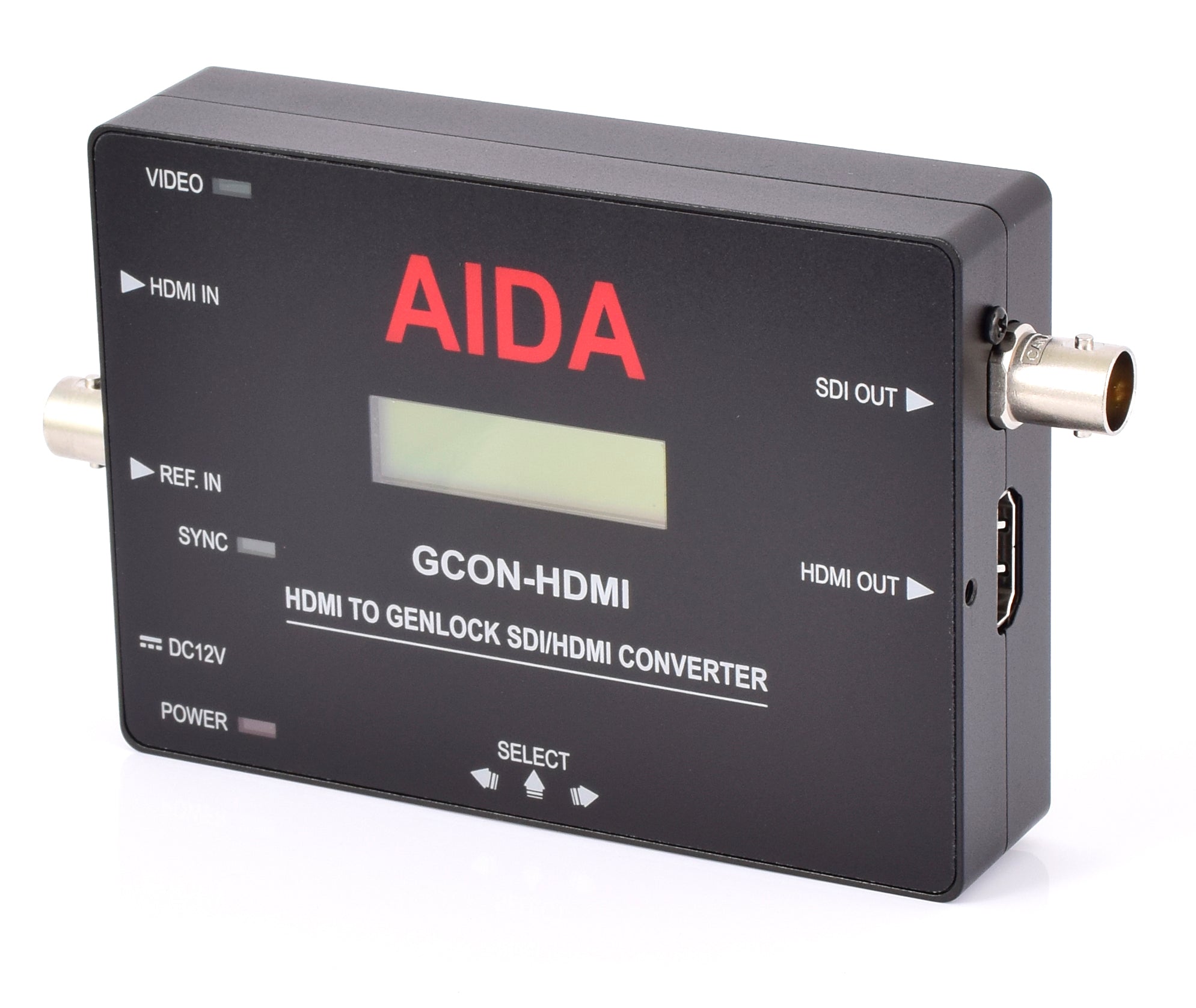

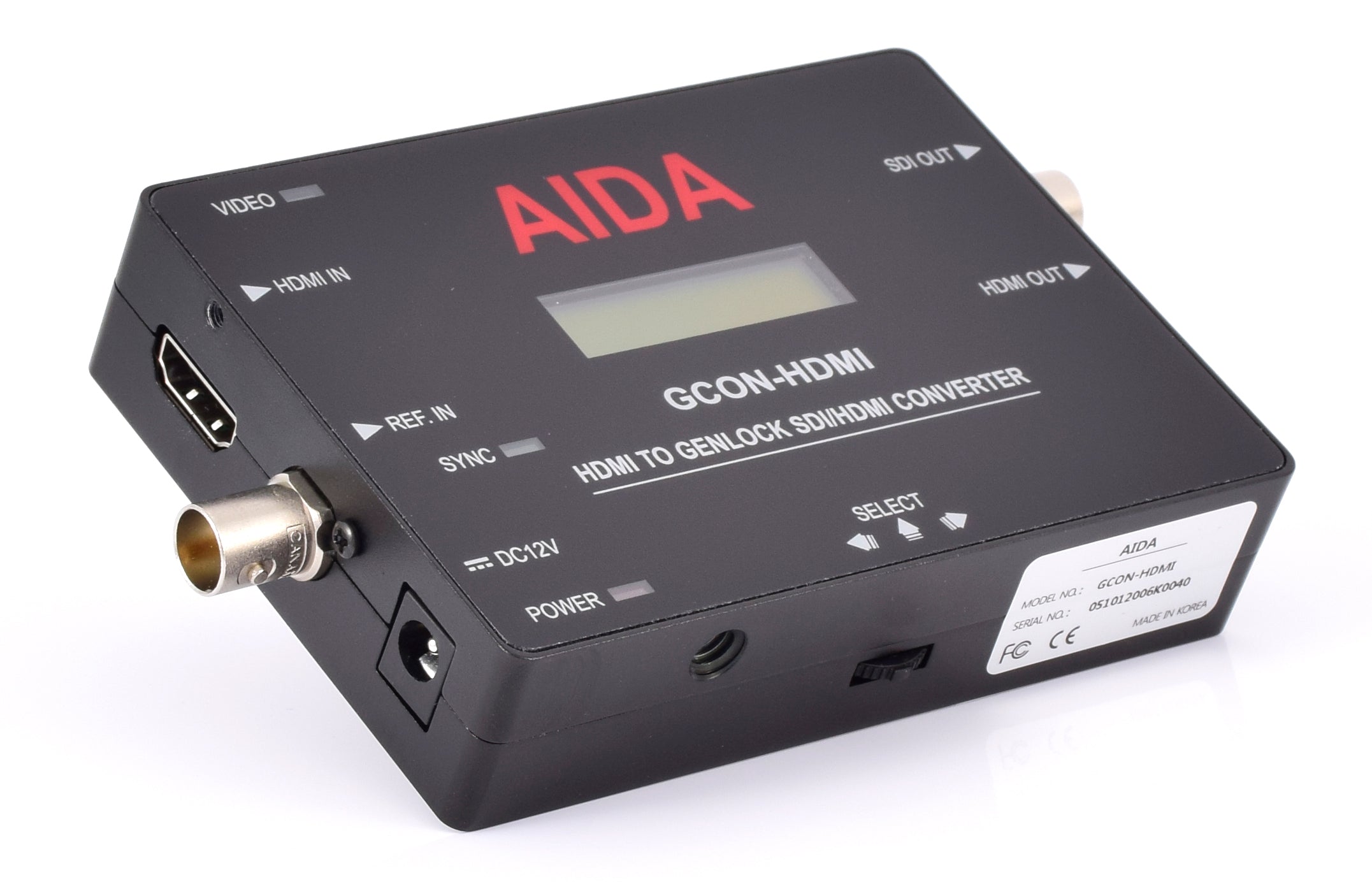

The AIDA Imaging HDMI to Genlock SDI/HDMI Converter converts HDMI source to Genlock SDI/3G-SDI and HDMI with zero latency keeping the integrity of the original source feed intact and supports 1080p resolutions up to 60 fps. Featuring Tri-Level Sync Genlock synchronizes GCON-HDMI and other system components for seamless vertical interval switching between sources.
GCON-HDMI also supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. With its rugged and portable design makes GCON-HDMI a perfect camera sidekick to where it’s needed most.
- HDMI up to 1080p60 full HD Resolution Input
- Simultaneous SDI and HDMI Loop Output
- Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz
- SMPTE 352M Ancillary Data supported
- Embedded audio pass-through via SDI & HDMI
- Adjustable V-sync & H-sync phases
- Divisional picture comparison
- Built-in Pattern Generator
- Built-in LCD menu screen
- Built-in menu control button
- Versatile, compact, and rugged design
