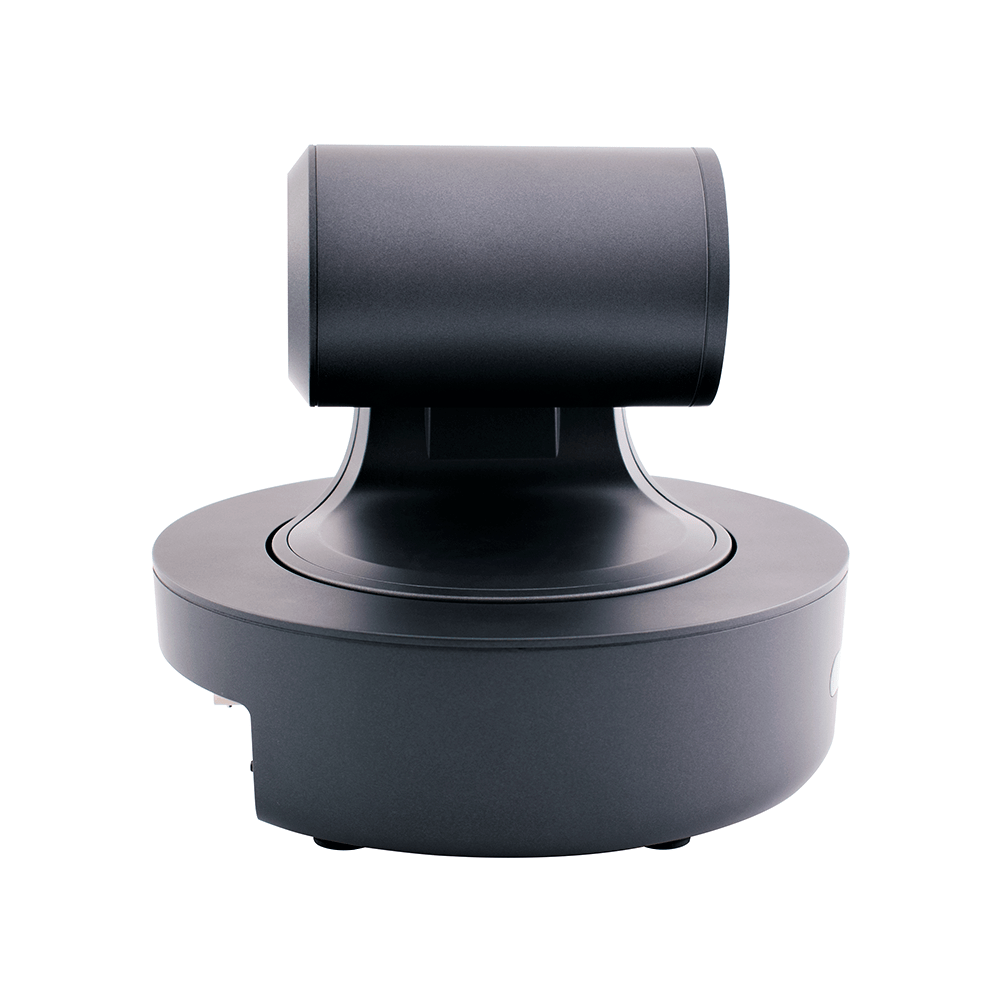

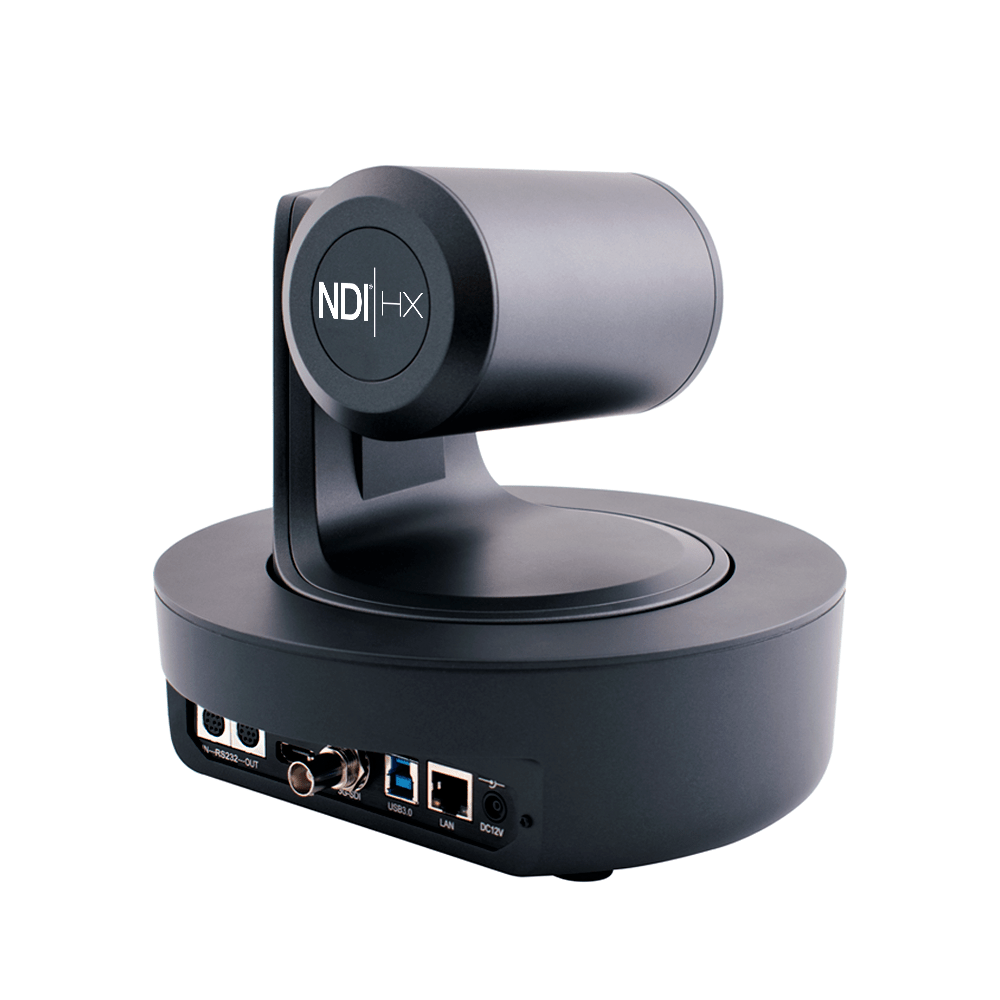

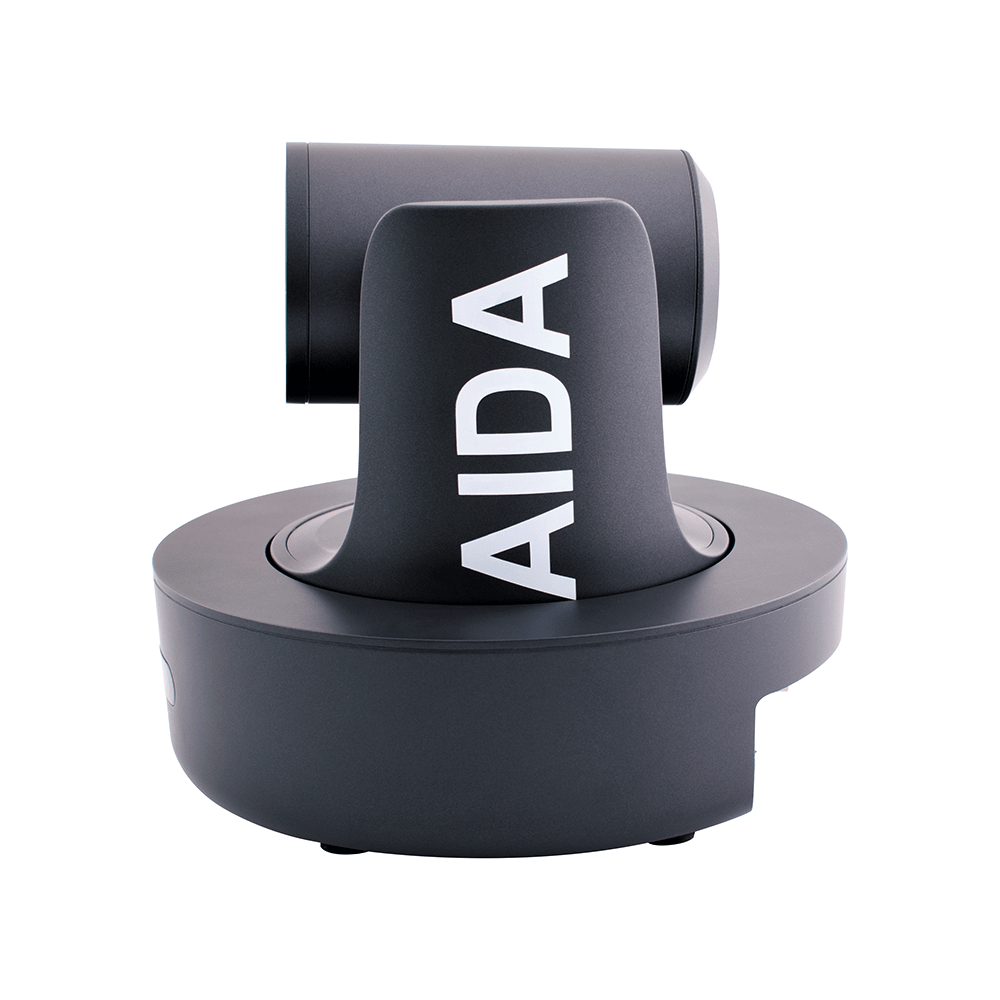

AIDA Imaging PTZ-NDI-X20 Full HD NDI Broadcast PTZ Camera

AIDA Imaging PTZ-NDI-X20 Full HD NDI Broadcast PTZ Camera
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
Capture the unreachable AIDA Imaging PTZ-NDI-X20 Full HD NDI Broadcast PTZ Camera as the first camera to utilize NDI®|HX2 technology that features Newteks NDI®|HX2 to help ease production with seamless video transfer over almost any existing network infrastructure. With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP-based controllers, simplifying existing workflows with better cable management. The camera features traditional multi-video format outputs such as 3G-SDI, HDMI, and USB 3.0, as well as online video outputs RTSP/RTMP. Our camera’s cost-effective approach makes professional-grade PTZ cameras, at the fraction of the price.
The NDI®|HX2, NewTek’s innovative Network Device Interface technology, is a royalty-free standard enabling IP video workflows across Ethernet networks. NDI®|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real-time. The NDI®|HX2 encoding algorithm is resolution and frame rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI also includes tools to implement video access and grouping, bi-directional metadata, tally, and more.
- NDI®|HX2 streaming capable for low latency video streaming and PTZ control over NDI®|HX2 Protocol
- Full HD Progressive Scan sensor captures the sharp and vivid color under different light conditions
- Advanced digital image processor provides vivid and detailed images with full access feature sets
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur
- 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance
- Power Optical Zoom capability up to 20X
- Compatible with other industry-leading products, conforming with SMPTE 424M/292M standard
- Auto White Balance and shutter speed provide optimized performance in a variety of situations
- Built-in OSD controls for customizable image settings
- Versatile and compact
Video | |
Image Sensor | 1/2.85" Progressive CMOS |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | 2.13 µm x 2.13 µm |
Resolution | 1080p & 1080i: 1920 x 1080 |
Resolution/Rate | 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p |
IP Rate |
1920 x 1080 @ 1~60 1280 x 720 @ 1~60 1024 x 576 @ 1~60 620 x 360 @ 1~60 |
Output |
HD-SDI/3G-SDI HDMI RTSP / RTMP / NDI®|HX2 USB 3.0 & 2.0 |
Color Space | 4:2:2 (YCbCr) 10bit |
Min. Illumination | 0.1Lux |
Function | |
White Balance |
Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor |
Focus | Auto, Manual |
Shutter Speed |
1 to 1/10,000 Sec. |
Lens | |
Lens | 20X HD Optical Zoom, F1.5 ~ 3.0 |
PTZ | |
Pan/Tilt Range | Pan: 340°, Tilt: +90 to -30° |
Pan/Tilt Speed | Pan: 0° to +120°/s, Tilt: 0° to +80°/s |
Presets | 128 Positions |
Field of View | 61° |
Standard | |
SMPTE | SMPTE 292M, SMPTE 424M |
IP Protocol |
TCP/IP, RTSP/RTMP |
Physical | |
Camera Control |
Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote Controller |
Operation Temp | 32° F - 104° F |
Dimension | 155mm x 160m x 170mm / 6.10" x 6.92" x 6.69" |
Weight | 1.35kg / 2.97lbs |
Power |
12VDC (+9 - +15VDC) PoE+ |
- AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom
- Remote Controller
- Mounting Bracket
- USB 3.0 Cable
- Power Adapter
- Power Cord
- Limited Warranty
