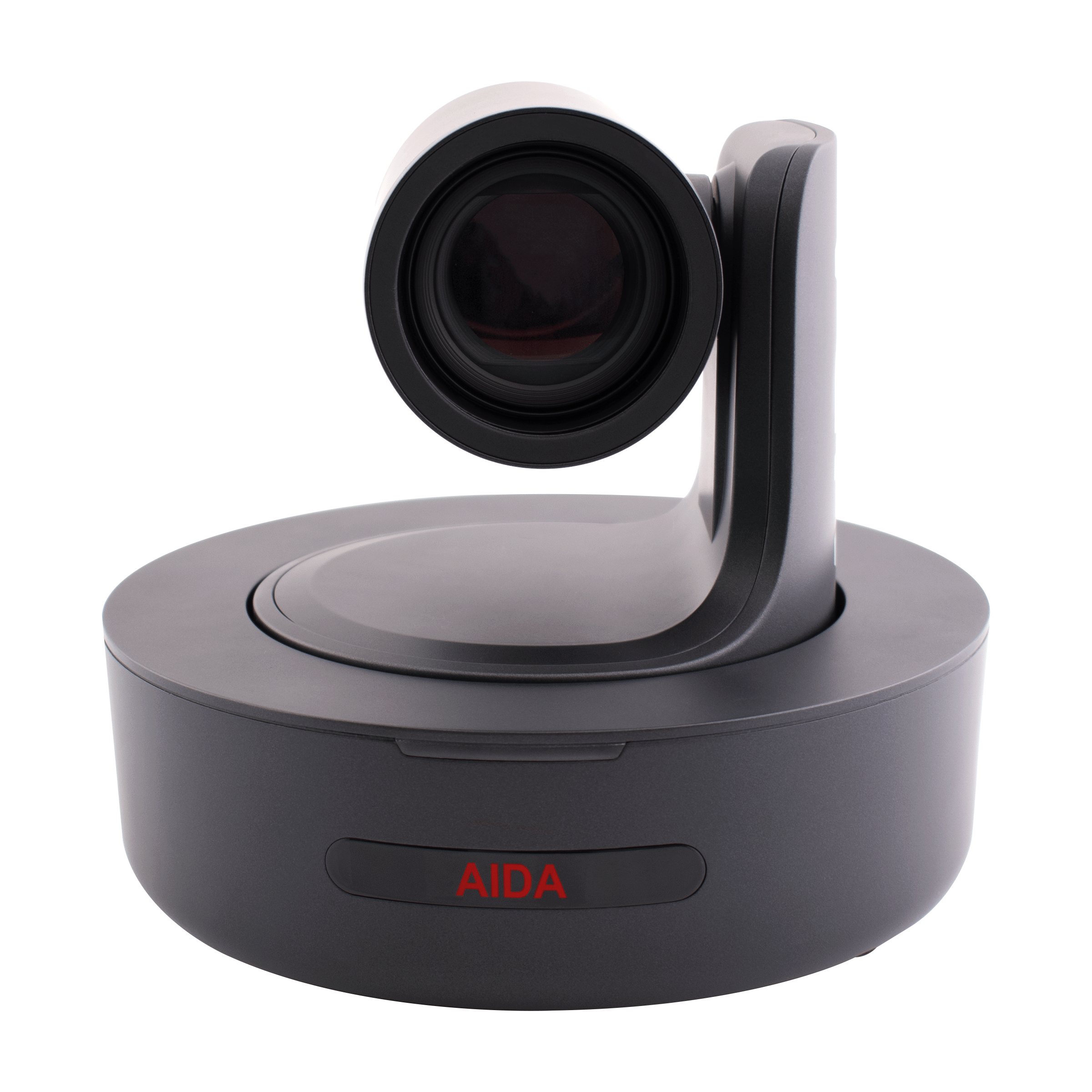

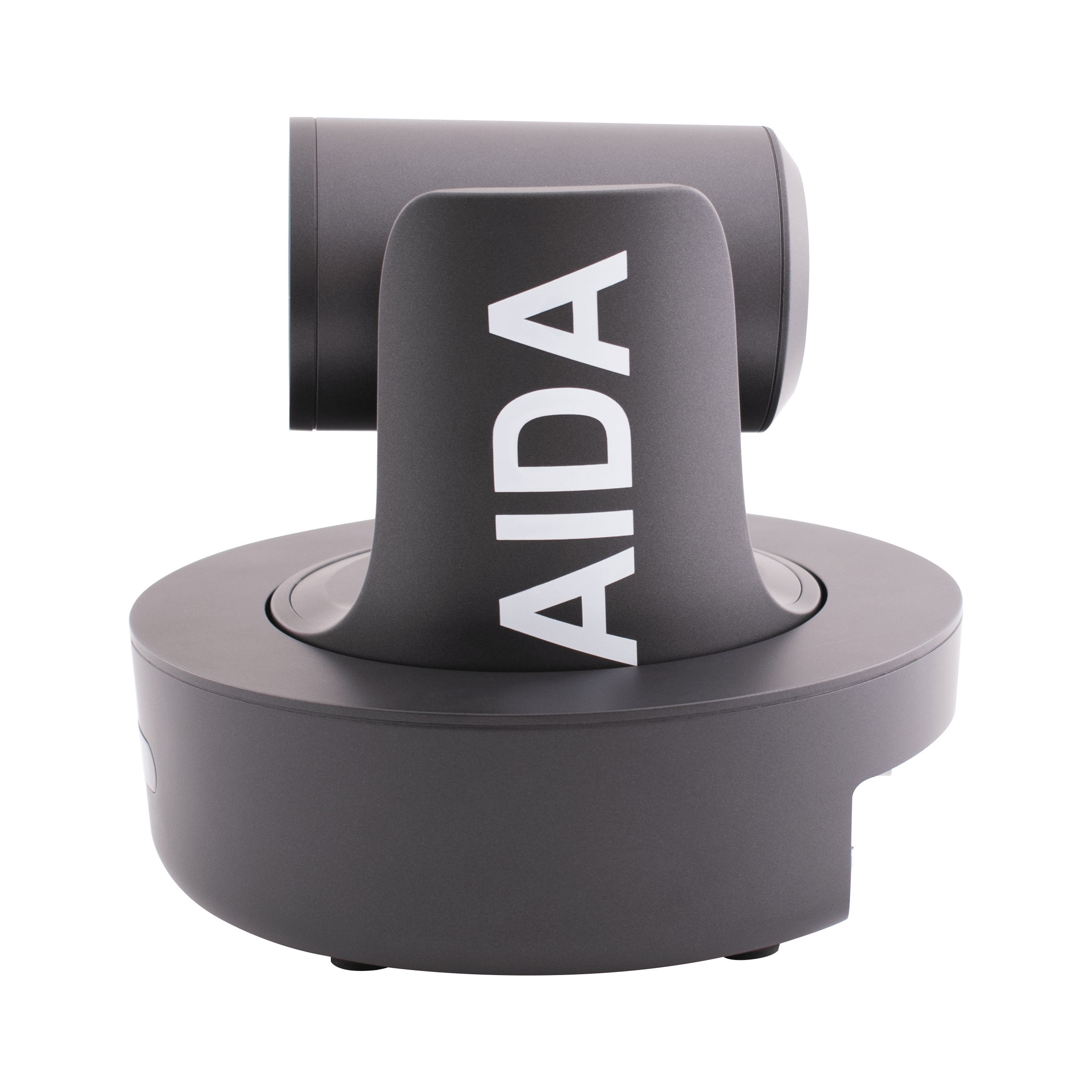

AIDA Imaging PTZ-X12-IP Full HD IP Broadcast PTZ Camera

AIDA Imaging PTZ-X12-IP Full HD IP Broadcast PTZ Camera

Regular price $900.00 USD
Regular price $1,425.00 USD Sale price $900.00 USD
Sale Sold out
Shipping calculated at checkout.

 Full HD IP Broadcast PTZ Camera

Key Features:

 Capturing The Unreachable

 The PTZ-X12-IP is one of AIDA’s most well-rounded Full HD cameras yet. The camera features IP streaming technology by H.264 or the newer H.265 High Efficiency Video Coding (HEVC). With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as on-line video outputs RTSP/RTMP. Our camera’s cost effective approach makes professional grade PTZ cameras, at the fraction of the price.

Applications:

  • Live Production
  • Worship
  • Video Conference
  • Education
  • Live Streaming


Main Features:

  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
  • Advanced digital image processor provides vivid and detailed images with full access feature sets.
  • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
  • 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance.
  • Power Optical Zoom capability up to 12X.
  • Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.
  • Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
  • Built-in OSD controls for customizable image settings.
  • Versatile and compact

Specifications:


VIDEO Image Sensor 1/2.5” Progressive CMOS

Effective Pixels Horizontal: 1920, Vertical: 1080

Pixel Size 2.13 μm (H) x 2.13 μm (V)

Resolution 1080p & 1080i: 1920 x 1080

Resolution Rate 1080 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p

1080 60i/59.94i/50i

720 60p/59.94p/50p/30p/29.97p/25p

IP Rate 1920 x 1080 @ 1~60

1280 x 720 @ 1~60

1024 x 576 @ 1~60

620 x 360 @ 1~60

Output HD-SDI/3G-SDI

HDMI

RJ45

USB 3.0 & 2.0

Color Space 4:2:2 (YCbCr) 10bit

Min. Illumination 0.1Lux FUNCTION White Balance Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor

Focus Auto, Manual

Shutter Speed 1 to 1/10,000 Sec.

LENS Lens 12X HD Optical Zoom, F1.5 ~ F3.0

PTZ Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°

Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s

Presets 128 Positions

Field of View 72.5°

STANDARD SMPTE SMPTE 292M, SMPTE 424M

IP Protocol TCP/IP, RTSP/RTMP

PHYSICAL

Camera Control Protocol: VISCA

Interface: RS-232C IN & OUT, RJ-45

vRemote Controller

Operation Temp 32°F - 104°F

Dimension 155mm x 160m x 170mm / 6.10” x 6.92” x 6.69”

Weight 1.35kg / 2.97lbs

Power 12VDC (+9 - +15VDC) PoE+



Package Contents:
