AIDA Imaging SDI to Genlock SDI/HDMI Converter
Quantity:
Pickup available at 9420 E DoubleTree Ranch Rd #107
Usually ready in 2-4 days
AIDA Imaging SDI to Genlock SDI/HDMI Converter
9420 E DoubleTree Ranch Rd #107
Pickup available, usually ready in 2-4 days
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States

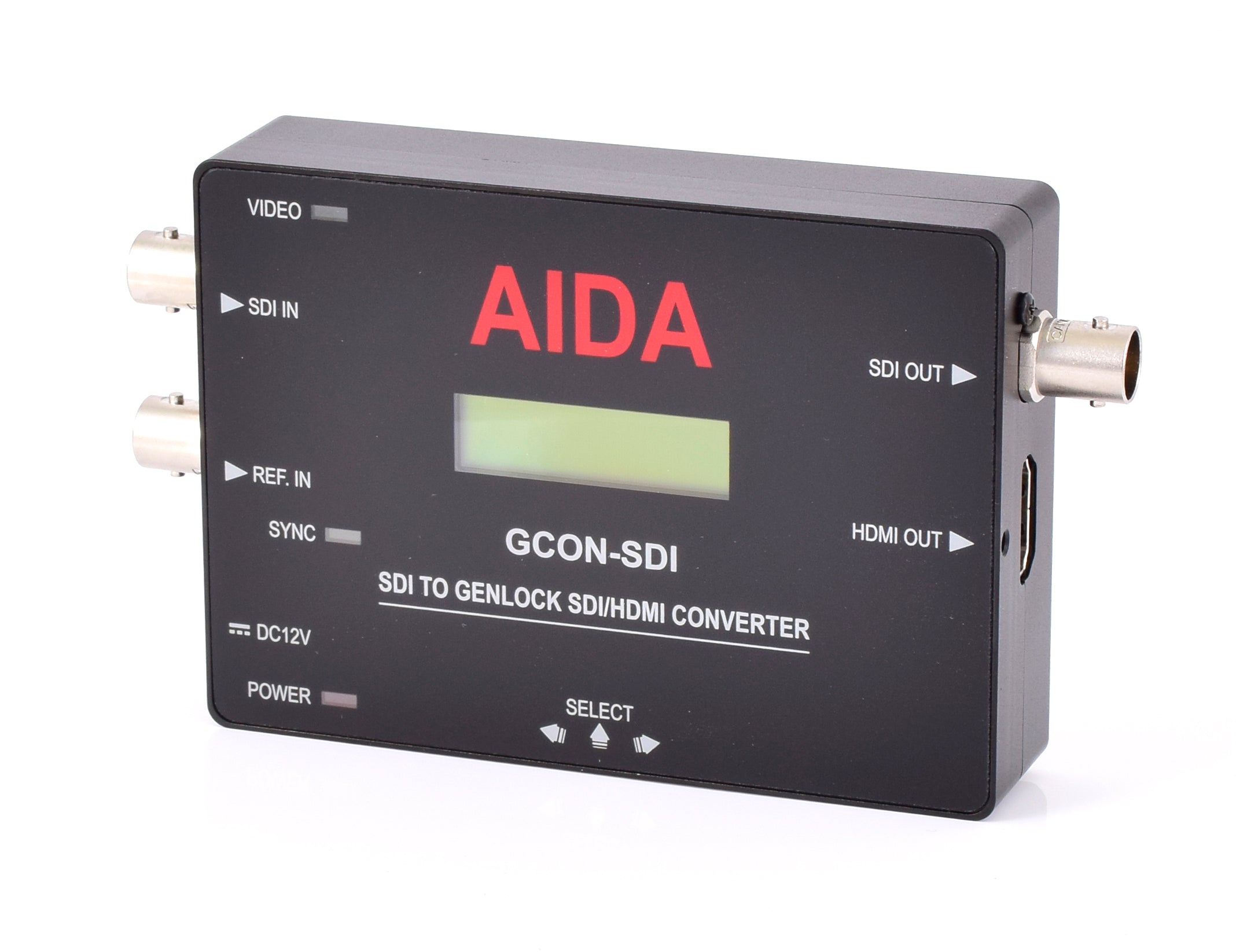

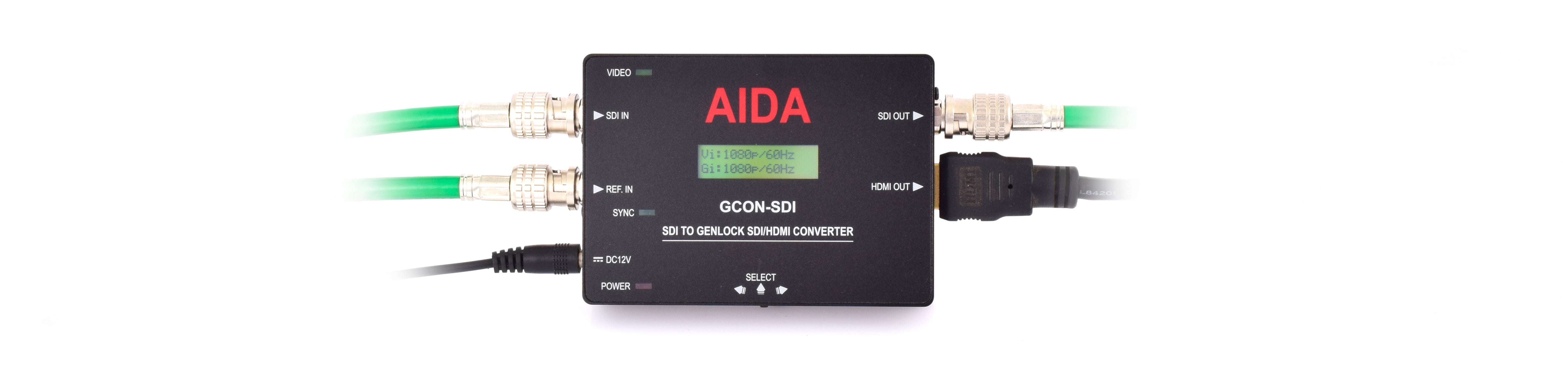

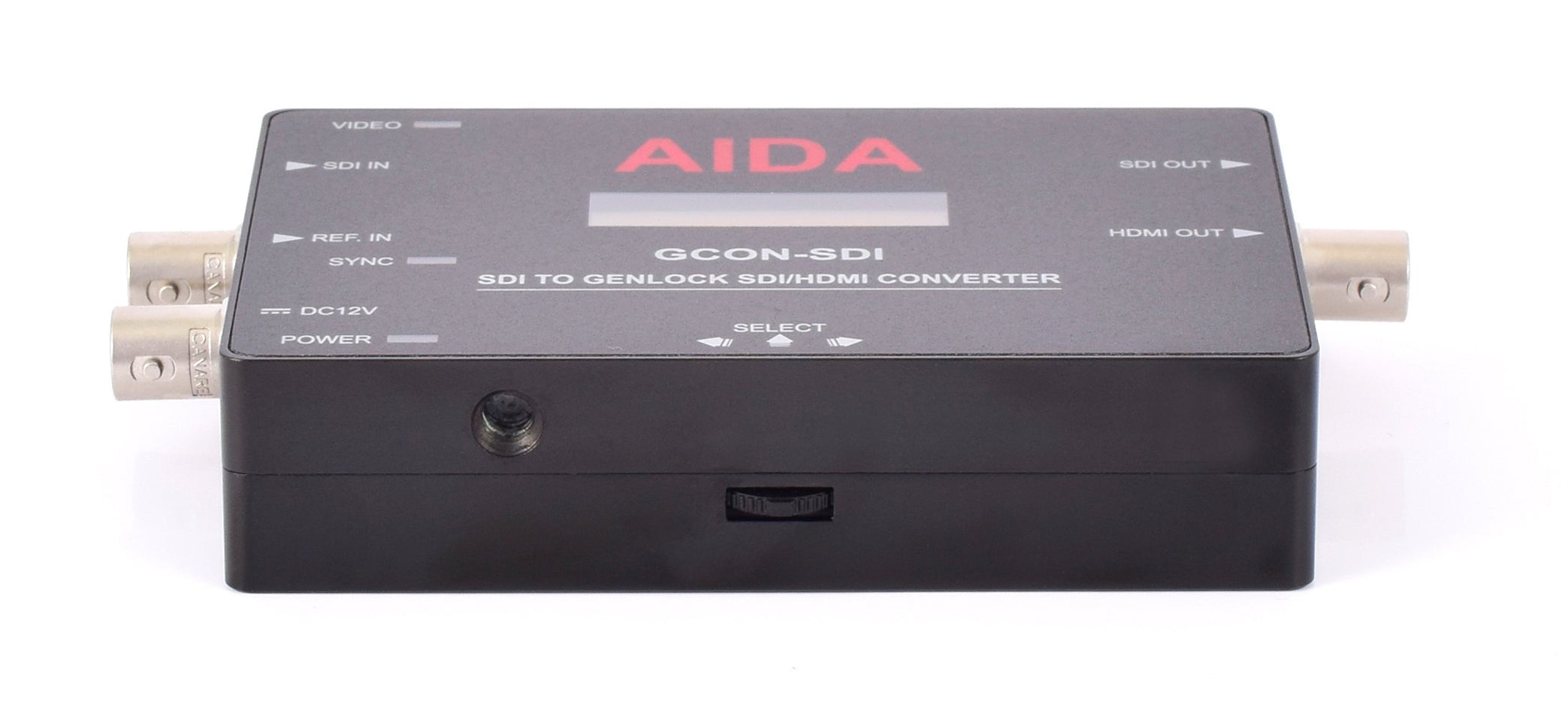

The AIDA Imaging SDI to Genlock SDI/HDMI Converter converts SDI/3G-SDI source to Genlock SDI/3G-SDI and HDMI with zero latency keeping the integrity of the original source feed intact and supports 1080p resolutions up to 60 fps. Featuring Tri-Level Sync Genlock synchronizes GCON-SDI and other system components for seamless vertical interval switching between sources.
GCON-SDI also supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. With its rugged and portable design makes GCON-SDI a perfect camera sidekick to where it’s needed most.
- 3G-SDI up to 1080p60 full HD Resolution Input
- Simultaneous HDMI and SDI Loop Output
- Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz
- SMPTE 352M Ancillary Data supported
- Embedded audio pass-through via SDI & HDMI
- Adjustable V-sync & H-sync phases
- Divisional picture comparison
- Built-in Pattern Generator
- Built-in LCD menu screen
- Built-in menu control button
- Versatile, compact, and rugged design
