Azden VHF Wireless Microphone System with Wired Handheld Microphone

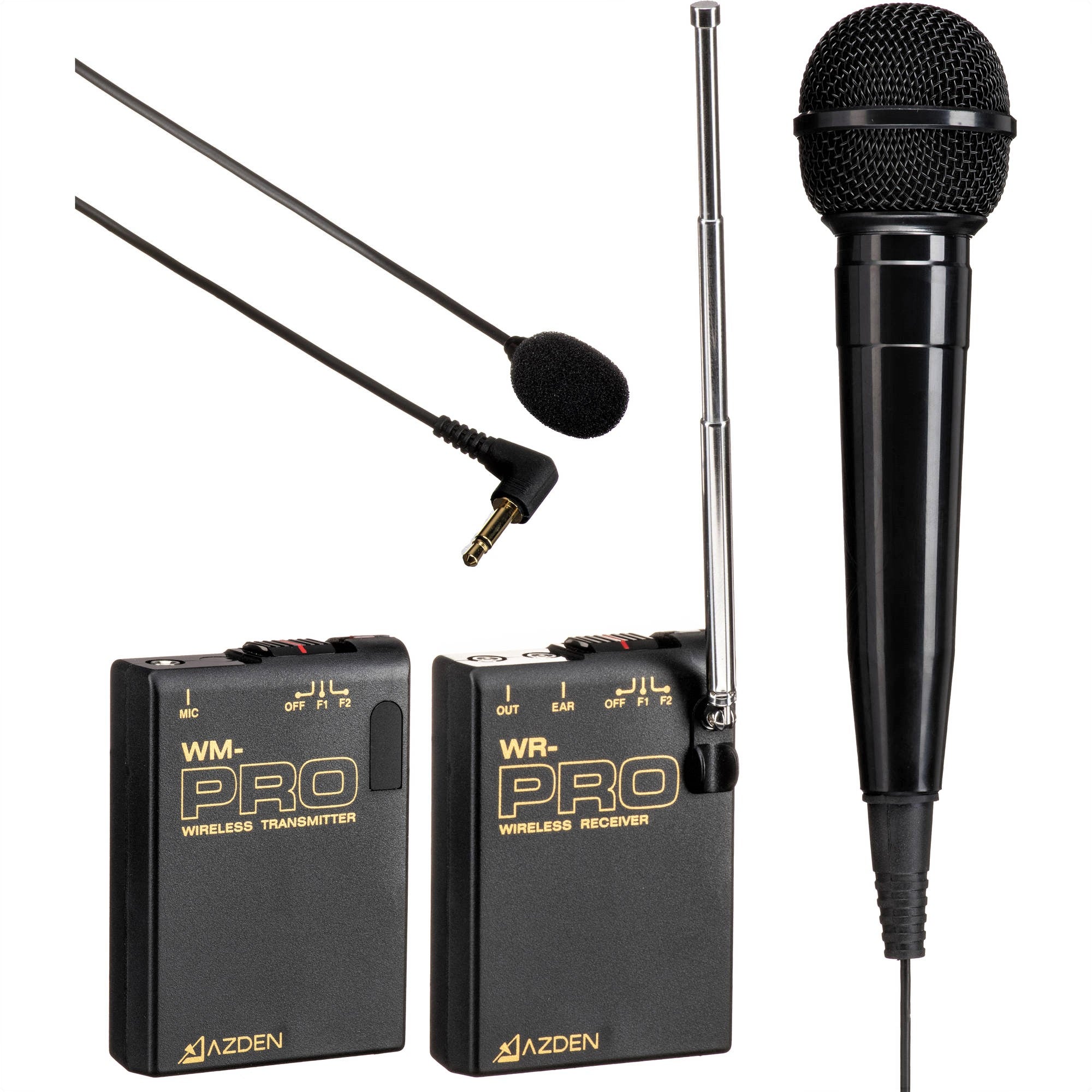

Azden’s most popular DSLR audio products are now compatible with smartphones and tablets! The Azden VHF Wireless Microphone System with Wired Handheld Microphone is an easy-to-use and affordable wireless audio system combining the WM-PRO body-pack transmitter and WR-PRO camera mount receiver. Both a lavalier microphone and a handheld microphone are included for added flexibility and a new interface cable making it compatible with any mobile device with a TRRS jack.

Furthermore, the system combines the WM-PRO body-pack transmitter with the EX-503 electret condenser omnidirectional lavalier microphone. This is the standard 2-frequency switchable (169.445MHz and 170.245MHz) body-pack transmitter for all “PRO” series receivers and uses a single 9V alkaline battery and comes with a belt clip. The EX-413 handheld plug-in microphone is also included and can be substituted for the lavalier mic when the user prefers. Record great wireless audio while shooting video with your mobile device because it works with most current model iOS and Android devices!

• 8-Hour 9V Batteries
• Up to 2 Systems on Set / 250' Range
• EX-503 Lav & EX-413 Handheld Omni Mics
• Bodypack Transmitter
• Lightweight Camera-Mount Receiver
• Cable for Compatibility with Smartphones
• Two Selectable VHF Frequencies
• Easy to Use, Simple Setup
• Headphone Output for Monitoring
• For Vloggers, Mobile Journalists

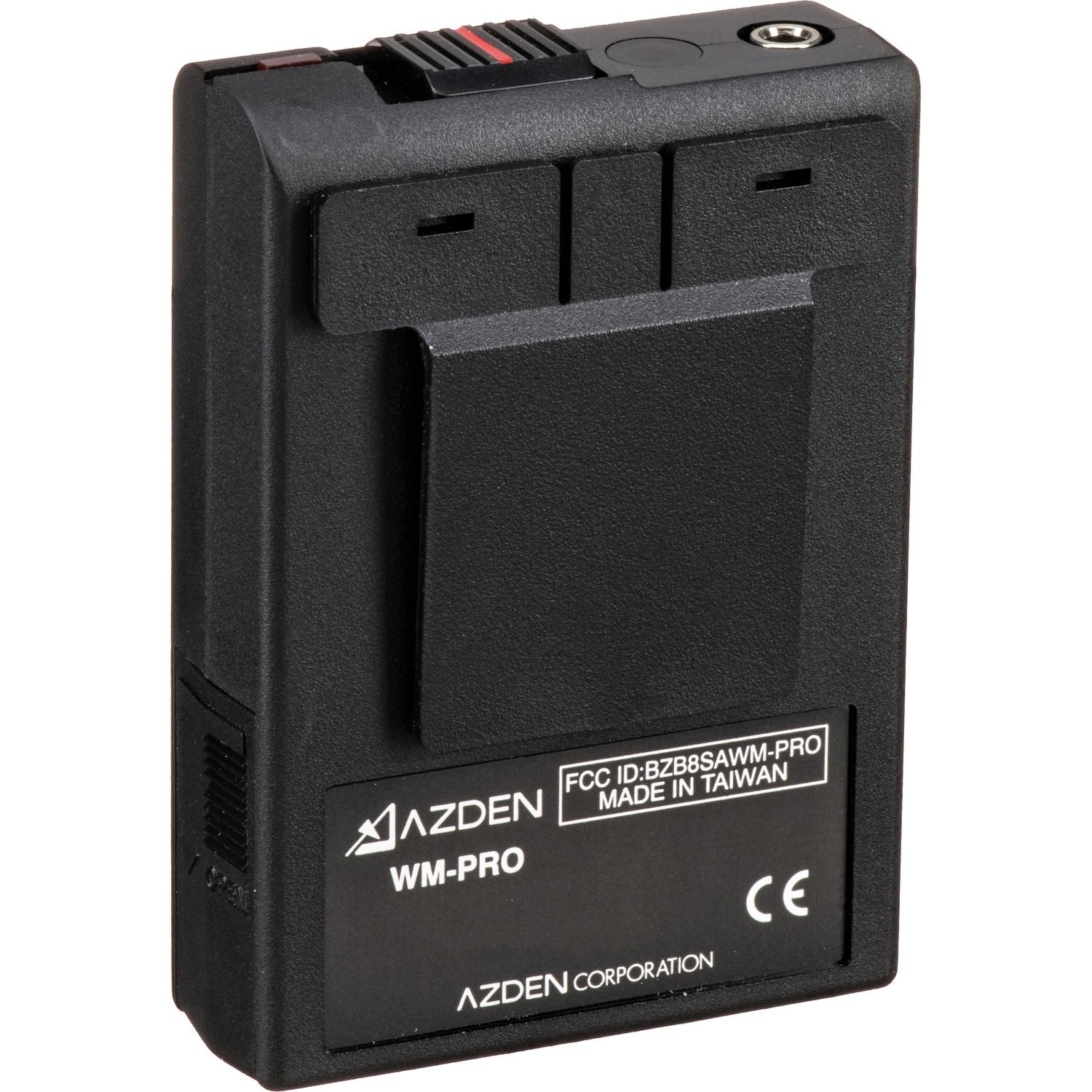

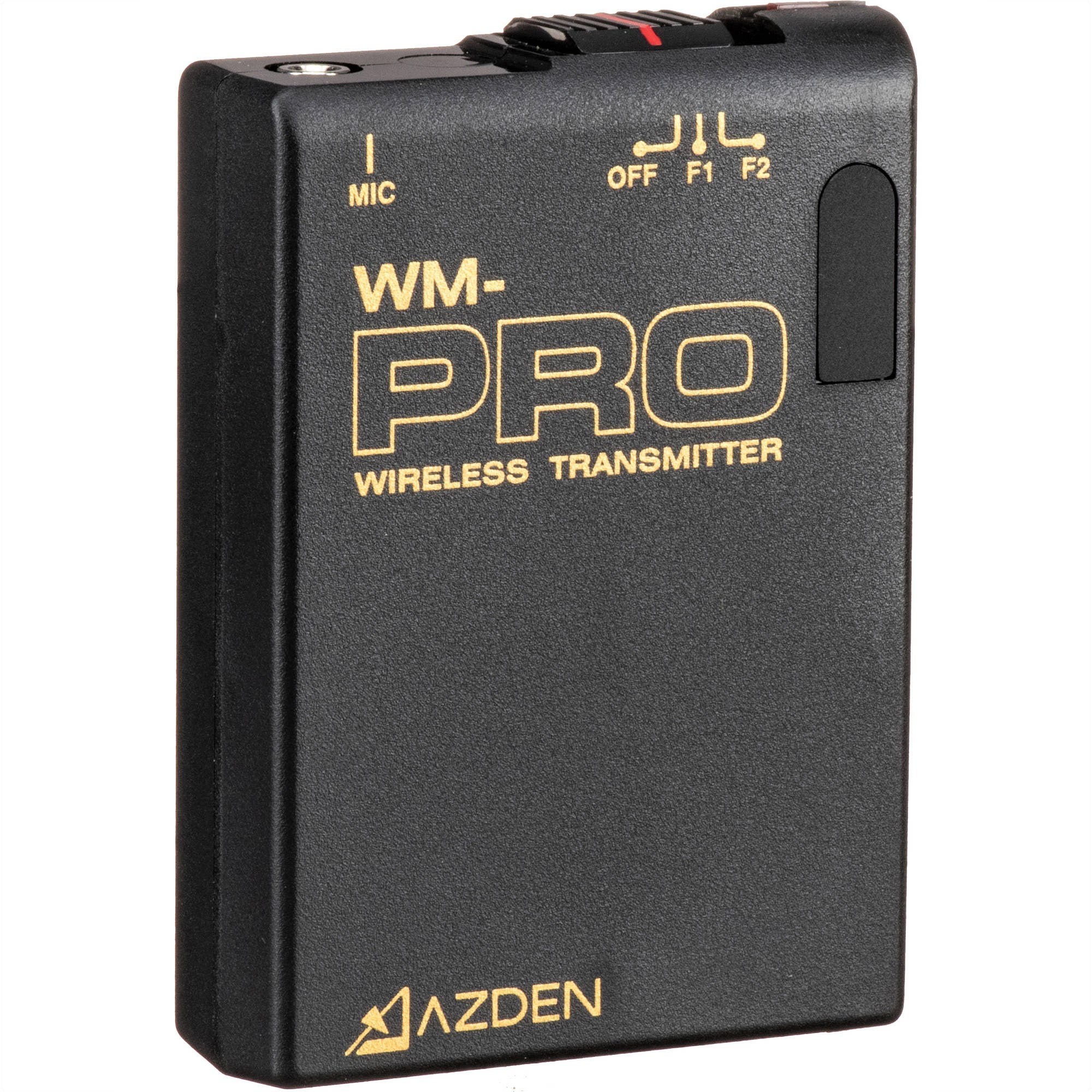

WM-PRO

• TRANSMISSION FREQ: F1: 169.445MHz; F2: 170.245MHz
• BATTERY: 9V x 1 (not included)
• POWER CONSUMPTION: 30mA
• BATTERY LIFE: 8 to 10 Hours
• DIMENSIONS: 86 x 60 x 21.5 (mm)
• WEIGHT (W/ BATTERY): 98g (3.5oz)

MICROPHONES

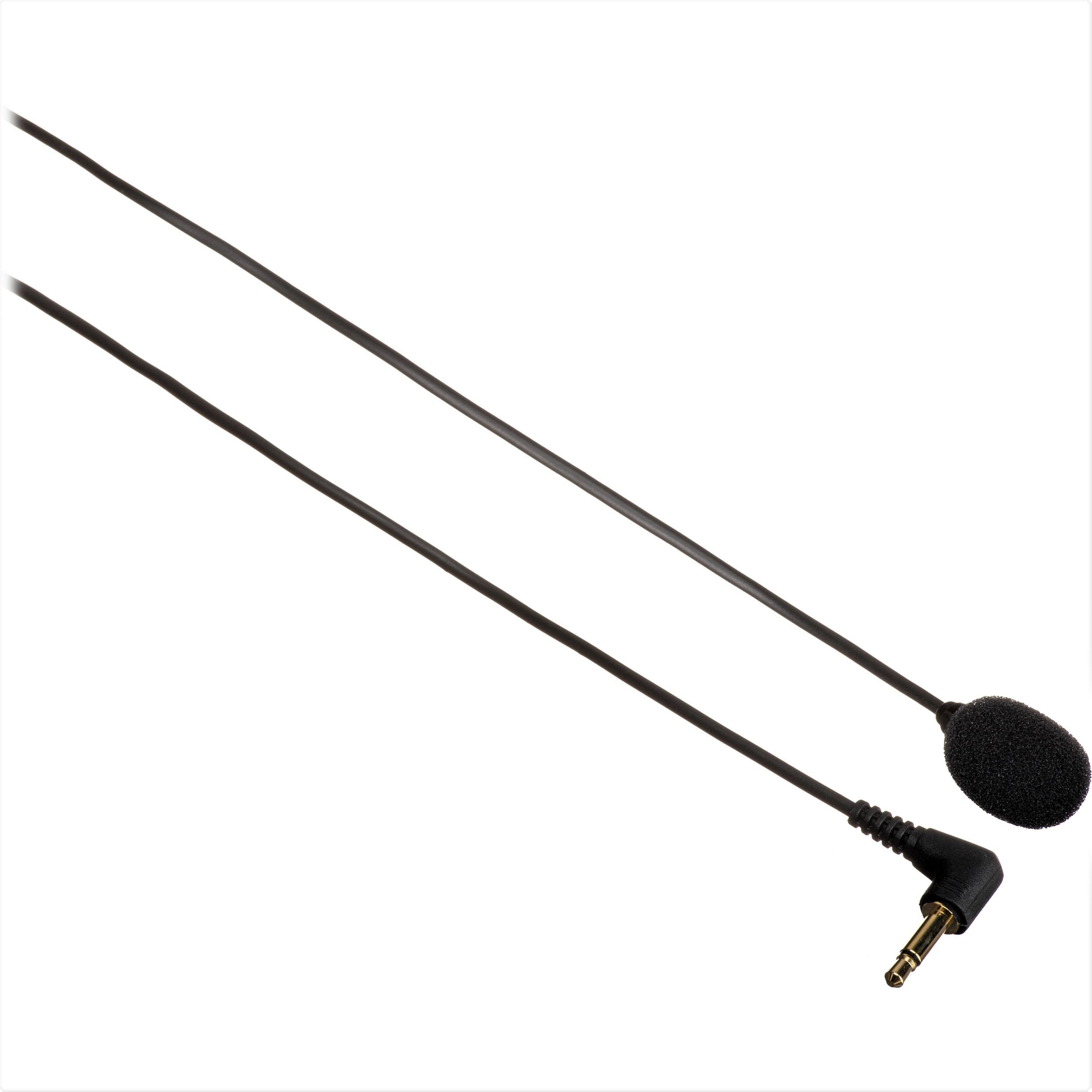

• EX-503: Omni-directional, electret condenser lapel

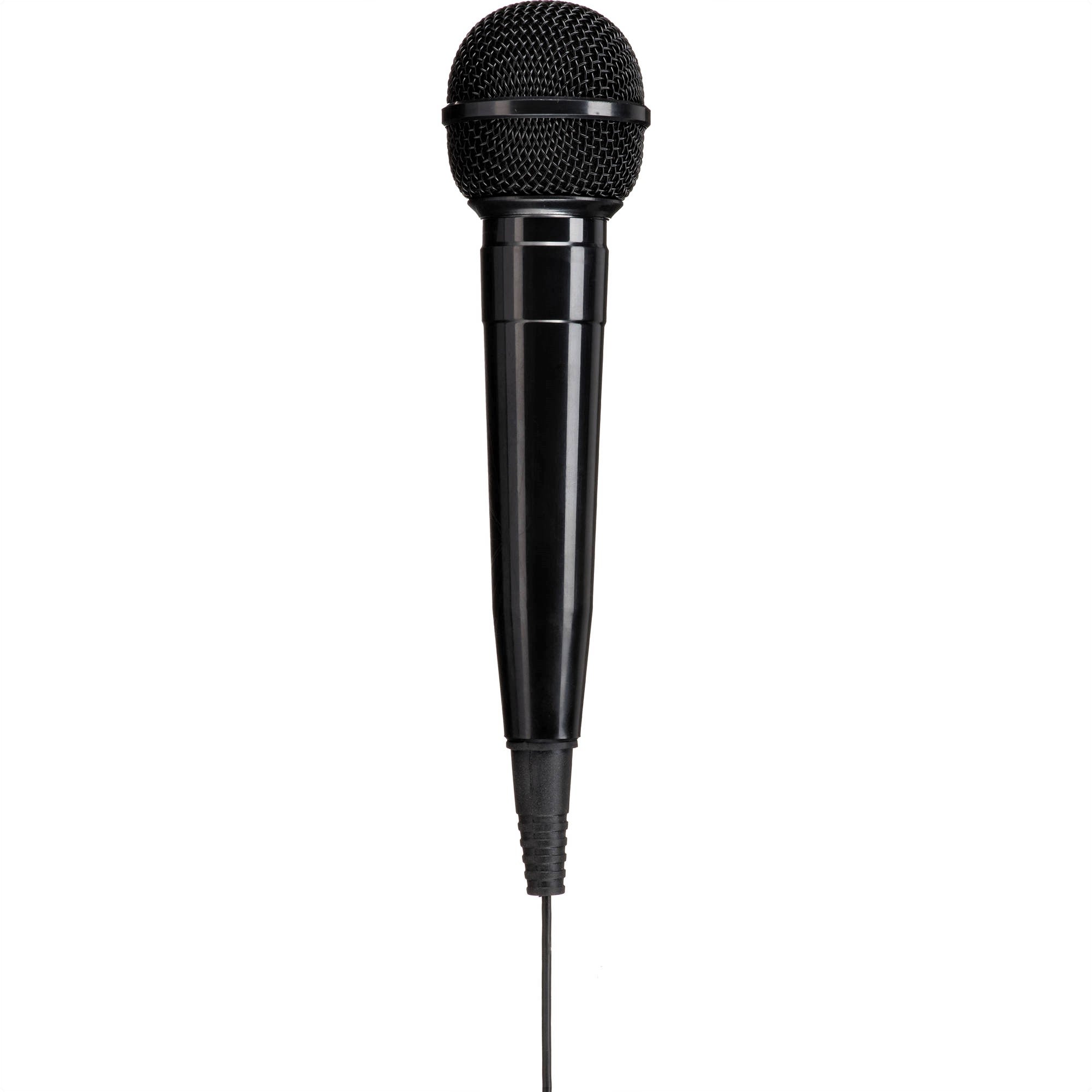

• EX-413: Omni-directional, electret condenser handheld

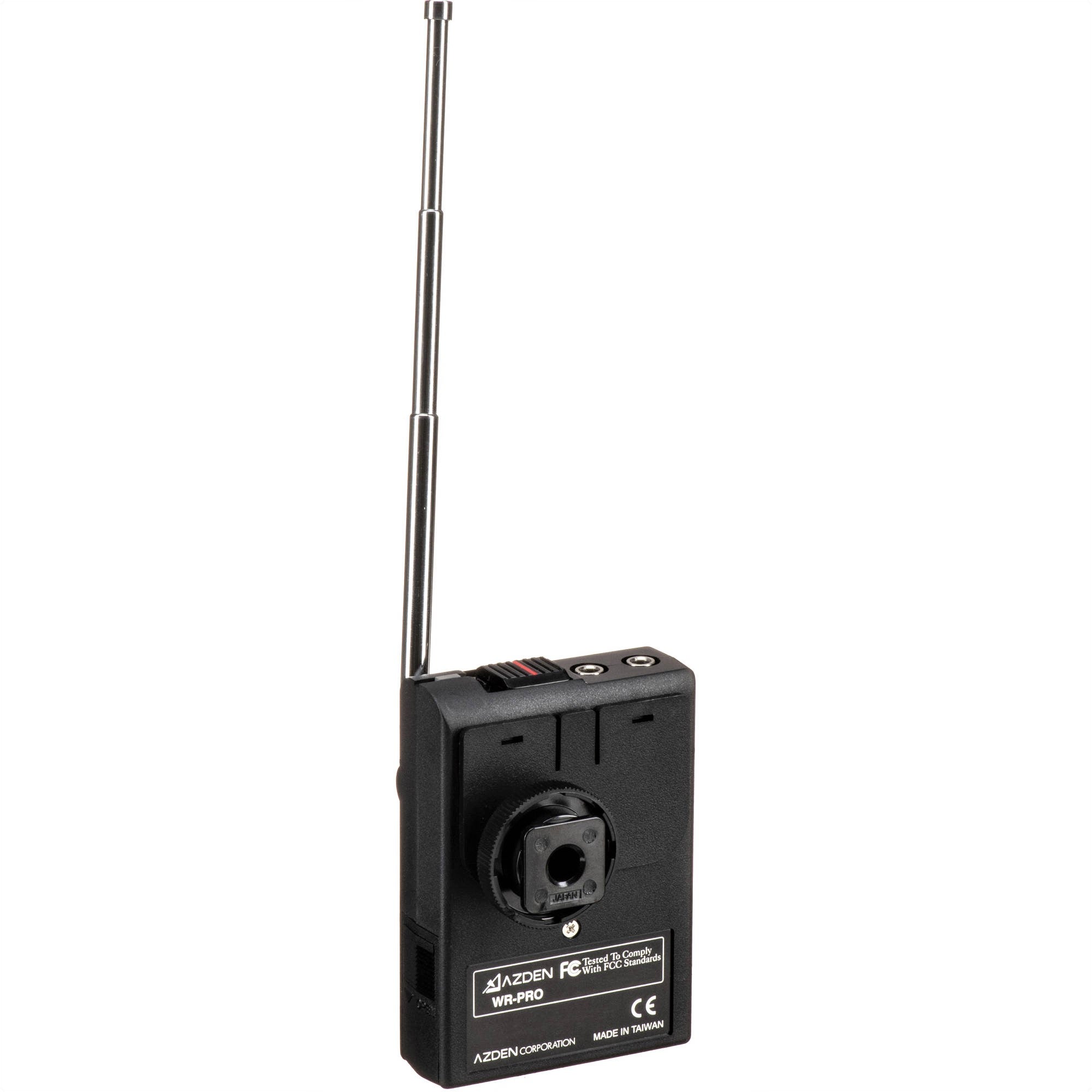

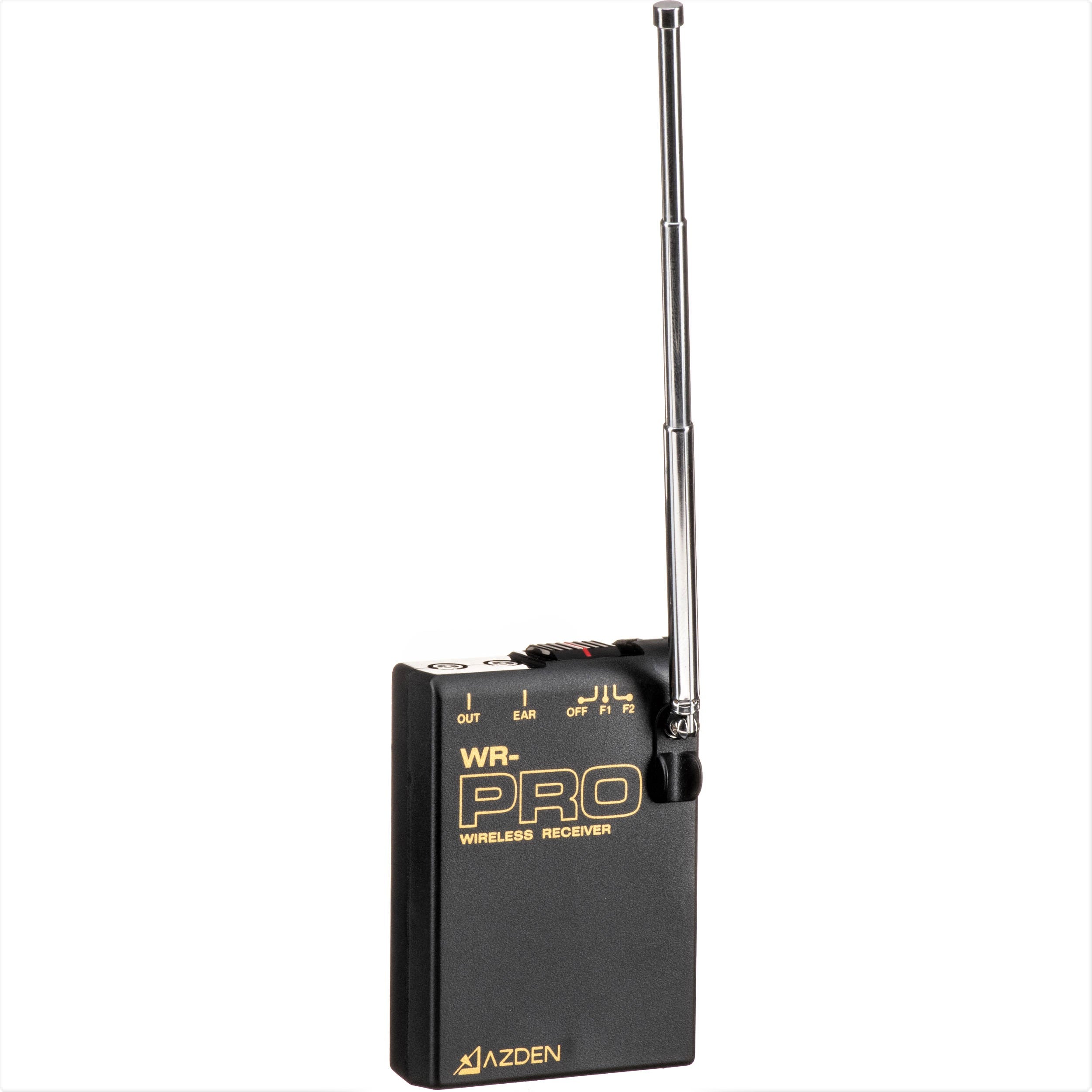

WR-PRO

• Reception Frequency: F1: 169.445MHz; F2: 170.245MHz
• Receiver type: Double superheterodyne
• Sensitivity: 2mV @ S/N of 40dB
• Battery: 9V x1 Alkaline (not included)
• Power consumption: 25mA
• Monitor output: 1V @ 30Ω, Modulation frequency: 1kHz, Deviation: +/-7kHz
• Mic output: 8mV w/10kΩ load, Modulation frequency: 1kHz, Deviation: +/-7kHz
• Mic output impedance: 300Ω
• Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3” x 2.4” x 0.85”)
• Weight w/battery: 128g (4.5oz)

• Azden VHF Wireless Microphone System with Wired Handheld Microphone
• Azden WR-PRO VHF Camera-Mount Wireless Receiver (169 & 170 MHz)
• Azden WLT/PRO VHF Wireless Bodypack Transmitter with Omni Lavalier Mic (169 & 170 MHz)
• Shoemount Adapter
• Earphone Monitor
• Belt Clip
• 3.5mm to 3.5mm Output Cable
• 3.5mm TRRS Adapter Output Cable for Smartphone
• Hook-and-Loop Mounting Tape
• Limited Warranty
