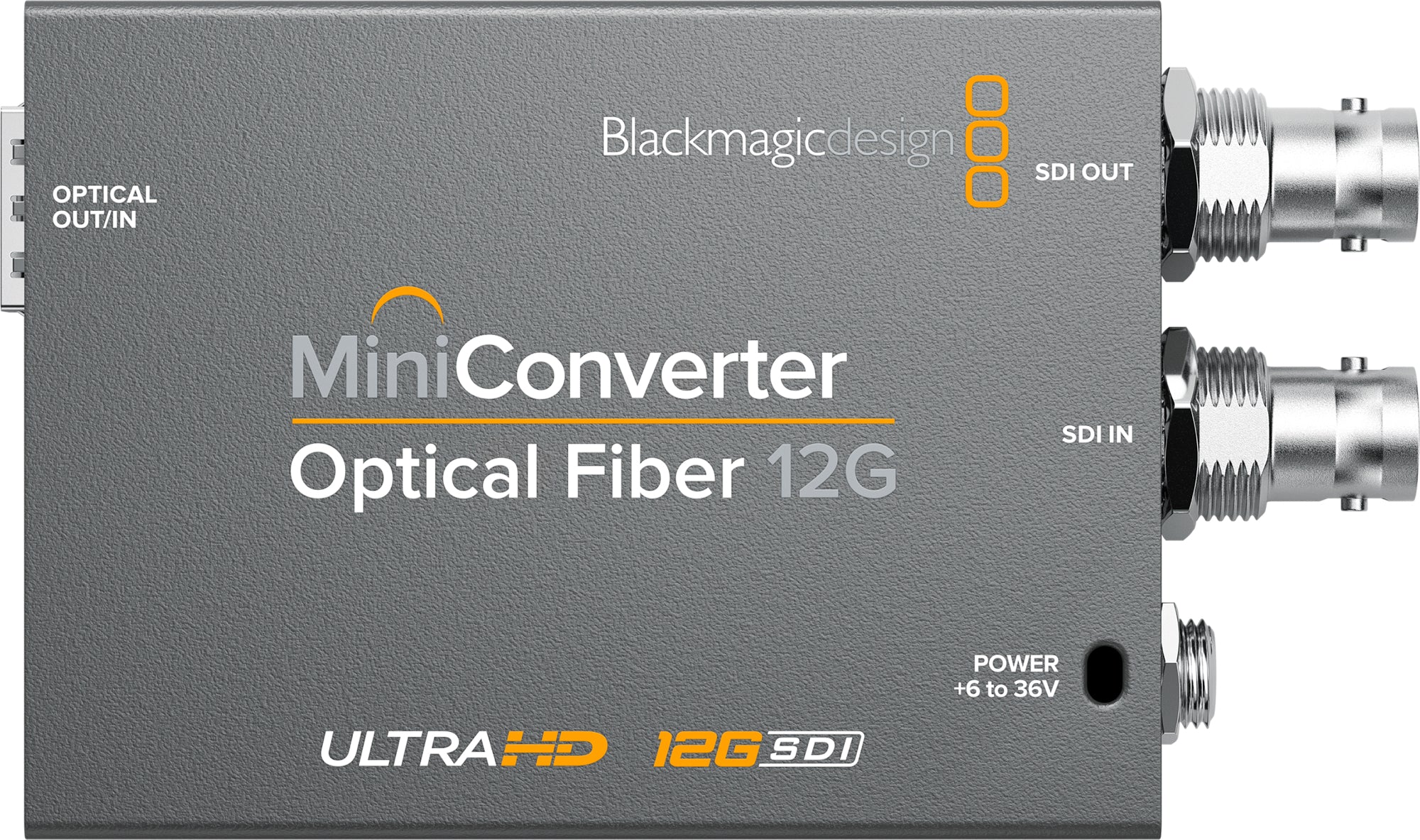

Blackmagic Design Mini Converter - Optical Fiber 12G

Blackmagic Design Mini Converter - Optical Fiber 12G: Compact, Bi-directional HD Video Extension

The Blackmagic Design Mini Converter - Optical Fiber 12G efficiently extends SDI video signals up to 10 miles using fiber optic technology, providing a robust solution for both studio and field environments. This compact and cost-effective unit supports a range of video formats from SD to Ultra HD 4K at 60 fps, making it versatile across various production settings. Featuring bi-directional conversion capabilities, it can simultaneously convert signals from SDI to optical fiber and vice versa. Its small size ensures it fits easily in tight spaces, ideal for live event setups where space is at a premium.

With support for up to 16 channels of embedded audio and automatic signal detection, this converter simplifies setup and integration into existing workflows, ensuring seamless operation without the need for manual configuration. The package includes a universal power supply, though an SFP optical module is required for operation and must be purchased separately.

More Details:

• Extended Range: Transmits SDI video signals up to 10 miles using fiber optic cables, ensuring coverage over long distances.
• Bi-directional Capability: Simultaneously converts signals from SDI to optical fiber and back, offering flexibility in signal management.
• Multi-Format Compatibility: Supports a wide range of video standards, from SD through Ultra HD 4K at 60 fps, making it adaptable to various production needs.
• Space-Saving Design: Its compact footprint makes it ideal for use in environments where space is limited, such as live event locations.
• Cost-Effective Solution: Provides an affordable option for extending camera coverage without compromising on quality or performance.
• Comprehensive Audio Support: Handles up to 16 channels of embedded SDI audio, facilitating comprehensive audio-video setups.

Applications:

• Live Event Broadcasting: Extend camera feeds over long distances without losing signal quality, ideal for concerts, sports events, and conferences.
• Film and Television Production: Facilitate remote video feeds from the field back to the studio, ensuring high-quality image transmission even over vast sets or outdoor locations.
• Video Installation Projects: Enable long-distance signal transmission in large venues like museums, galleries, or theme parks, where running traditional cable might be impractical or unsightly.
• Corporate Events: Support seamless video presentations across large corporate campuses or between different rooms in conference centers.
• Educational Settings: Transmit educational content from a centralized media room to classrooms around a campus without degradation of video quality.
• Security Monitoring: Apply in security setups where high-resolution video needs to be reliably transferred over long distances from cameras to control centers.

• Supports Signals up to DCI 4K25
• Converts 12G/6G/3G-SDI to Optical Fiber
• Multi-Rate, Bidirectional Capability

• Automatic Input Signal Detection

• 16-Channel Embedded Audio Support
• Diagrammed Function Switches
• Update via Converter Utility Software
• Locking, Universal Power Supply
• Requires Separate SFP Optical Module
• Compact Metal Housing

• Video Input: 1x 12G-SDI (BNC)
• Video Output: 1x 12G-SDI (BNC)
• Optical Fiber Input/Output: 1x LC Connector
• Audio Support: Up to 16 channels embedded SDI audio
• Data Rate: SD-SDI to 12G-SDI
• Video Standards: SD, HD, Ultra HD up to DCI 4K25
• Power Requirements: 100 - 240 VAC
• Power Supply: Blackmagic Design Universal Power Supply included
• Dimensions: 3.1 x 1.1 x 1.4 in (78.3 x 28.5 x 35.4 mm)
• Weight: 0.4 lbs (0.18 kg)
