Key Features
- Single Link SD/HD/3G/6G-SDI input
- Eight Single Link SD/HD/3G/6G-SDI outputs
- Re-clocked outputs for improved signal quality
- Supports SD, HD, UHD 4K & DCI 4K signals
- Automatic input signal detection
- Supports ancillary data and embedded audio
- Supports ASI signals
- Control via DIP switches or software
- USB 2.0 port for firmware updates
- 12V universal power supply included
Blackmagic Design

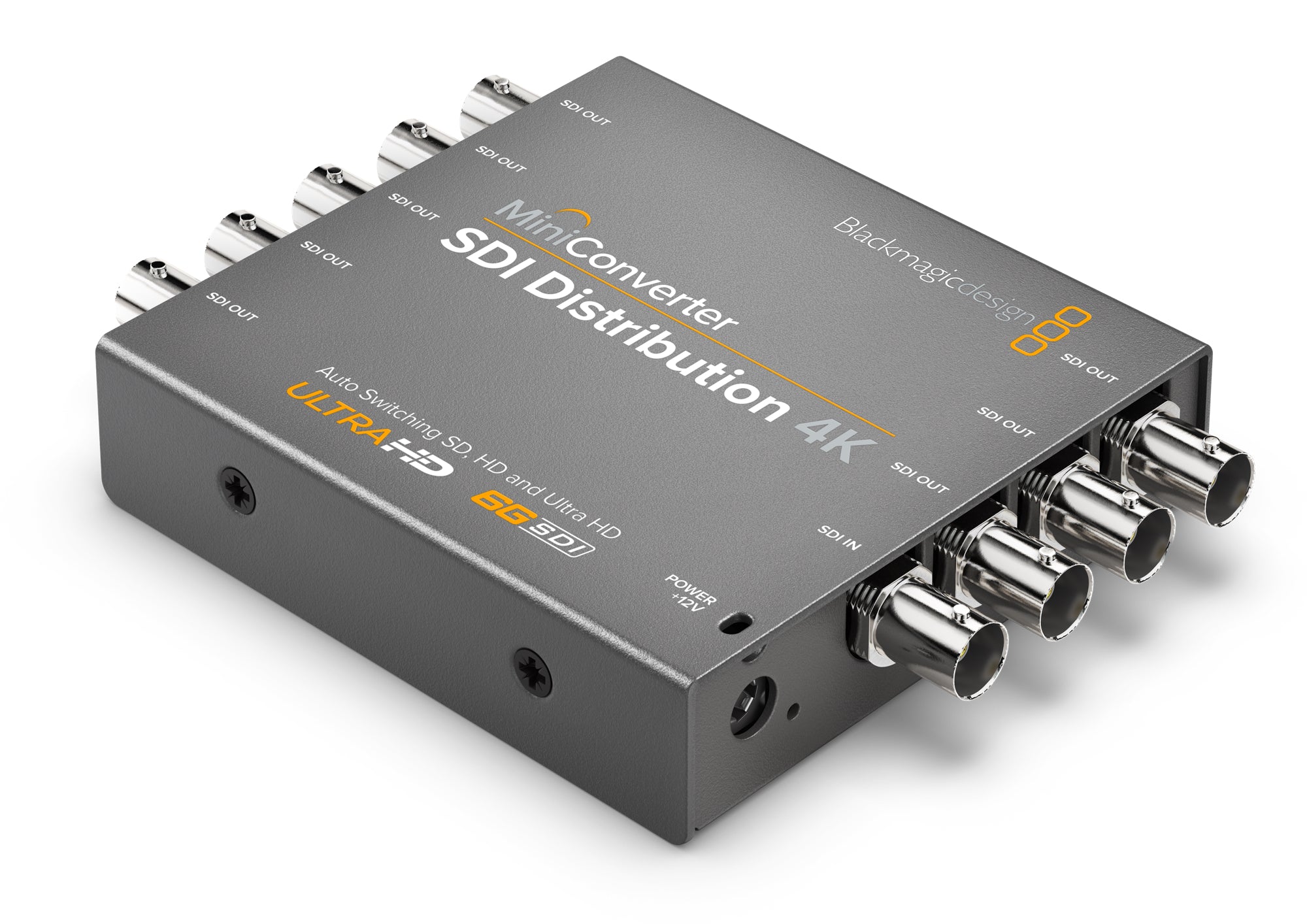

Blackmagic Design Mini Converter - SDI Distribution 4K
Blackmagic Design Mini Converter - SDI Distribution 4K
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
Key Features
- Single Link SD/HD/3G/6G-SDI input
- Eight Single Link SD/HD/3G/6G-SDI outputs
- Re-clocked outputs for improved signal quality
- Supports SD, HD, UHD 4K & DCI 4K signals
- Automatic input signal detection
- Supports ancillary data and embedded audio
- Supports ASI signals
- Control via DIP switches or software
- USB 2.0 port for firmware updates
- 12V universal power supply included
Hurry and Save
- FREE Shipping for orders $150 above
- Add $25 for 2-day expedited shipping
- Ask about our Refer a Friend Program!
Got A Question? - Ask Our Team
Reliable 4K SDI Signal Distribution with Blackmagic Design Mini Converter
The Blackmagic Design Mini Converter - SDI Distribution 4K efficiently broadcasts a single SDI signal to eight different SDI outputs, supporting video formats such as SD, HD, Ultra HD 4K (up to 30 fps), and DCI 4K (up to 24 fps). With its ability to automatically detect and re-clock input signals, this device ensures high-quality signal integrity across long distances. Its compact and lightweight build allows seamless integration into any professional broadcast, post-production, or AV setup. This cost-effective solution is perfect for environments requiring high-quality video distribution without consuming extensive space or resources.
The Mini Converter is not only powerful but also incredibly user-friendly, providing straightforward controls via DIP switches or software, making it an ideal choice for varied professional video applications.
More Details:
- Versatile Format Support: Handles SD, HD, Ultra HD 4K (up to 30 fps), and DCI 4K (up to 24 fps), catering to various video production needs.
- Automatic Signal Detection and Re-Clocking: Ensures reliable transmission and high-quality output over long distances by automatically detecting and re-clocking the input signal.
- Compact and Lightweight Design: Easy to integrate into any professional setup, saving valuable space and adding portability for mobile productions.
- Cost-Effective Solution: Offers a reliable and affordable way to distribute a single SDI signal to multiple devices without compromising quality.
- User-Friendly Control Options: Simple configuration through DIP switches and advanced features accessible via software control, making it easy to use for professionals at any skill level.
Applications:
- Broadcast Environments: Ideal for distributing high-quality video signals to multiple monitors or devices in a live broadcast setting.
- Post-Production Studios: Perfect for routing video signals to various editing and review stations, ensuring consistent quality across all outputs.
- Professional AV Installations: Suitable for use in large-scale AV setups, such as conference rooms, auditoriums, and event venues, where reliable signal distribution is critical.
- Live Event Productions: Essential for live events requiring multiple display outputs, such as concerts, sports events, and corporate presentations.
- Mobile Productions: Compact and lightweight design makes it ideal for use in on-the-go video production setups, ensuring seamless signal distribution in the field.
- Film and Television Studios: Supports a wide range of video formats, making it a versatile tool for distributing signals to various equipment used in film and TV production.
- Single Link SD/HD/3G/6G6G-SDI Input
- 8x Single Link SD/HD/3G/6G-SDI Outputs
- Re-Clocked Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Ancillary Data & Embedded Audio
- Supports ASI Signals
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards
- Input: 1x Single Link SD/HD/3G/6G-SDI
- Output: 8x Single Link SD/HD/3G/6G-SDI
- Video Standards: SD-SDI, HD-SDI, 3G-SDI, 6G-SDI
- Resolutions: Up to UHD 4K (3840 x 2160 at 30 fps) and DCI 4K (4096 x 2160 at 24 fps)
- Audio: Embedded SDI audio (up to 16 channels)
- Ancillary Data: Closed caption, timecode, etc.
- Power: 12V DC (power supply included)
- Dimensions: 108 x 55 x 25.4 mm (4.3 x 2.2 x 1 in)
- Weight: 250g (0.55 lbs)
What video formats does the Blackmagic Design Mini Converter - SDI Distribution 4K support?
The converter supports a wide range of video formats, including SD, HD, Ultra HD 4K (up to 30 fps), and DCI 4K (up to 24 fps).
How many SDI outputs does this converter have?
The Blackmagic Design Mini Converter - SDI Distribution 4K has eight SDI outputs, allowing you to distribute a single SDI signal to multiple devices simultaneously.
Does the converter automatically detect and re-clock input signals?
Yes, the converter automatically detects the input signal format and re-clocks it to ensure improved signal quality over long distances.
Can the converter be controlled via software?
Yes, in addition to DIP switches, the converter can be controlled via software, providing advanced configuration options.
What power supply does the converter use?
The converter uses a 12V universal power supply, which is included with the product.
Is the Blackmagic Design Mini Converter - SDI Distribution 4K suitable for mobile productions?
Yes, the compact and lightweight design of the converter makes it ideal for mobile productions and on-the-go video setups.
Does the converter support ancillary data and embedded audio?
Yes, the converter supports ancillary data and embedded audio, making it versatile for various professional video applications.
What are the dimensions and weight of the converter?
The dimensions of the converter are 108 x 55 x 25.4 mm (4.3 x 2.2 x 1 in), and it weighs 250g (0.55 lbs).
