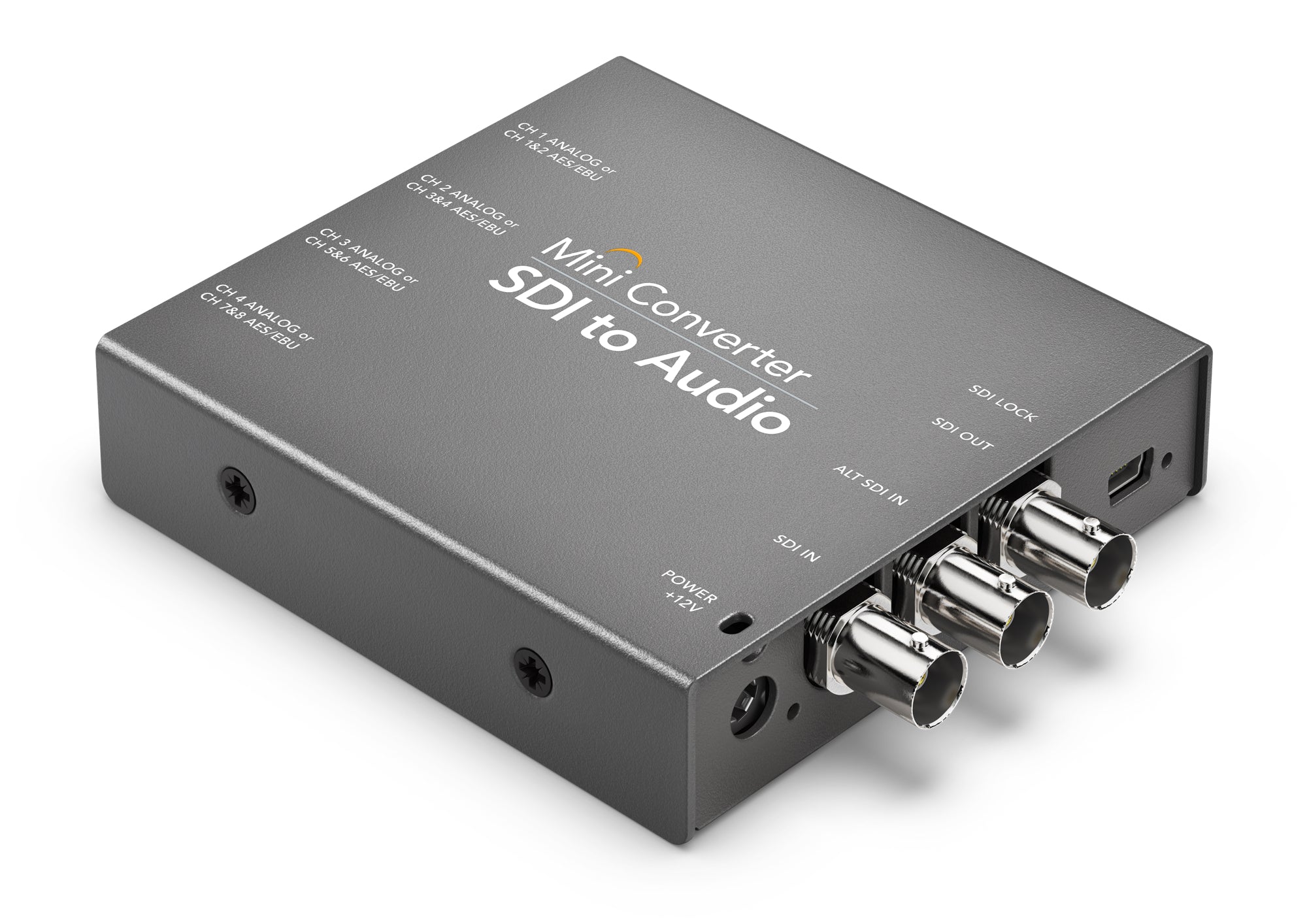

Transforming SDI to Audio with Blackmagic Design Mini Converter
With the Blackmagic Design Mini Converter - SDI to Audio you can easily access the audio in any SDI video connection for output to audio equipment! Such as audio mixers, analog broadcast decks, audio monitors and more!
SDI to Audio
De-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Access SDI audio for output to mixers, broadcast decks, and monitors.
Auto Switching SD and HD
Mini Converters effortlessly switch between SD and HD video formats, automatically adapting to input changes. They support a wide range of video standards, including NTSC, PAL, 1080i/59.94, 1080i/50, and more, with the option to add new formats via USB.
Redundant SDI Input
Mini Converters offer redundancy for crucial tasks, like broadcasting or live events. A redundant cable can be connected to the second input, automatically switching over if the main input fails. This is ideal for locations with potential cable damage or hard-to-reach areas. Additionally, a loop-through SDI output is provided for connecting to other devices. This setup is also beneficial for handling more than 2 audio channels by connecting it to another Mini Converter for extra audio channel de-embedding.
New 3 Gb/s SDI Technology
Mini Converters uniquely offer the latest 3 Gb/s SDI technology and support future video format updates via the built-in USB connection. This technology is fully compatible with your standard and high-definition SDI equipment.
Built in AES/EBU or Analog Audio
Mini Converters feature versatile 1/4 inch jacks for both balanced analog and AES/EBU audio. These connectors use standard cables available at pro audio stores, eliminating the need for custom cables. You can switch between analog and digital audio using the same jack connections with a simple switch on the unit's side. HDMI models provide access to embedded HDMI audio.
High Quality
Mini Converters are engineered with top-tier quality, ensuring minimal SDI jitter for extended cable lengths. They incorporate multiple internal power supplies to deliver ultra-low-noise broadcast-quality analog video and audio. Unlike some competitors, Mini Converters don't compromise on video electronics quality to cut costs. They employ high-grade broadcast-quality analog audio and video electronics, mirroring the design of our premium Multibridge Eclipse models. This guarantees outstanding quality in a compact, budget-friendly unit.
In-depth information:
- Compact and Portable: This converter boasts a small, deck-of-cards-sized form factor, ideal for travel, fitting easily into backpacks or camera bags.
- Broad Compatibility: With support for various audio formats like balanced analog, AES/EBU, and embedded SDI, it works seamlessly with diverse audio equipment.
- High-Quality Audio: Enjoy top-notch audio conversion with minimal noise and distortion, ensuring clear and interference-free sound.
- Reliability: Built tough for professional use, it can endure transportation and harsh weather conditions without faltering.
- Cost-Effective Solution: This converter offers an affordable means to convert audio signals to SDI, making it an excellent choice for budget-conscious users seeking reliability and quality.
- Input: SDI, switchable between SD, HD and 3 Gb/s SDI
- SDI Input Impedance: 75 Ω
- Analog Audio Output: 4 x Balanced Analog Audio on 1/4 inch Jacks
- Audio Output Level: +24 dBu
- Digital Audio Output: 8 x AES/EBU on 1/4 inch Jacks
- Video Standards: SD: 625/25 PAL, 525/29.97 NTSC; HD: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60
- Sampling: 48 kHz and 24 kHz
- Power Requirements: 12VDC (power supply included)
- Dimensions: 3.35 x 1.18 x 1.02 in (85 x 30 x 26 mm)
- Weight: 0.47 lbs (0.21 kg)
What is the Blackmagic Design Mini Converter - SDI to Audio used for?
The Blackmagic Design Mini Converter - SDI to Audio is used to extract (de-embed) audio from an SDI video signal, allowing you to send the audio to separate audio equipment like mixers, monitors, or recorders.
What types of audio outputs does the converter support?
The converter supports both balanced analog audio on standard 1/4-inch jacks and 8 channels of AES/EBU digital audio.
Is the Blackmagic Design Mini Converter compatible with both SD and HD video formats?
Yes, the converter is compatible with a wide range of SD and HD video formats, including 625/25 PAL, 525/29.97 NTSC, 1080p, and 720p at various frame rates.
Does the converter automatically detect the incoming SDI format?
Yes, the Blackmagic Design Mini Converter automatically detects the incoming SDI format, eliminating the need for manual configuration.
What happens if the main SDI input fails?
The converter features a redundant SDI input that automatically switches over if the main input fails, ensuring continuous signal flow.
What are the power requirements for the Blackmagic Design Mini Converter?
The converter requires 12VDC power, and a power supply is included with the device.
What are the dimensions and weight of the Blackmagic Design Mini Converter?
The dimensions of the converter are 3.35 x 1.18 x 1.02 inches (85 x 30 x 26 mm), and it weighs 0.47 lbs (0.21 kg).
