Enhance Your Videography with Blackmagic Design Video Assist 5 12G-SDI
The Blackmagic Design Video Assist 5 12G-SDI enhances videography with its superior monitoring and recording features, compatible with both SDI and HDMI cameras. This device captures up to DCI or UHD 4K HDR video with remarkable 10-bit, 4:2:2 quality using Apple ProRes or DNxHD codecs, making post-production seamless without the need for file conversion. The vibrant 5-inch touchscreen display boasts a 1920 x 1080 resolution and 2500 nits of brightness, suitable for precise HDR10 and Hybrid Log Gamma monitoring. With 12G-SDI connectivity, it supports all formats up to 2160p60, ensuring long-term relevance in your tech arsenal.
Additional features include built-in waveform, parade, and vectorscope scopes, along with focus and exposure assist tools and 3D LUT capabilities, facilitating accurate on-the-fly color grading. Its compact and lightweight design is ideal for mobile setups, making it a perfect companion for professional videographers aiming to elevate their video production quality.
More Details:
- Superior Video Quality: Records DCI or UHD 4K HDR video at 10-bit, 4:2:2 quality using Apple ProRes or DNxHD codecs for hassle-free post-production.
- Advanced HDR Support: Features a 5-inch, 1920 x 1080 resolution touchscreen display with 2500 nits of brightness, ideal for precise HDR monitoring in HDR10 and Hybrid Log Gamma formats.
- Rapid 12G-SDI Connectivity: Supports all formats up to 2160p60 through 12G-SDI connections, ensuring future-proof compatibility with evolving technology.
- Professional Monitoring Tools: Includes essential scopes like waveform, parade, and vectorscope, plus focus and exposure assist tools and 3D LUT support for real-time color grading.
- Portable Design for Any Setting: Its compact and lightweight build is perfect for various shooting environments, whether on a gimbal, handheld, or traditional setups.
Applications:
- Field Production: Ideal for filmmakers and videographers working on location, providing reliable, high-quality monitoring and recording.
- Live Event Coverage: Essential for capturing and monitoring live events, ensuring broadcast-quality footage with real-time HDR support.
- Independent Filmmaking: A practical tool for indie filmmakers needing professional-grade recording and monitoring without a large crew.
- Documentary Shooting: Offers the durability and mobility needed for the unpredictable environments of documentary filmmaking.
- Commercial Shoots: Enhances commercial production with its high-resolution recording and precise color grading capabilities.
- Educational Purposes: Useful in educational settings for teaching advanced videography techniques with immediate feedback on recording quality and color settings.
- Record up to DCI or UHD 4K HDR Video
- HDMI and 12G-SDI Video Inputs & Outputs
- 10-Bit, 4:2:2 ProRes & DNxHD Encoding
- Blackmagic Raw with Select Cameras
- 3D LUTs, 2500 cd/m² Brightness
- Stores to Single SDHC/XC Memory Slot
- Histogram, Waveform, Vectorscope

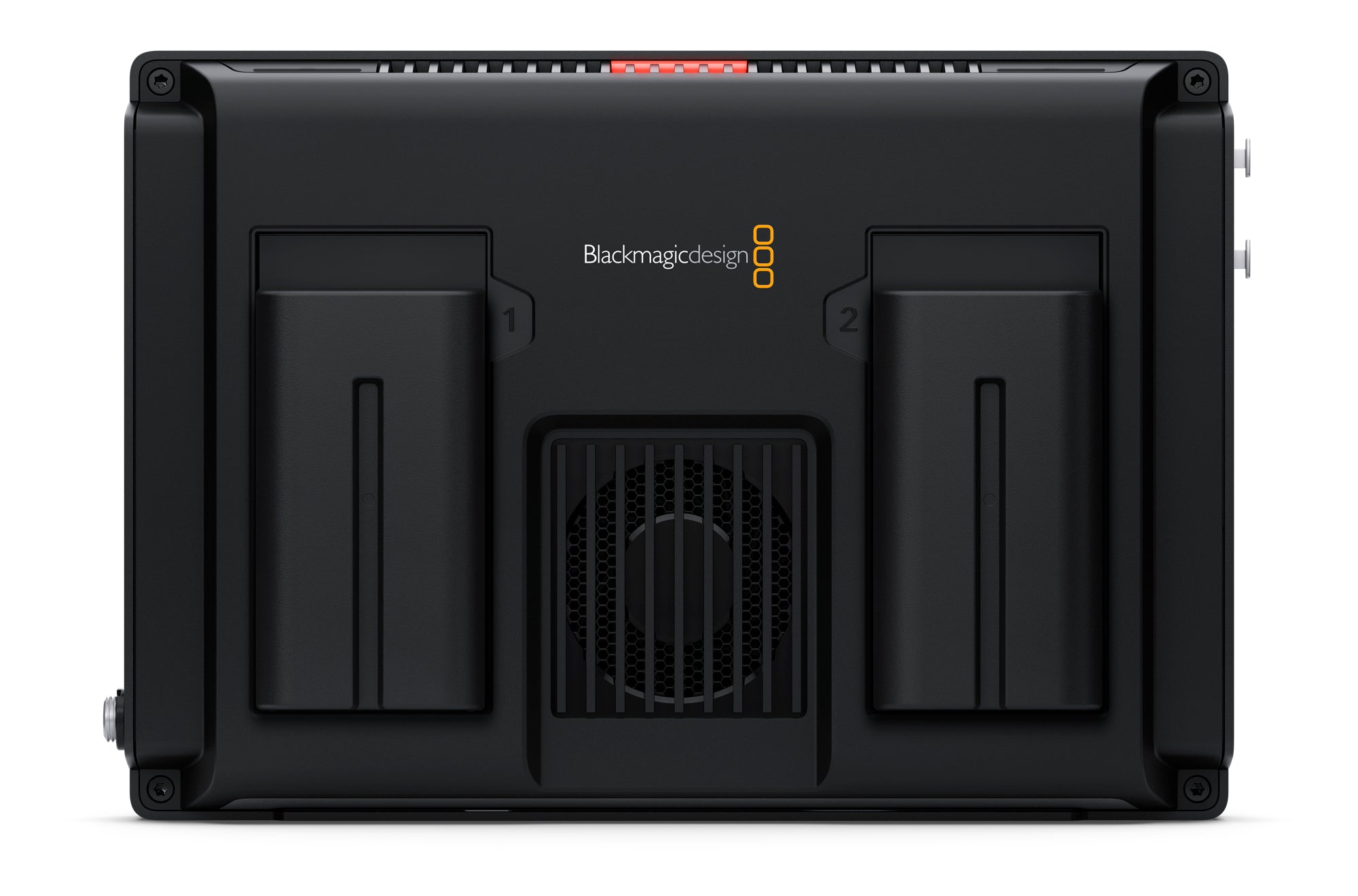

- Dual L-Series Battery Slots, AC Adapter
- Two Models to choose from
- 5" 1920 x 1080 Touchscreen LCD or
- 7" 1920 x 1200 Touchscreen LCD W/ Two Balanced Mini-XLR Audio Inputs

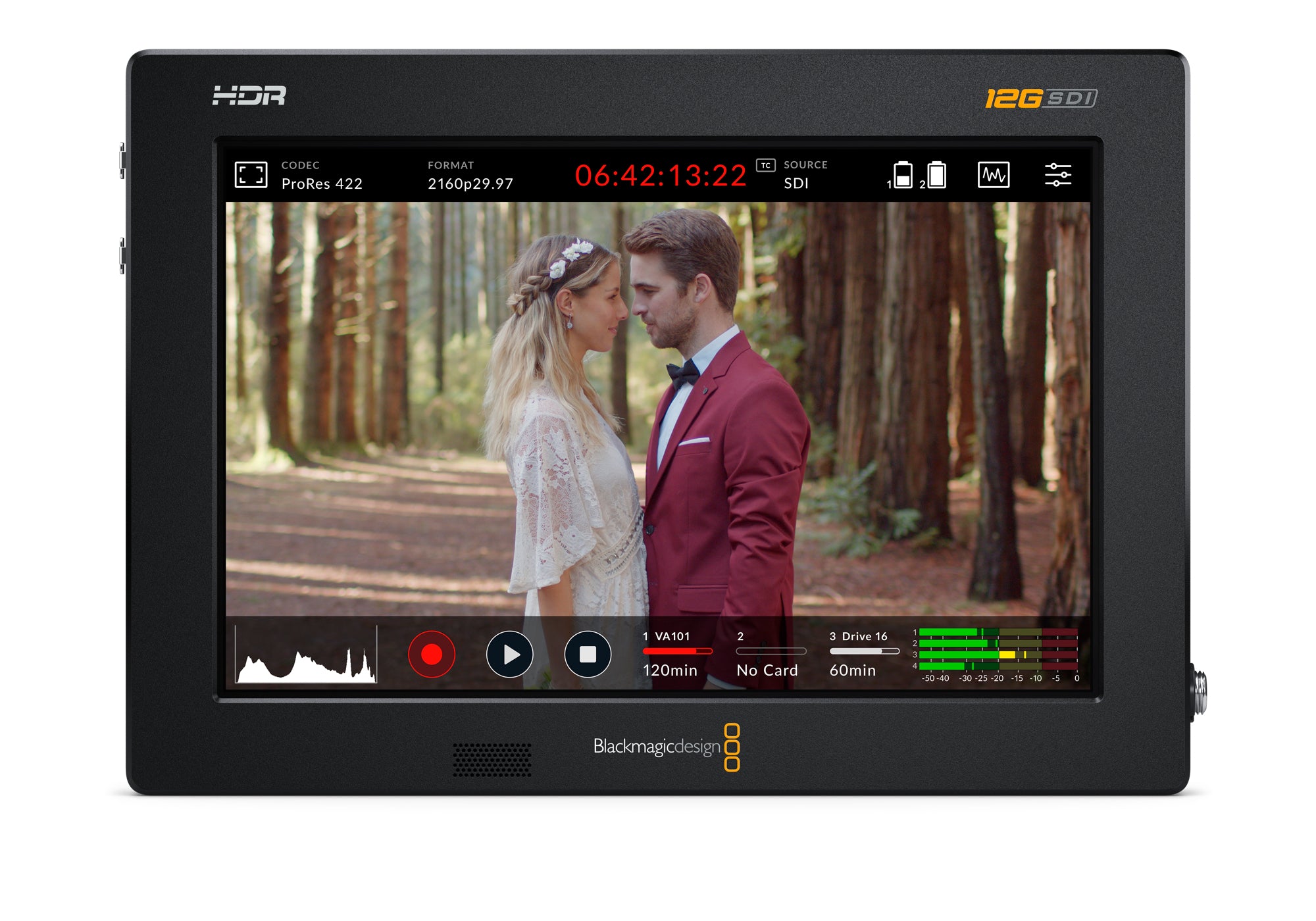

- Display: 5 inch, 1920 x 1080 resolution, capacitive touchscreen, 1000:1 contrast ratio, 2500 nit brightness, P3 wide color gamut

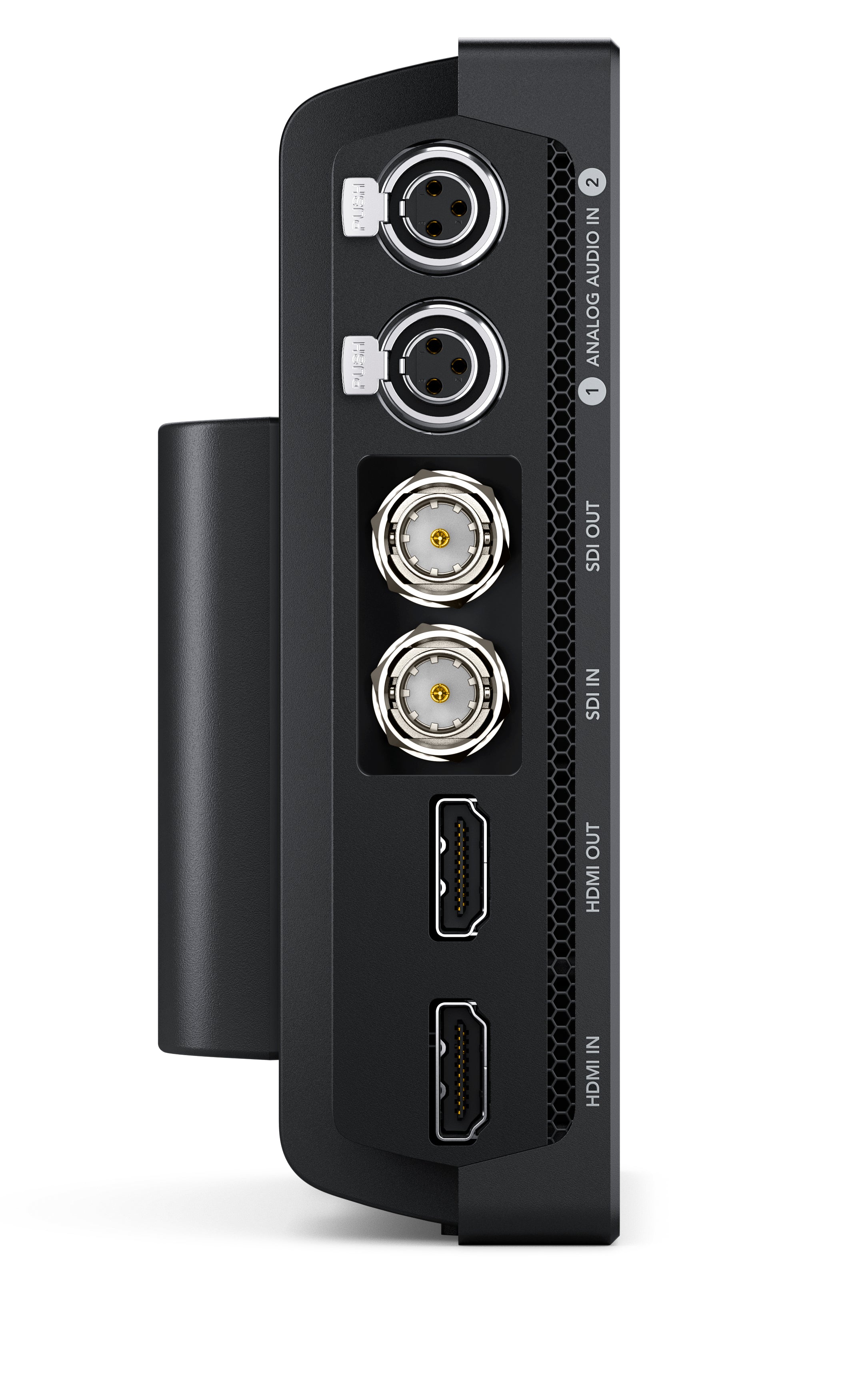

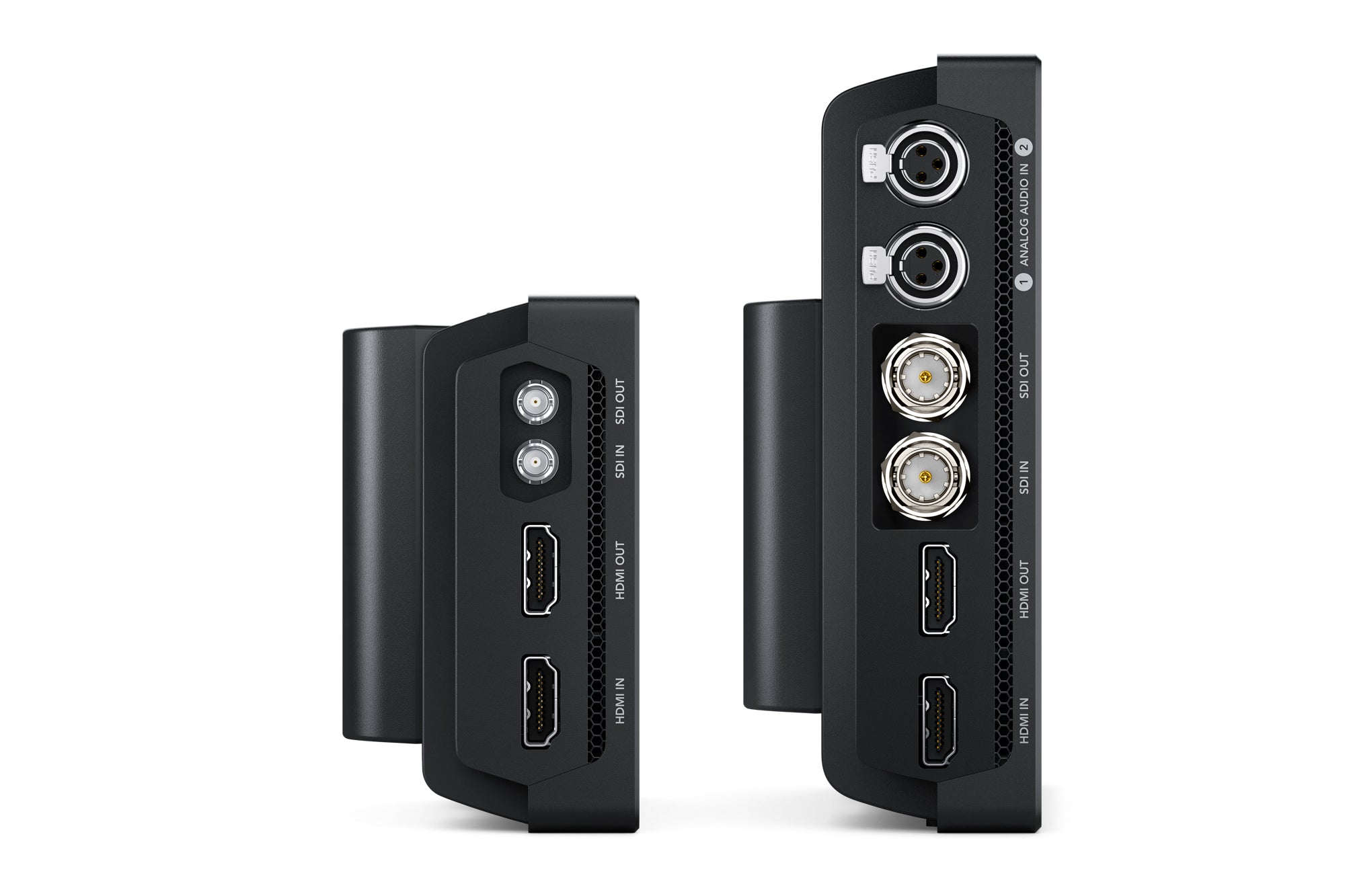

- Video Inputs: 1x 12G-SDI, 1x HDMI 2.0a
- Video Outputs: 1x 12G-SDI, 1x HDMI 2.0a
- Audio Inputs: Embedded SDI audio (up to 16 channels)
- Audio Outputs: Embedded HDMI audio (up to 8 channels), 3.5mm headphone jack
- Recording Codecs: Apple ProRes (HQ, 422, LT, Proxy), DNxHD, DNxHR
- Recording Media: Single SDXC/HC UHS-II card slot
- Power: DC input 12V-30V, Sony L-Series battery
- Dimensions: 5.51 x 3.82 x 1.30 in (140 x 97 x 33 mm)
- Weight: 0.73 lbs (0.33 kg)
Can the Blackmagic Design Video Assist 5 12G-SDI record in various resolutions?
Yes, it supports recording in multiple resolutions including DCI and UHD 4K, catering to different project requirements and ensuring compatibility with various cameras and formats.
What are the advantages of 12G-SDI connectivity?
12G-SDI connectivity offers higher bandwidth capabilities which allow for the transmission of high-resolution, high frame rate video signals over a single cable, simplifying setup and ensuring future-proof operation up to 2160p60.
Is the device suitable for outdoor shooting?
Yes, the Blackmagic Design Video Assist 5 12G-SDI is designed to be compact and lightweight, making it ideal for outdoor shooting. Its bright, high-resolution display is also readable in sunlight, enhancing its usability in various shooting conditions.
Can I use the device for live streaming?
While primarily designed for recording and monitoring, it can be integrated into a live streaming setup with additional equipment, leveraging its high-quality output for live broadcast scenarios.
Does it support audio monitoring?
Yes, the device includes a mono speaker and a 3.5mm headphone jack that allow for audio monitoring directly from the device, ensuring sound quality matches the high-quality video performance.
