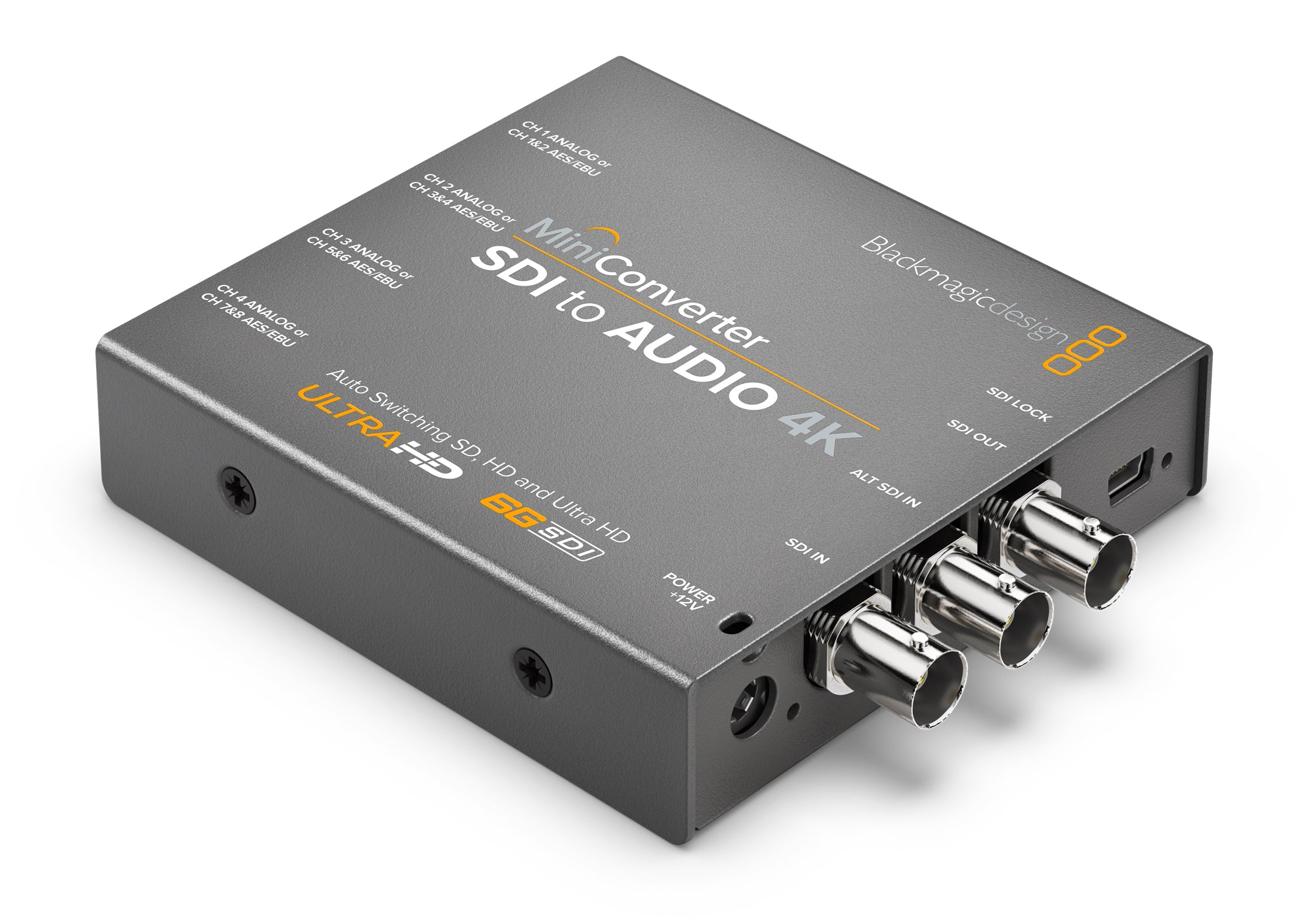

Seamless Audio Extraction with the Blackmagic Design Mini Converter SDI to Audio 4K
The Blackmagic Design Mini Converter SDI to Audio 4K offers unparalleled versatility for professional audio extraction from SDI video signals, supporting resolutions up to DCI 4K (4096 x 2160). Its compact design makes it ideal for on-the-go setups, while its robust functionality allows for de-embedding up to 4 channels of analog audio or 8 channels of AES/EBU digital audio. This device is perfect for various professional applications such as audio monitoring, routing to separate audio mixers, and interfacing with legacy equipment.
With features like automatic signal detection, redundant SDI input for reliability, and easy control through DIP switches or software, the Mini Converter ensures seamless integration into any workflow, delivering professional-quality 24-bit, 48 kHz audio.
More Details:
- Compact and Portable Design: Lightweight with a miniature form factor, this converter integrates easily into any setup and is perfect for mobile use.
- Wide Format Support: Handles a range of video resolutions, including SD, HD, Ultra HD, and DCI 4K, ensuring compatibility with most professional equipment.
- Dual Audio Options: Offers the flexibility to de-embed either 4 channels of analog audio or 8 channels of AES/EBU digital audio, catering to various audio needs.
- Automatic Signal Detection: Eliminates manual configuration by automatically detecting the input video format.
- Redundant SDI Input: Provides added reliability with a secondary SDI input that switches automatically if the primary input fails.
- Professional Audio Quality: Supports high-quality 24-bit, 48 kHz audio, ensuring top-tier audio performance for professional applications.
- Easy Control: Features DIP switches for basic settings and software updates for advanced configuration, making it user-friendly.
Applications:
- Audio Extraction for Monitoring: Perfect for extracting audio from SDI feeds for real-time monitoring.
- Recording from SDI Feeds: Enables easy audio recording by de-embedding audio from SDI video signals.
- Routing to Audio Mixers: Facilitates routing extracted audio to separate audio mixers or processors.
- Legacy Equipment Integration: Allows de-embedding audio for legacy equipment that lacks support for embedded audio.
- Broadcast and Live Production: Essential for broadcast environments and live production where high-quality audio extraction is critical.
- Post-Production Workflows: Streamlines post-production by providing separate audio tracks from video feeds.
- Professional AV Installations: Suitable for AV installations requiring reliable audio extraction and routing solutions.
- De-Embeds Audio from SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 1/4" Audio Output Jacks X 4
- Analog or 8 AES/EBU Audio Channels X 4
- 48 kHz Audio, 24-Bit
- DIP Switches or Software Control
- Video Input: 1x Single-link 6G-SDI, Supports SD, HD, UHD 4K & DCI 4K resolutions, Automatic input format detection
- Video Output: 1x Single-link 6G-SDI (loop through) - Passes through the original SDI signal without modification
- Audio Output: 4x 1/4" TRS jacks, Selectable for 4-channel analog or 8-channel AES/EBU digital audio, 24-bit sampling rate, 48 kHz sampling rate
- Control: DIP switches for basic configuration, Software control for advanced configuration via USB (requires Blackmagic Design Utility Software)
- Power Requirements: 12V DC power supply included, Power consumption: 4.5W
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Dimensions: 4.52" x 3.63" x 0.90" (11.48 x 9.22 x 2.29 cm)
- Weight: 7.61 oz (215.74 g)
- Additional Notes: Blackmagic Design Utility Software is available for download from the Blackmagic Design website Blackmagic Design Download Center. The Mini Converter SDI to Audio 4K is a professional-grade device and may not be suitable for consumer applications.
What video resolutions does the Blackmagic Design Mini Converter SDI to Audio 4K support?
The converter supports a wide range of video resolutions, including SD, HD, Ultra HD, and DCI 4K (4096 x 2160).
How many audio channels can the Mini Converter de-embed?
It can de-embed either 4 channels of analog audio or 8 channels of AES/EBU digital audio.
Does the Mini Converter support automatic signal detection?
Yes, the device automatically detects the input video format, eliminating the need for manual configuration.
What kind of audio output connections does the converter offer?
It features 4x 1/4" TRS audio output jacks for both analog and digital audio outputs.
Is there a backup feature for the SDI input?
Yes, the Mini Converter includes a redundant SDI input that switches automatically to a backup signal if the primary input fails.
Can the converter be controlled via software?
Yes, the converter offers software control for advanced configuration via USB, using the Blackmagic Design Utility Software.
What are the power requirements for the Mini Converter?
The device requires a 12V DC power supply, which is included, and it consumes 4.5W of power.
What is the operating temperature range for the device?
The operating temperature range is from 0° to 40° C (32° to 104° F).
Is the Blackmagic Design Utility Software included with the converter?
No, but it is available for download from the Blackmagic Design website Blackmagic Design Download Center.
Is the Mini Converter suitable for consumer applications?
No, the Mini Converter SDI to Audio 4K is a professional-grade device and may not be suitable for consumer applications.
