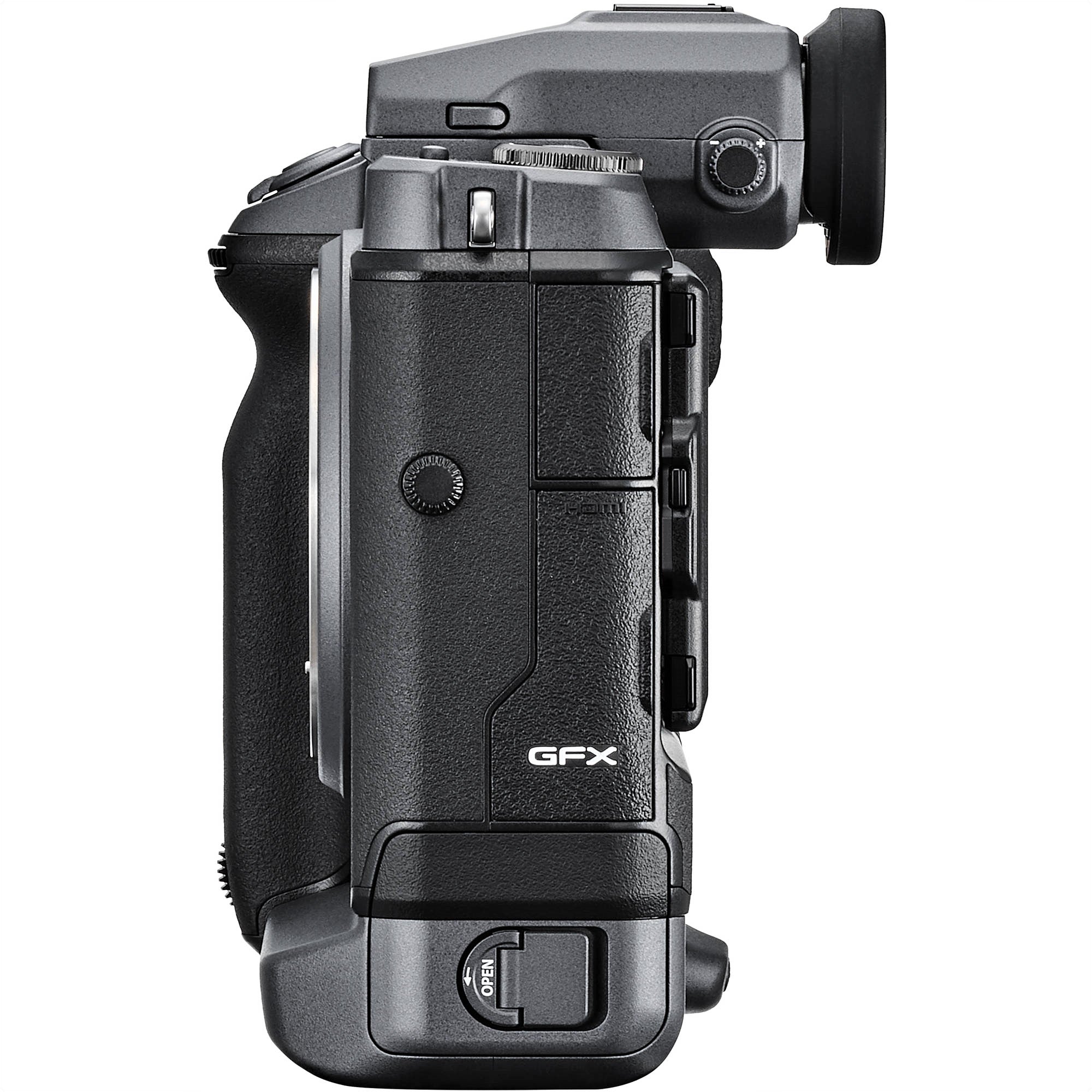

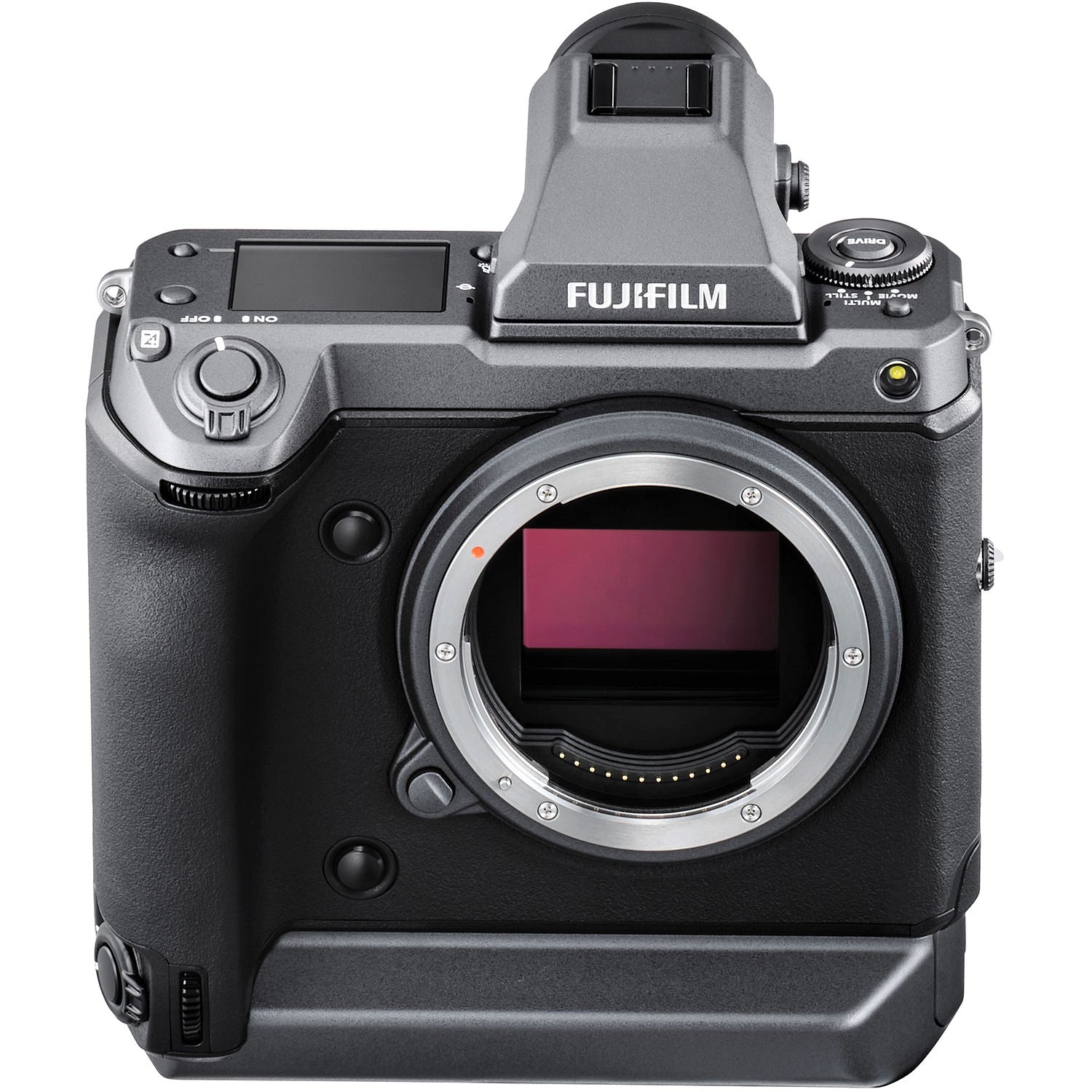

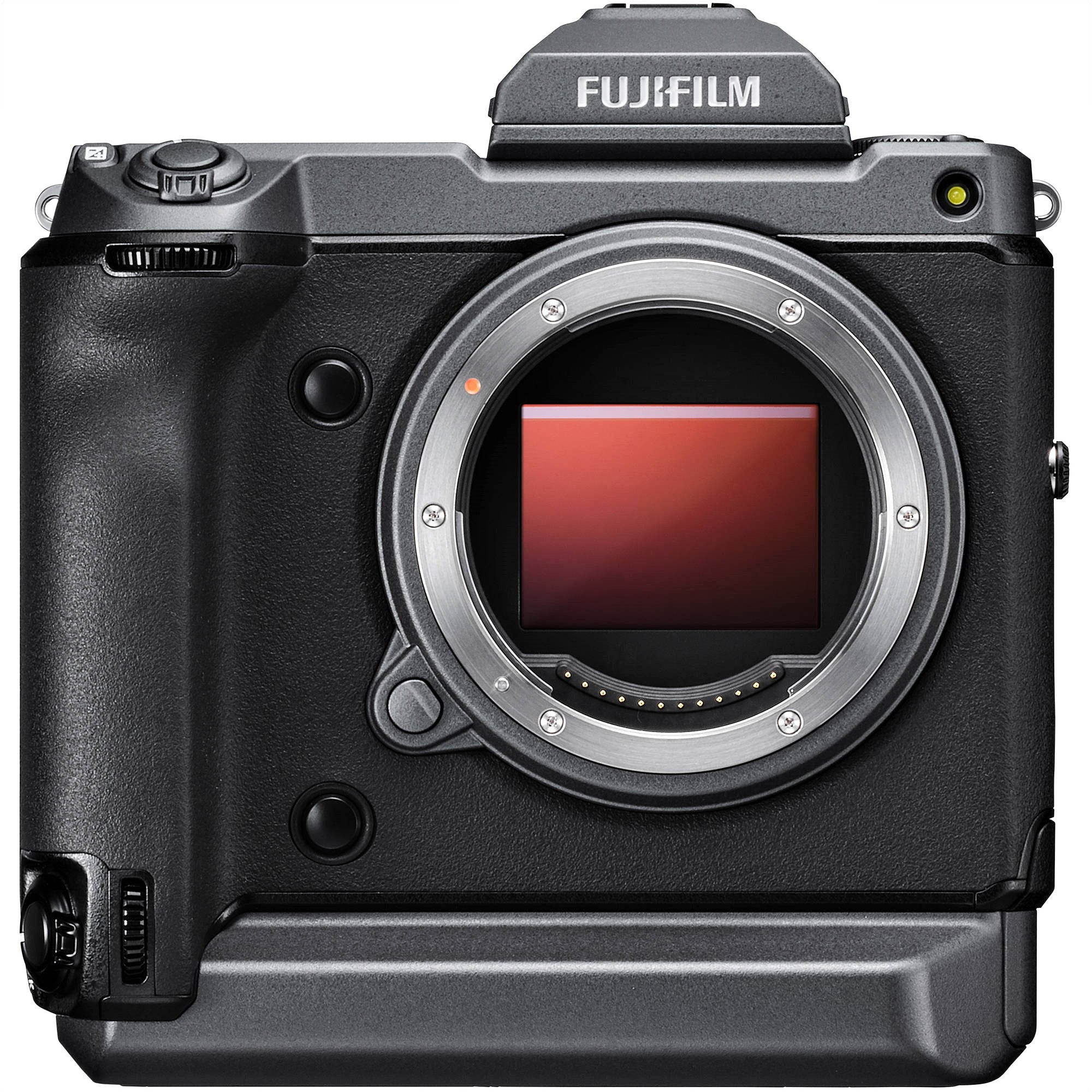

Fujifilm GFX 100 Medium Format Mirrorless Camera

Fujifilm GFX 100 Medium Format Mirrorless Camera
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
Providing filmmakers with a way to push the limits of wide format 4K/30p motion capture, the Fujifilm GFX 100 Medium Format Mirrorless Camera is not only reshaping how images are being made, but it is also redefining large format for the world's next generation of image makers. This medium format mirrorless camera pairs a newly-developed back-illuminated 102MP imaging sensor with a blazingly fast X Processor 4 processing engine to create a combination capable of outputting 16-bit images with amazing color fidelity, rich shadow detail, and incredible dynamic range. Its back-illuminated structure enhances image quality by bringing the exposure plane closer to the color filter array and this reduces noise levels from that typically experienced with mirrorless cameras and extends the native ISO to ISO 100. Sharpness is also enhanced, while moire and false colors are near eliminated through the omission of an optical low-pass filter.
Compared to traditional large-format digital systems, the Fujifilm GFX 100 raises the bar in auto-focus performance by utilizing AF phase detection pixels across most of the sensor to help photographers obtain focus wherever they choose to position their subjects in the frame. At approximately 100% coverage, increased auto-focus performance with speed and accuracy is now a complete reality for photographers needing optimum performance in subject tracking, face/ eye detection, and low-contrast environments. Plus, GFX100 offers filmmakers a viable alternative to achieving their creative visions with a sensor size of 43.9mm x 32.9mm. The new sensor and processor combination support 4K video recording at 30p/10bit with a uniquely cinematic, large format look for cinematographers who want exceptional control over depth of field and film-like tonality. And with the ability to apply Fujifilms highly respected Film Simulations, record in F-Log Rec 2020, and capture 10-bit, 4:2:2 uncompressed footage through the HDMI port, GFX100 should certainly be coming soon to a screen near you!
- 102MP 43.8 x 32.9mm BSI CMOS Sensor
- 16-Bit Raw Output, Multi-Aspect Ratios

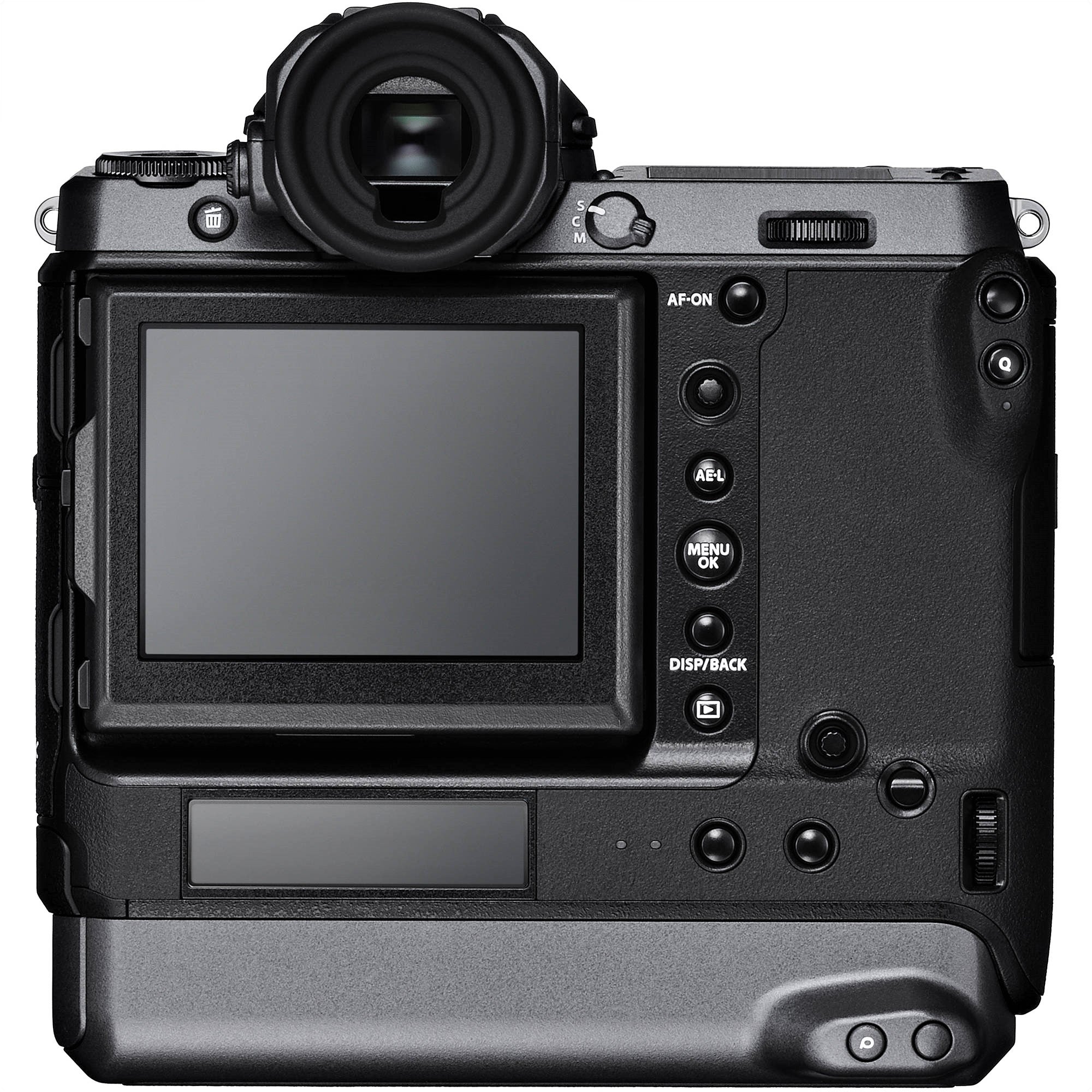

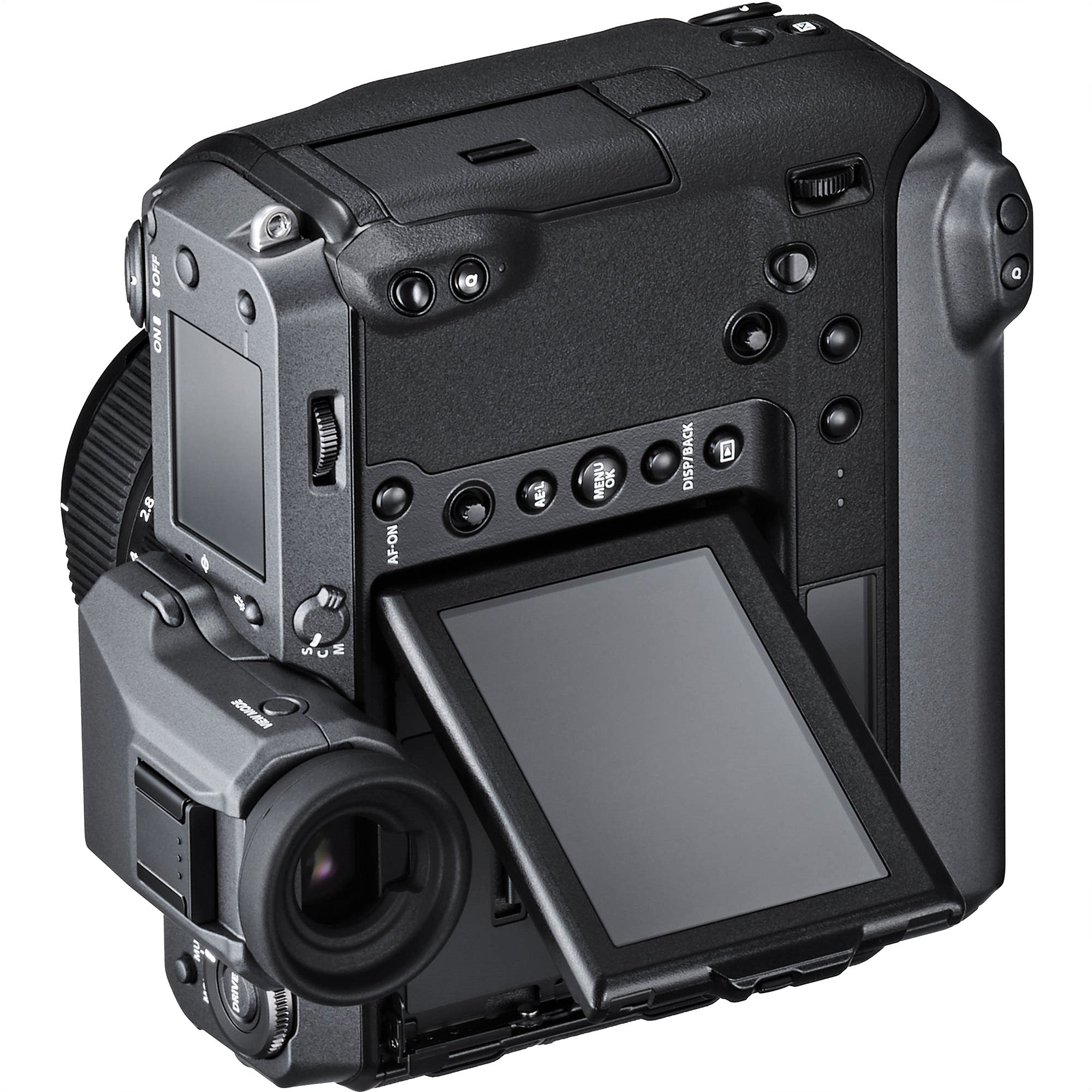

- 3.2" 2.36m-Dot Tilting Touchscreen LCD
- 5-Axis Sensor-Shift Image Stabilization
- 3.76m-Point Phase-Detection Autofocus
- DCI 4K30 Video; F-Log Gamma & 10-Bit Out
- X-Processor 4 Image Processor

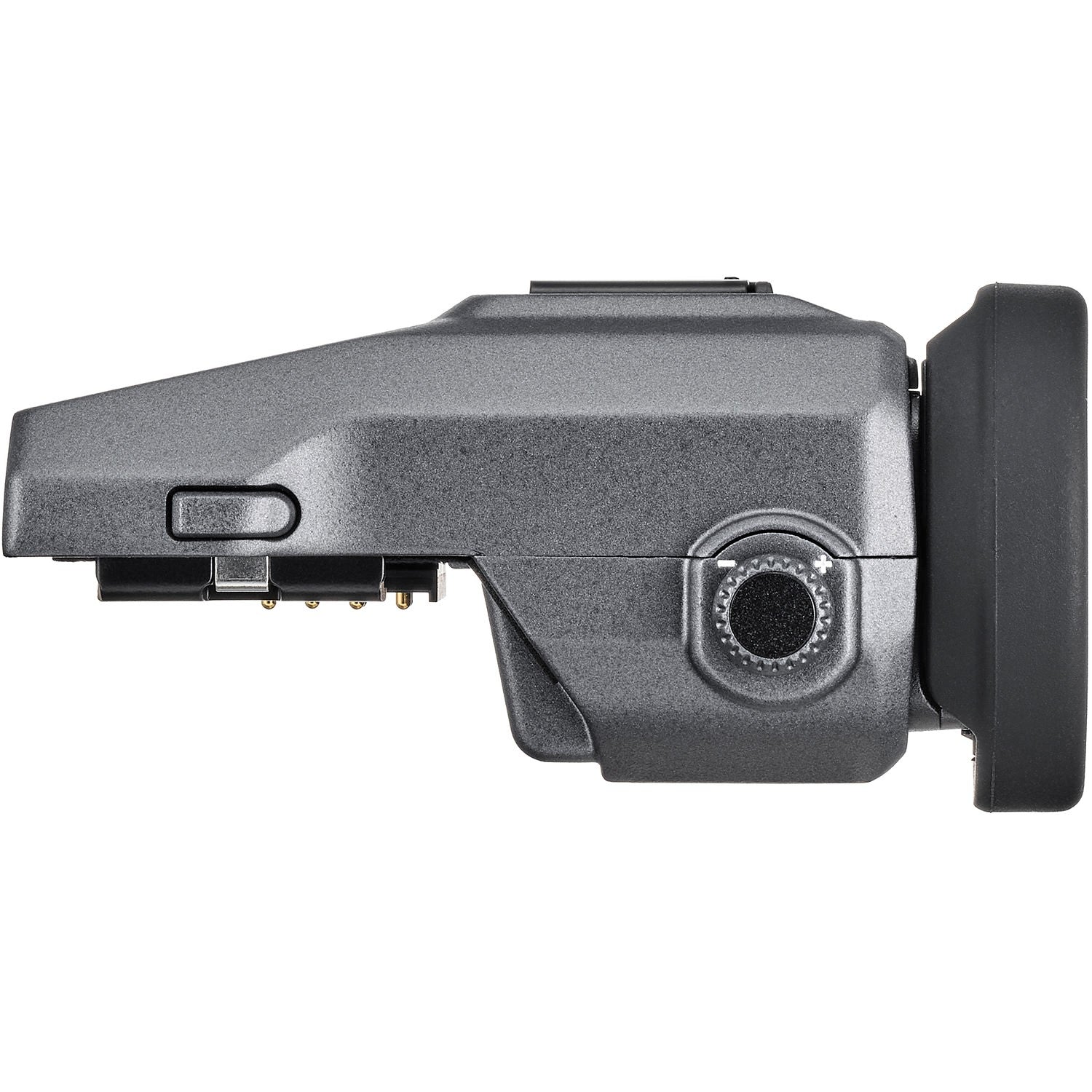

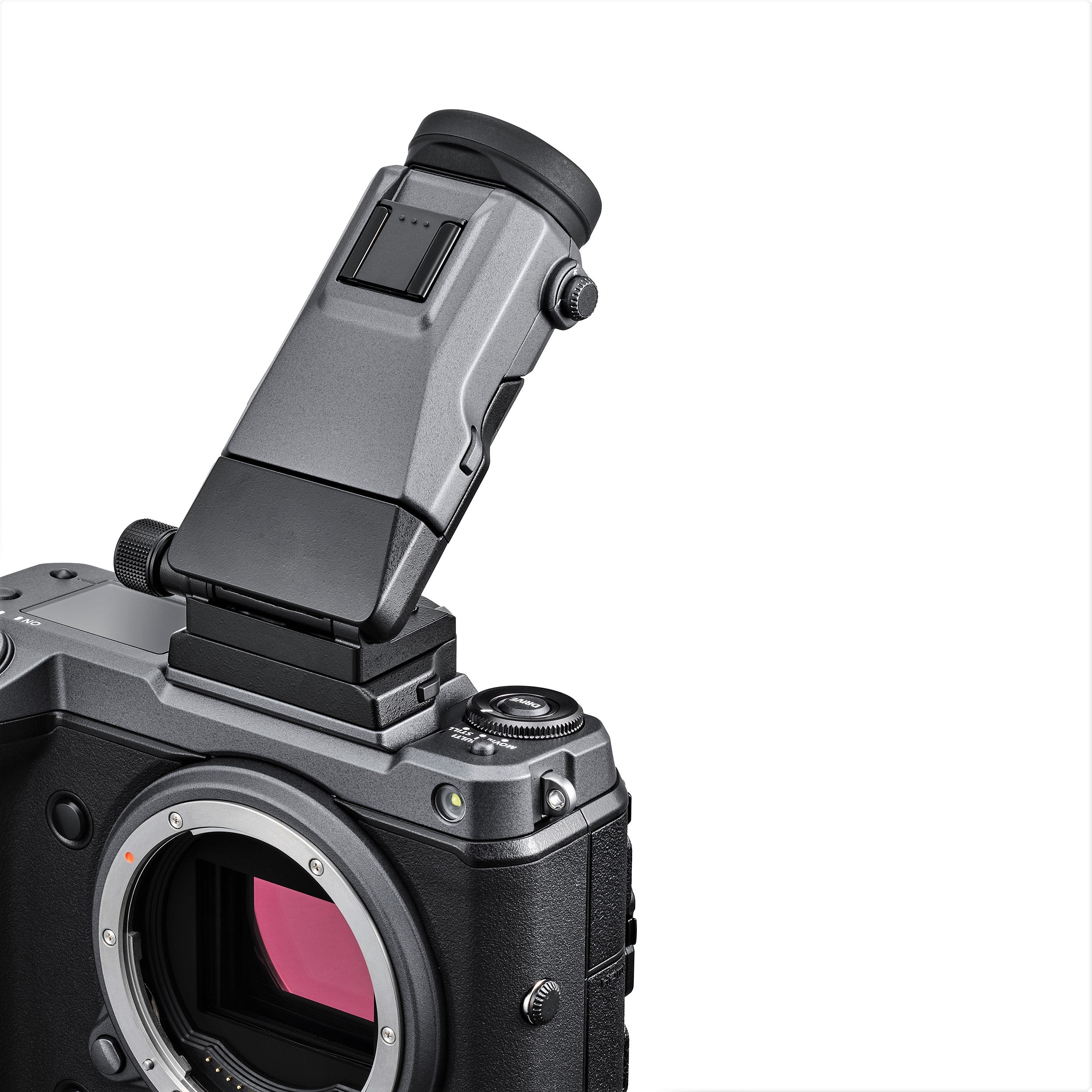

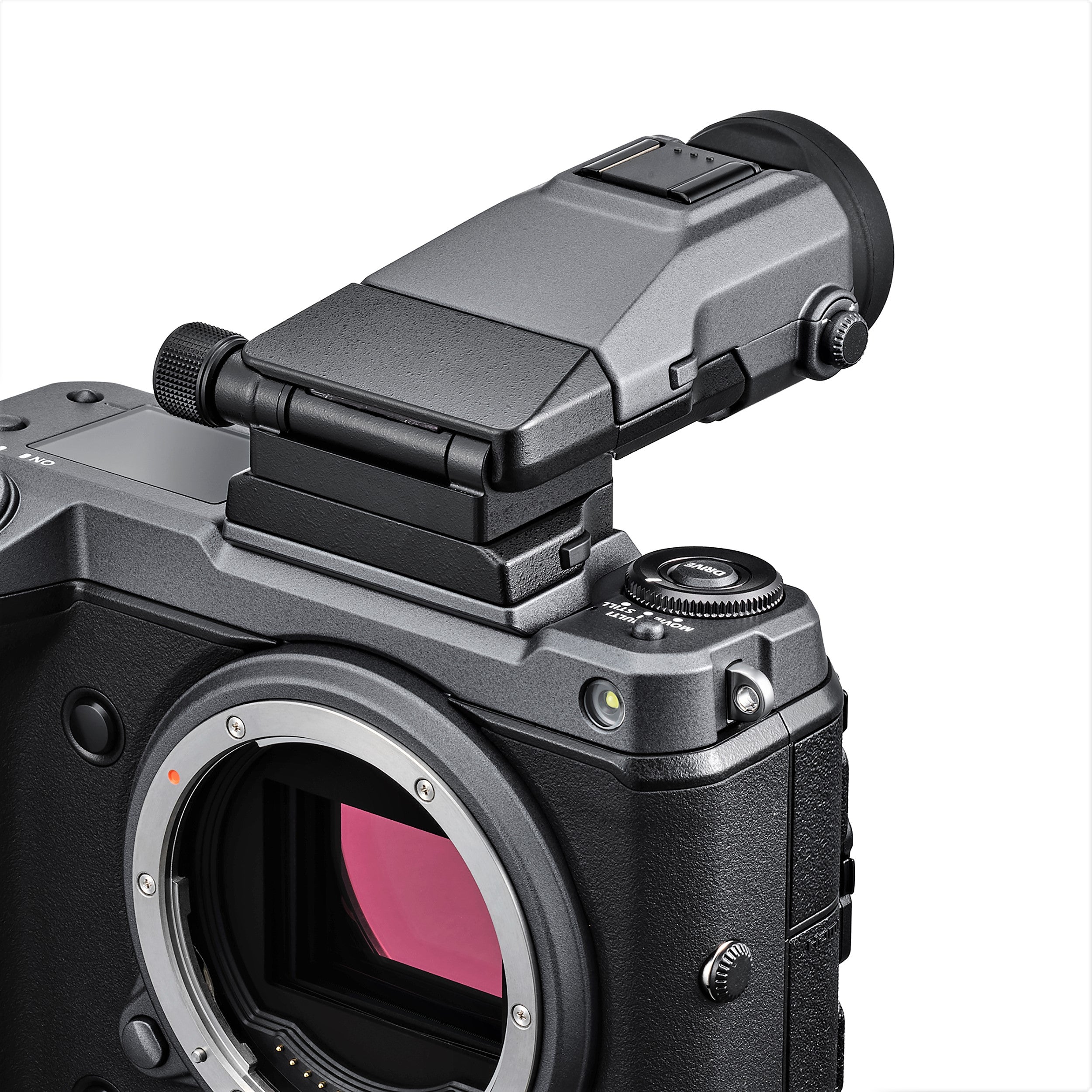

- Removable 5.76m-Dot OLED EVF
- ISO 100-12800, Up to 5 fps Shooting

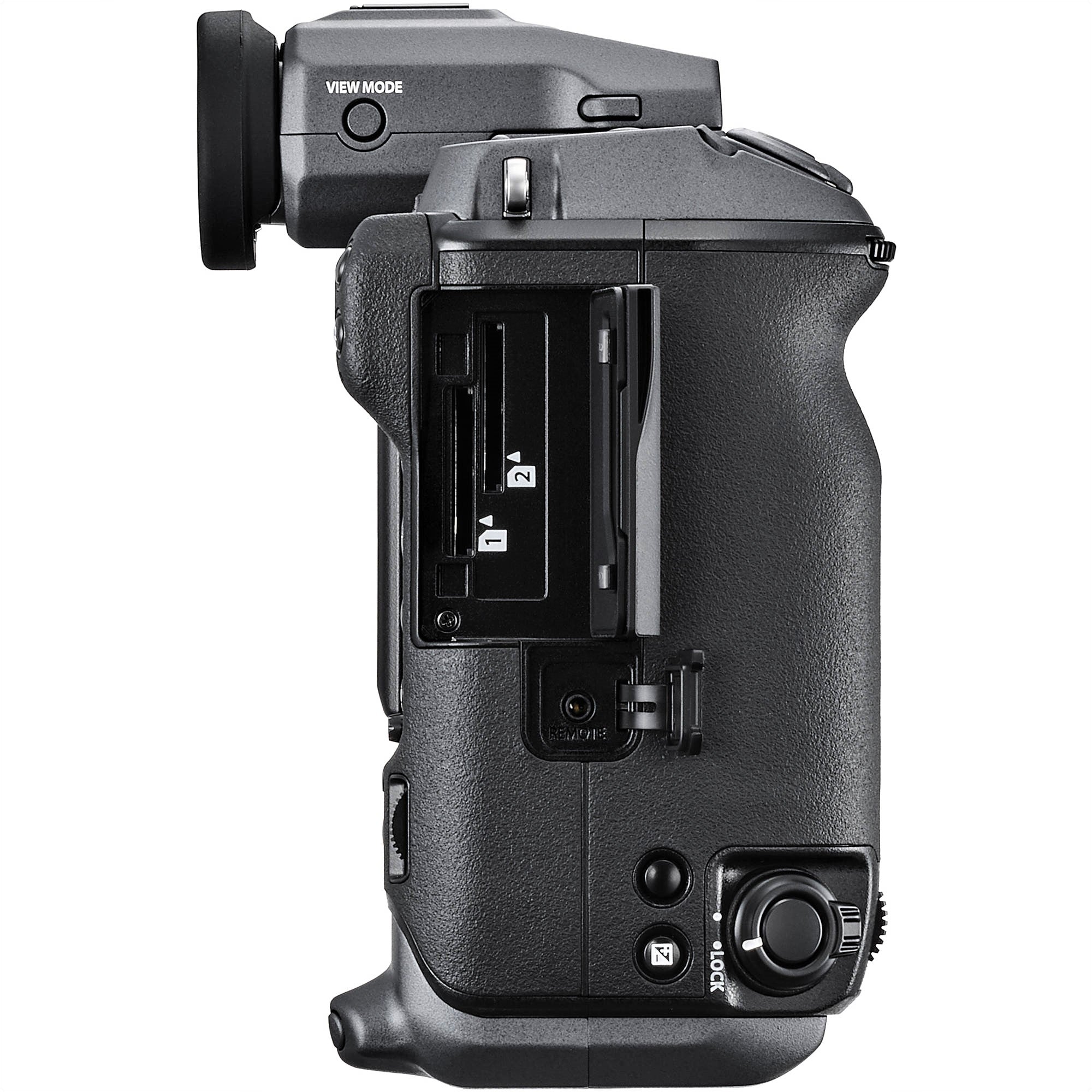

- Built-In Battery Grip, 2 x SD Card Slots
- Number of Effective Pixels
- 102 million pixels
- Image Sensor
- 43.8mmx32.9mm Bayer array with primary color filter
- Sensor Cleaning System
- Ultra Sonic Vibration
- Storage Media
- SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-512GB) UHS-I / UHS-II / Video Speed Class V90*
- File format (Still)
- JPEG: Exif Ver.2.32, RAW: 14bit/ 16bit RAW RAF original format, RAW+JPEG, TIFF: 8bit/ 16bit RGB (In-camera RAW Conversion Only)
- Number of Recorded Pixels
- L: [4:3] 11648x8736 [3:2] 11648x7768 [16:9] 11648x6552 [1:1] 8736x8736 [65:24] 11648x4304 [5:4] 10928x8736 [7:6] 10192x8736
M: [4:3] 8256x6192 [3:2] 8256x5504 [16:9] 8256x4640 [1:1] 6192x6192 [65:24] 8256x3048 [5:4] 7744x6192 [7:6] 7232x6192
S: [4:3] 4000x3000 [3:2] 4000x2664 [16:9] 4000x2248 [1:1] 2992x2992 [65:24] 4000x1480 [5:4] 3744x3000 [7:6] 3504x3000
- Lens Mount
- FUJIFILM G Mount
- Sensitivity Standard Output
- STILL: AUTO1/ AUTO2/ AUTO3 (up to ISO12800)/ ISO100~12800 (1/ 3 step)
MOVIE: AUTO/ ISO200~12800
- Sensitivity Extended Output
- STILL: ISO50/ 25600/ 51200/ 102400
MOVIE: ISO25600
- Exposure Control
- TTL 256-zone metering, Multi/ Spot/ Average/ Center Weighted
- Exposure Mode
- P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure)
- Exposure Compensation
- STILL -5.0EV - +5.0EV (1/3EV step)/ MOVIE: -2.0EV - +2.0EV (1/3EV step)
- Image Stabilizer Mechanism
- Image sensor shift mechanism with 5-axis compensation
- Image Stabilizer Compensation Effect
- Up to 5.5 stops (based on CIPA standard). Pitch/yaw shake only.
- Shutter Type
- Focal Plane Shutter
- Shutter Speed Mechanical Shutter
- P mode: 4sec to 1/4000 A mode: 30sec to 1/4000 S/M mode: 60min to 1/4000 Bulb mode: up to 60min
- Shutter Speed Electronic Shutter
- P mode: 4sec to 1/16000 A mode: 30sec to 1/16000 S/M mode: 60min to 1/16000 Bulb mode: up to 60min
- Shutter Speed Electronic Front curtain Shutter
- P mode: 4sec to 1/4000 A mode: 30sec to 1/4000 S/M mode: 60min to 1/4000 Bulb mode: up to 60min
- Shutter Speed Mechanical + Electronic Shutter
- P mode: 4sec to 1/16000 A mode: 30sec to 1/16000 S/M mode: 60min to 1/16000 Bulb mode: up to 60min
- Shutter Speed E-Front + Mechanical Shutter
- P mode: 4sec to 1/16000 A mode: 30sec to 1/16000 S/M mode: 60min to 1/16000 Bulb mode: up to 60min
- Shutter Speed E-Front + Mechanical + Electronic Shutter
- P mode: 4sec to 1/16000 A mode: 30sec to 1/16000 S/M mode: 60min to 1/16000 Bulb mode: up to 60min
*Electronic front curtain shutter works until 1/1250, Mechanical shutter works until 1/4000
*The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting Flash can not be used
*When using the electronic front curtain shutter, the continuous shooting supports CL only
- Shutter Speed Movie
- DCI4K/4k: 1/4000 to 1/24 FHD: 1/4000 to 1/24
- Synchronized Shutter Speed for Flash
- 1/125 or slower
- Continuous Shooting
- CH Approx. 5.0fps (JPEG: 41 Frames, Compressed RAW: 15 Frames*, Lossless compressed RAW: 14 Frames, Uncompressed RAW: 13 Frames)
CL Approx. 2.0fps (JPEG: Endless, Compressed RAW: 41 Frames*, Lossless compressed RAW: 20 Frames, Uncompressed RAW: 15 Frames)
*When Using the Electronic Shutter CH's continuous shooting speed drops to approx. 2.9fps.
*Electronic Front Curtain Shutter support CL only.
*Recordable frame depends on recording media.
*Speed of continuous shooting depends on the shooting environment and shooting frames.
- AE Bracketing
- AE Bracketing (Frames: -2, -3, +3, +2, 9, 7, 5, 3 Step: 1/3EV, 2/3EV, 1EV, 4/3EV5/3EV2EV7/3EV8/3EV3EV)
Film Simulation Bracketing (Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100%, 200%, 400%)
ISO Sensitivity Bracketing (1/3EV, 2/3EV, 1EV)
White Balance Bracketing (1, 2, 3)
Focus Bracketing (AUTO, MANUAL)
- Focus Mode
- Single AF/ Continuous AF/ MF
- Focus Type
- Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
- Focus Low-light Performance
- Contrast: -2.5EV with GF80mmF1.7 attached Phase Detection: -5.5EV with GF80mmF1.7 attached
- AF Frame Selection
- Single point AF: EVF/ LCD: 139/ 2517 (Changeable size of AF frame)
Zone AF: 33/ 55/ 77 from 117 areas on 139 grid
Wide/Tracking AF: (up to 18 areas) *AF-S: Wide/ AF-C: Tracking
All
- White Balance
- Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1-3/ Color temperature selection (2500K-10000K)/Daylight, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, Underwater
- Self-timer
- 10sec. / 2sec.
- Interval Timer Shooting
- Yes (Setting: Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)
- Flash Sync Mode
- 1st Curtain/ 2nd Curtain/ AUTO FP (HSS)
- Flash Mode
- TTL (TTL AUTO (P mode) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI / OFF
- Hot Shoe
- Yes (Dedicated TTL Flash compatible)
- Viewfinder EVF
- 0.5 inch Approx. 5.76 million dots OLED Color Viewfinder
Coverage of Viewing Area vs. Capturing Area: Approx. 100%
Eyepoint: Approx. 23mm (from the Rear End of the Camera's Eyepiece)
Diopter Adjustment: -4 - +2m-1
Magnification: 0.86 with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1
Diagonal Angle of View: Approx. 41 (Horizontal Angle of View: Approx. 33)
Built-In Eye Sensor
- LCD Monitor

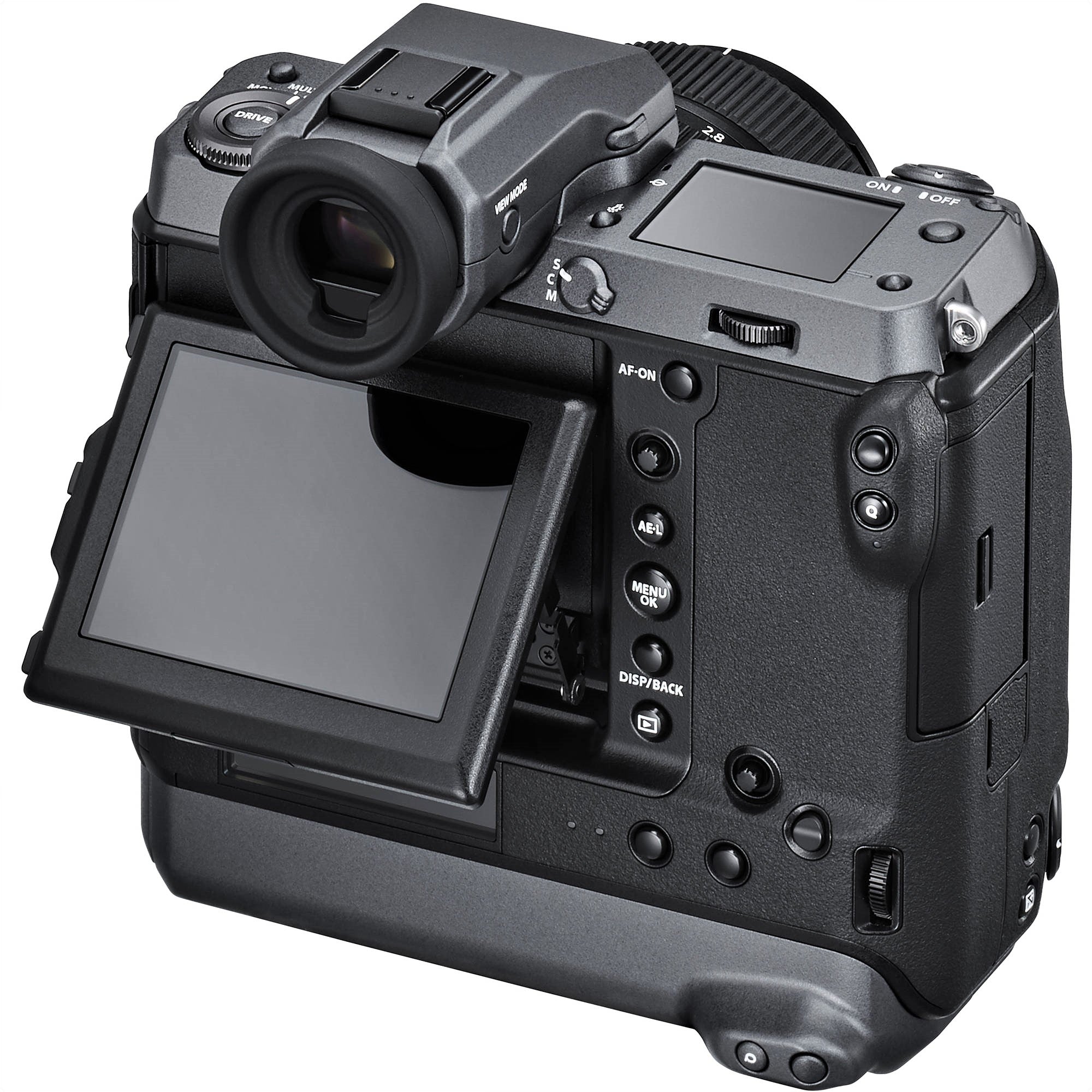

- 3.2 inch, Aspect Ratio 4:3, Approx. 2.36 million dots Tilt-Type(Three Direction), Touch Screen Color LCD Monitor (Approx. 100% Coverage)
- Touch Screen Shooting Mode
- Touch AF, Focus Area, OFF
Double Tap ON/OFF Setting, Touch Function ON/OFF Setting
- Touch Screen Playback Mode
- Swipe, Zoom, Pinch-in / Pinch-out, Double-tap, Drag (ON/OFF Selectable)
- Sub LCD Monitor
- 1.80 inch, Aspect Ratio 4:3, 303230-dot Monochrome LCD Monitor
- Rear Sub Monitor
- 2.05 inch, Aspect Ratio 4:1, 25664-dot Monochrome OLED Monitor
- File format (Movie)
- MOV (MPEG-4 AVC / H.264, HEVC / H.265, Audio: Linear PCM / Stereo sound 24bit / 48KHz sampling)
- Movie Compression
- All Intra/Long-GOP
*All Intra can be used with the following settings.
DCI4K/4K 29.97p/25p/24p/23.98p 400Mbps
Full HD(20481080)/Full HD(19201080) 59.94p/50p/29.97p/25p/24p/23.98p200Mbps
- File Size / Frame Rate / Recording Time
- DCI 4K (40962160) 29.97p/ 25p/ 24p/ 23.98p 400Mbps/ 200Mbps/ 100Mbps up to Approx. 60min.
4K (38402160) 29.97p/ 25p/ 24p/ 23.98p 400Mbps/ 200Mbps/ 100Mbps up to Approx. 60min.
Full HD (20481080) 29.97p/ 25p/ 24p/ 23.98p 200Mbps/ 100Mbps/ 50Mbps up to Approx. 80min.
Full HD (19201080) 29.97p/ 25p/ 24p/ 23.98p 200Mbps/ 100Mbps/ 50Mbps up to Approx. 80min.
*For recording movies, use an SD memory card with UHS Speed Class 3 or higher.
*For recording movies at 400Mbps, use an SD memory card with Video Speed Class 60 or higher.
*Recording movies in 400Mbps can be done with DCI 4K/ 4K 29.97p/ 25p/ 24p/ 23.98p.
- Film Simulation Mode
- 18 modes (PROVIA/ Standard, Velvia/ Vivid, ASTIA/ Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg*3, ETERNA/ CINEMA, ETERNA BLEACH BYPASS*3, Black&White, Black&White+Ye Filter,
Black&White+R Filter, Black&White+Gfilter, Sepia, ACROS, ACROS+Ye Filter, ACROS+R Filter, ACROS+G Filter)
- B & W ADJ. (Warm/Cool)
- -9 - +9 *When ACROS or Black&White is selected.
- Grain Effect
- Roughness: STRONG, WEAK, OFF Size: LARGE, SMALL*3
- Color Chrome Effect
- STRONG, WEAK, OFF
- Color chrome Blue
- STRONG, WEAK, OFF
- Smooth Skin Effect
- STRONG, WEAK, OFF
- Dynamic Range Setting
- AUTO, 100%, 200%, 400%
- Wireless Transmitter Standard
- IEEE802.11a/b/g/n/ac (standard wireless protocol)
- Wireless Transmitter Encryption
- WEP/ WPA/ WPA2 mixed mode
- Wireless Transmitter Access Mode
- Infrastructure
- Terminal - Digital Interface
- USB Type-C (USB3.2 Gen1x1)
- Terminal - HDMI Output
- HDMI Micro connector (Type D)
- Terminal - Others
- 3.5mm, stereo mini connector (Microphone)
3.5mm, stereo mini connector (Headphone)
2.5mm, Remote Release Connector
DC IN 15V Connecter *Compatible with AC-15V (Optional) Only
Hot shoe
Synchronized terninal
- Power Supply
- NP-T125 (x2) Li-ion battery (included)
- Battery Life for Still Images
- Approx. 800 frames When GF63mmF2.8 R WR is set. (2 batteries installed, Auto power save ON)
- Actual Battery Life for Movie Capture
- [4K] Approx. 100min. [Full HD] Approx. 150min. *Face detection is set to OFF
- Continuance Battery Life for Movie Capture
- [4K] Approx. 170min. [Full HD] Approx. 240min. *Face detection is set to OFF
- USB Power Supply
- Support USB PD(Power Delivery) power source to supply or rapidly recharge the battery (USB PD Rev2.0 ver1.3)
- Approximate External Camera Dimensions
- Including EVF
156.2mm (W) x 163.6mm (H) x 102.9mm (D)
6.15in. (W) x 6.44in. (H) x 4.05in. (D)
Minimum Depth: 48.9mm / 1.93in
Excluding EVF
156.2mm (W) x 144.0mm (H) x 75.1mm (D)
6.15in. (W) x 5.67in. (H) x 2.96in. (D)
Minimum Depth: 48.9mm / 1.93in
- Camera Width (mm)
- 156.2
- Camera Height (mm)
- 163.3
- Camera Depth (mm)
- 102.9
- Camera Minimum Depth (mm)
- 48.9
- Camera Width (in)
- 6.15
- Camera Height (in)
- 6.43
- Camera Depth (in)
- 4.05
- Camera Minimum Depth (in)
- 1.93
- Camera Body Weight
- Approx. 1,400g / 49.4oz. (including EVF, battery x2, and memory card)
Approx. 1,320g / 46.6oz. (including battery x2 and memory card)
Approx. 1,155g / 40.7oz. (excluding accessories, battery, and memory card)
- Operating Temperature
- -10C-40C/ 14F-104F
- Operating Humidity
- 10% - 80% (no condensation)
- Start-Up Period
- Approx. 0.4sec. *Fujifilm Research
- Fujifilm GFX 100 Medium Format Mirrorless Camera

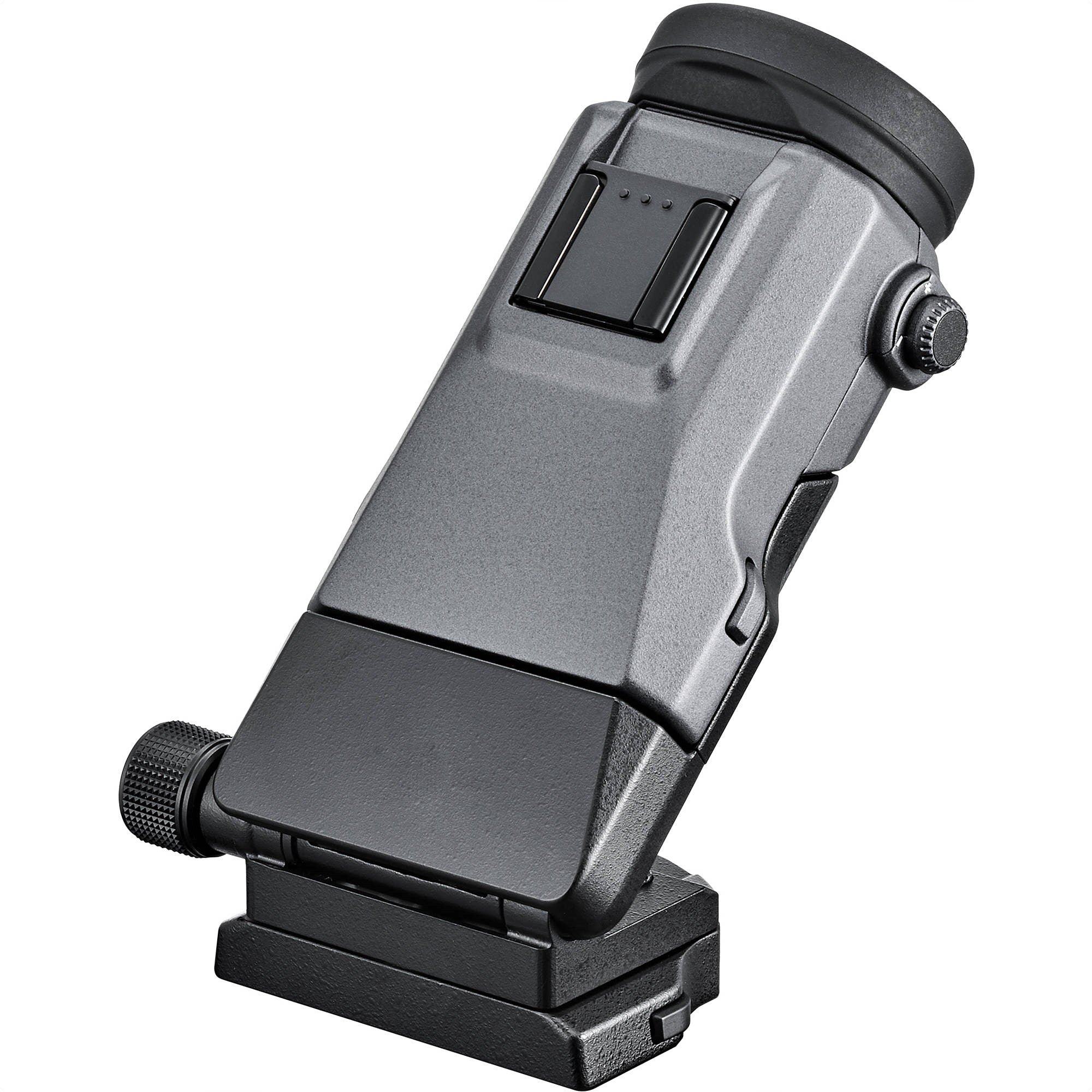

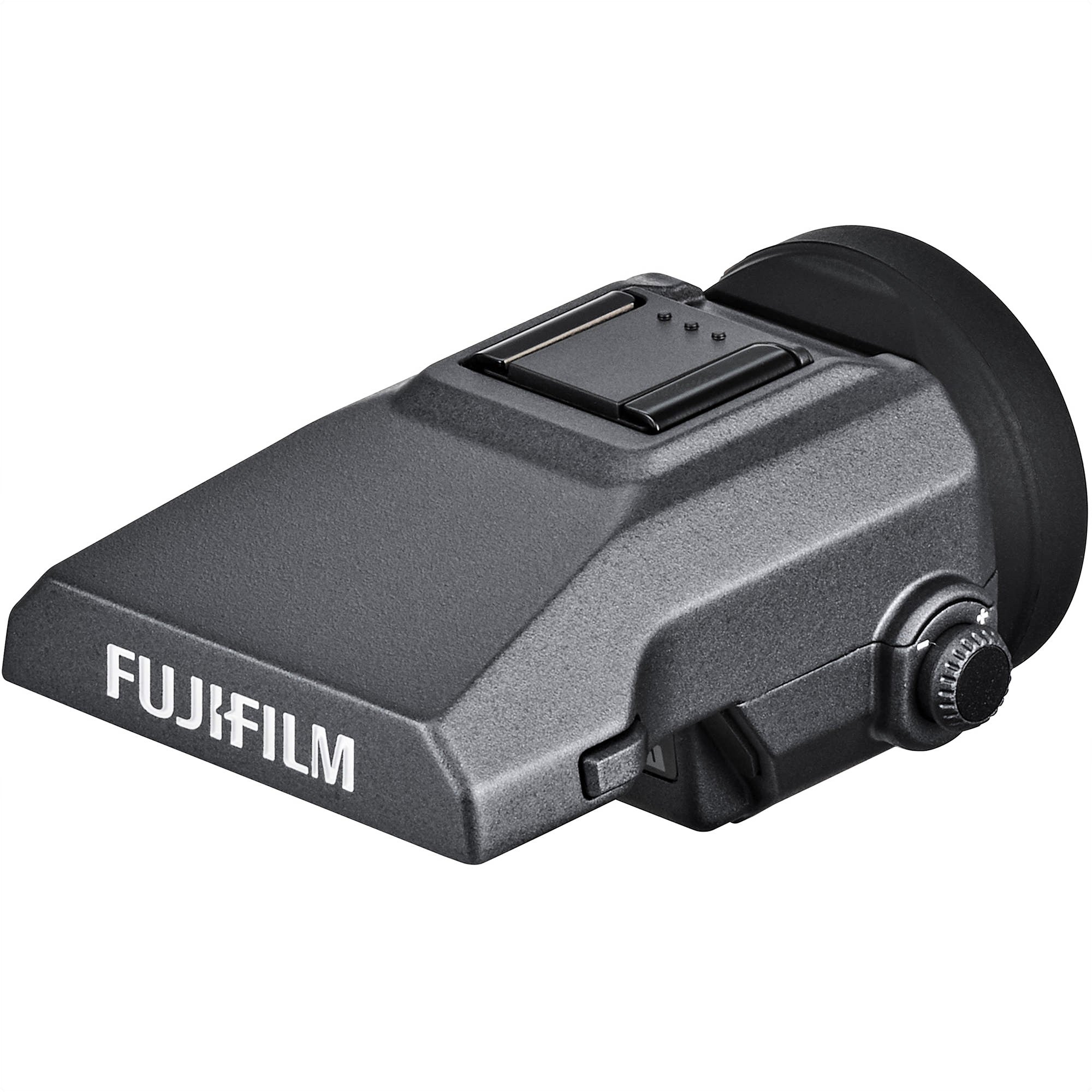

- EVF-GFX2 Interchangeable Electronic Viewfinder

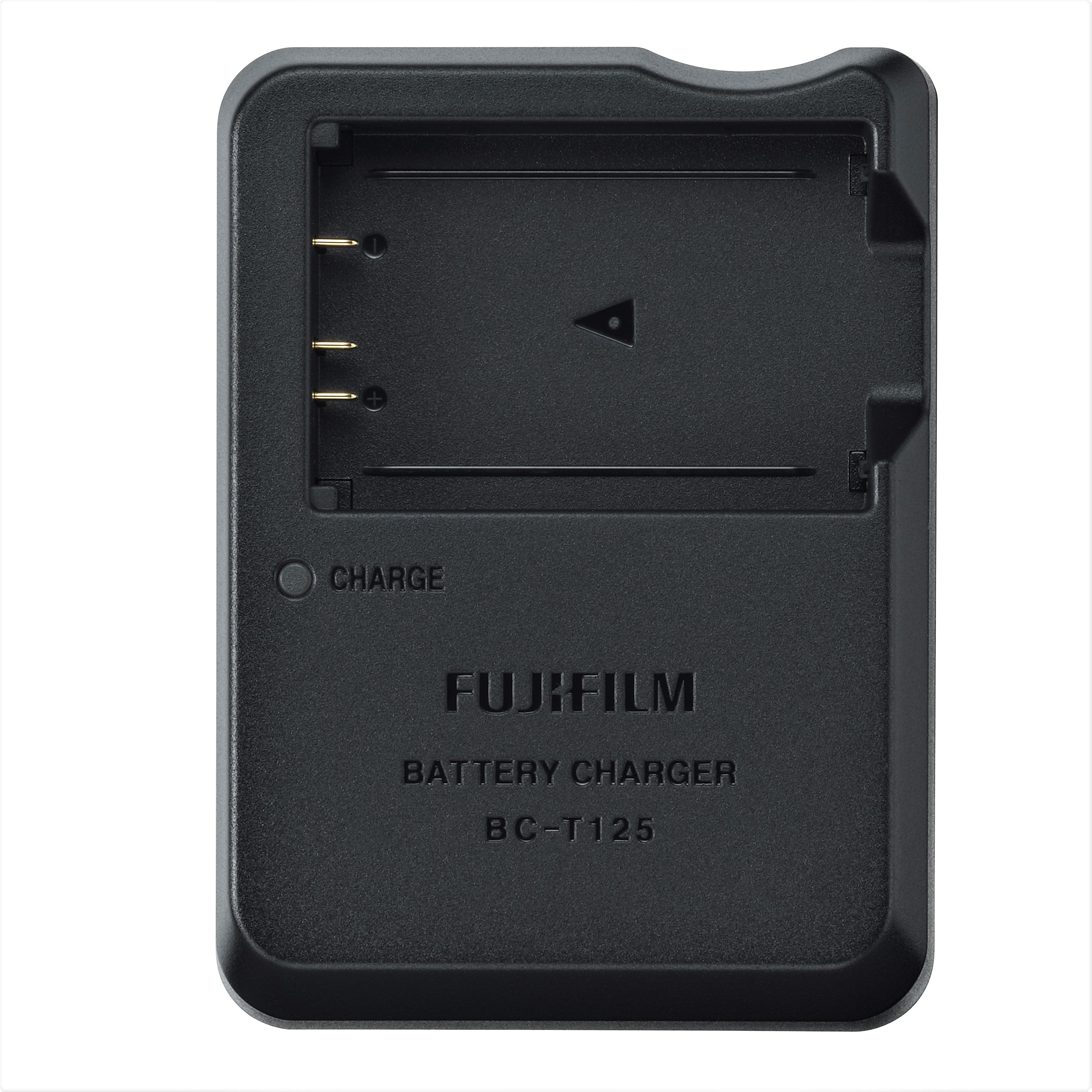

- Fujifilm BC-T125 Battery Charger
- Plug Adapter
- Fujifilm BCP-002 Body Cap
- Shoulder Strap

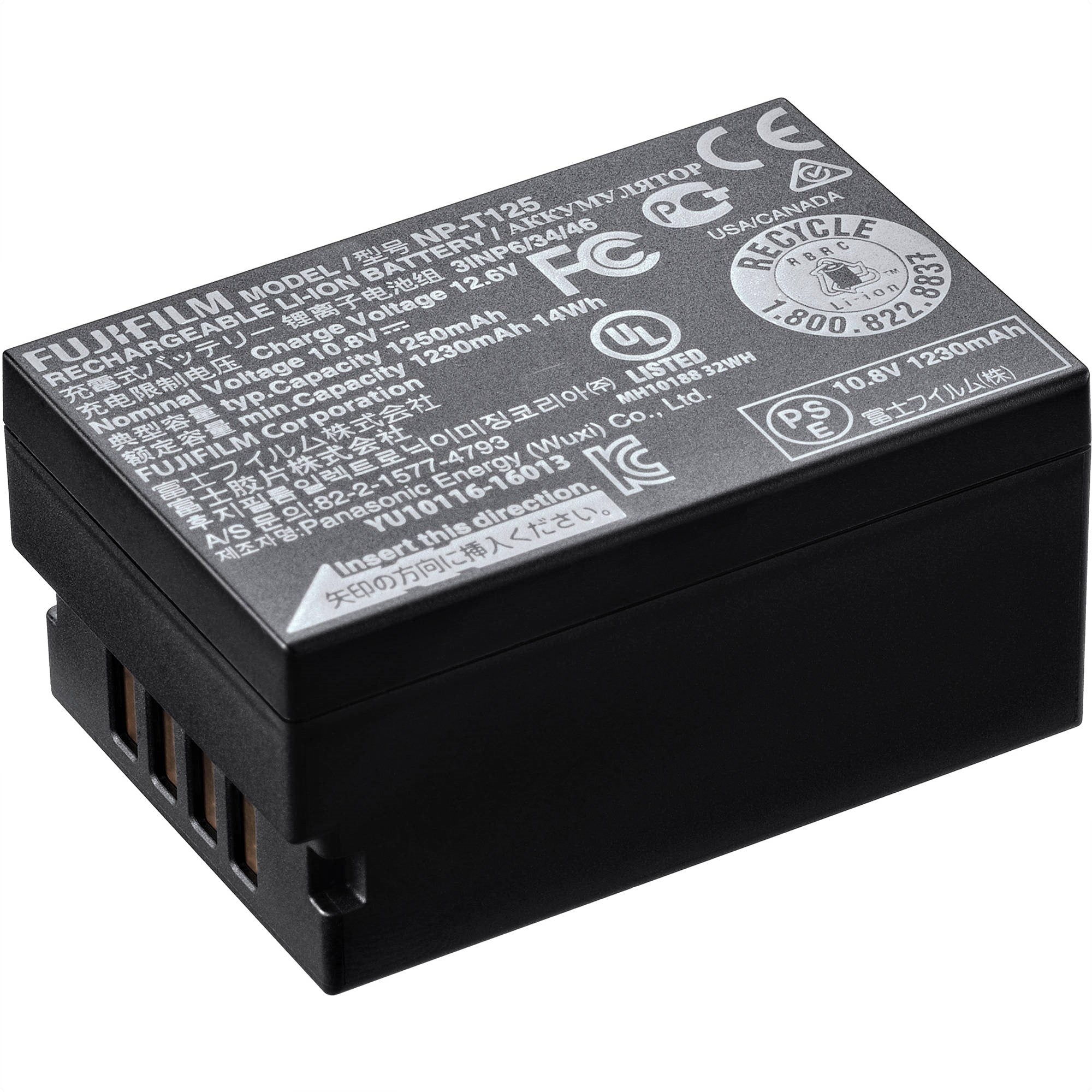

- 2 x Fujifilm NP-T125 Rechargeable Lithium-Ion Battery
- 2 x Metal Strap Clip
- 2 x Protective Cover
- Clip Attaching Tool
- Cable Protector
- Hot Shoe Cover
- Connector Cover
- Sync Terminal Cover
- Limited Warranty
