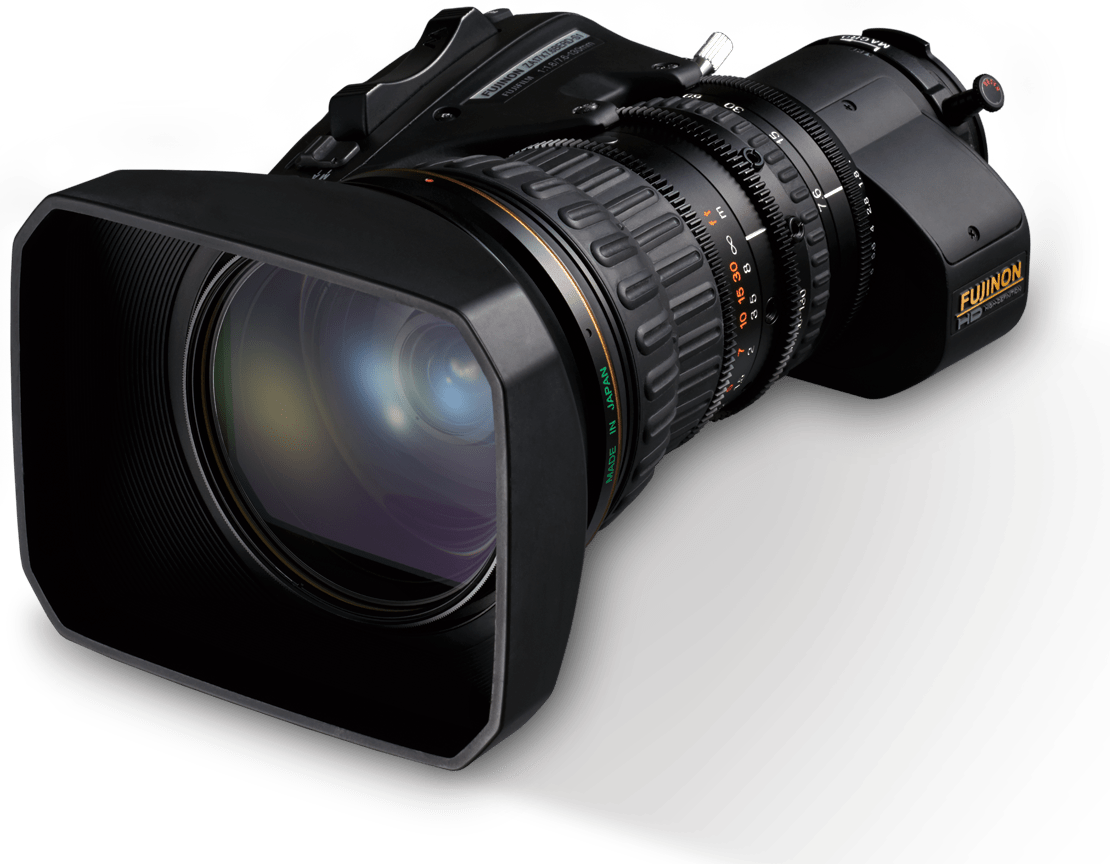

Fujinon ZA17x7.6BERD-S10 2/3'' Select Series Zoom Lens with 2x Extender

Fujinon ZA17x7.6BERD-S10 2/3'' Select Series Zoom Lens with 2x Extender
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
Designed to provide a Wide to Telephoto Angle-of-View, this Fujinon Lens produces Outstanding Optical Performance!
The Fujinon ZA17x7.6BERD-S10 2/3'' Select Series Zoom Lens with 2x Extender is a 7.6-130mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 17x, and a 2x extender effectively doubles the focal range. Its maximum aperture is a fast f/1.8 at 7.6-102mm and stops down to f/2.3 at 130mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.
Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle of view when making focus adjustments. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.
FEATURES:
- Standard focal length coverage 7.6-137mm (275mm with extender)
- Outstanding HD High Optical Performance
- Equipped with New Ergonomic Digital Grip
- 16bit encoders device for virtual system
SPECIFICATIONS:
Model name | ZA17x7.6BERM / BERD | |
Focal length | 1x | 7.6-130mm |
2x | 15.2-260mm | |
Zoom Ratio | 17x | |
Extender | 2x | |
Maximum relative aperture (F-no) | 1:1.8 (7.6-102mm) / 1:2.3 (130mm) | |
M.O.D.from image front lens | 0.6m | |
Object dimensions at M.O.D. 16:9 Aspect Ratio |
1x |
7.6mm 696 x 392mm 130mm 43 x 24mm |
2x |
15.2mm 362 x 204mm 260mm 22 x 12mm |
|
Angular field of view 16:9 Aspect Ratio |
1x |
7.6mm 64.5° x 39° 130mm 4.2° x 2.4° |
2x |
15.2mm 35° x 20.1° 260mm 2.1° x 1.2° |
|
Filter Thread | M82 x 0.75 | |
Approx. Size (Φ × Length) | φ85 x 203mm (φ x Length) | |
Approx. Mass | 1.67kg (RM) / 1.74kg (RD) (without lens hood) |
WHAT'S INSIDE:
- Fujinon ZA17x7.6BERD-S10 2/3'' Select Series Zoom Lens with 2x Extender
