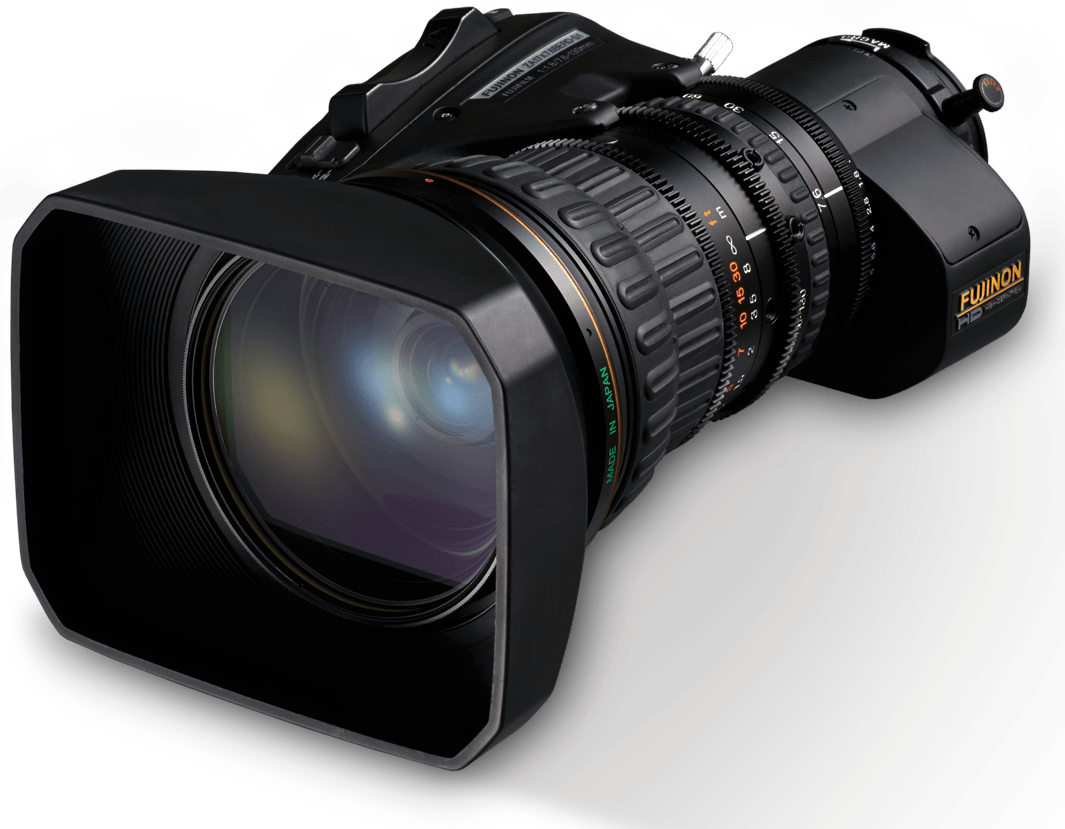

Fujinon ZA17x7.6BRD-S10 2/3'' Select Series Zoom Lens

Equipped with New Ergonomic Grip, this Fujinon Lens provides HD Optical Performance!
The Fujinon ZA17x7.6BRD-S10 2/3'' Select Series Zoom Lens is a 7.6-130mm ENG-style lens that provides a wide-to-telephoto angle of view for 2/3" cameras. The lens has a zoom ratio of 17x and an f/1.8 maximum aperture at 7.6-102mm and includes the ergonomic S10 digital servo for focus and zoom with 16-bit encoders compatible with virtual effects systems.
FEATURES:
- Standard focal length coverage 7.6-137mm (275mm with extender)
- Outstanding HD High Optical Performance
- Equipped with New Ergonomic Digital Grip
- 16bit encoders device for virtual system
SPECIFICATIONS:
Model name | ZA17x7.6BERM / BERD | |
Focal length | 1x | 7.6-130mm |
2x | 15.2-260mm | |
Zoom Ratio | 17x | |
Extender | 2x | |
Maximum relative aperture (F-no) | 1:1.8 (7.6-102mm) / 1:2.3 (130mm) | |
M.O.D.from image front lens | 0.6m | |
Object dimensions at M.O.D. 16:9 Aspect Ratio |
1x |
7.6mm 696 x 392mm 130mm 43 x 24mm |
2x |
15.2mm 362 x 204mm 260mm 22 x 12mm |
|
Angular field of view 16:9 Aspect Ratio |
1x |
7.6mm 64.5° x 39° 130mm 4.2° x 2.4° |
2x |
15.2mm 35° x 20.1° 260mm2.1° x 1.2° |
|
Filter Thread | M82 x 0.75 | |
Approx. Size (Φ × Length) | φ85 x 203mm (φ x Length) | |
Approx. Mass | 1.67kg (RM) / 1.74kg (RD) (without lens hood) |
WHAT'S INSIDE:
- Fujinon ZA17x7.6BRD-S10 2/3'' HD Select Series Lens with S10 Digital Zoom/Focus Servo
- Limited 2-Year Warranty
