Jimcom 8-Channel Touch Broadcast Switcher and PTZ Controller with NDI|HX
Jimcom 8-Channel Touch Broadcast Switcher and PTZ Controller with NDI|HX
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
Hurry and Save
- FREE Shipping for orders $150 above
- Add $25 for 2-day expedited shipping
- Ask about our Refer a Friend Program!
Got A Question? - Ask Our Team

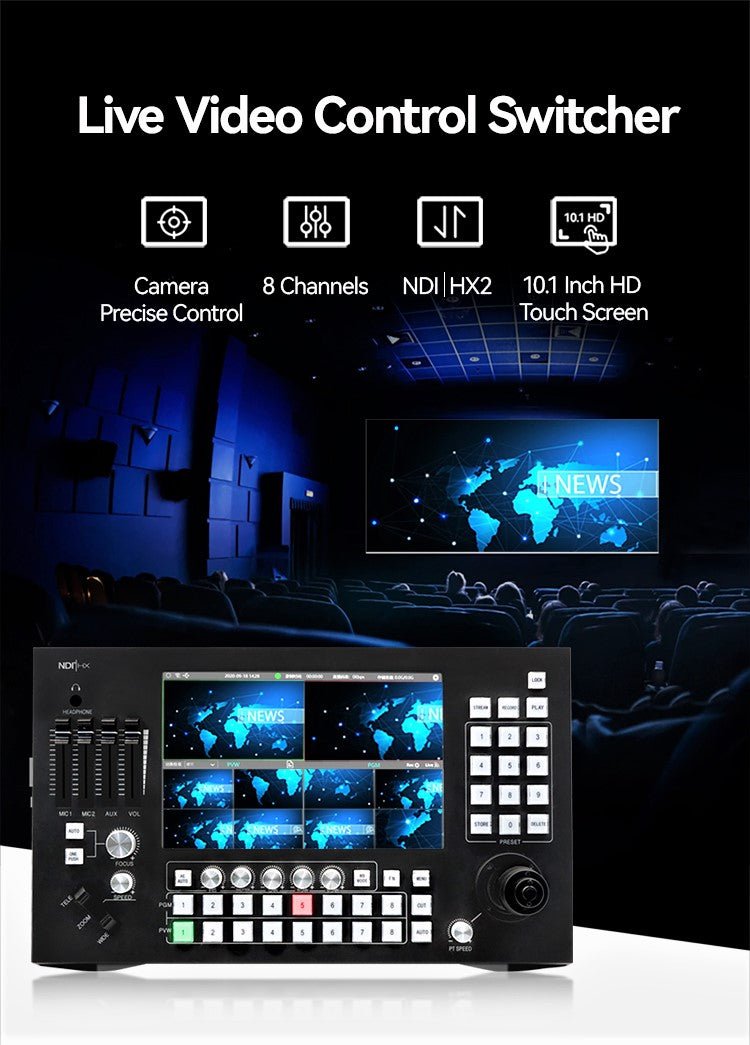

Run your live stream or record for future broadcasts using the Jimcom 8-Channel Touch Broadcast Switcher and PTZ Controller with NDI|HX. With this world’s first user-friendly 10.1″ HD Touch Screen, you get world-class control over your broadcast content. Everything you need to control your PTZ cameras and live video broadcast via NDI or RTMP/RTSP! Plus a variety of transition special effects and support for multiple transition special effects such as fade in and fade out are featured. Also supports custom overlay content; subtitle text and logos.
Run your live stream or record for future broadcasts with this powerful switcher. Broadcasts can be sent directly from this device to your CDN via RTMP. The touchscreen control makes this the easiest device because you can take full control and mix your audio with the included sliders. You can operate your PTZ camera with the joystick, zoom, focus, and exposure settings; add and access set points for your cameras. 8 separate sources are supported with direct access through PGM/PVW control buttons and you can also add logos and subtitles like a professional into the live broadcast!
- USER-FRIENDLY - High-definition touch display, the body integrates a 10.1-inch high-definition display, making it user-friendly.
- SIMPLICITY - Live Broadcast Stream Control, Audio Levels, & Support PTZ control of the camera.
- APPLICATIONS - Multi-camera including PTZ live streaming or recording of; worship services, esports, educational, training, music, entertainment, video blog, state/local/town government meetings, and more.
- BROADCAST - Direct live streaming to cloud services or other applications via RTSP/RTMP/NDI|HX protocols, HDMI Output is also available for chaining to another workflow.
- SWITCHER - Production of Live events is simplified with the view of up to 8 inputs with Preview and Program capabilities and the ability to switch between those on the live program.
- PTZ CONTROLS - PTZ Joystick with speed control, Presets, Zoom with speed control, Auto/Manual Focus with speed control, White Balance (IRIS, Shutter, Gain, RGAIN, BGAIN).
- POWERFUL - Multi-channel input up to 8 channels of 1080p60 video input, with IP/NDI cameras you can start your live broadcast with only one network cable.
- NDI SUPPORT - Support multi-protocol, support the access and output of video via the methods of a network, HDMI, or local file, support mainstream live streaming protocol, NDI|HX.
- AUDIO MIXER - Integrated mixer, supports 4-channel mixer, supports multiple audio input and output methods.

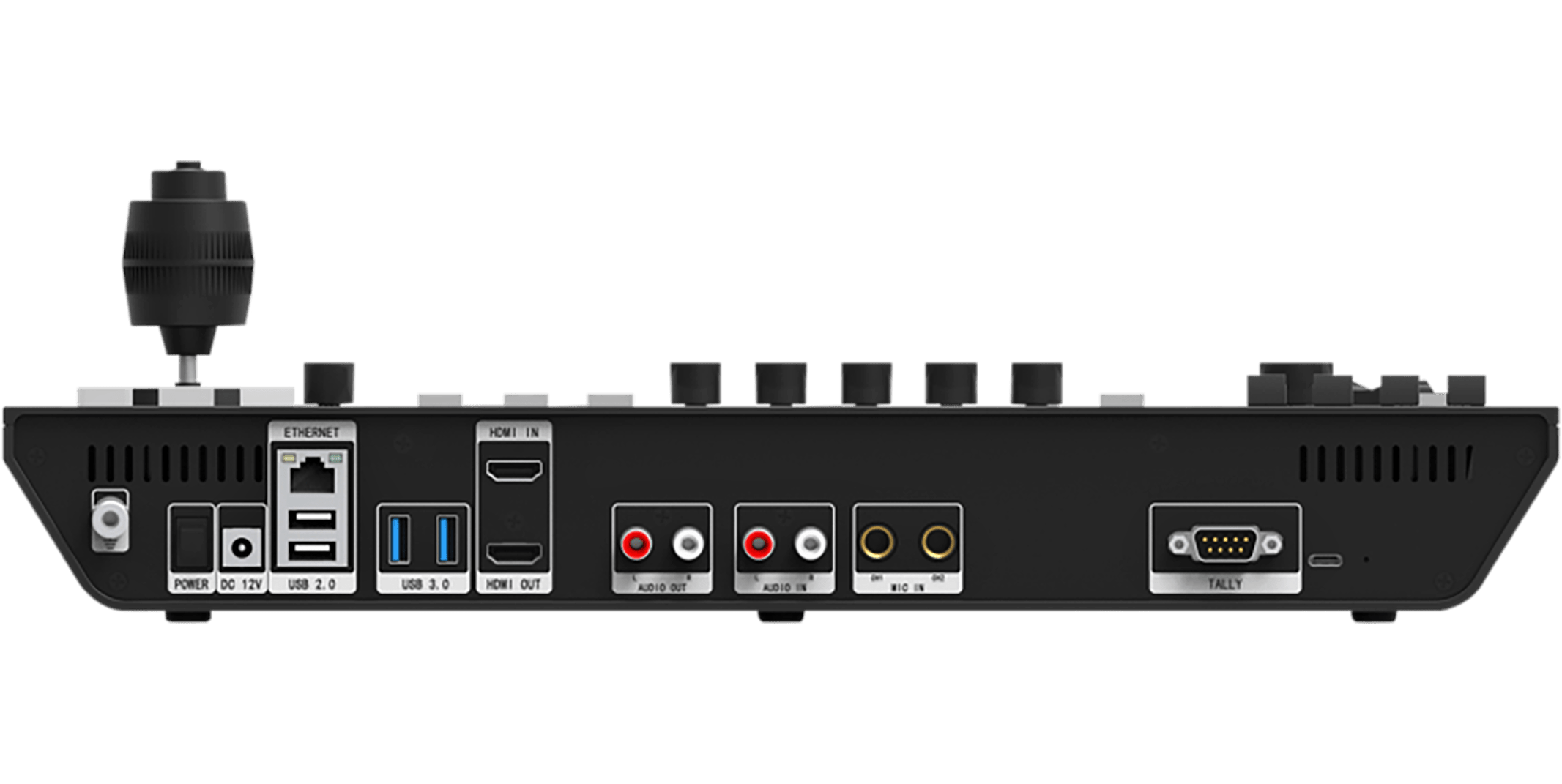

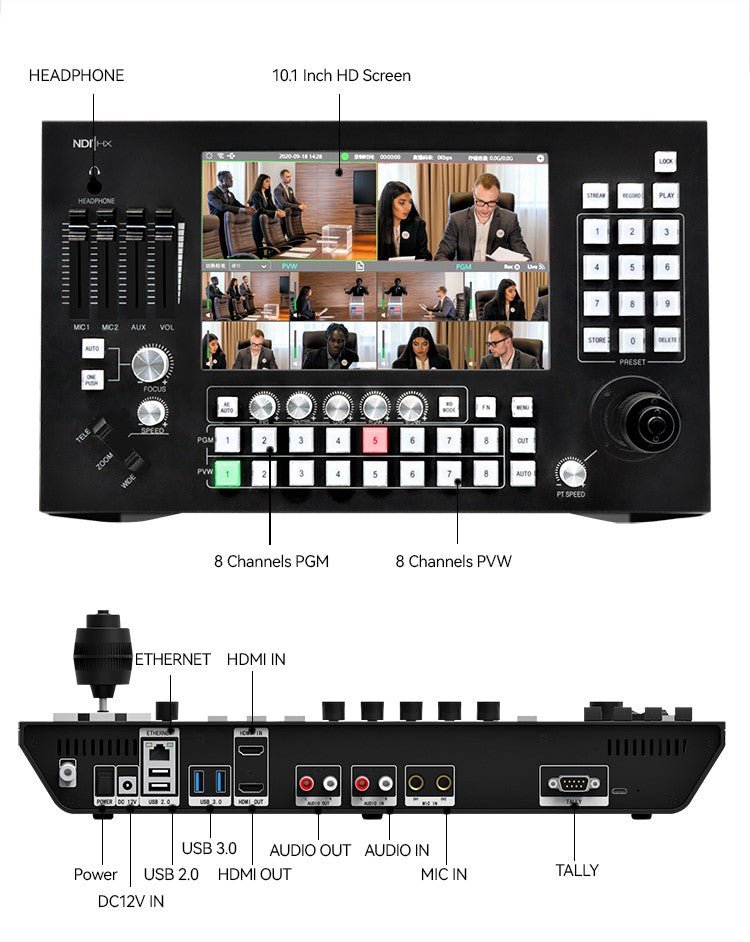

- INPUTS - 1 Local HDMI, up to 8 NDI & RTMP devices, and Local Video Files (Injecting pre-recorded content), 2 @ USB 2.0, 2 @ USB 3.0, AUDIO IN, MIC IN.
- OUTPUT - Local HDMI Out (Program), Stream RTMP/RTSP, NDI|HX, TALLY, AUDIO OUT.
- TRANSITIONS - A variety of transition special effects, support for multiple transition special effects such as fade in and fade out.
- ON-SCREEN TEXT/GRAPHICS - Custom overlay content; subtitle text and logos.
PARAMETERS |
|
Video Standard |
FHD |
Video Processing Capability |
Input: Up to 1920x1080p60 * 8 Output: Up to 1920x1080p60 (HDMI) +1920x1080p60 (IP) +1280x720p60 (IP) |
Video Input |
8 channel IP video streaming +1 channel HDMI+ local video |
Video Output |
2 channel IP video streaming +1 channel HDMI+ local recording |
Live Video Encoding Format |
H.264、H.265 |
Live Video Bitrate |
512Kbps~16384Kbps |
Live Video Bitrate Mode |
CBR |
Network Input Protocol |
RTSP、RTMP |
Network Output Protocol |
RTSP、RTMP、NDI|HX (optional) |
Audio Input |
RCA*1 TRS6.3mm*2: Compatible with active and passive signals Video embedded |
Audio Output |
RCA*1 Video embedded |
Mixer |
4 physical tuning + 8 digital tuning |
Transition control |
T-Bar、button 、touch |
Subtitle Overlay |
Support |
Logo Overlay |
Support |
Tally |
DB9 output |
USB Port |
USB3.0*2+USB2.0*2 |
Camera Control |
Support PTZ, focus, exposure, white balance, preset position control |
POWER SUPPLY |
|
Input Voltage |
DC 12V |
Input Current |
3A |
Rated power |
36W |
POE |
Optional 802.3AT |
OTHERS |
|
Use Environment |
Indoor |
Operating Temperature |
0℃~40℃ |
Storage Temperature |
-10℃~50℃ |
Dimensions |
420*257.52*121.2mm / 16.5”x10.1”x4.8” |
Package |
500*330*220mm 9kgs / 19.6”x13”x8.7” 20lbs |
- Jimcom 8-Channel Touch Broadcast Switcher and PTZ Controller with NDI|HX
- Power Cable
- Power Adapter
- HDMI Cable
- Bracket
- Product Manual
