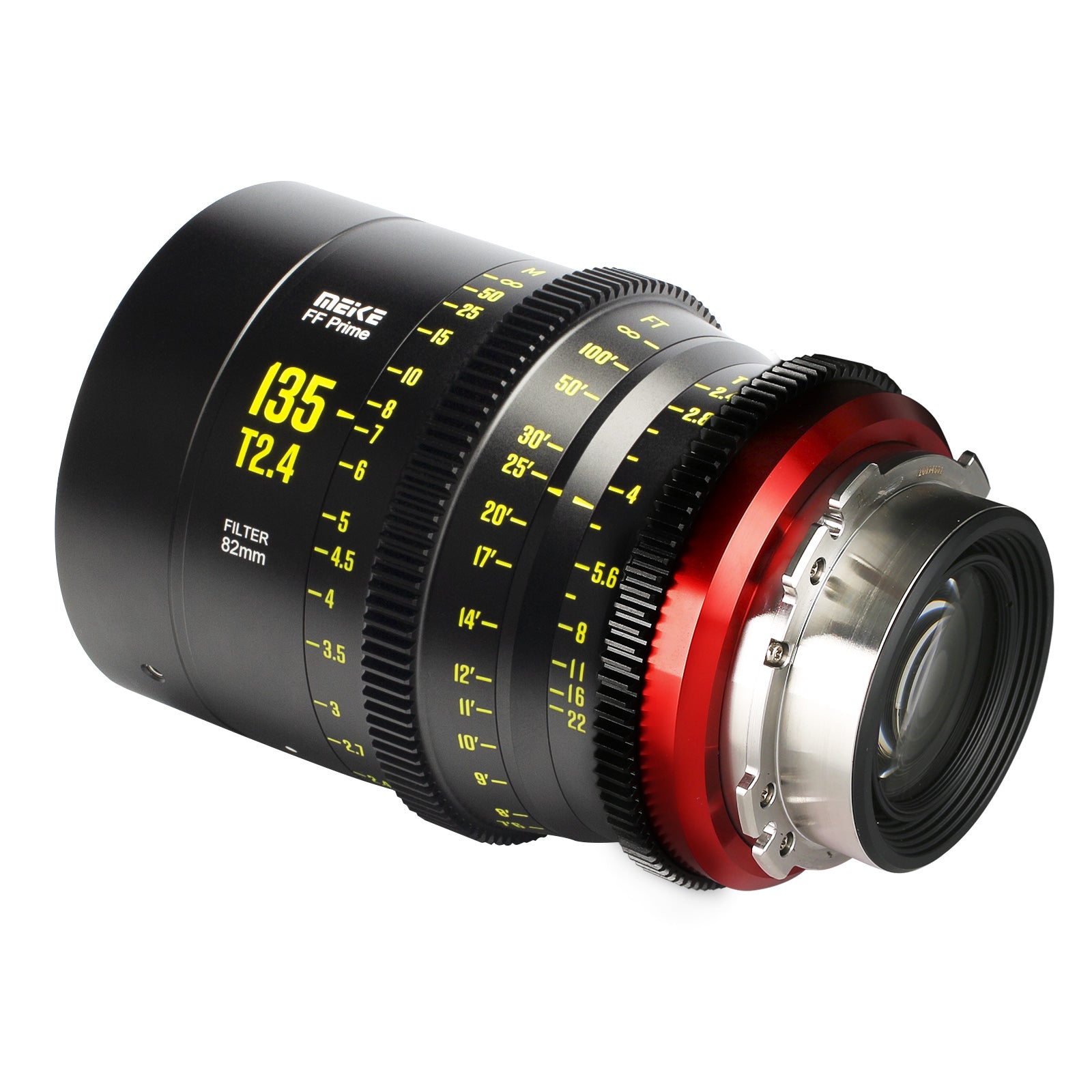

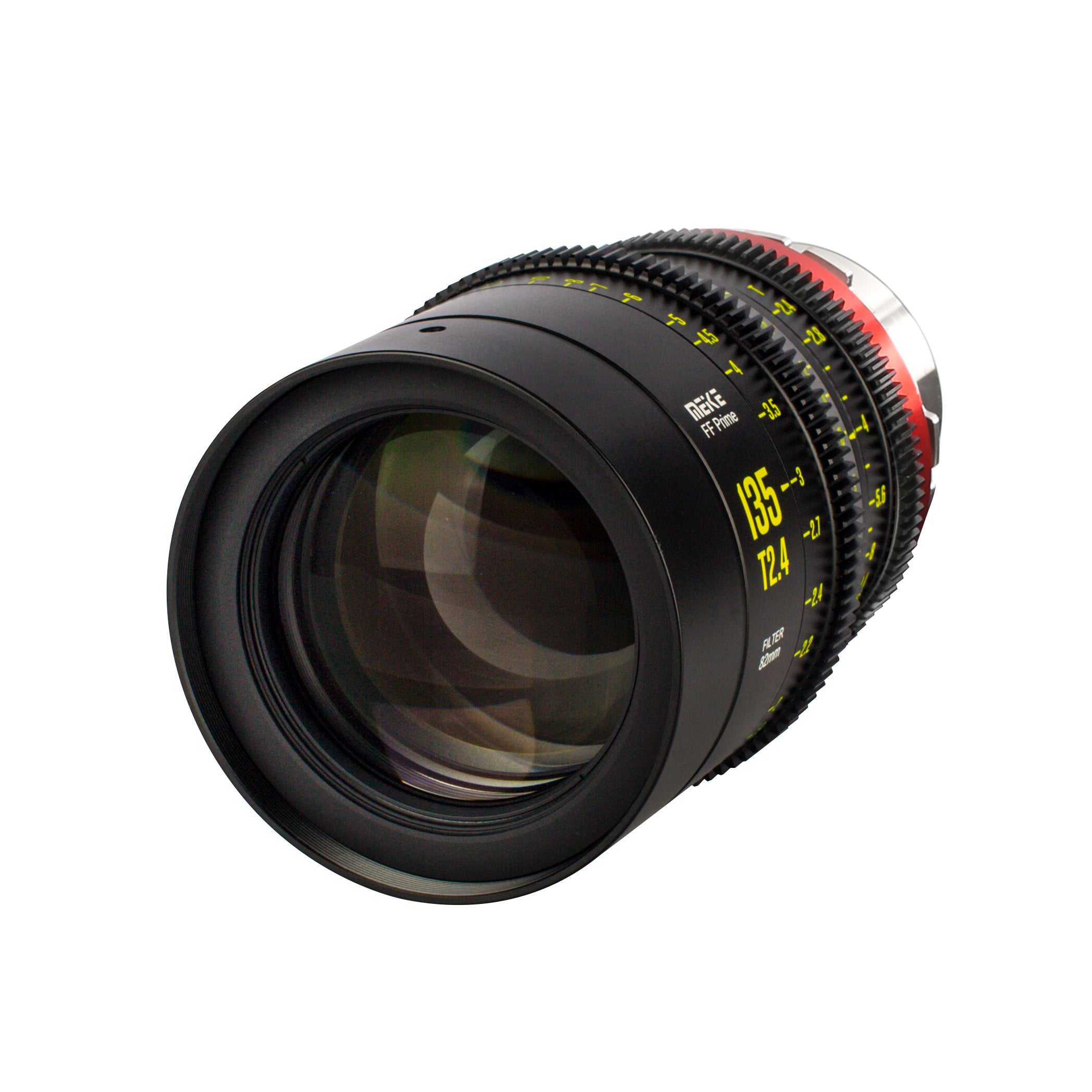

Introducing Meike Cinema Full Frame Cinema Prime 135mm T2.4 Lens (PL Mount), Meike’s seventh FF cine lens and it now joins the FF cine lens family. It covers an image circle of 45mm and it is available in either PL, Canon EF, Canon RF, Sony E, or Panasonic L mounts.
It has industry-standard 0.8mm pitch gears on the focus and aperture ring. The lens design of the Meike 135mm T2.4 FF-Prime consists of sixteen elements in eleven groups; the aperture mechanism consists of 11 aperture blades; and the minimum focus distance is 30cm.
- Canon C700 C500II
- Sony VENICE
- Alexa LF
- Z Cam E2-F6
- Mavo LF
- Sony FX3 FX6, FX9
- All full-frame Sony, Panasonic. Canon, Sigma, Leica mirrorless Cameras
- All Super 35/ APS-C sensors Cameras
- Lens Mount: PL/EF/RF/E/L
- Aperture Range: T2.4-T22
- Diaphragm blades: 17
- Focal Length: 135mm
- Filter Thread: Ф 82mm
- Outer Diameter: 85mm
- Minimum focusing distance: 1m
- Lens Structure: 12 elements in 8 groups
- FF View of Angle:
- Diagonal 18.5°
- Horizontal 15.4°
- Vertical 10.3°
- Aps-C View of Angle:
- Diagonal 12.1°
- Horizontal 10.1°
- Vertical 6.6°
