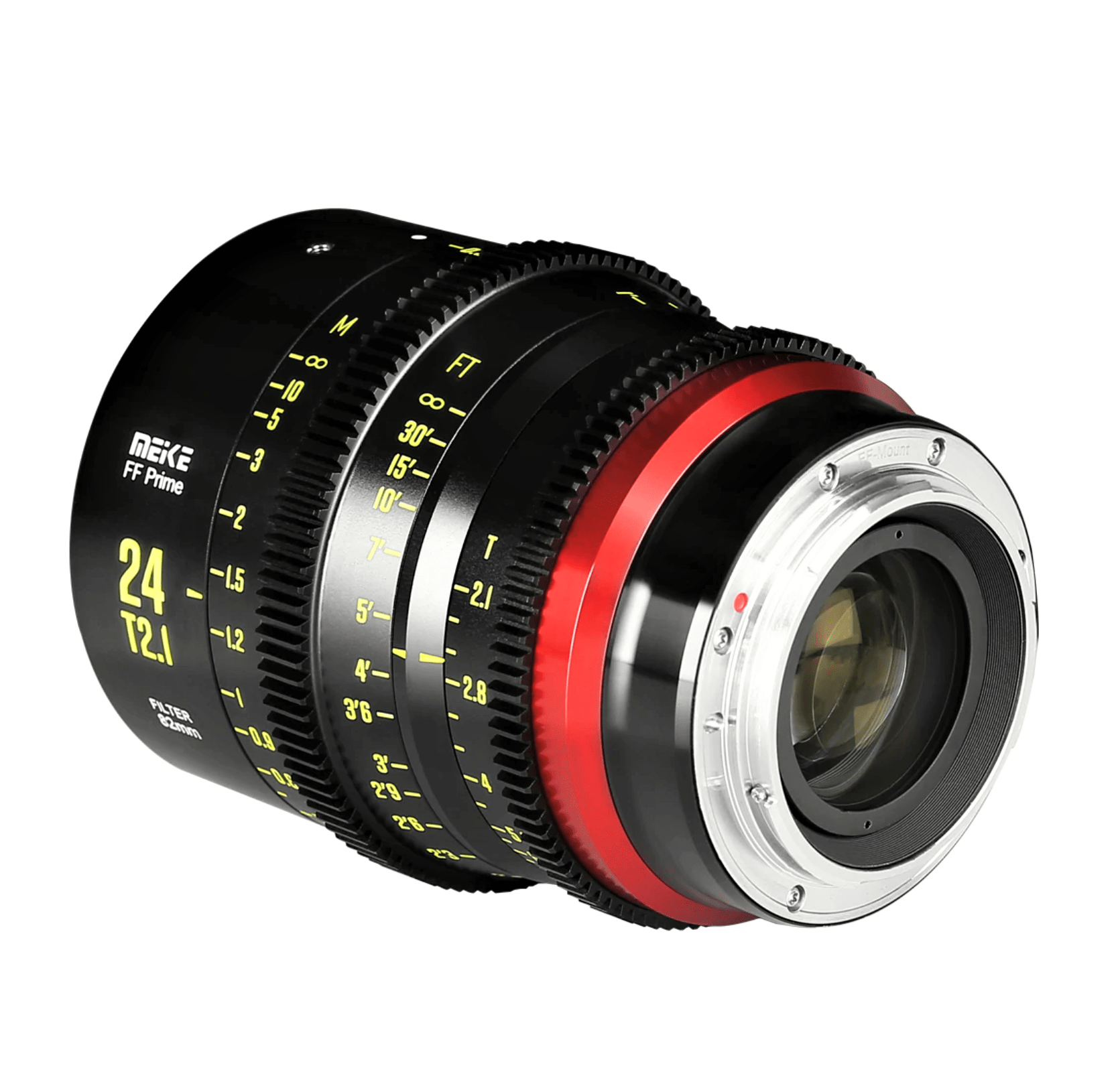

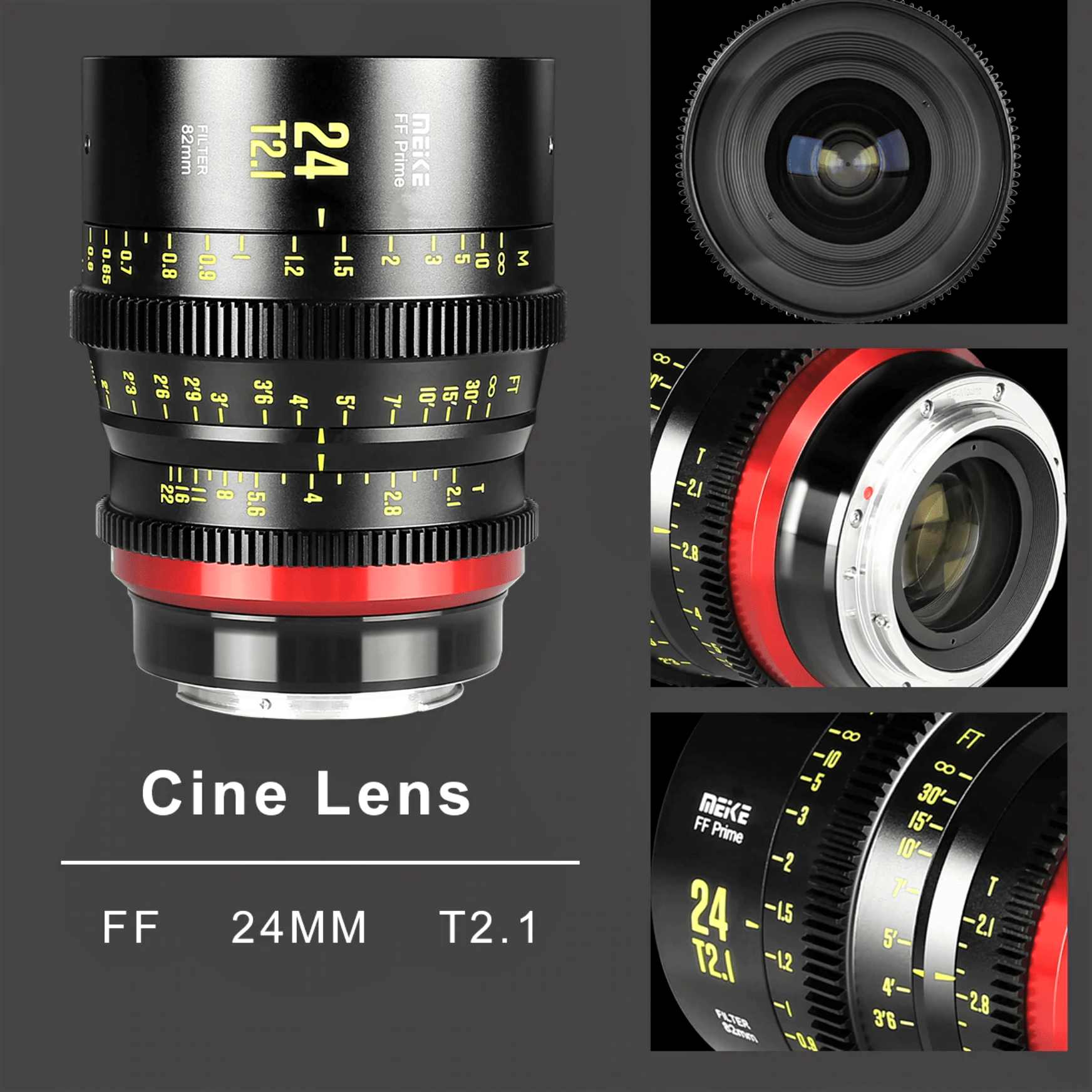

Meike Cinema Full Frame Cinema Prime 24mm T2.1 Lens (L Mount)

Meike Cinema Full Frame Cinema Prime 24mm T2.1 Lens (L Mount)
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
Capturing high-resolution images for your next adventure, the Meike Cinema Full Frame Cinema Prime 24mm T2.1 Lens (L Mount) produces wide-angle images on full-frame cameras and is part of a series of full-frame lenses featuring a 45mm image circle with a T2.1 to T22 aperture range. The 24mm lens is Meike’s fourth full-frame cine lens and it now joins the Full Frame cine lens family available in either PL, Canon EF, Canon RF, Sony E, or Panasonic L mounts. It has industry-standard 0.8mm pitch gears on the focus and aperture ring.
The lens design of this lens consists of fourteen elements in nine groups, the aperture mechanism consists of 11 aperture blades, and the minimum focus distance is 30mm. The complete set includes: 16mm T2.5, 24mm T2.1,35mm T2.1, 50mm T2.1, 85mm T2.1, 105mm T2.1, 135mm T2.4.
- Canon C700C500II
- Sony VENICE
- Alexa LF
- Z Cam E2-F6
- Mavo LF
- Sony FX3 FX6,FX9
- All full-frame Sony, Panasonic. Canon, Sigma, and Leica mirrorless
- All Super 35/ APS-C sensors
- Full-Frame Coverage, 45mm Image Circle
- T2.1 to T22
- 85mm Front Diameter
- 11 Iris Blades
- 82mm Front Filter Threads
- Focus Marks on Feet & Meters
- 330° Focus Rotation
- 0.8 MOD Focus & Iris Gears
Lens Mount: | PL/EF/RF/E/L |
Min Focal Dist: | 30cm |
Filter Thread: | ø82 |
Image Circle: | 45mm |
Structure: | 14 Elements in 9 Groups |
Focal Length: | 24mm |
Aperture Range: | T2.1-T22 |
Iris Blades: | 11 |
Gear Mod: | M0.8 |
Focus Rotation: | 330° |
Dimensions (Ø x L): PL: | ø89.6 × 101.9 |
EF (Canon): | ø89.6 × 110 |
RF (Canon): | ø89.6 × 133.9 |
E (Sony): | ø89.6 × 135.9 |
L (Panasonic): | ø89.6 × 133.9 |
Z (Nikon): | ø89.6 × 137.9 |
Weight: | 1111~1185g |
on FF cameras: | on APS-C camera: |
Diagonal: 83.4° Horizontal: 72.6° Vertical: 52° |
Diagonal: 60.1° Horizontal:51.3° Vertical: 35.1° |
- Meike Cinema Full Frame Cinema Prime 24mm T2.1 Lens (L Mount)
- Front Lens Cap
- Rear Lens Cap
- Limited Warranty
