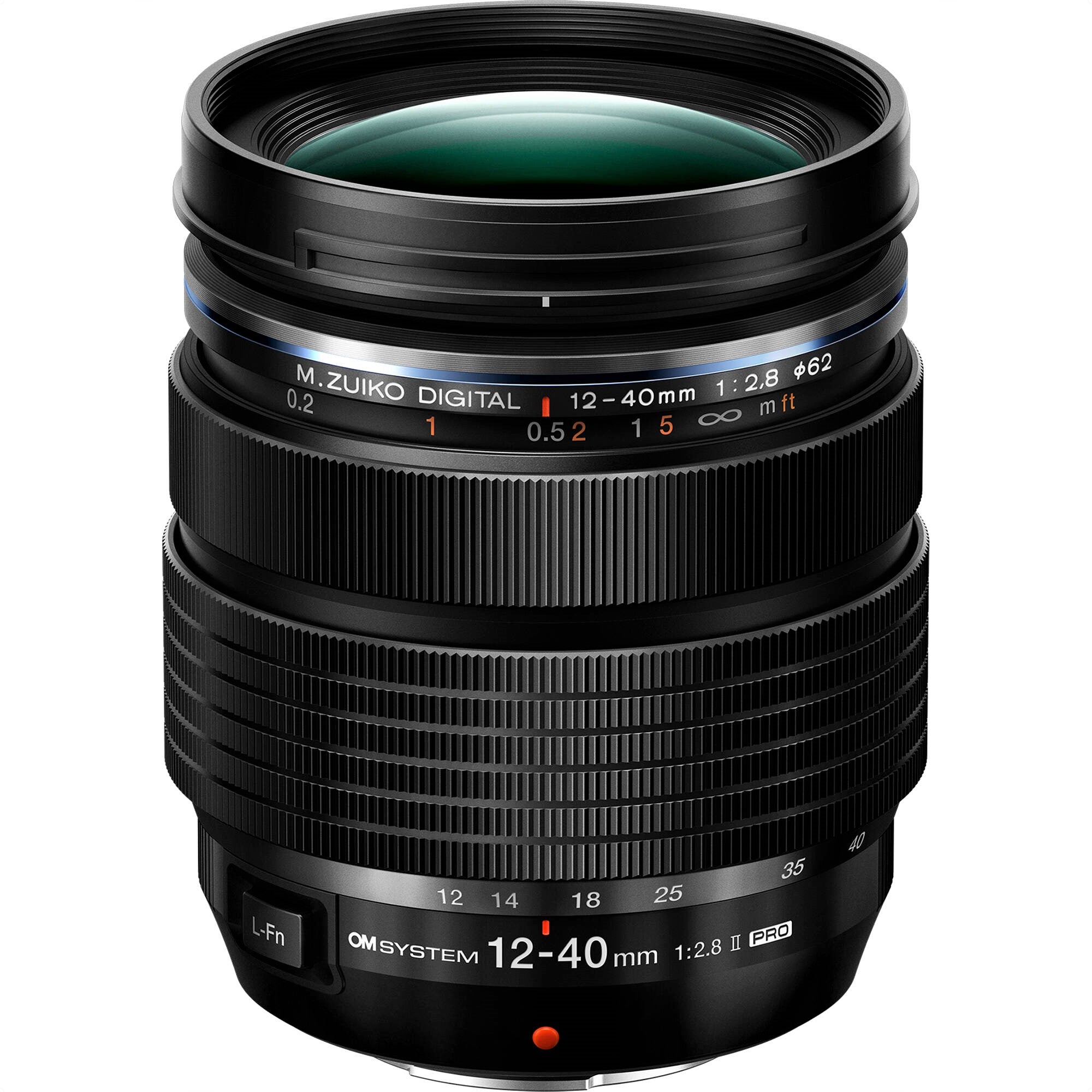

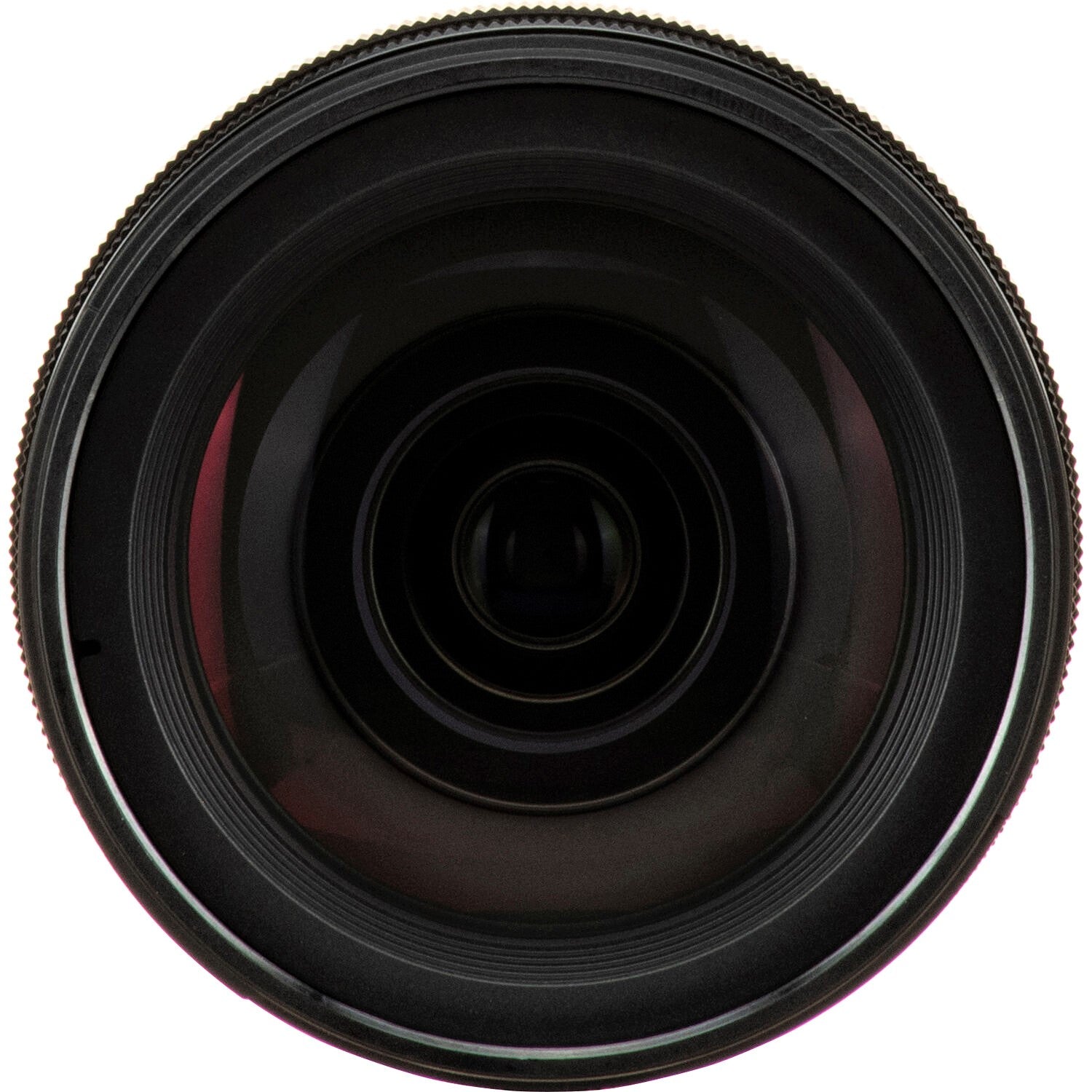

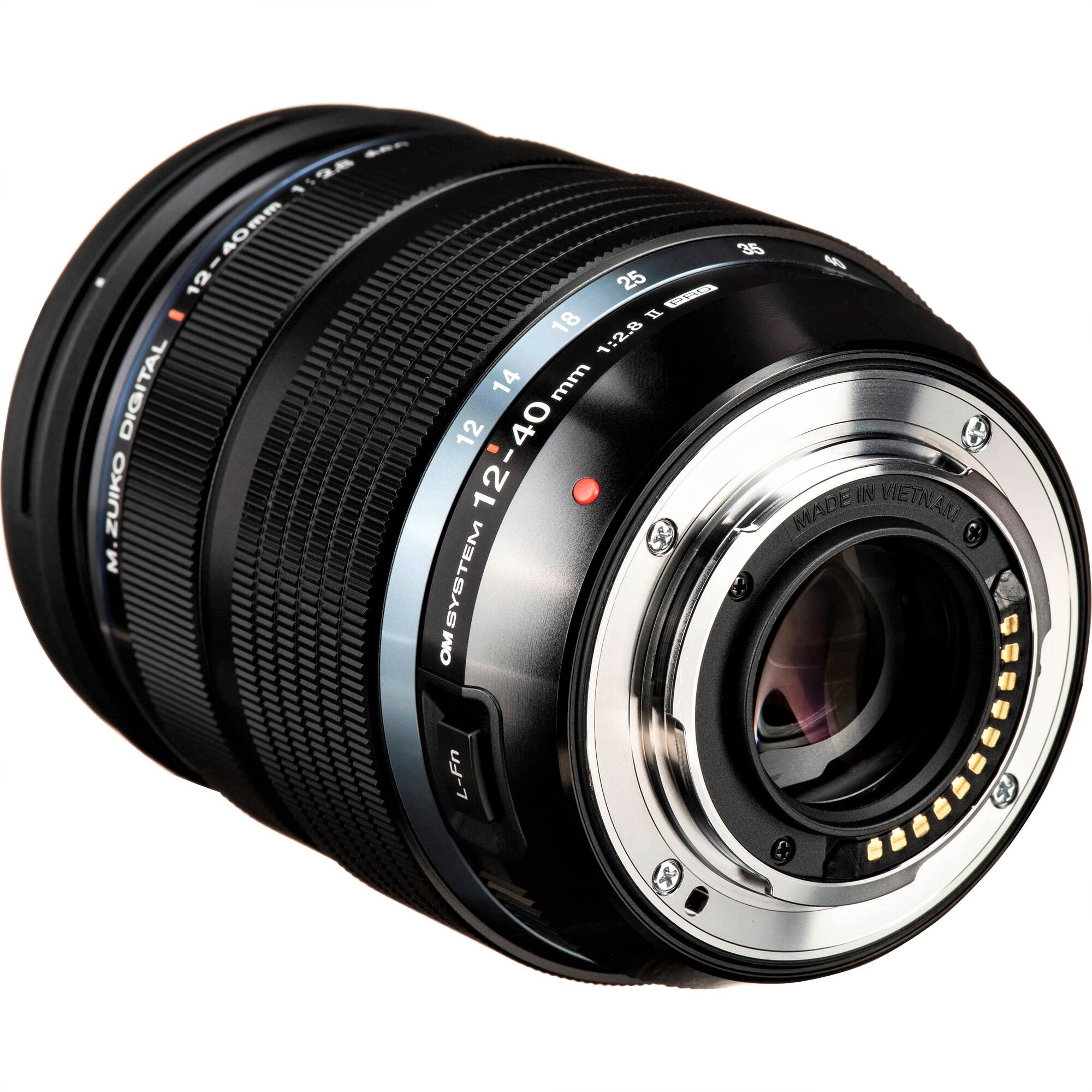

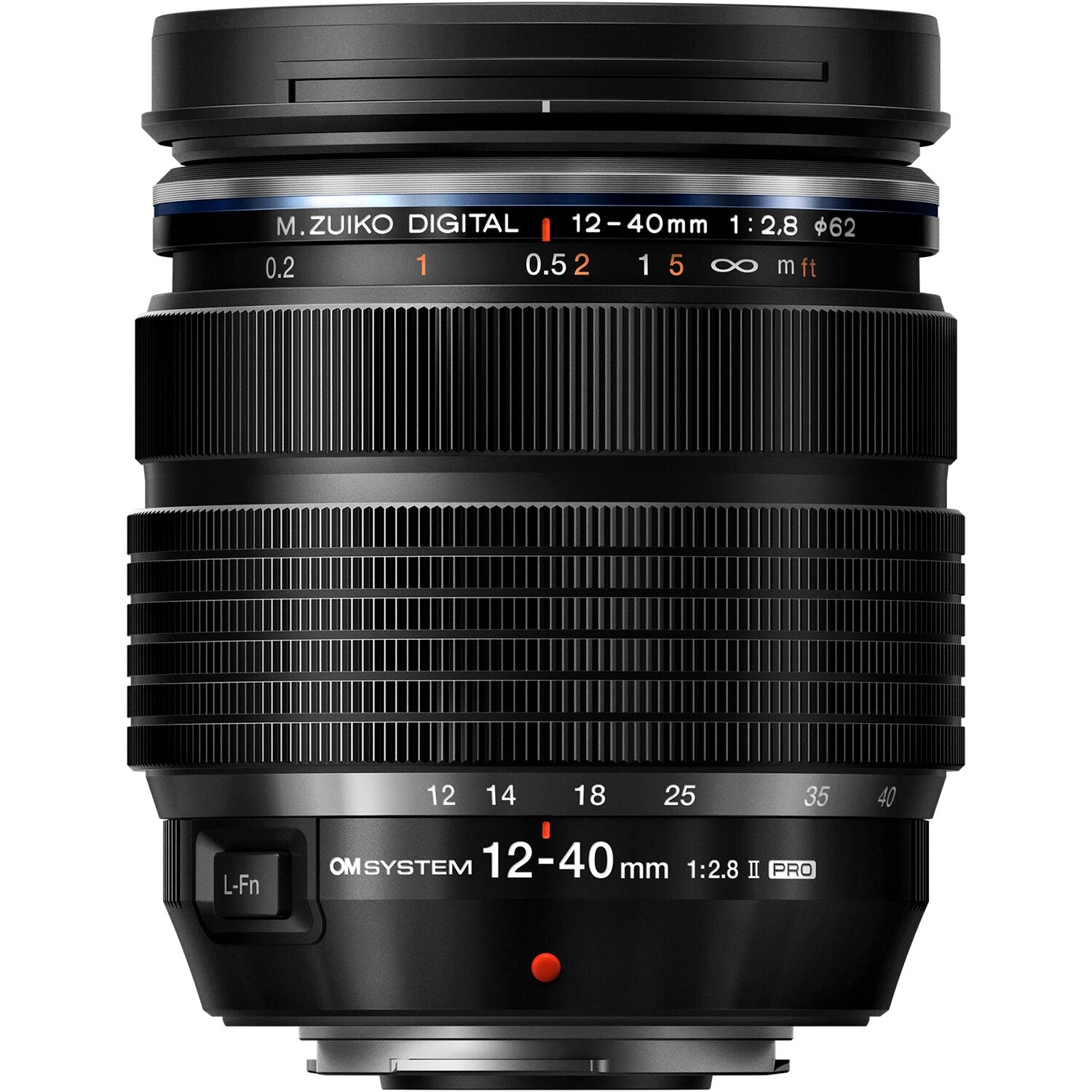

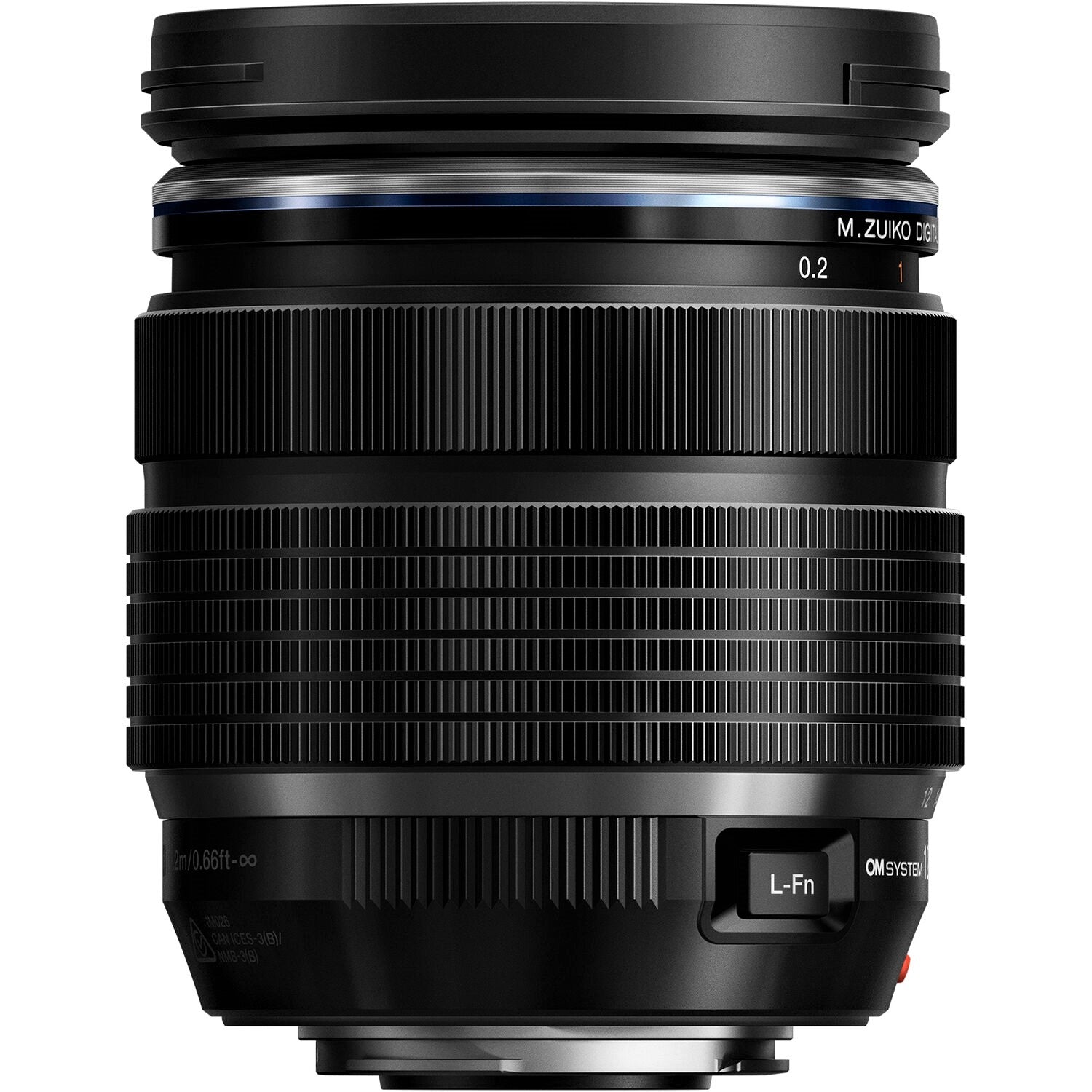

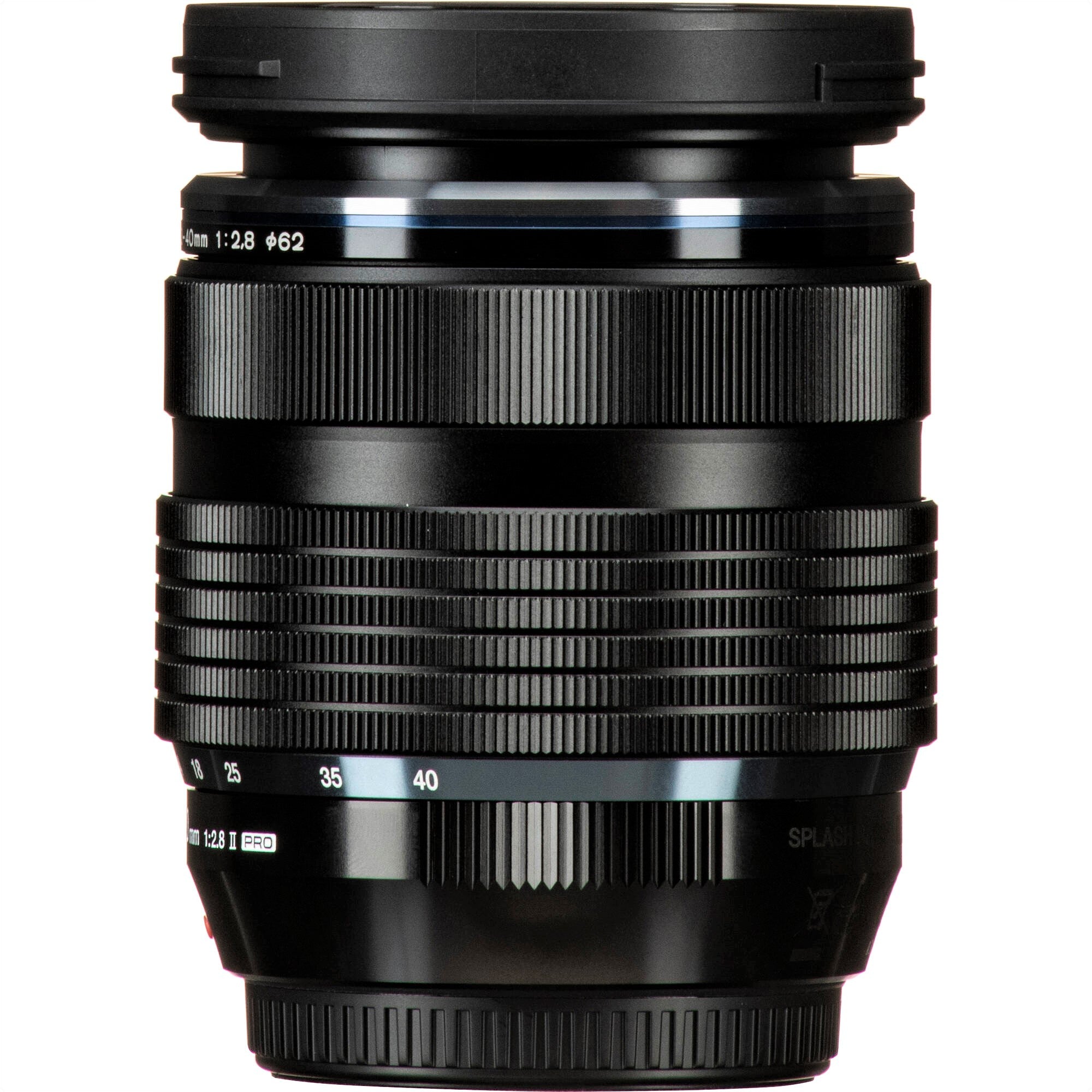

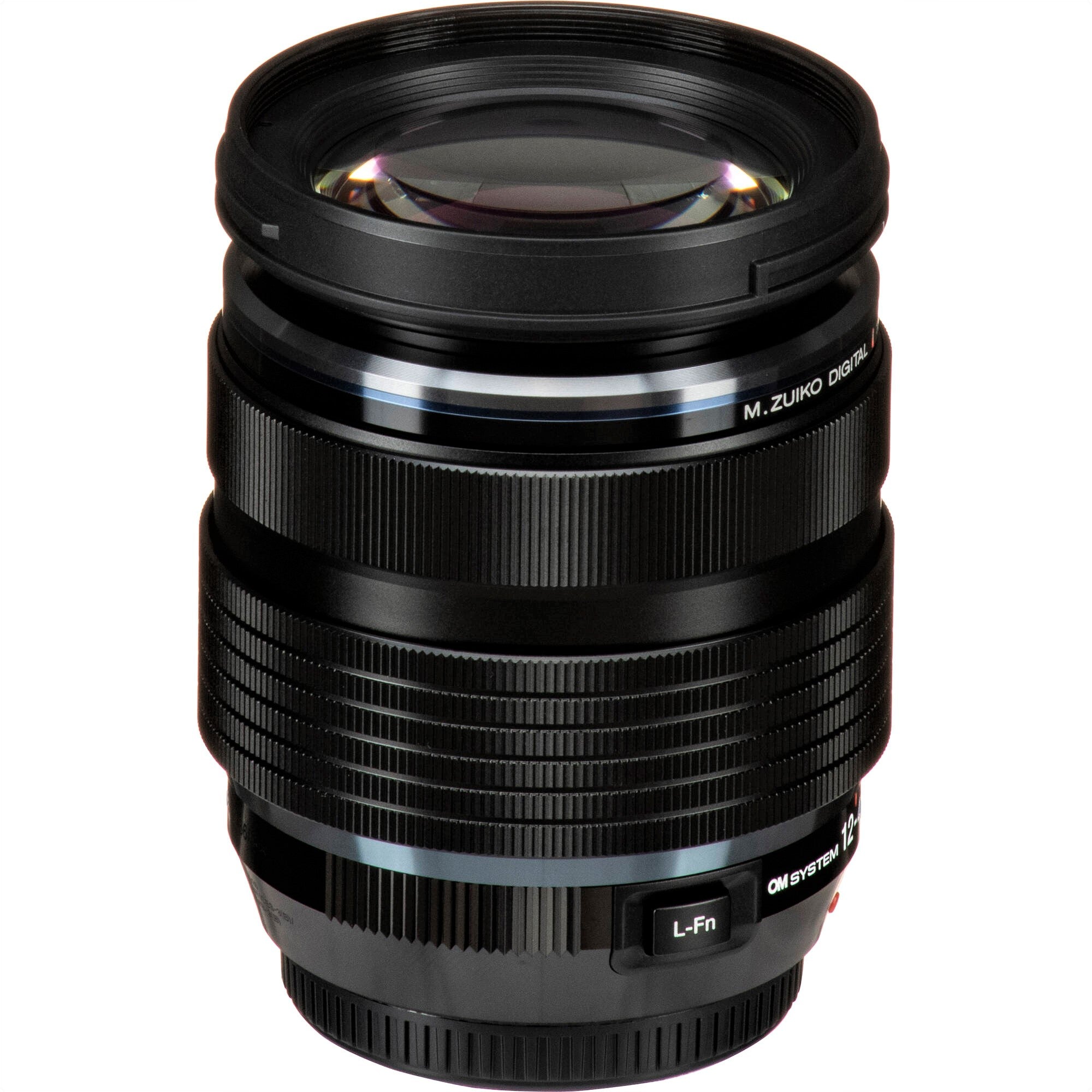

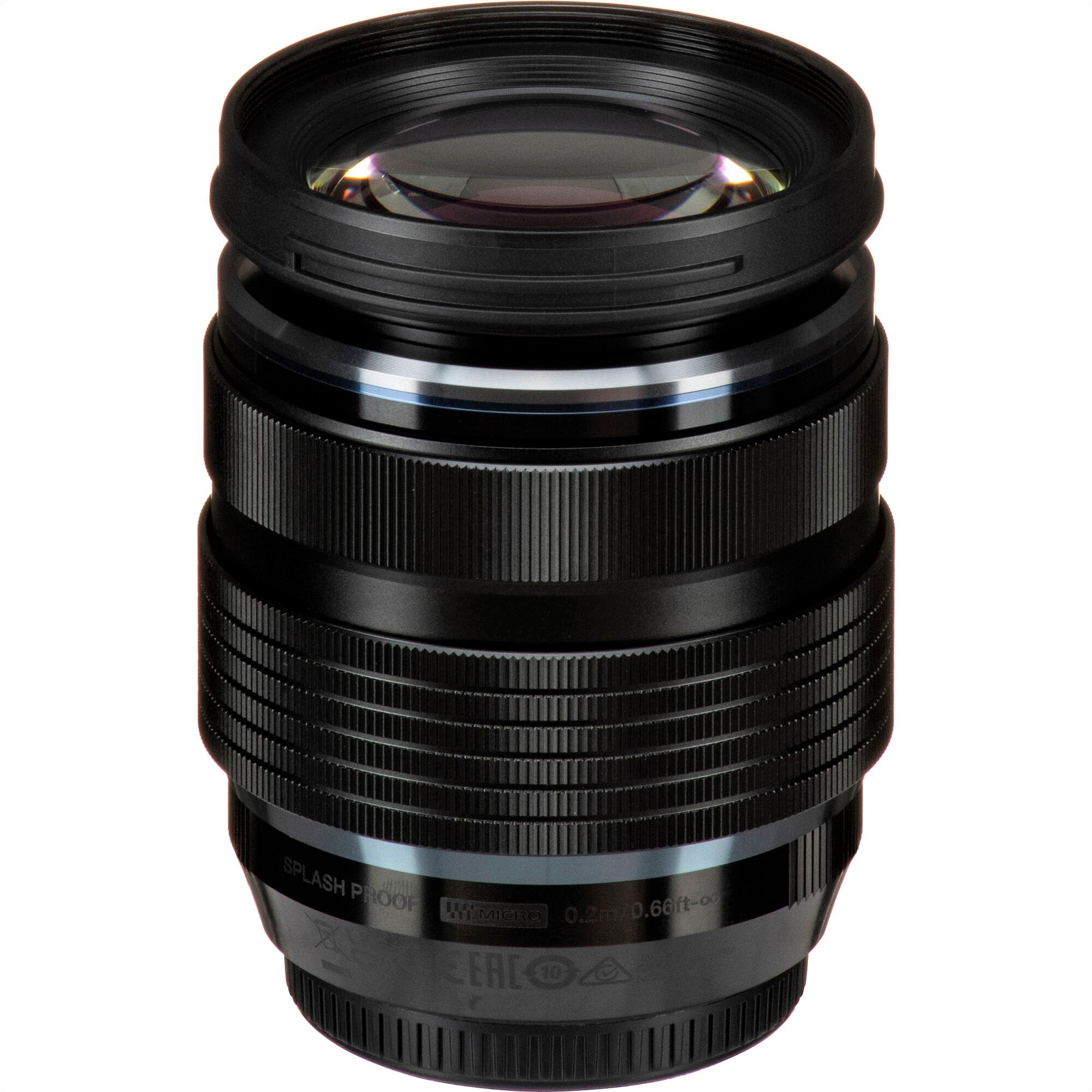

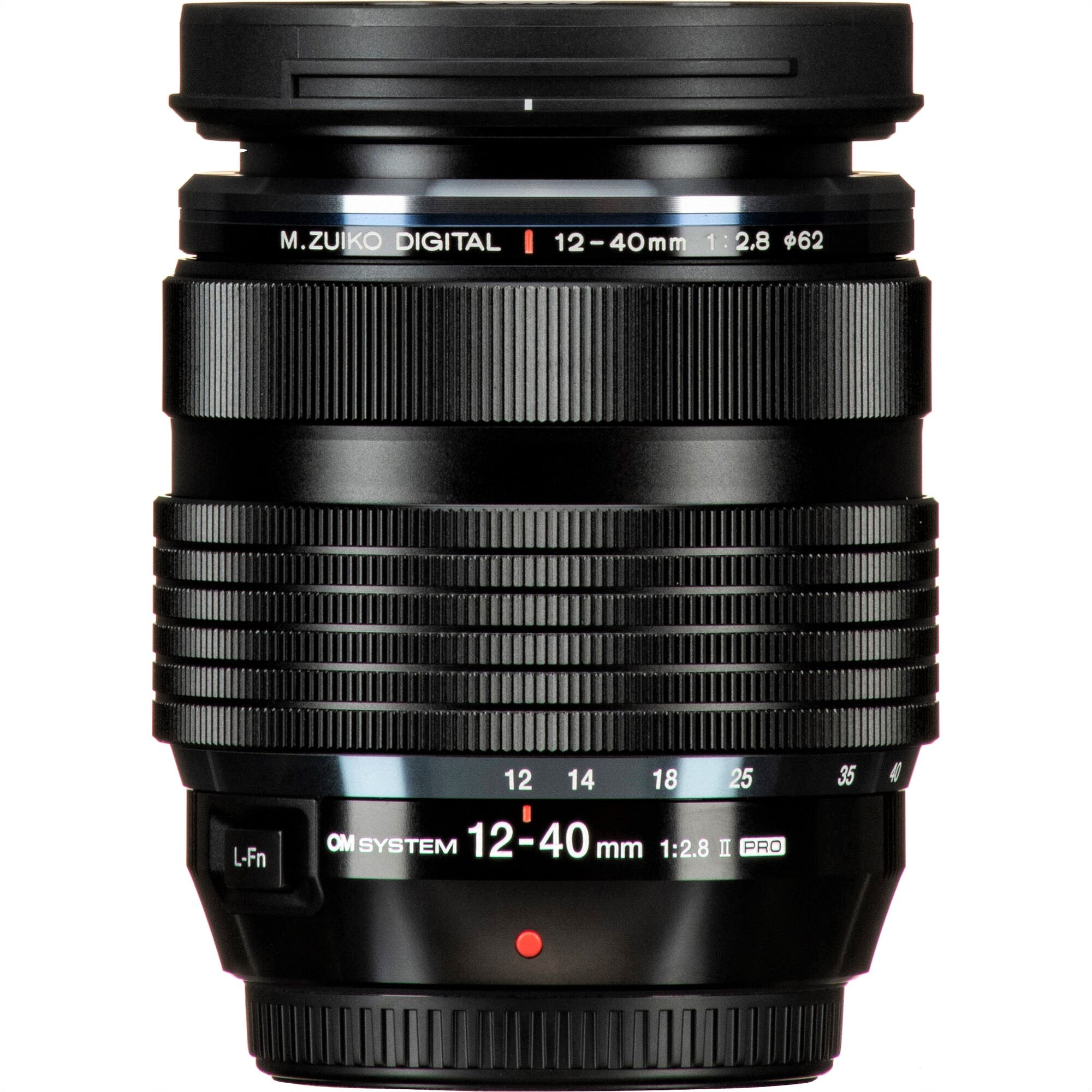

Olympus OM SYSTEM M.Zuiko Digital ED 12-40mm F2.8 PRO II Lens

Delivering exceptional optical quality and stunning high-resolution output, the Olympus OM SYSTEM M.Zuiko Digital ED 12-40mm F2.8 PRO II Lens is the first lens in Olympus's 'PRO' lens line for Micro Four Thirds designed to match the top-end OM-D E-M1. This large-diameter, f/2.8 zoom lens possesses optical performance that exceeds Four Thirds High-Grade series lenses and comes with enhanced features such as the manual focus clutch system and the capability to capture subjects as close as 20 cm to the sensor, regardless of the focal length for macro photography. Its advanced optical design effectively minimizes chromatic and spherical aberrations across the entire zoom range, producing exceptional image clarity, sharpness, and accurate color reproduction.

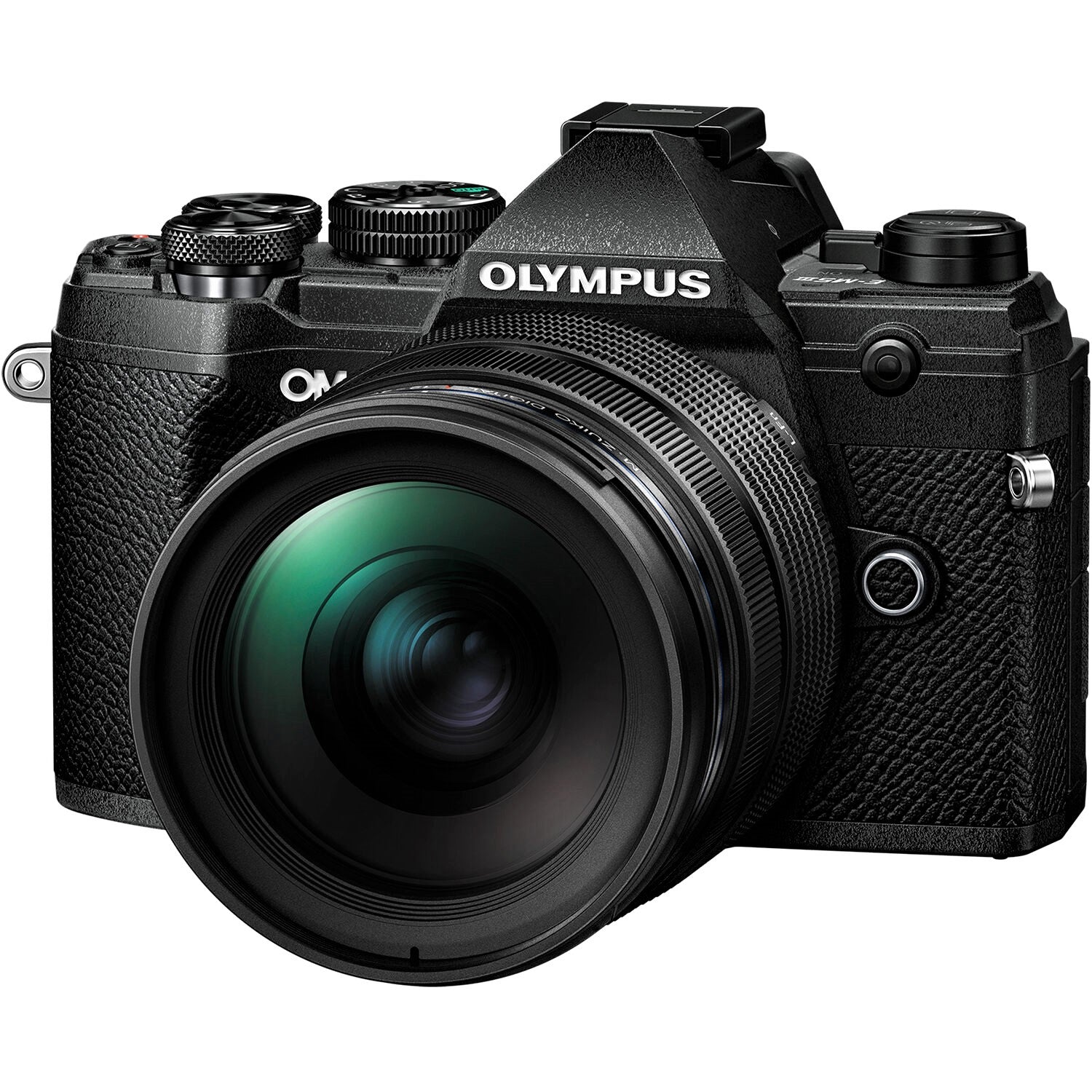

An excellent choice for content creators, this Olympus lens incorporates a rapid and precise autofocus system that works well for both video and still photography, offering speedy, seamless, and noiseless focusing. It allows you to capture close-up shots easily, thanks to its remarkably short minimum focusing distance of only 7.9 inches. And to ensure durability in challenging weather conditions, this 12-40mm lens is constructed with a dependable weather-sealed design. Plus, a fluorine lens coating adds an extra layer of defense, safeguarding against dust, water droplets, grease, and dirt. It works with various Olympus digital cameras like the Olympus OM SYSTEM OM-1 Camera, capable of outputting 50MP and 80MP images and 4K video recording at up to 60 fps in both UHD and DCI formats.
More details:
- Constant f/2.8 aperture - With the addition of the M.Zuiko Digital ED 7-14mm f/2.8 PRO, the PRO series now provides a constant maximum aperture of f/2.8 from ultra-wide-angle to telephoto.
- Achieving high-resolution, high-performance, and compact size - This Olympus Pro lens possesses optical performance that rivals the popular Four-Thirds High-Grade series. A rational lens design of 14 elements in 9 groups, including 2 ED lenses, 1 EDA lens, and 2 HR lenses, enables a compact form and excellent image capture.
- ZERO Coating thoroughly eliminates ghosts and flares - Olympus' highly-transmittable ZERO (Zuiko Extra-low Reflection Optical) Coating is applied to the lens surface to eliminate previously hard-to-prevent occurrences such as ghosts and flares. ZERO Coating boasts clear image quality even under challenging conditions such as backlit conditions.

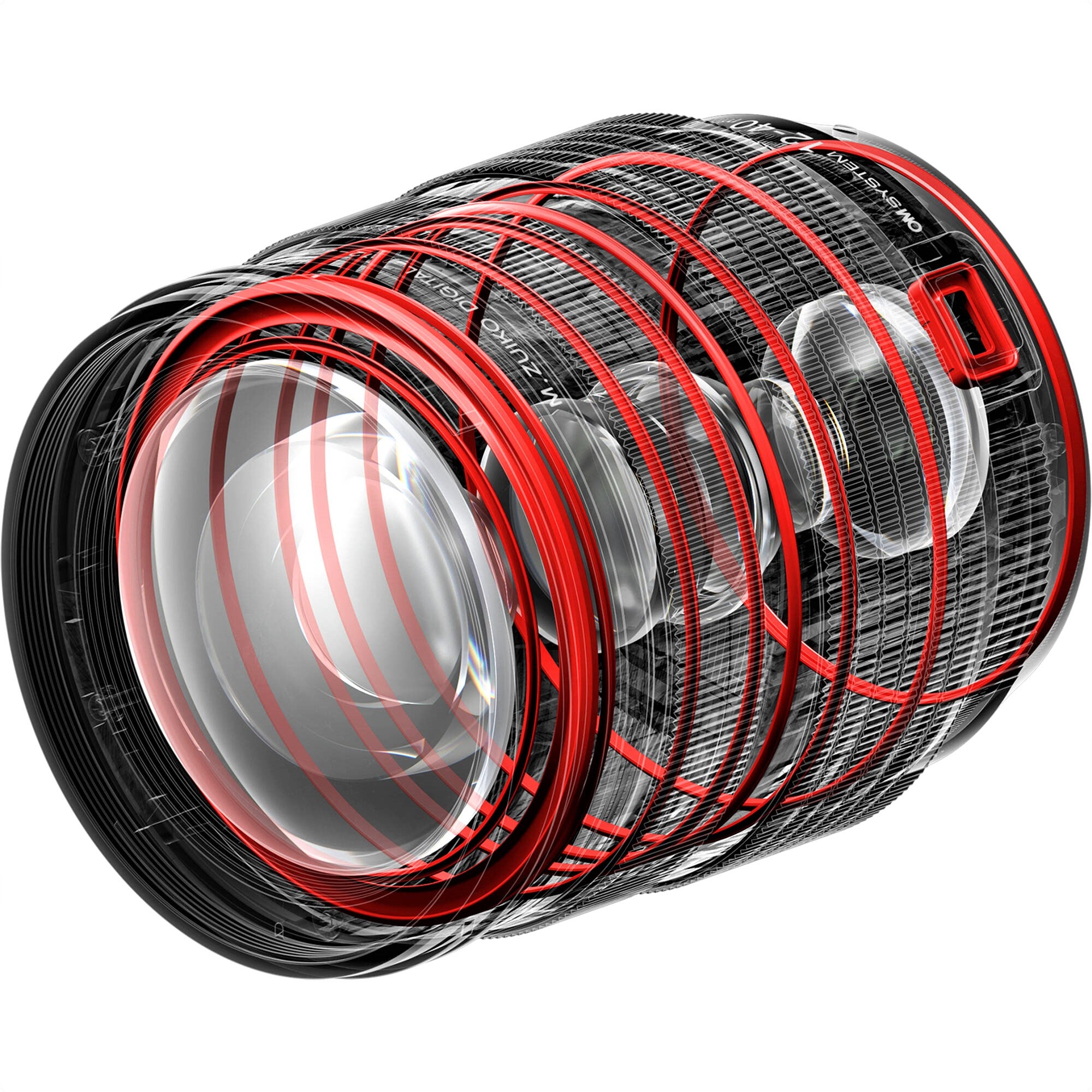

- Dustproof, Splashproof, & Freezeproof - Dustproof, splashproof and freezeproof performance are achieved through hermetic sealing. This prevents the incursion of water and dust through the waterproof, air-permeable material.
- Macro performance for getting up to 20cm away from the imaging surface at all focal distances and a maximum image magnification of 0.6x (35mm equivalent) - It is possible to achieve a closest focusing distance of 20cm from the sensor at all focal distances without switching to macro mode. At the telephoto setting, close-up shooting is possible up to 7cm from the end of the lens. Macro shooting is possible up to a maximum image magnification of 0.3x (35mm equivalent: 0.6x). Because you can approach main subjects up to 9cm from the end of the lens at the wide-angle setting.
- The manual focus clutch mechanism makes instant switching to manual focus easy - This lens is equipped with the manual focus clutch mechanism, which makes instant switching to manual focus easy by pulling the focusing ring towards you. By increasing resolving power with the snapshot focus mechanism, smooth and fine focusing equally to traditional manual focusing is possible. You can still focus in the traditional sense by utilizing the stoppers at the extremely close end, and the infinity end of the focus ring.
- 2 ED & 2 Aspherical Elements
- 1 EDA, 1 HD, 1 DSA, 2 HR Lens Elements
- ZERO & Fluorine Lens Coatings
- 24-80mm (35mm Equivalent)
- Micro Four Thirds System
- Aperture Range: f/2.8 to f/22
- Minimum Focusing Distance: 7.9"
- High-Speed MSC AF System
- Rounded 7-Blade Diaphragm
- Focal length
- 12-40mm (35mm equivalent focal length: 24-80mm)

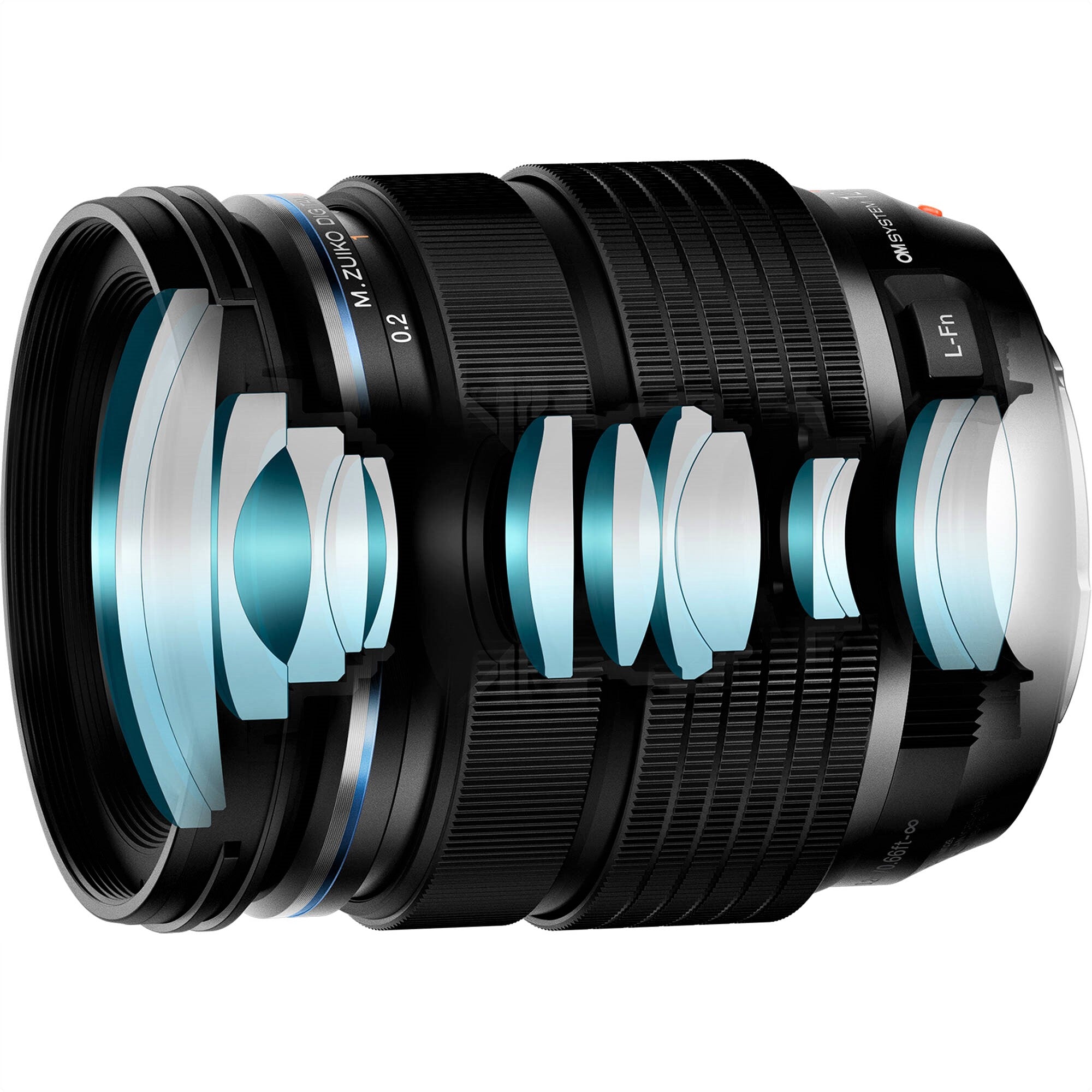

- Lens construction diagram
- Focal length14 elements in 9 groups (1 aspherical ED lens, 2 aspherical lenses, 1 DSA lens, 2 ED lenses, 1 HD lens, and 2 HR lenses)
- Splashproof
- IEC Standard publication 60529 IPX1 (applies when the lens is used with Olympus splashproof Body) / Dustproof construction
- Angle of view
- 84° to 30°
- Closest focusing distance
- 0.2m
- Maximum image magnification
- 0.3x (35mm equivalent maximum image magnification: 0.6x)
- Minimum field size
- 58 x 44mm
- Number of diaphragm blades
- 7 (circular aperture diaphragm)
- Maximum aperture ratio
- F2.8
- Minimum aperture
- F22
- Filter size
- Ø62mm
- Size: maximum diameter x length
- Ø69.9 x 84mm
- Weight
- 382g
- Olympus OM SYSTEM M.Zuiko Digital ED 12-40mm F2.8 PRO II Lens
- LR-2 Rear Lens Cap

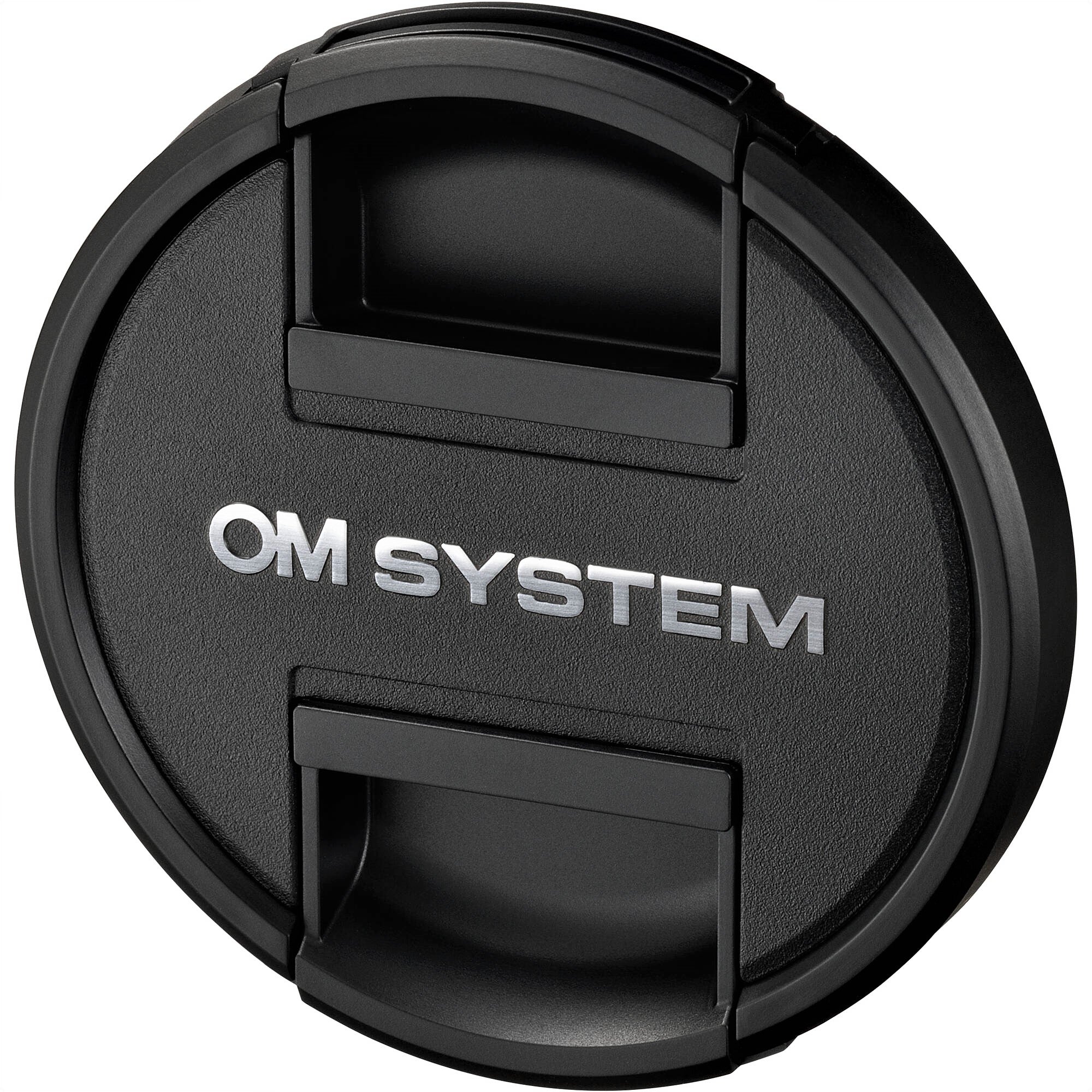

- LC-62D Lens Cap

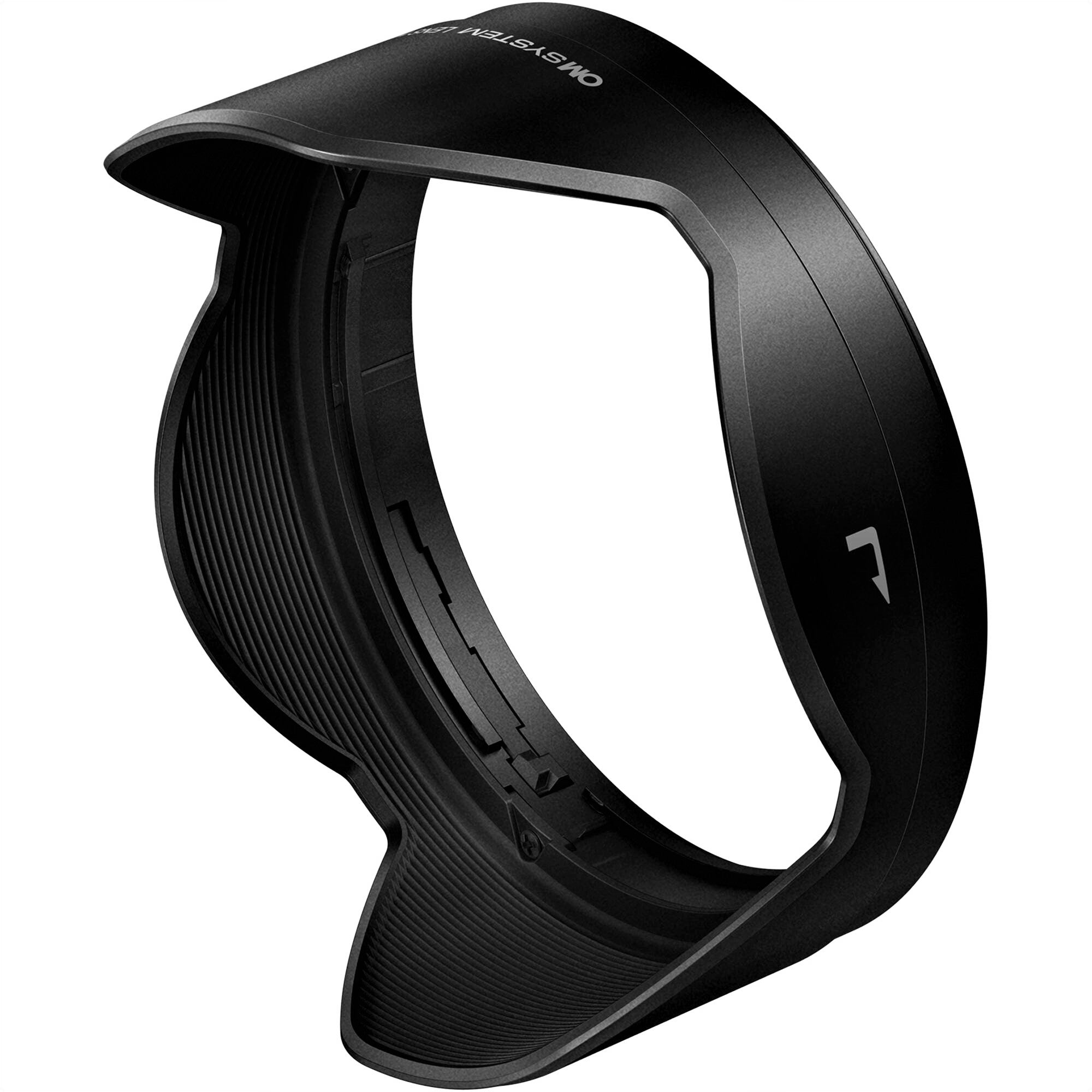

- LH-66 Lens Hood
- LSC-0811 Lens Case
- Instruction Manual
- Limited Warranty
