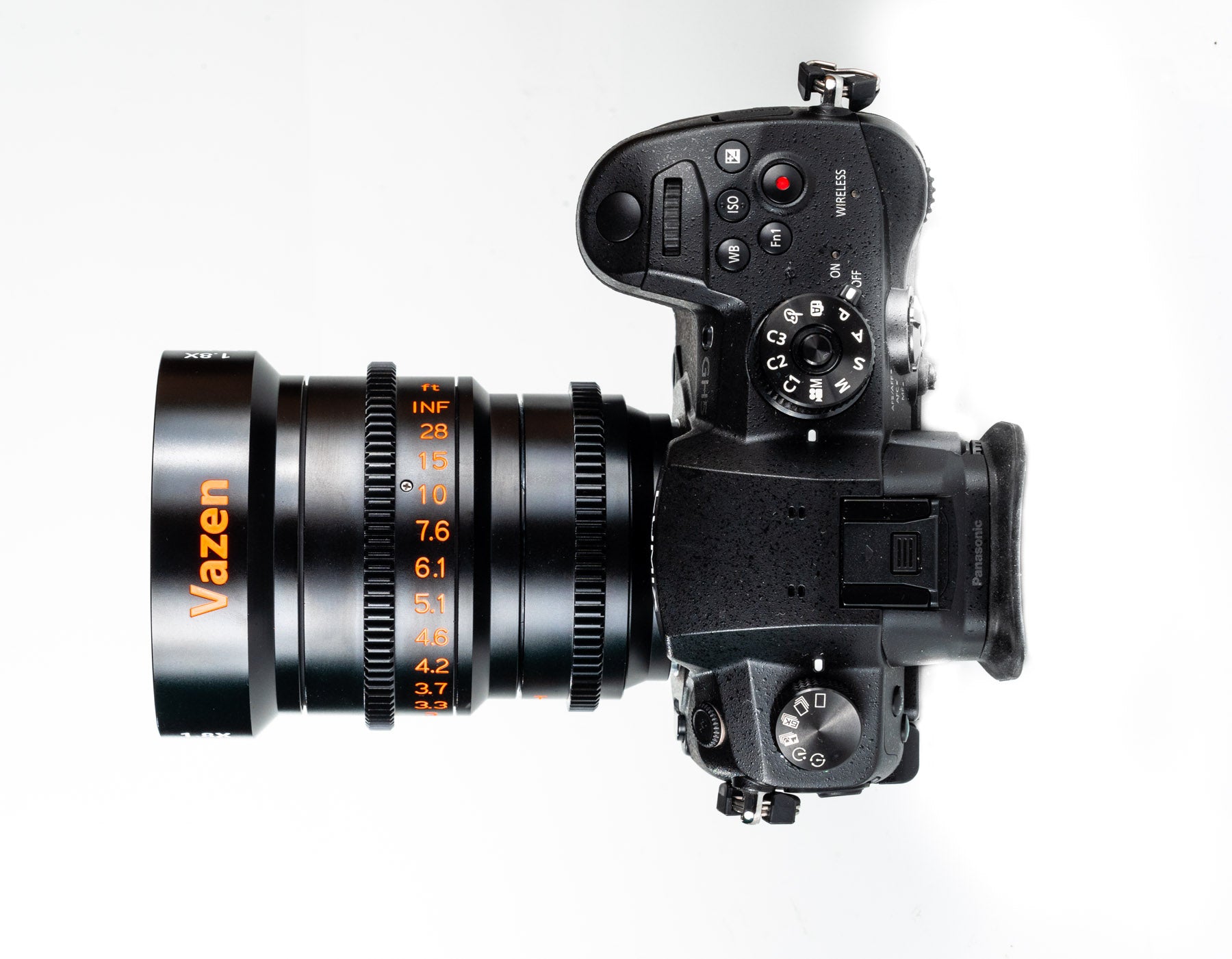

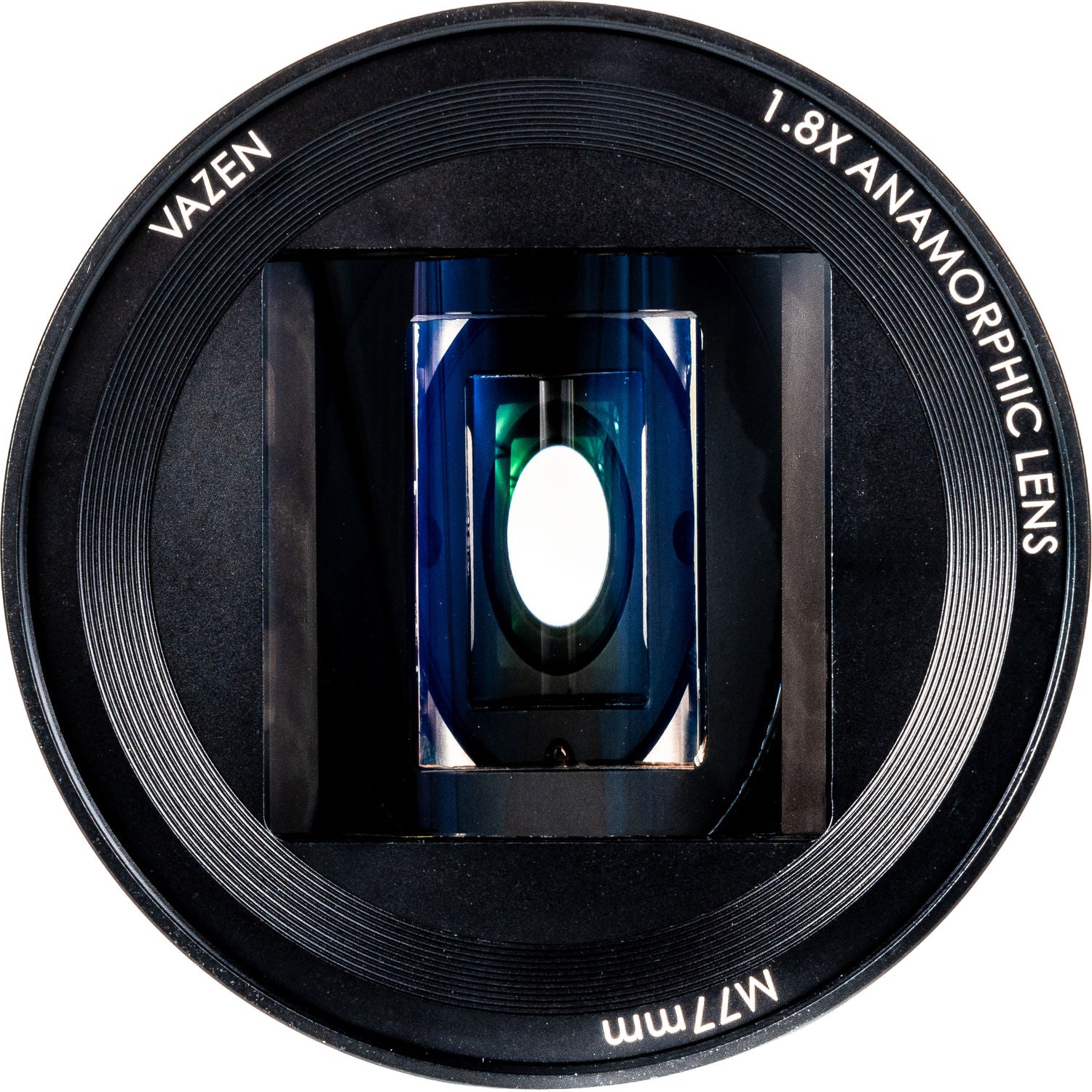

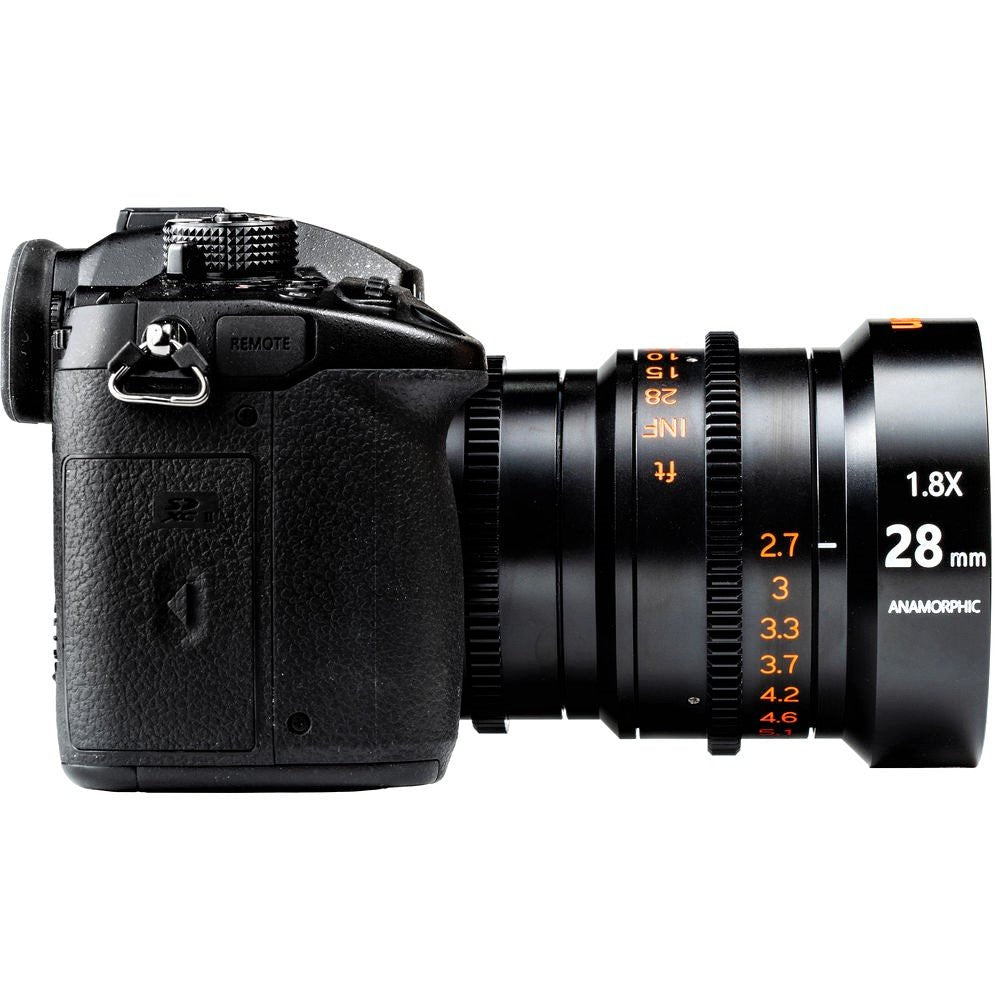

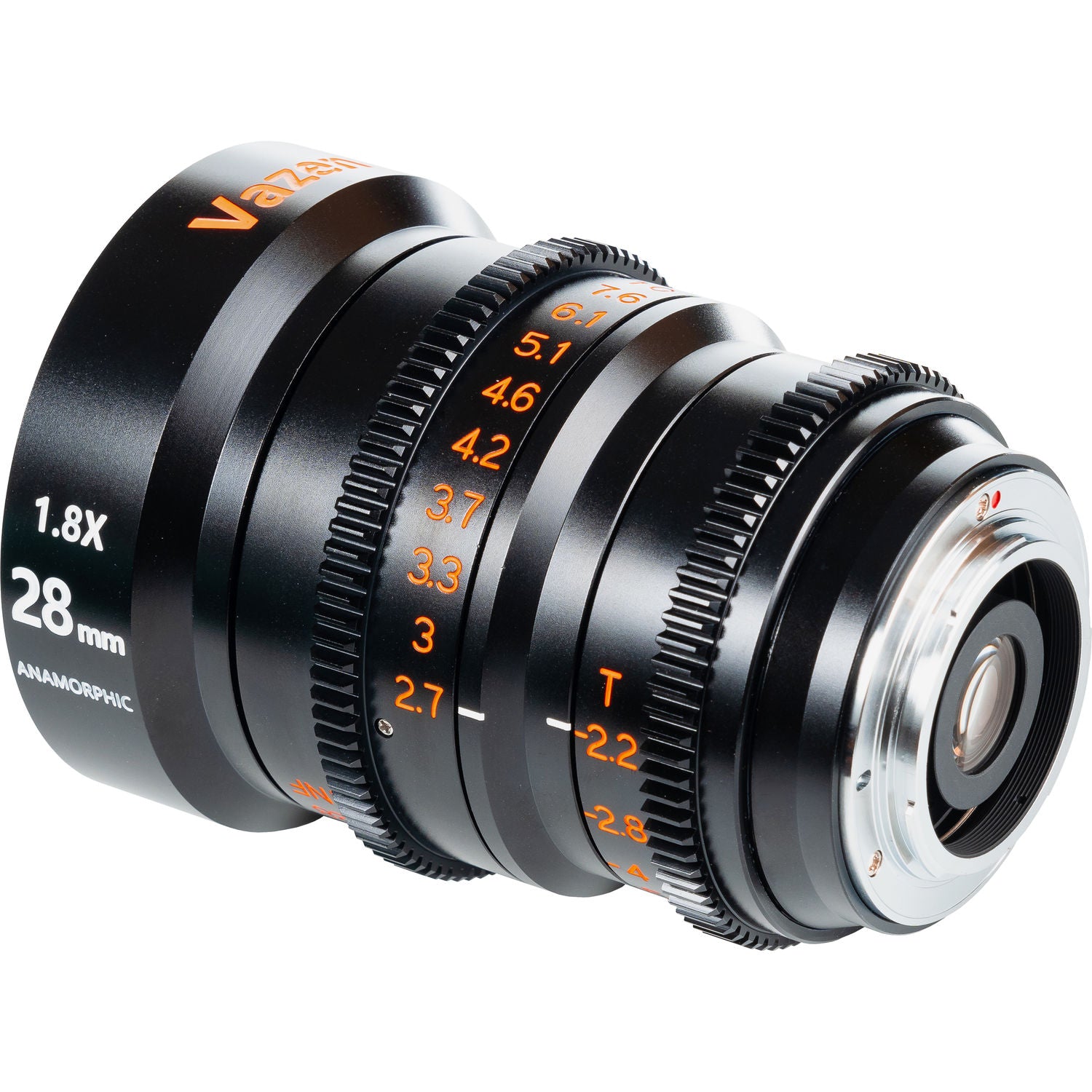

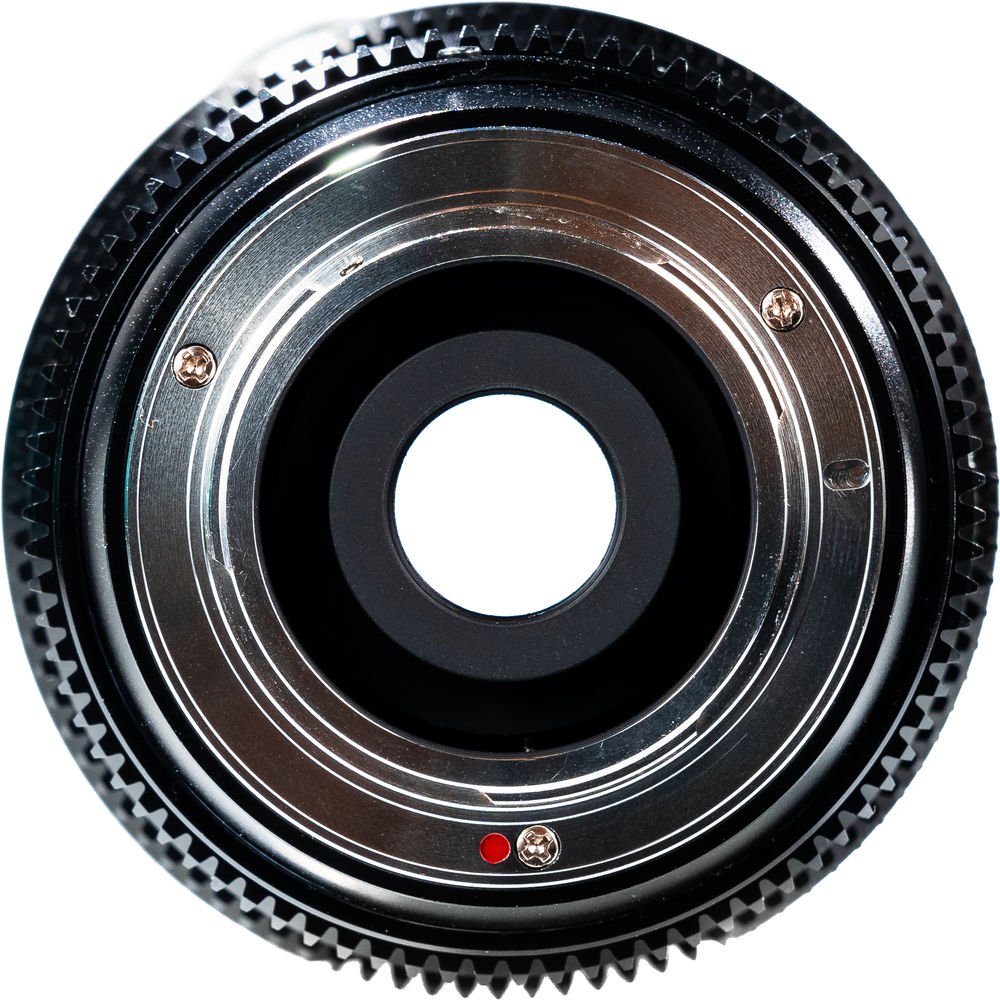

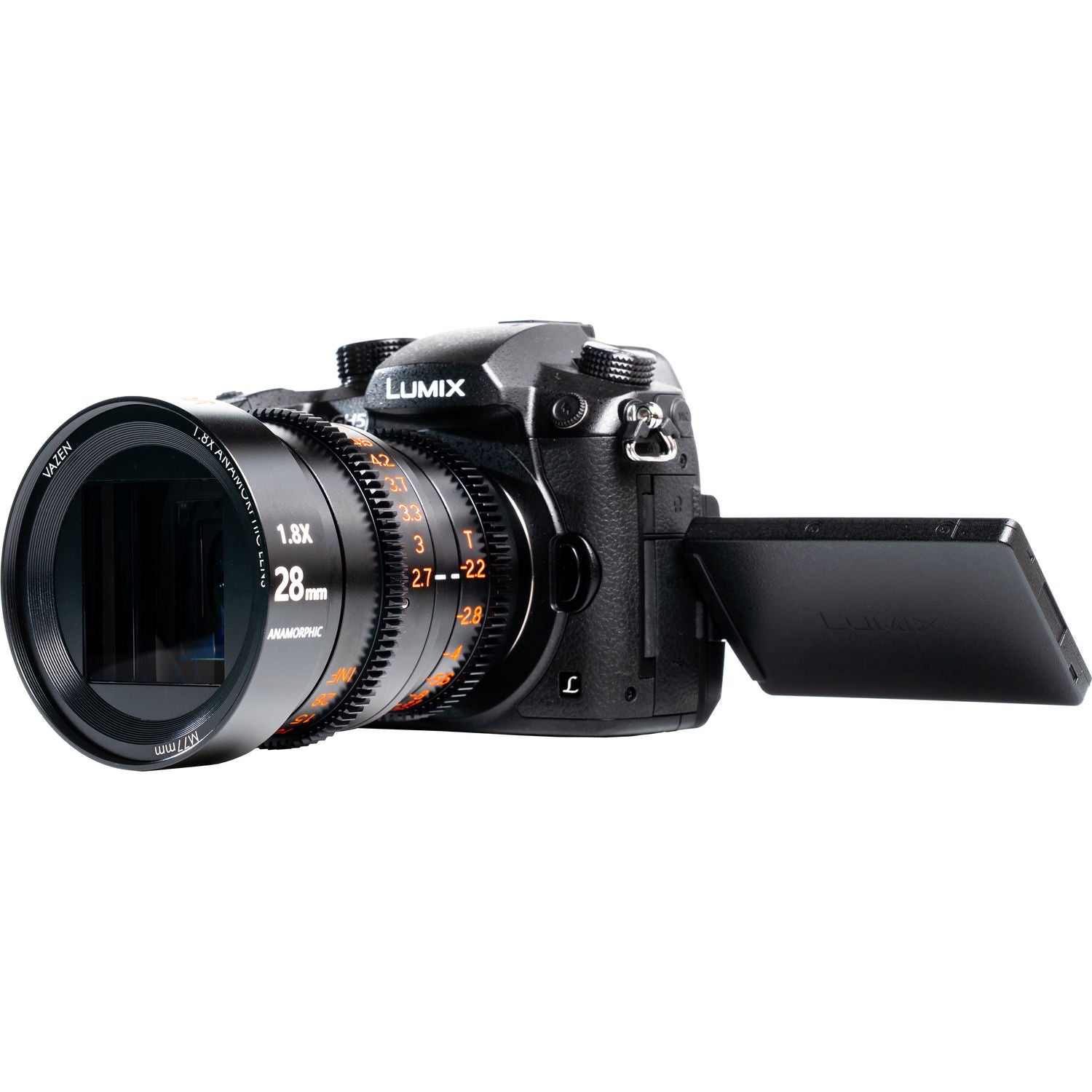

Vazen 28mm T/2.2 1.8X Anamorphic Lens for MFT Camera

Introducing the world’s first 1.8X Anamorphic Prime designed for Micro Four Thirds Cameras with 4:3 Sensors!
The Vazen 28mm T/2.2 1.8X Anamorphic Lens for MFT Camera delivers a butterly smooth oval bokeh, signature blue horizontal flare, and a widescreen cinematic look characterized by its front anamorphic design. The lens features a fast t/2 aperture and 2.7” minimum focus distance, the focus breathing is also minimal and the 1.8x squeeze produces a cinematic 2.39:1 aspect ratio to your image when capturing with 4:3 M43 sensors like Panasonic GH5 and Z-cam E2.
Despite the rugged design, the VZ anamorphic prime is relatively compact and lightweight. It was designed with the finest mechanical functionality to allow cinematographers to film with ease. The 80mm front diameter allows usage with a standard matte box and the independent aperture and focus rings are built with 0.8mod cine gears. The focus throw is 300°. Other M43 cameras like Blackmagic Pocket Cinema Camera (BMPCC 4k) can also be used.
- 28mm Anamorphic 1.8x Lens
- Covers Micro Four-Thirds Sensors
- T2.2 to T16 Aperture Range
- Cinematic 2.39:1 Aspect Ratio
- 2.7" Minimum Focus
- 80mm Front Diameter
- Micro Four Thirds Mount
TECHNICAL:
- Focal Length: 28mm
- Min. Focus: 2.7’ (0.82m)
- T-stop range: T/2.2 – T/16
- Filter Thread: 77mm
- Front Diameter: 80mm
- Dimensions: 3.2”x4.2” (80 x 107mm)
- Mount: Micro Four Thirds M43
- Vazen 28mm T/2.2 1.8X Anamorphic Lens for M4/3 Camera
- Front Cap
- Rear Cap
- Hard Case
- Limited 3-Year Warranty
