Yealink W80 DECT IP Multi-Cell System

Yealink W80 DECT IP Multi-Cell System: Scalable, Reliable, and Secure Wireless Communication for Businesses

The Yealink W80 DECT IP Multi-Cell System is a wireless communication solution designed for businesses that need reliable, scalable, and easy-to-manage connectivity. It includes the W80B base station and W80DM DECT Manager. The system supports up to 30 base stations and 100 handsets, making it suitable for large environments like warehouses, hotels, and retail spaces. It offers features like seamless roaming, HD audio quality through the Opus codec, and strong security protocols such as DECT encryption, TLS, and SRTP, ensuring stable, clear, and secure communication. The system also offers easy deployment with auto-provisioning and PoE support, improving overall efficiency.

More Details:

• Scalability: Accommodates up to 30 base stations and 100 handsets, perfect for extensive deployments.
• Reliability: Guarantees stable calls and seamless roaming using advanced DECT technology with secure encryption.
• Ease of Deployment: Features auto-provisioning, multicast network support, and a user-friendly web portal for straightforward setup and management.
• HD Audio Quality: Ensures crystal-clear conversations with full-duplex technology and the Opus codec.
• Security: Safeguards sensitive communications with robust DECT encryption, TLS, and SRTP protocols.
• Flexibility: Compatible with various Yealink handsets and supports multiple SIP accounts.

Applications:

• Warehouses: Provides extensive wireless coverage for large areas, ensuring seamless communication for mobile staff.
• Hotels: Enhances guest and staff communication across multiple floors and buildings.
• Offices: Supports high call volumes and seamless roaming for efficient internal and external communication.
• Retail Spaces: Facilitates reliable communication between staff on the floor and in the back office.
• Healthcare Facilities: Ensures continuous, clear communication for medical staff across large premises.
• Educational Institutions: Supports robust communication networks for faculty and administrative staff.

• Sync Level 1 Base Backup - Yealink W80 DECT IP Multi-Cell System supports sync Level 1 base backup. When the Level 1 base goes offline, other bases in the system can be used as the backup Level 1 base, and the backup can be completed within one minute to replace the Level 1 Base so that the system can quickly maintain normal use.
• Headsets Registration - The Yealink W80 DECT IP Multi-Cell System supports the WH62/WH63 headset registration. It can be registered separately and used on W80B alone or paired with other handsets. After pairing, you can switch the handset and the headset to process the calls freely.
• Security & Stability - Based on Yealink DECT technology, W80 DECT IP Multi-Cell System provides you with both stable call and seamless roaming and handover. Wireless data transmission over the air is ensured by DECT encryption and wireless eavesdropping on a conversation is not possible either. At the same time, TLS and SRTP play a pivotal role in secure SIP communication. Pack Yealink W80 DECT IP Multi-Cell System with the powerful Grayscale Upgrade feature, when you perform an upgrade for one handset, other handsets are free from this process and the whole system still runs safely and stability.
• Advanced DECT Contacts - When a call is coming, the receiver can obtain the caller information, including the caller number and caller name, from the phone screen easily and clearly rather than just a row of digits. Better compatibility with several PBX platforms makes the contacts from different platforms reachable on the Yealink W80 DECT IP Multi-Cell System, like Xsi directory, and XML contacts. Besides, LDAP and Remote Phonebook.
• Efficient Provisioning & Unified Management - The W80 DECT IP Multi-Cell System inherits the Yealink powerful Auto-p mechanism from W60B, that the efficient provisioning and effortless mass deployment can be simply implemented via Yealink’s Redirection and Provisioning Service (RPS) and auto-provisioning. Moreover, you can configure and manage the entire multi-cell system on the web portal of DECT Manager, making the deployment, maintenance, and upgrade to be trouble-free as well as saving even more time and IT costs for businesses.
• Easy Setup and Deployment - In the multicast network, administrators profit from zero-touch provisioning that the system is established as soon as the base station is powered on and connected to the network. Do not worry if you are in the non-multicast network environment, just configure the IP address of the DECT Manager via the web user interface of the base station to complete the deployment. How to quickly identify the right position for any of the W80B base stations? Try the Yealink Deployment ToolKit and it will be your right hand for the planning of large deployments.
• Compatible with Multiple Devices - Yealink W80 DECT IP Multi-Cell System is compatible with multiple Yealink DECT devices, including W56H, W53H, W57R, W59R, W73H, W78H, CP930W, CP935W, and DD Phone, that all of those devices can be connected to one single or multi-cell DECT system from Yealink and a complete DECT ecosystem is just at your fingertips.
• No Perception Upgrade - You can upgrade the W73H, W78H, W57R, and W59R handsets with no perception. The upgrade of the handsets will be completed within two minutes. The channel will not be occupied during the firmware transmission, and the handsets can be used normally.

Phone

• Sync over the air (Seamless handover and roaming)
• Up to 100 simultaneous calls
• Up to 30 base stations
• Up to 8 WB (4 active handsets) calls per base
• Up to 8 NB calls per base
• Up to 100 handsets
• Up to 100 VoIP accounts
• Up to 2 simultaneous calls per handset
• Call hold, call transfer, 3-way conference
• Switching between calls
• Call waiting, mute, silence, DND
• Caller ID with name and number
• Anonymous call, Anonymous call rejection
• Call forward (always/busy/no answer)
• Speed dial, voicemail, redial
• Message Waiting Indication (MWI)
• Music on hold (server-based)
• Local phonebook for up to 100 entries per handset
• Remote phonebook/LDAP/XML phonebook
• Phonebook search/import/export
• Call history (all/missed/placed/received)
• Reset to factory, reboot
• Keypad lock, emergency call
• Broadsoft directory, BroadSoft call log
• Broadworks feature key synchronization
• Shared Call Appearance (SCA)
• XML browser
• IPUI registration
• User access level

Management

• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto-provision with PnP
• Handset upgrade: OTA (Over-The-Air)
• Configuration: browser/phone/auto-provision
• Trace package and system log export

Audio

• Full-duplex speakerphone
• Hearing Aid Compatibility (HAC) compliant
• DTMF
• Wideband codec: Opus, AMR-WB (optional), G.722
• Narrowband codec: AMR-NB (optional), PCMU(G.711µ), PCMA(G.711A), G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB

Network

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP assignment: static/DHCP
• Support outbound proxy server backup

Security

• Open VPN
• Transport Layer Security (TLS1.0/TLS1.2)
• HTTPS (server/client), SRTP
• Digest authentication
• Secure configuration file via AES encryption
• Support SHA256/SHA512/SHA384

DECT

• Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US) 1902 – 1906 MHz (TH), 1910 – 1920 MHz (BR)
• DECT Standards: CAT-iq2.0 Interface > 1 x RJ45 10/100M Ethernet port > Power over Ethernet (IEEE 802.3af), Class 1

Physical

• Indoor Range: 20 m-50 m (The ideal distance is 50 m)
• Outdoor Range: 300 m (in ideal conditions)
• Wall mountable

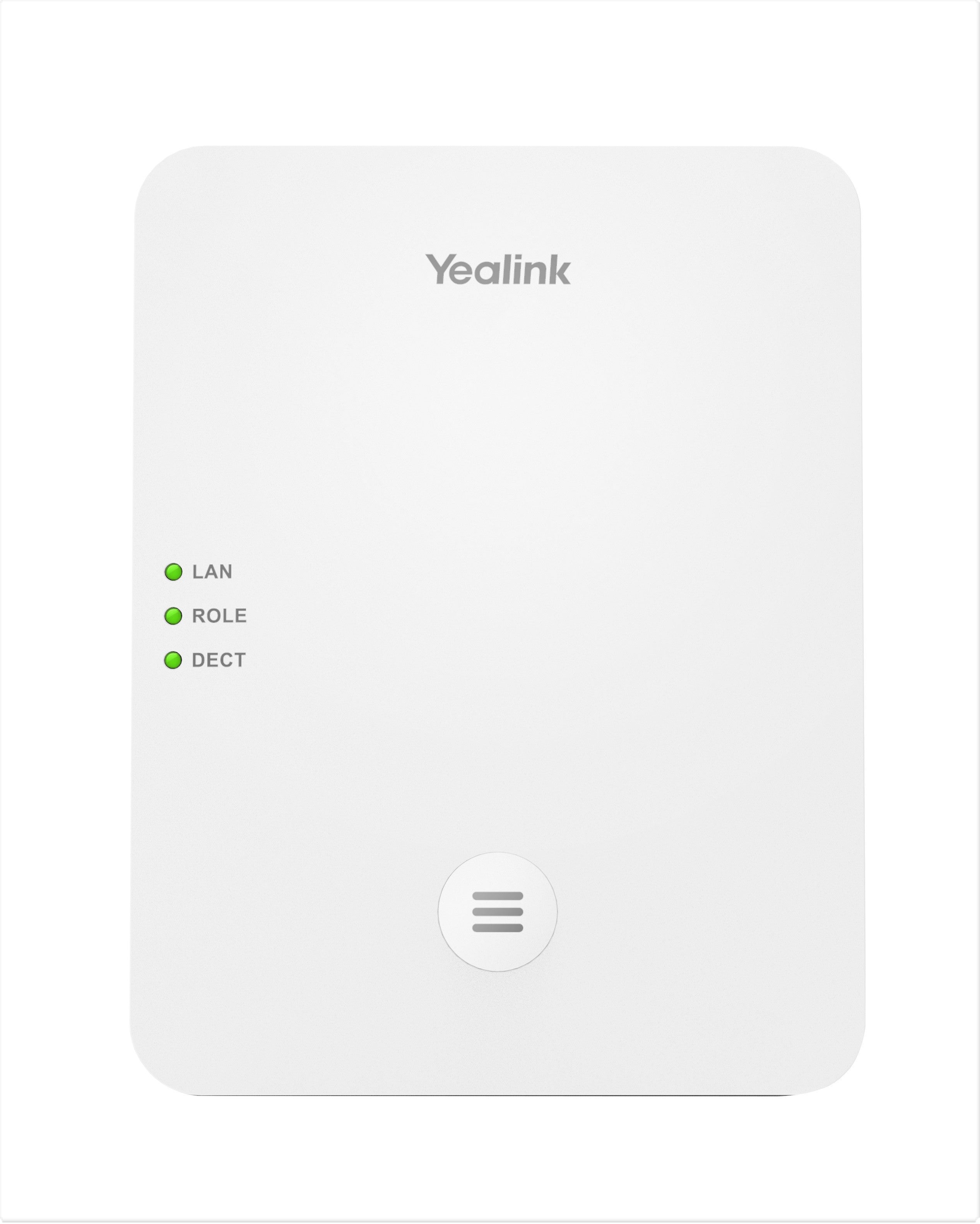

• Three LED indicators on W80DM/W80B:
• 1 x DECT LED
• 1 x Role LED
• 1 x LAN (Power Indicator & Network Status) LED
• External Yealink AC adapter: AC 100-240V Input and DC 5V/1.2A Output
• Color: Pearl White > Dimension: 130 mm x 100 mm x 25.1 mm
• Operating humidity: 10-95%
• Operating temperature: -10°C to +50°C (+14-122°F
• Storage temperature: - 30 to +70°C (-22 to +158 °F)

Package

• Package content:
• W80DM/W80B
• Expansion Screws
• Quick Start Guide
• Power Adapter (optional
• Qty/CNT: 10 PCS
• Giftbox size: 174 mm x 180 mm x 63 mm
• Carton meas: 375 mm x 336 mm x 187 mm
• N.W: 2.56 kg
• G.W: 3.13 kg

What is the maximum number of base stations supported by the Yealink W80 DECT IP Multi-Cell System?

The Yealink W80 DECT IP Multi-Cell System supports up to 30 base stations.

How many handsets can be connected to the system?

The system can accommodate up to 100 handsets.

What type of environments is the Yealink W80 DECT IP Multi-Cell System ideal for?

This system is ideal for environments such as warehouses, hotels, offices, retail spaces, healthcare facilities, and educational institutions.

What audio codecs are supported by the Yealink W80 DECT IP Multi-Cell System?

The supported audio codecs include Opus, G.711, G.722, and G.726.

How does the system ensure secure communication?

The system ensures secure communication with DECT encryption, TLS, and SRTP protocols.

What are the dimensions and weight of the W80B Base Station?

The W80B Base Station measures 160 x 160 x 38 mm and weighs 350g.

What are the power supply options for the W80B Base Station?

The W80B Base Station can be powered using PoE or an external power adapter.

Can the system support high call volumes?

Yes, the system supports up to 100 parallel calls without compromising quality.

Is the deployment of the Yealink W80 DECT IP Multi-Cell System complicated?

No, the system features auto-provisioning, multicast network support, and a user-friendly web portal for easy setup and management.

What handsets are compatible with the Yealink W80 DECT IP Multi-Cell System?

The compatible handsets include Yealink W53H, W56H, CP930W, and DD Phone (T41S+DD10K).
