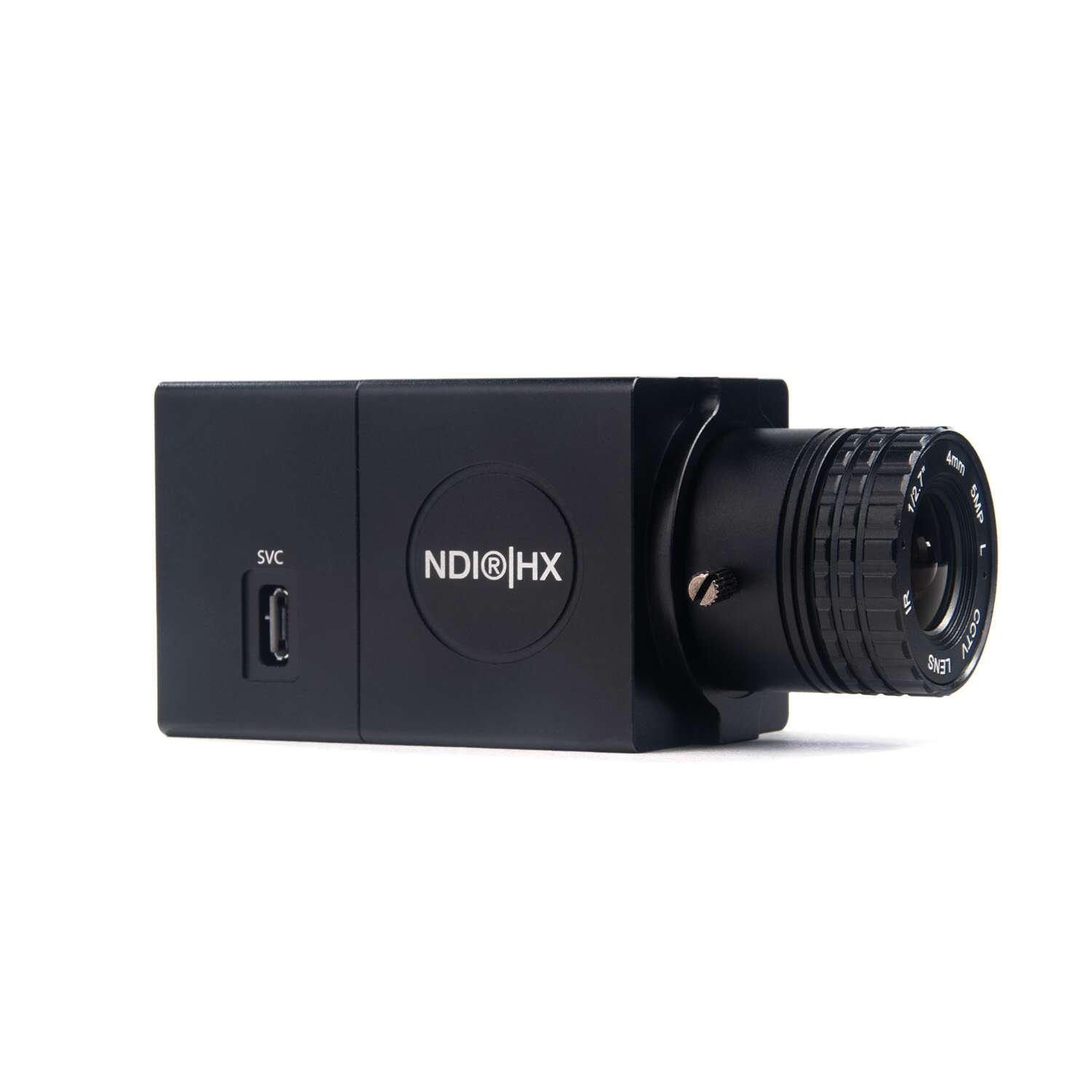

The AIDA Imaging Full HD NDI®|HX / IP POV Camera just got a whole lot smaller! Don’t let the HD-NDI-CUBE fool you. Its tiny form factor does not compromise any FULL-HD quality seen in our POV cameras. With the ability to output NDI|HX, SRT, RTSP, and RTMP simultaneously, it's no wonder why the CUBE is a production game-changer.
It brings simultaneous IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. The compact camera outputs variable-frame rate IP streaming via RTSP/RTMP and/or NDI|HX with up to 1080p60 resolution.
- Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP
- Versatile design with top and bottom tripod mounts for unique shot creation
- USB SVC port for easy network setting adjustments and updates
- Small form factor makes it placeable in discreet places
- Perfectly suited as extra angles for any new or existing NDI®|HX setup
Video
Image Sensor | 1/3” Progressive CMOS |
Sensor Size | 5.346mm x 3.003mm (16.9) |
Effective Pixels | 1920, Vertical: 1080 |
Pixel Size | 2.75 μm (H) x 2.75 μm (V) |
Resolution | 1080p, 1080i, 720p |
Resolution Rate | 1080 60p/59.94/50p/30p/29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p |
Output | IP (NDI|HX/SRT/RTMP/RTSP) |
Color Space | 4:2:2 (YCbCr) 10bit |
Min Illumination | 0.2Lux (day), 0.1Lux (Night) |
White Balance | Auto & Manual (9000 - 11,000 K) |
Lens
Lens | C/CS Mount (Default 4mm HD Lens) |
Standard
IP Protocol | UDP|IP, RTSP|RTMP, SRT, NDI|HX |
Physical
Camera Control Protocol | VISCA Over IP |
Operation Temp | 32 °F - 104 °F |
Dimension | 86mm x 40mm x 40mm / 3.38” x 1.57” x 1.57” (with default 4mm lens) |
Weight | 180g / 0.39lbs (with default 4mm lens) |
Power | 12VDC (+9 - +15VDC) (PoE Adapter Included) |
- AIDA Imaging Compact Full HD NDI HX/IP Streaming POV Camera
- PoE Dongle Adapter
- 12 VDC Power Supply with Plug Adapter Kit
- USB Cable
- C-Mount Cap Adapter
- Sensor Cap
- Limited 2-Year Warranty
