Black Box 10/100/1000BASE-T to 1000BASE-X PoE PSE GBE Media Converter
Default Title
The Black Box 10/100/1000BASE-T to 1000BASE-X PoE PSE GBE Media Converter enables you to transparently connect copper cabling to multimode fiber as an economical way to extend Ethernet communications well beyond the 100-meter (327-foot) CATx limit. Along with matching copper to interference-free fiber at Gigabit speeds, this converter doubles as power sourcing equipment (PSE) for Power over Ethernet (PoE) devices plugged in on the copper side. Using existing UTP cabling for both data communications and 48-VDC power simplifies a network application in terms of provisioning power and maintaining equipment.
The converter is particularly ideal for locating equipment where electrical access is inconvenient or just too expensive to locate. Install PoE-compatible security cameras and wireless access points in areas without any nearby power outlets while reducing your overall power consumption, too. Plus, the PoE PSE Gigabit Media Converter has extensive power management features, including overcurrent protection, undercurrent detection, minimum load sensing, and PSE MDI power enable/disable. For reliable data communications, the media converter boasts link fault pass-through (LFP) capabilities, monitoring receive ports on both the fiber and copper sides for loss of signal. If signaling is lost on one media port, it automatically disables the transmit (TX) signal to the other media port.
- Now supports up to 30 W, 802.3at
- Compliant to EN62368
- A low-cost, economical solution for powering PoE devices CATx
- Powered device (PD) signature sending detects when a PoE device is connected
- Protects against damage caused by overcurrent events and offers undercurrent detection
- Link fault passthrough monitors both copper and fiber receive ports for loss of signal
- Far-end fault detection prevents the loss of valuable data from it being sent over an invalid link
| General | |
| PoE Power Capacity | Available power: 30 W; Number of ports that support PoE: (1) PoE port supports PoE within available PoE power |
| Altitude | <3000 m (<10000 ft.) |
| CE | Yes |
| Distance (Maximum) | 220-m with 62.5um Multimode Fiber and 550-m with 50um Multimode Fiber Cable |
| Humidity | 5 to 95% non-condensing |
| Indicators | (8) LEDs: (1) FX Link/Act (green), (1) Power (green), (1) TP-Link/Act (green), (1) TP SPD (green/yellow), (1) PoE (green, red), (1) Alarm (red), (1) 15.4 W (green), (1) 30 W (green) |
| Operating temperature | 32 to 122° F (0 to 50° C) |
| Power | Requirement: 100-240 VAC, 47-63 Hz; Consumption (maximum): Up to 65 W |
| Standards | IEEE 802.3af (PoE), IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3z/ab (1000BASE-T), IEEE 802.3x full-duplex flow control, 1000BASE-SX |
| Storage temperature | -4 to +158° F (-20 to +70° C) |
| Item Specifications | |
| Connectors | (1) RJ45 PoE; (1) Multimode LC |
| Dimensions | 1.6"H x 6.2"W x 5.2"D (4.1 x 15.7 x 1.3 cm) |
| Replaces | LPS500A-MM-LC-R2 |
| Weight | 1.3 lb. (0.589 kg) |

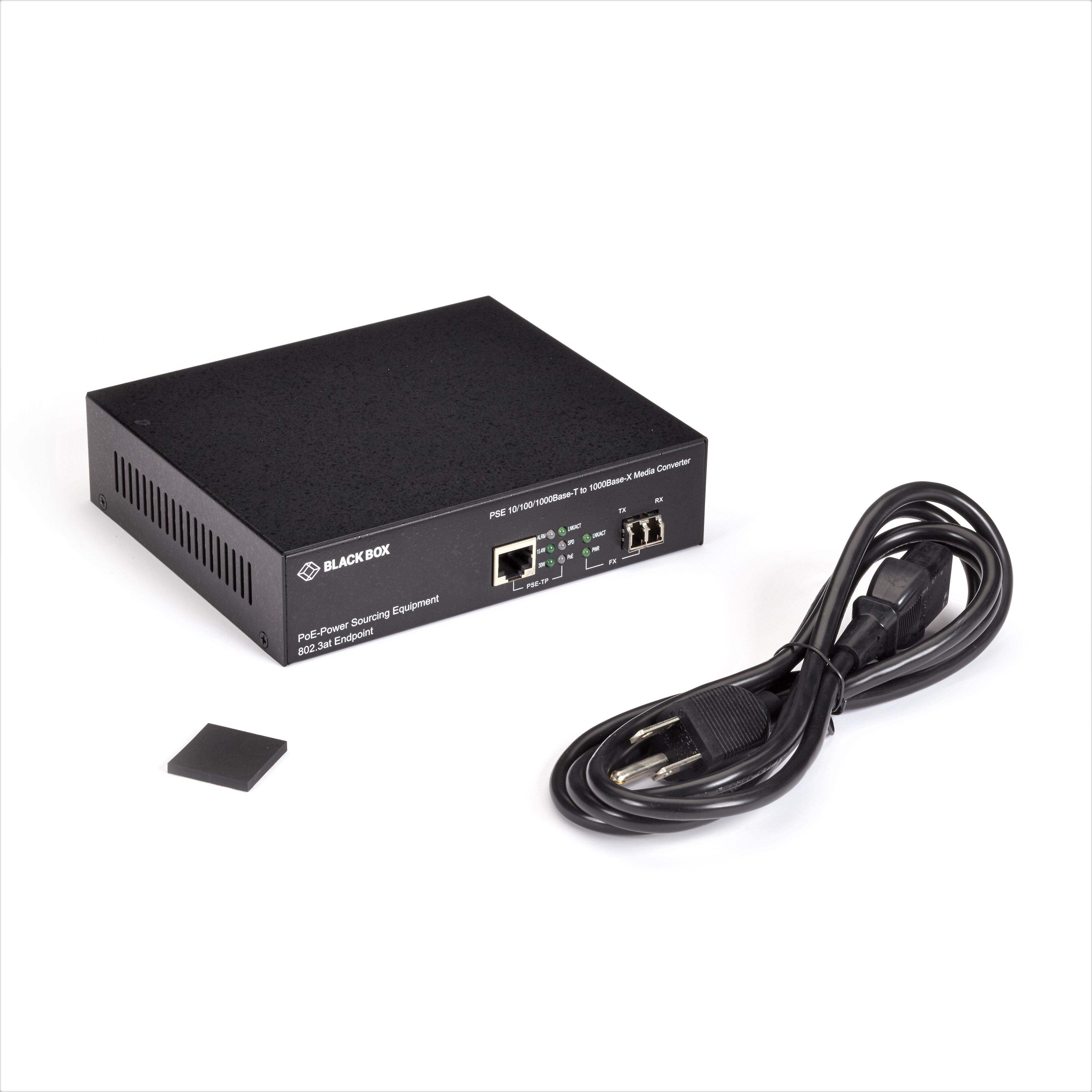

- Black Box 10/100/1000BASE-T to 1000BASE-X PoE PSE GBE Media Converter
- AC Power Cord
- Limited Warranty
