Black Box
Black Box Freedom II 4-Port KVM Switch

Discover the power of Black Box Freedom II 4-Port KVM Switch and transform your workstation with its suite of features. The Freedom II with Glide & Switch enables a single user to easily access information and control operations across the computer systems and monitors, saving time, money, and space because it works like an extended desktop switch on a single computer. Once you configure your screen layout for the attached PCs with up to four external displays, switching ports is as simple as moving your mouse cursor over the screens' X and Y borders.
The unit is ideal in command and control applications, such as those in finance on a trading room floor. Not only can users switch between several computers just by moving the mouse, but they can also simultaneously access a mix of USB peripherals, including high-speed USB 2.0 devices. It integrates with the Black Box Agility IP-based KVM system, can interface with Agility receivers, and then switch the Agility targets using just one keyboard and mouse. The Freedom II KM Switch is ideal for command and control applications such as:
- Broadcasting
- Public safety
- Industrial
- Defense
- Transportation
- Rackmount Kit for Freedom II KM 4-Port Switch - KV0004A-R2
- Spare Power Supply for KVM Devices - 12VDC, 1.5 Amp
NOTE(s): Rackmounting option not available. Not compatible with DKM FX. It has its own built-in version.
- Automatically switch between channels by monitoring the mouse pointer position
- Supports up to four external displays
- True USB emulation LED Channel Indicators
- Multiple Switching Options using Mouse, Hotkeys, or Front Panel
- Improved desk ergonomic design allows for less clutter on the desk and increases efficiency

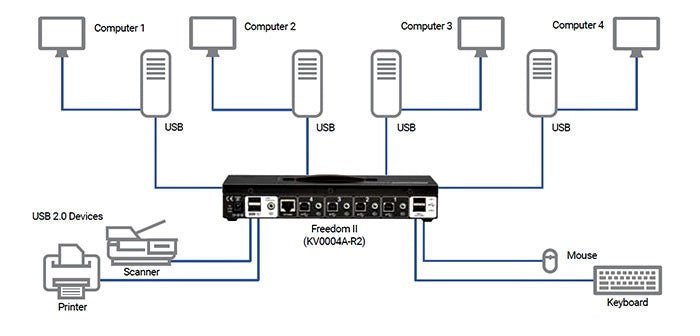

- Enables a single user to switch between monitors and attached CPUs, and share USB peripherals
- Easy configuration and management using a built-in web server
- Works with Windows & Mac OS
General | |
Approvals | CE, RoHS, FCC |
Hardware Compatibility | All computers with USB interfaces |
Power | External: Input: 100–240 VAC, 50–60 Hz; Output: 12 VDC, 1.5 amp |
User Controls | (2) Front push buttons (Computer and Mode), mouse-activated switching |
Item Specifications | |
Connectors | CPU/Server: (4) USB Type-B (Female); (4) 3.5-mm Audio Inputs; User Console: (2) USB HID Type-A (Female); (2) USB 2.0 Type-A (Female); (1) 3.5-mm Audio; Other: (1) USB Mini B; (1) RJ45 options Port; (1) RJ45 Network Configuration Port; (2) 3-Position loc |
Dimensions | 1.2"H x 11.4"W x 5.2"D (3 x 29 x 13.2 cm) |
Replaces | KV0004A |
Weight | 2 lb. (0.9 kg) |
- Black Box Freedom II 4-Port KVM Switch
- Power Adapter and Cord
- Flash Upgrade Adapter
- 4x Self-Adhesive Feet
- Limited Warranty
