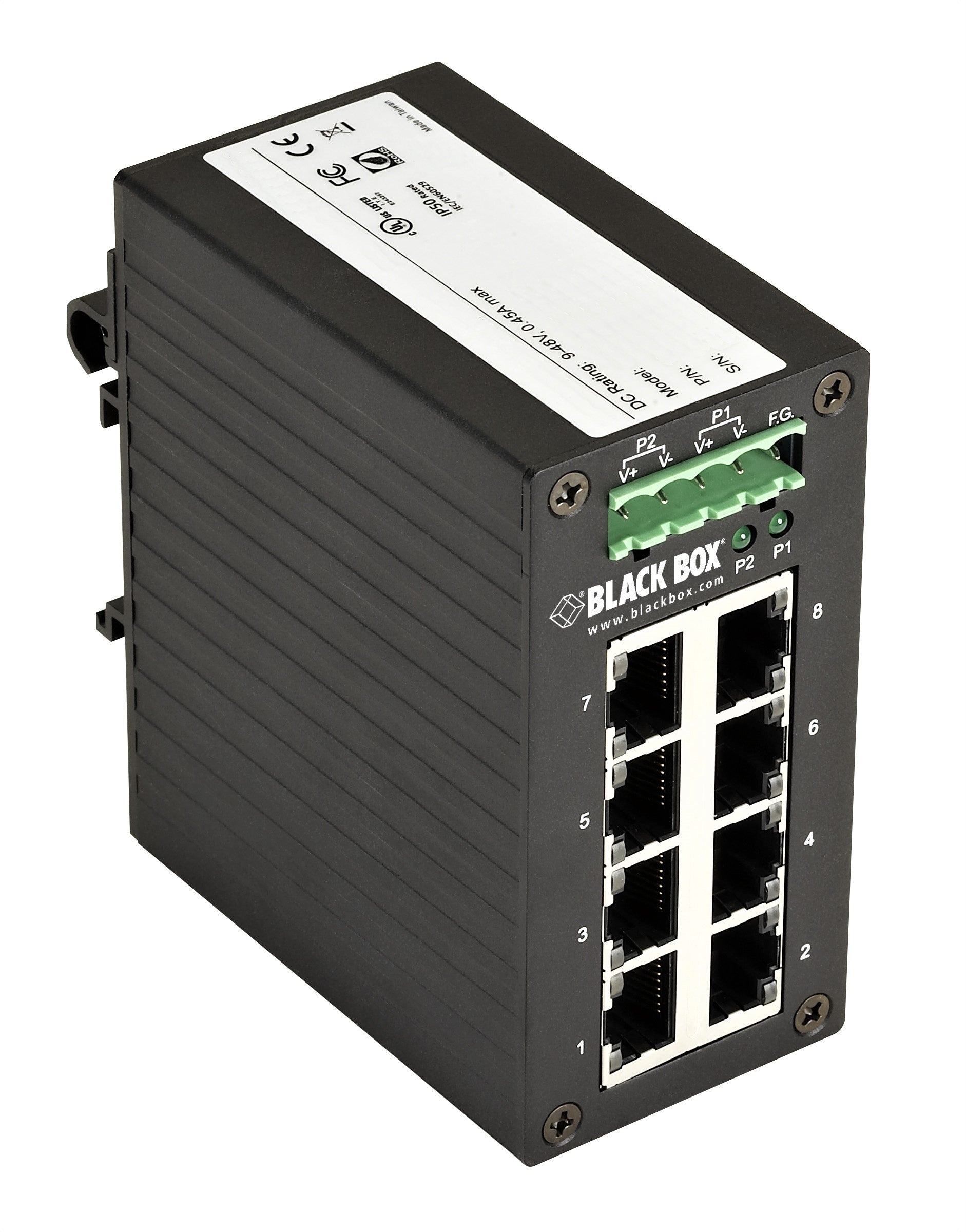

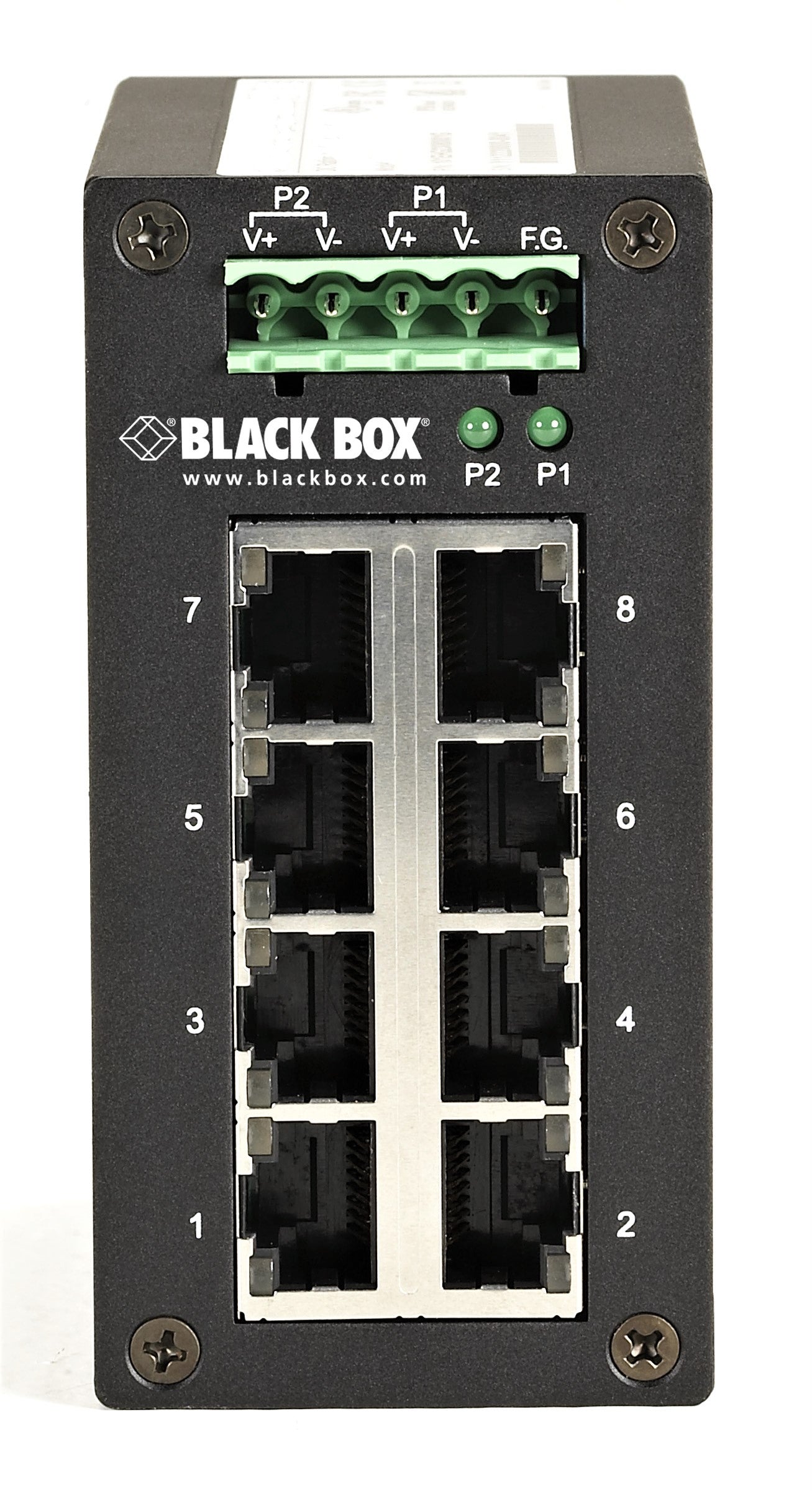

Black Box LGH008A 8-Port Gigabit Industrial Unmanaged Switch

Designed to withstand harsh industrial environments, the Black Box LGH008A 8-Port Gigabit Industrial Unmanaged Switch can work in temperatures ranging from 14 to 158° F (-10 to +70° C) to keep your networked devices operational. This industrial switch features eight RJ45 Gigabit Ethernet ports and is powered using two 5-pin terminal block connections for redundancy which can transfer 9 to 48 DC volts from separately purchased power adapters. Its rugged steel enclosure mounts on standard DIN rails.
This product works with:
- LES300 Series Power Supply (LES301A)
- Power Adapter, 100–240-VAC to 12-VDC, Flying Leads (PS012)
- External 100–240-VAC Power Adapter, 12-VDC Stripped Ends Output, U.S. Cord (PS003A)
- Eight 10-/100-/1000-Mbps RJ-45 ports
- Extended temperature range of 14 to +158F (-10 to +70C)
- 9-48VDC power input
- Includes DIN rail mount kit
General | |
Approvals | CE, RoHS |
Humidity | 5-95% non-condensing |
Operating temperature | +14 to +158° F (-10 to +70° C); |
Power | 9-48 VDC via (2) 5-pin terminal blocks |
Power Requirements | 4.05 Watts maximum |
Item Specifications | |
Connectors | (8) RJ45 |
Dimensions | 3.5"H x 1.8"W x 3.1"D (9 x 4.5 x 7.8 cm) |
Indicators | LEDs: Power, LAN (10/100/1000) |
Weight | 0.6 lb. (0.272 kg) |
- Black Box LGH008A 8-Port Gigabit Industrial Unmanaged Switch
- DIN Rail Mount Kit
- Limited Warranty
