Black Box

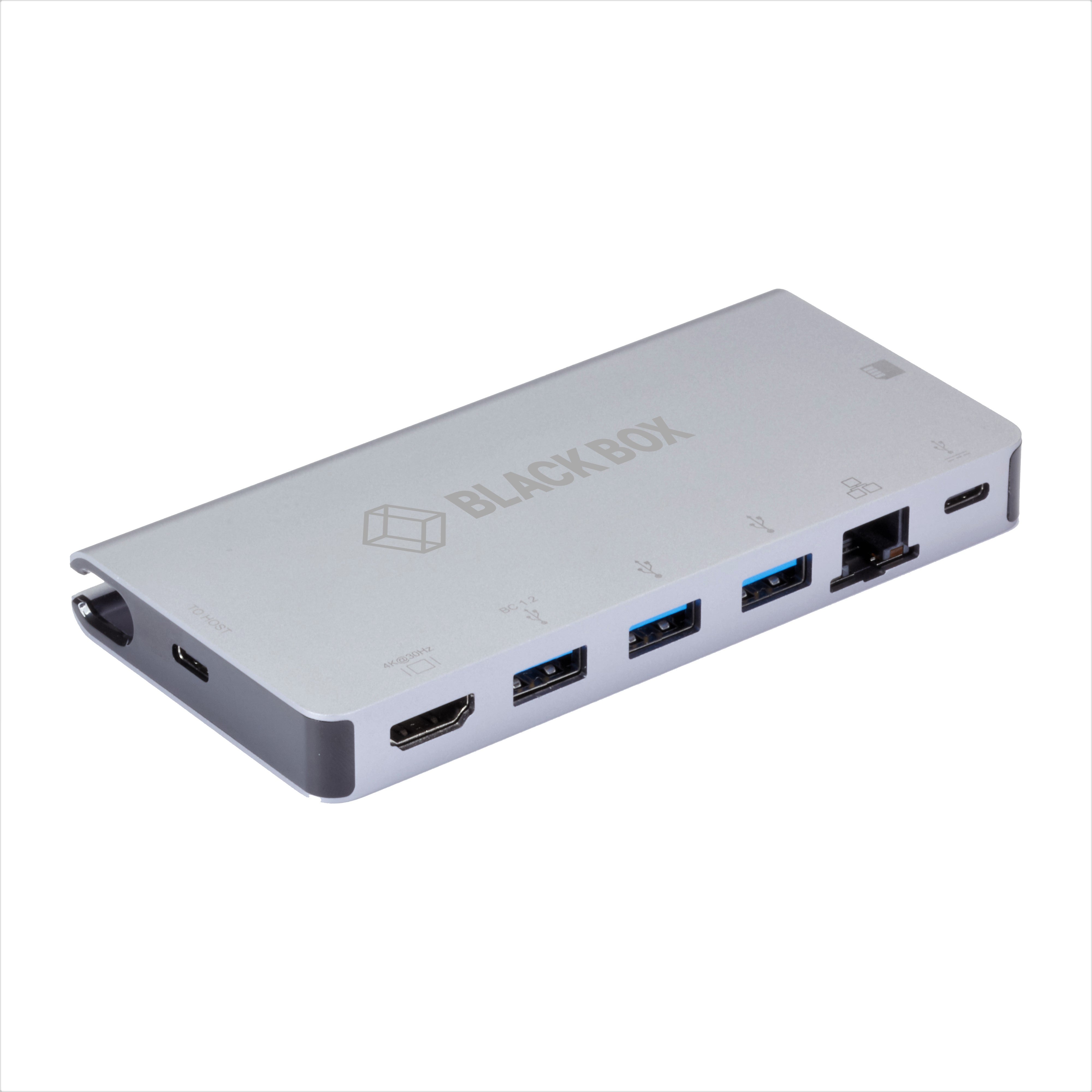

Black Box USB C Docking Station
Quantity:
Connect a 4K HDMI monitor, keyboard, and mouse to your MacBook Pro or Windows laptop with the Black Box USB C Docking Station. This multi-port adapter supports USB 3.0 super-speed (5 Gbps) transmission. Even better, it is backward-compatible with USB 2.0, so you are not limited by legacy hardware. It can work on all PCs and mobile phones that support DP Alt Mode and can power both the multiport adapter and your laptop, using your laptop's USB-C power adapter (supports USB Power Delivery 3.0, up to 100W). In addition to the standalone USBC2000, choose a pre-bundled kit below in similar products which include the necessary cabling and/or adapter for your video of choice, as well as additional Ethernet and USB-C cabling.
- Supports HDMI resolution up to 4K x 2K at 30 Hz.
- Includes a USB C host port and cable and a USB C charging port (up to 100W)
- Supports 3 high-speed USB 3.0 type A ports (up to 5 Gbps)
- High-speed USB supports charging up to 7.5W (BC 1.2)
- LAN port (RJ45) supports 10/100/1000-Mbps bandwidth
- Power both the multiport adapter and laptop using the laptop’s USB-C power adapter
| General | |
| USB Charging | (2) Type-C female ports support both data (5 Gbps) and PD Charging 100W (20 V / 5 A), plug and play; Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected when plugging in and out PD Adapter. |
| Connector Speed | (3) USB 3.0 type A ports support super speed (5 Gbps) transmission, backward-compatible with USB 2.0. One of the three USB-A ports supports BC 1.2, the power of this port can be up to 7.5W (5V/1.5A); Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5 Mbyte/s)/SDR25 (25 Mbyte/s)/SDR50 (50 Mbyte/s)/DDR50 (50 Mbyte/s)/ SDR104 (104 Mbyte/s) Allows SD and Micro SD card to work at the same time |
| Approvals | FCC, CE, CAN ICES-3(B)/NMB-3(B) |
| Power | A power supply is not required to operate the USBC2000. A power supply is not included with the USBC2000. If you plug your laptop's USB-C power adapter into the USBC2000's USB-C charging port, it will send power to your PC over the USB-C host port (supports USB Power Delivery 3.0, up to 100W, 20V/5A) and will also send power to the USB type A charging port (supports BC 1.2, up to 7.5W, 5V/1.5A). |
| Item Specifications | |
| Connectors | Input: (1) USB-C (Female) (with Type-C (Male) to (Male) cable); Output: (3) USB 3.0 (Female); (1) USB-C (Female) (for data & charging); (1) RJ45; (1) HDMI (Female); (1) Micro SDX; (1) SD/MMCX; (1) HDMI Port: supports HDMI resolution up to 4K @ 30 Hz |
| Dimensions | .05"H x 5"W x 2.4"D (14.2 x 60.96 x 127mm) |
- Black Box USB C Docking Station
- Type-C M to M cable (stored inside the main unit)
- Limited Warranty
