Black Box Video Extender - DisplayPort, RS-232, Audio, USB 2.0, 4K
Default Title
Designed for highly demanding use cases, the Black Box Video Extender - DisplayPort, RS-232, Audio, USB 2.0, 4K is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via a ground loop, with USB 2.0 devices one can extend a keyboard, mouse, and other peripheral signals. You can get brilliant video by transmitting uncompressed, native 4K @ 30 Hz UHD DisplayPort signals and can support resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color. Plus, you can extend the keyboard and mouse or other peripheral signals with USB 2.0 passthrough.
- USB 2.0 passthrough
- Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter
- HDCP 2.2 compliant and supports EDID transmission
- Extend your signals as far as 100m over CAT6A/CAT7 cables
- Transmitting uncompressed video, native 4K at 30 Hz UHD DisplayPort signals
- Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color
- Access distant AV sources or even control remote computers
- Simultaneously transmits bidirectional analog stereo audio
Compliance | |
cUL | 1 |
FCC | |
UL | 1 |
General | |
Data Rate | 10.2 Gbps maximum |
Distance | CAT6A/CAT7: Up to 328 feet (100 m) at 3840 x 2160 @30 Hz, 4:2:0, or 1080p @60 Hz output resolution; CAT5e/CAT6: Up to 224 feet (70 m) at 3840 x 2160 @30 Hz; Up to 328 feet (100 m) at 1080p @30 Hz resolution |
Operating Temperature | 32 to 113° F (0 to 45° C); |
Resolution | Input: Up to 3840 x 2160 @ 30 Hz (UHS); Output: UHD30: 3840 x 2160 @30 Hz; FHD: 1920 x 1080 @60 Hz; HD: 1280 x 720 @60 Hz; WUXGA: 1920 x 1200 @60 Hz; WXGA: 1280 x 800 @60 Hz |
Storage Temperature | -4 to 158° F (-20 to 70° C) |
Item Specifications | |

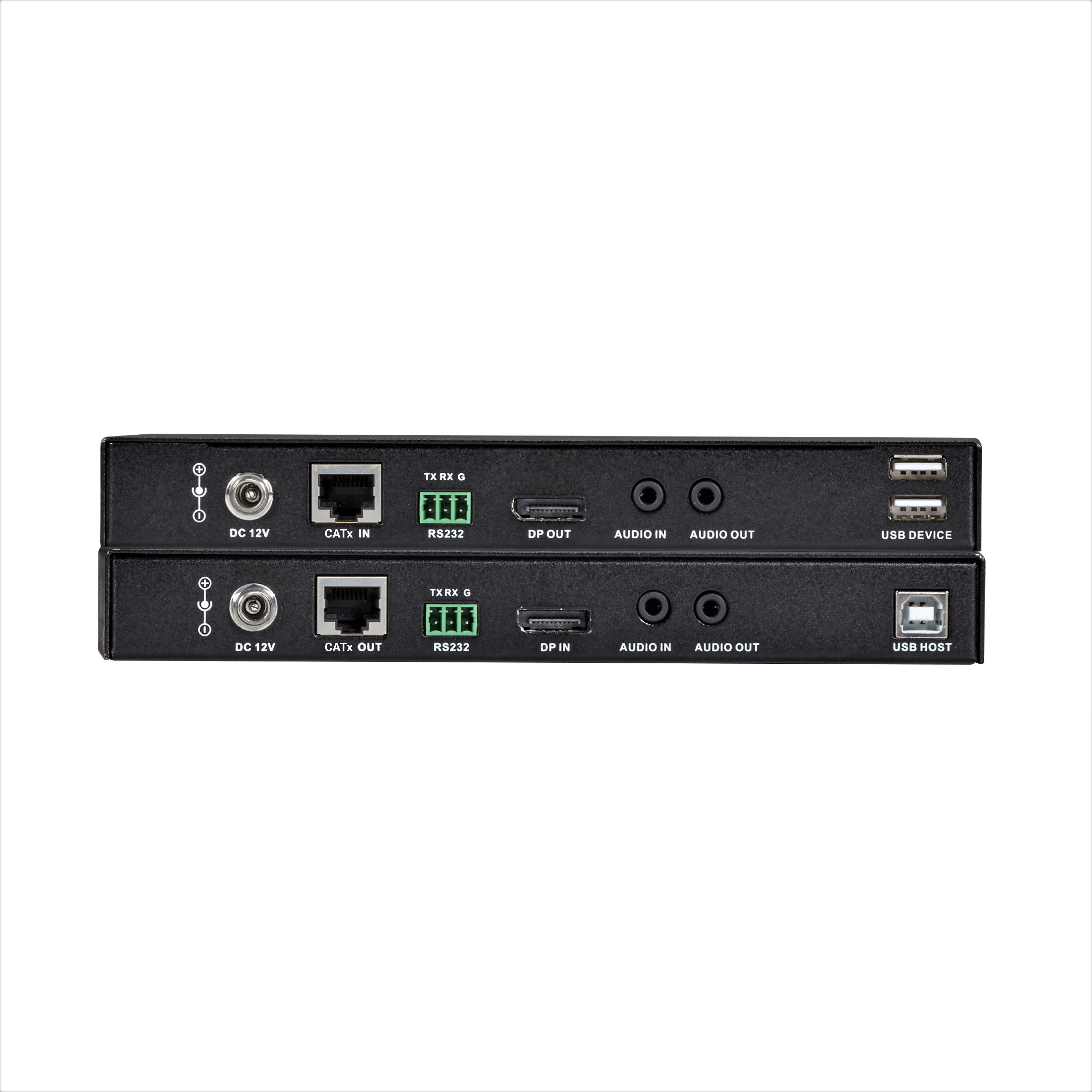

Connectors | Transmitter: (1) 12-VDC Barrel; (1) CATx OUT; (1) 3-pin Phoenix Connector; (1) DisplayPort IN; (1) Audio IN; (1) Audio OUT; (1) USB Type-B; Receiver: (1) 12-VDC Barrel; (1) CATx IN; (1) 3-pin Phoenix Connector; (1) DisplayPort OUT; (1) Audio IN |
Dimensions - Receiver | 0.99"H x 7.91"W x 3.95"D (2.51 x 20.09 x 10.03 cm) |
Dimensions - Transmitter | 0.99"H x 7.91"W x 3.95"D (2.51 x 20.09 x 10.03 cm) |
Weight - Receiver | 1.1 lb. (0.5 kg) |
Weight - Transmitter | 1.1 lb. (0.5 kg) |
- Black Box Video Extender - DisplayPort, RS-232, Audio, USB 2.0, 4K
- Limited Warranty
