Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher – Multicam Recording and Real-Time Streaming Solution

The Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher is a groundbreaking solution for content creators, broadcasters, and live streamers who demand professional-grade control, flexibility, and post-production ease in a compact format. Designed to transform any live production into a polished, multi-camera broadcast, the ATEM Mini Pro ISO stands out with its unique ability to simultaneously record all four HDMI inputs as clean ISO feeds, plus the program output, enabling effortless re-editing after live events using the automatically generated DaVinci Resolve project file. This remarkable feature alone propels it far beyond typical switchers, empowering users to fine-tune angles, cut new edits, and add polished graphics long after the show ends.

Built with efficiency and versatility in mind, the ATEM Mini Pro ISO boasts four HDMI inputs that support up to 1080p video formats, allowing seamless switching between high-quality sources like cameras, computers, and gaming consoles. With integrated hardware encoding, users can live stream directly to popular platforms such as YouTube, Facebook, and Twitch via the built-in Ethernet port — eliminating the need for third-party streaming software and significantly reducing system complexity. The USB-C output doubles as a webcam source, making it fully compatible with major conferencing software including Zoom, Microsoft Teams, and Skype, an ideal feature for professionals delivering webinars, remote interviews, or corporate presentations.

What truly sets the ATEM Mini Pro ISO apart is its multiview capability. Users can monitor all four input feeds, plus preview and program outputs, along with critical data like recording status, audio meters, and streaming health, all on a single HDMI display. This level of operational awareness is often reserved for much larger and more expensive broadcast systems, making the Mini Pro ISO a revolutionary addition for those seeking professional-grade live production in a portable package.

Beyond its impressive switching and streaming capabilities, the ATEM Mini Pro ISO integrates powerful audio features through a built-in Fairlight Audio Mixer. The mixer supports a full 6-channel setup with advanced controls including a compressor, limiter, six-band parametric EQ, and audio-follow-video settings, ensuring your live stream or broadcast delivers not just stunning visuals but rich, broadcast-quality sound. Additionally, two 3.5mm stereo audio inputs allow for flexible microphone or line-level audio sources, catering to a variety of production setups.

Graphical overlays and professional transitions are made easy with built-in upstream and downstream keyers, chroma keyers for green screen work, DVE effects for picture-in-picture layouts, and two color generators. Users can effortlessly create branded content, insert logos, lower-thirds, or custom backgrounds, enriching the storytelling experience for their audiences. The ATEM Mini Pro ISO’s ability to apply stunning transitions, fades, wipes, and DVE effects further cements its reputation as an all-in-one production powerhouse.

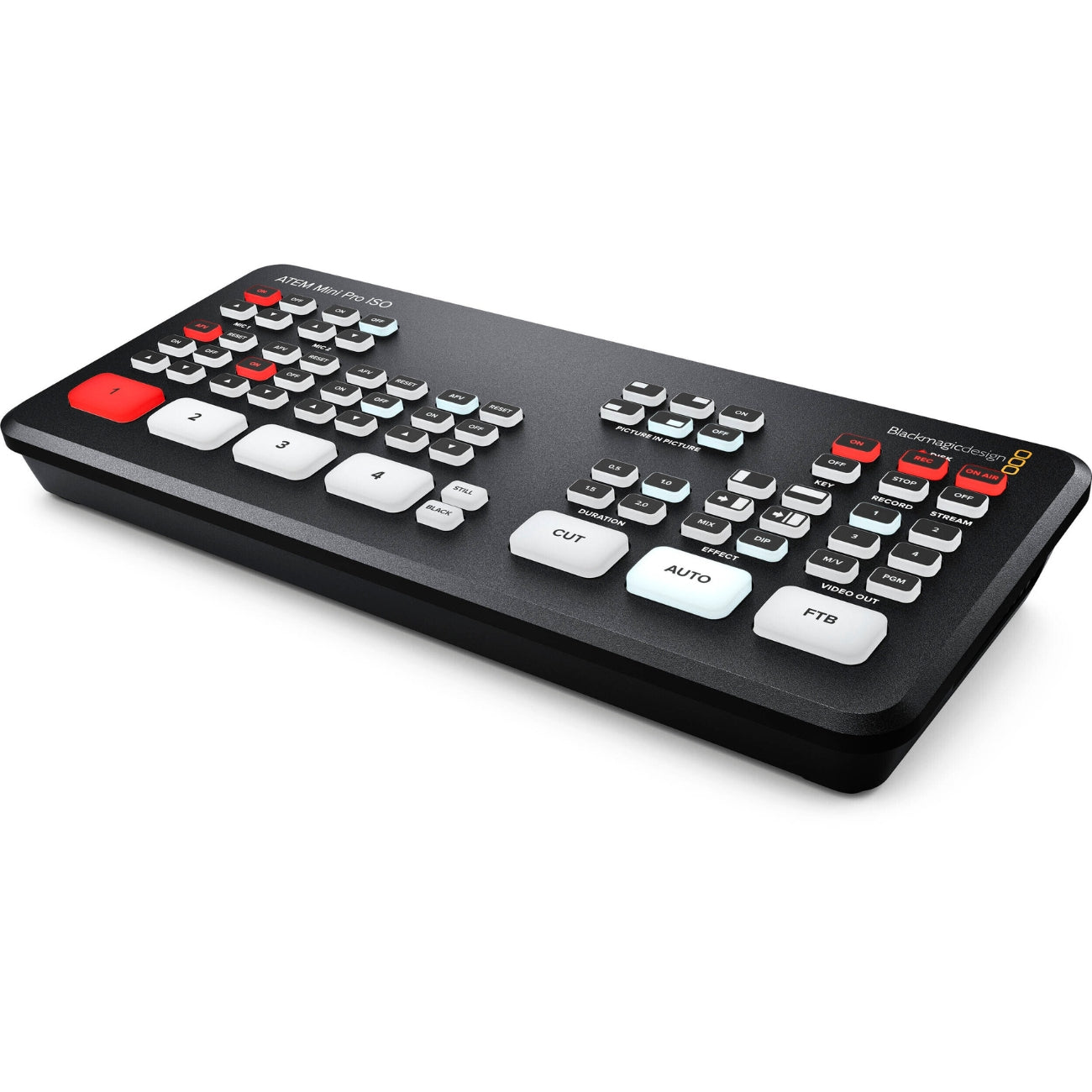

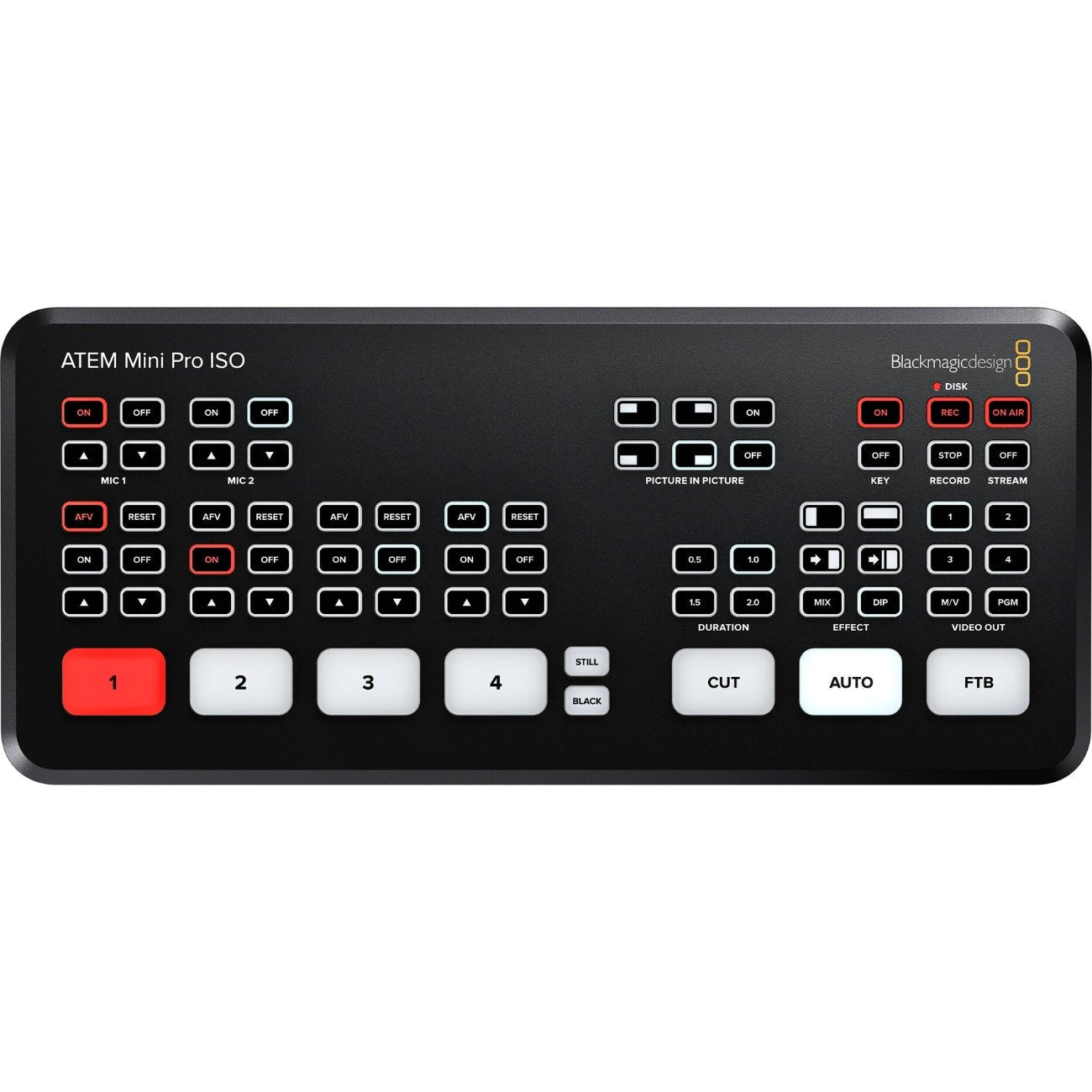

Engineered for both control and simplicity, the unit provides a tactile control surface with dedicated buttons for sources, transitions, keying, audio, and streaming, ensuring a responsive live switching experience even under pressure. Advanced users can dive deeper through the ATEM Software Control app available for macOS and Windows, offering fine-grained control over every parameter, from media pool management to camera color correction when paired with Blackmagic Pocket Cinema Cameras.

When it comes to durability and portability, the ATEM Mini Pro ISO shines with its sleek, rugged design measuring just 9.35 x 4.07 x 1.38 inches and weighing approximately 1.2 pounds, making it perfect for small studios, mobile production rigs, or on-location streaming events. Powered by an external 12V DC adapter with international socket adapters included, it’s ready for worldwide operation right out of the box. With a reasonable power consumption of just 36W, it delivers professional-grade performance without straining your setup’s energy budget.

Spec highlights include support for real-time 4:2:2 10-bit video sampling, frame rate and format conversion on all HDMI inputs, recording to external USB drives in high-quality H.264 format, and direct streaming using RTMP protocols. Furthermore, the unit ensures reliability across environments with an operating temperature range of 5°C to 40°C (41°F to 104°F) and storage tolerances from -10°C to 60°C (14°F to 140°F), accommodating the rigors of travel and remote production work.

Choosing the Blackmagic Design ATEM Mini Pro ISO means investing in a future-proof switcher that combines professional-quality production, superior post-production capabilities, robust build quality, and ultimate ease of use in one compact solution. Whether you're a solo streamer, a small production team, an educator delivering virtual classes, or a corporate presenter needing flawless webcasts, this switcher elevates your content to broadcast standards effortlessly. With unmatched flexibility, powerful features, and an unbeatable value proposition, the ATEM Mini Pro ISO isn't just another live switcher — it’s the foundation for building a truly professional live streaming presence.

Features:

ISO Recording of All HDMI Inputs for Post-Production Flexibility

The ATEM Mini Pro ISO offers the unparalleled ability to record all four HDMI video inputs independently, in addition to the main program output. This creates "clean feeds" for each connected device, meaning users can later adjust camera angles, switch shots, or even completely re-edit the production. The switcher automatically saves this recording as individual video files, providing maximum creative freedom in post-production, a critical advantage for professional editors and streamers seeking polished, broadcast-quality outputs.

Auto-Generated DaVinci Resolve Project Files for Seamless Editing

Each live production session is not just recorded but also saved as a DaVinci Resolve project file, complete with synced video and audio tracks, transitions, cuts, and graphics. This dramatically shortens post-production time by allowing creators to immediately open their entire live session inside DaVinci Resolve with all edits ready for fine-tuning. It’s a powerful workflow enhancement, eliminating tedious syncing and saving hours of manual labor.

Built-In Hardware Streaming Encoder for Direct Live Streaming

The integrated hardware encoder allows direct live streaming to platforms like YouTube, Facebook Live, and Twitch without the need for a dedicated streaming computer or third-party software. Simply connect the switcher to the internet via Ethernet and start streaming instantly. This makes live streaming more reliable, with less chance of frame drops or latency issues, crucial for events where performance and broadcast stability are non-negotiable.

USB-C Webcam Output for Universal Streaming Compatibility

The ATEM Mini Pro ISO features a USB-C output that functions as a webcam device when connected to a computer. This ensures compatibility with a wide array of video conferencing and streaming applications, including Zoom, Microsoft Teams, Skype, and OBS Studio. It allows users to achieve professional multicamera broadcasts on platforms that traditionally only support basic webcam inputs, dramatically boosting production value without needing complex setups.

Multiview Output for Professional Monitoring

With the built-in Multiview feature, users can monitor all four HDMI inputs, plus preview and program outputs, along with vital information such as recording status, streaming status, and audio levels — all on a single HDMI display. This advanced monitoring capability, typically reserved for large broadcast studios, ensures that producers have full situational awareness during live production, allowing for smarter decision-making and error prevention.

Advanced Fairlight Audio Mixer with Professional Audio Tools

Embedded inside the ATEM Mini Pro ISO is the Fairlight Audio Mixer, supporting up to six channels with sophisticated audio processing tools such as a six-band parametric equalizer, compressor, limiter, noise gate, and audio-follow-video capabilities. With control over both HDMI-embedded audio and external 3.5mm microphone inputs, users can create professional sound mixes in real-time, ensuring that their streams sound as polished as they look.

Chroma Key and Upstream/Downstream Keyers for Pro-Level Graphics

The built-in chroma keyer enables users to create seamless green-screen effects, making virtual sets, dynamic backgrounds, or special effects easily achievable. Upstream and downstream keyers allow real-time insertion of logos, graphics, lower-thirds, and other branding elements into the live broadcast. These advanced features give creators a way to deliver engaging, branded content that rivals expensive studio productions.

DVE for Picture-in-Picture Effects and Custom Transitions

The Digital Video Effects (DVE) processor allows users to position, resize, and overlay video sources with customizable picture-in-picture layouts, ideal for interviews, gaming streams, and instructional videos. The DVE also enables sleek custom transitions like squeezes, pushes, and wipes, helping productions feel dynamic and professionally directed.

Real-Time Format and Frame Rate Conversion on All Inputs

Each HDMI input features real-time format and frame rate converters, ensuring that any connected camera, laptop, or media device is automatically adjusted to match the switcher’s output settings. This eliminates compatibility issues and allows users to mix different sources without needing external converters, greatly simplifying setup and ensuring seamless integration.

Direct Recording to External USB Drives in H.264 Format

Users can plug external USB drives directly into the switcher's USB-C port to record high-quality H.264 video files with embedded AAC audio. This offers instant, efficient capture of both program outputs and ISO feeds without needing additional hardware, delivering files that are immediately ready for online upload or further editing.

Compact and Portable Design with Pro-Level Features

Despite its professional-grade capabilities, the ATEM Mini Pro ISO is incredibly compact and lightweight, measuring only 9.35 x 4.07 x 1.38 inches and weighing just 1.2 pounds. Its sleek form factor makes it ideal for mobile productions, small studios, home broadcasting setups, corporate webinars, and on-the-go streaming events where space and portability are crucial.

Robust Build Quality with Efficient Power Consumption

Designed for intensive use, the ATEM Mini Pro ISO runs efficiently at only 36W and includes a robust external 12V DC power supply with international socket adapters, making it travel-ready for global streaming needs. Its operating temperature range from 5°C to 40°C ensures reliable performance in diverse environments, while its durable build quality protects it against the rigors of frequent transport and heavy daily use.

5 Models to choose from:

• Blackmagic Design ATEM Mini (discontinued) - The ATEM Mini Switcher is an affordable Blackmagic live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and much more!
• Blackmagic Design ATEM Mini Pro - The ATEM Mini Pro Switcher is a powerful live Blackmagic ATEM video switcher with 4 HDMI inputs, hardware streaming, recording to USB disks, USB webcam out, audio mixer, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and more!
• Blackmagic Design ATEM Mini Pro ISO - The ATEM Mini Pro ISO Switcher has the features of ATEM Mini Pro plus 5 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.
• Blackmagic Design ATEM Mini Extreme - The ATEM Mini Extreme Switcher is a true professional model that adds a total of 8 HDMI inputs, 16 way multiview, 4 ATEM Advanced Chroma keyers, SuperSource with 4 extra DVEs, 2 HDMI outputs, 2 USB ports, and a more powerful control panel.
• Blackmagic Design ATEM Mini Extreme ISO - When you buy the ATEM Mini you get the features of ATEM Mini Extreme plus 9 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.

• Professional Live Streaming to YouTube, Facebook, and Twitch Stream directly to popular platforms without needing a computer, delivering stable, high-quality broadcasts.
• Multicamera Webinars and Online Conferences Produce polished webinars and virtual meetings with multiple camera angles and professional audio.
• Corporate Presentations and Internal Communications Enhance corporate meetings, training sessions, and announcements with live switching, graphics, and lower-thirds.
• Remote Education and Online Classes Support teachers and trainers in creating dynamic, interactive online lessons using multiple inputs and picture-in-picture effects.
• Event Coverage and Live Productions Ideal for streaming or recording live events such as concerts, sports, theater performances, and conferences with multiple camera feeds.
• Esports and Gaming Broadcasts Combine gameplay footage, player cams, and live commentary seamlessly for professional-quality gaming streams.
• Worship Services and Religious Broadcasting Stream church services and religious ceremonies with multiple camera angles and professional audio/visual effects.
• Podcast and Video Podcast Production Record and stream live video podcasts with multicamera setups, including overlays, lower-thirds, and branding elements.
• Virtual Interviews and Panel Discussions Manage remote interviews and expert panels with advanced switching, chroma keying, and multiview monitoring.
• Content Creation for YouTube and Social Media Create professional-quality tutorial videos, unboxings, live product launches, and more with real-time editing capabilities.
• Mobile Production Studios and Remote Broadcasting Set up compact, powerful broadcasting kits for on-location shoots, news coverage, or mobile events.
• Training and E-learning Video Production Produce polished training videos with multiple sources, on-screen graphics, and live demonstrations captured simultaneously.
• Studio and Field Recording for Post-Production Projects Record isolated clean feeds for later editing in DaVinci Resolve, enabling polished post-event video creation.
• Live Product Demos and Sales Streams Stream professional live demos for ecommerce, product launches, and online shopping channels with high-quality video and audio.
• Government and Public Sector Communications Deliver live press briefings, public service announcements, and official broadcasts with multiple inputs and secure, direct streaming.

Pros

• Records all HDMI inputs separately for full post-production flexibility.
• Automatically generates a DaVinci Resolve project file for faster editing workflows.
• Direct hardware streaming via Ethernet to YouTube, Facebook, and Twitch without third-party software.
• USB-C output functions as a webcam for seamless compatibility with conferencing apps.
• Multiview monitoring displays all sources, program, and preview on one screen.
• High-quality H.264 recording format with AAC audio for efficient storage and sharing.
• Built-in Fairlight audio mixer with professional sound processing tools like EQ and limiter.
• Integrated chroma keyer, DVE, and transition effects for professional-quality live production.
• Real-time format and frame rate conversion on all HDMI inputs for hassle-free device integration.
• Compact, lightweight, and portable design ideal for mobile studios and small setups.

Cons

• Limited to 1080p output; does not support 4K resolution.
• Only four HDMI inputs, which may not be enough for larger productions.
• No SDI inputs, limiting use with some professional broadcast equipment.
• Audio outputs are embedded only; no separate analog audio out ports.
• External USB drives required for recording, adding to equipment needs.
• Basic physical control panel might feel small for complex, high-pressure productions.

Discover the Essential Features of the Blackmagic Design ATEM Mini Pro ISO

• 2-Channel Digital Audio Mixer per Source
• 4-Channel Live Stream HDMI Switcher
• Live Stream Program and 4 x Input ISO Recording
• Generates DaVinci Resolve Project
• Record Button, Channel Preview Multiview
• HDMI Output, Ethernet ATEM Control
• Media Player, Computer Input Support
• Upstream and Downstream Keyers
• DVE Transition, Chroma/Luma Keyers

• Video Input Standards 720p50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080i50/59.94/60
• Video Output Standards 1080p23.98/24/25/29.97/30/50/59.94/60
• Video Streaming Standards 1080p23.98/24/25/29.97/30/50/59.94/60
• Video Sampling 4:2:2 YUV
• Color Precision 10-bit
• Color Space Rec 709
• HDMI Input Resolutions from Computers 1280x720p at 50Hz, 59.94Hz, 60Hz; 1920x1080p at 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz; 1920x1080i at 50Hz, 59.94Hz, 60Hz
• Color Space Conversion Hardware-based real-time conversion

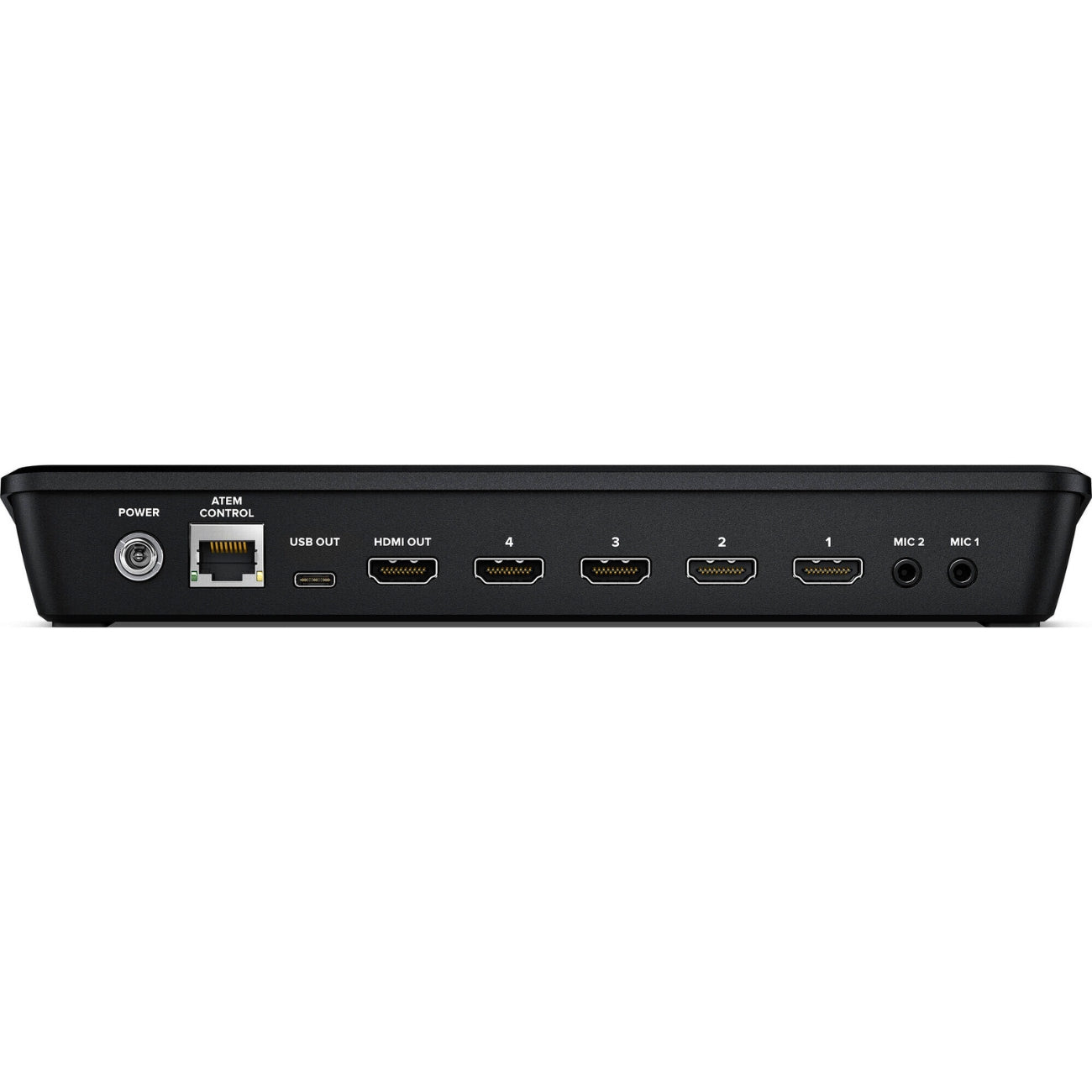

• Total Video Inputs 4 x HDMI Type A, 10-bit HD switchable, with 2-channel embedded audio
• Total Video Outputs 2
• Total Aux Outputs 1
• Total Audio Inputs 2 x 3.5mm stereo mini jack
• Total Audio Outputs None (embedded audio only)
• Timecode Connection None
• Video Input Re-Sync On all 4 HDMI inputs
• Frame Rate and Format Converters On all 4 HDMI inputs
• HDMI Program Outputs 1
• Ethernet 1 x 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection
• Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection
• Upstream Keyers 1
• Downstream Keyers 1
• Advanced Chroma Keyers 1
• Linear/Luma Keyers 2
• Transition Keyer DVE only
• Total Number of Layers 5
• Pattern Generators 1
• Color Generators 2
• DVE with Borders and Drop Shadow 1
• Audio Mixer 6-input x 2-channel mixer with EQ, dynamics, and Fairlight audio enhancements
• Direct Recording 1 x USB-C 3.1 Gen 1 port for external drive recording in H.264 format with AAC audio
• Media Format Support ExFAT for external media
• Direct Streaming Support RTMP protocol streaming over Ethernet
• Control Panel Built-in physical control panel and ATEM Software Control
• Control Panel Connections Ethernet and USB-C for panel control and software updates
• Control Panel Compatibility ATEM Software Control included
• Power Supply External 12V DC with international socket adapters
• Power Consumption 36W approximately
• Dimensions 9.35 x 4.07 x 1.38 inches (237.5 x 103.5 x 35 mm)
• Weight 1.2 lbs (550 g)
• Operating Temperature 5°C to 40°C (41°F to 104°F)
• Storage Temperature -10°C to 60°C (14°F to 140°F)
• Relative Humidity 0% to 90% non-condensing

• ATEM Mini Pro ISO Switcher
• External 12V DC Power Supply with International Socket Adapters
• ATEM Software Control Panel (Downloadable for macOS and Windows)

What makes the Blackmagic ATEM Mini Pro ISO different from the standard ATEM Mini Pro?

The ATEM Mini Pro ISO can record all four HDMI inputs individually as clean feeds along with the program output, and it automatically generates a DaVinci Resolve project file for fast post-production editing. The standard ATEM Mini Pro does not offer these ISO recording or project generation features.

Can the ATEM Mini Pro ISO stream directly to platforms like YouTube and Facebook?

Yes, it has a built-in hardware streaming engine that allows you to stream directly via Ethernet to YouTube, Facebook Live, Twitch, and other RTMP-supported services without needing third-party streaming software.

What resolutions are supported on the ATEM Mini Pro ISO inputs and outputs?

The switcher supports 720p50/59.94/60 and 1080p23.98/24/25/29.97/30/50/59.94/60 input standards, and outputs video at up to 1080p60 resolution.

Does the ATEM Mini Pro ISO support multiview monitoring?

Yes, it supports multiview output via HDMI, allowing you to view all four HDMI inputs, the preview output, the program output, recording status, streaming status, and audio levels on a single monitor.

Can I use the ATEM Mini Pro ISO with Zoom, Microsoft Teams, or Skype?

Yes, the USB-C output acts as a webcam source, making it compatible with most video conferencing software including Zoom, Skype, Microsoft Teams, and more.

What type of recording format does the ATEM Mini Pro ISO use?

Recordings are saved in H.264 format with AAC audio directly to an external USB drive connected to the USB-C port. The media can also be formatted to ExFAT for cross-platform compatibility.

Does it support real-time format and frame rate conversion?

Yes, each HDMI input has real-time format and frame rate converters, ensuring that different sources are automatically matched to the switcher's output settings without external converters.

Is audio mixing possible with the ATEM Mini Pro ISO?

Yes, it features an integrated Fairlight audio mixer with a 6-input x 2-channel setup, complete with advanced EQ, compressor, limiter, noise gate, and audio-follow-video features for professional-quality sound control.

What power supply does the ATEM Mini Pro ISO use?

It includes an external 12V DC power supply with international socket adapters, making it ready for use in various countries right out of the box.

Can the ATEM Mini Pro ISO control Blackmagic Pocket Cinema Cameras?

Yes, when connected via HDMI, the ATEM Mini Pro ISO can control settings like focus, iris, ISO, color correction, and start/stop recording on Blackmagic Pocket Cinema Camera 4K and 6K models.
