Key Features
- Single multi-rate SDI input and output for SD, HD, 3G-SDI, and 6G-SDI signals
- Supports 10-bit uncompressed and compressed video formats like ProRes and DNxHD
- Allows for SD to HD up-conversion and HD to SD down-conversion
- Hardware cross-conversion between 720p and 1080p on playback
- RS-422 deck control for controlling external recorders and decks
- Internal keying for chroma keying and compositing effects
- Reference input for frame synchronization with external devices
- Supports 16 channels of embedded SDI audio in HD, 2K, and 4K resolutions (8 channels in SD)
- Computer Interface: PCI Express x1 slot
- Software Compatibility: Mac OS X 10.13.6 or later, Windows 10 64-bit, Linux
Blackmagic Design

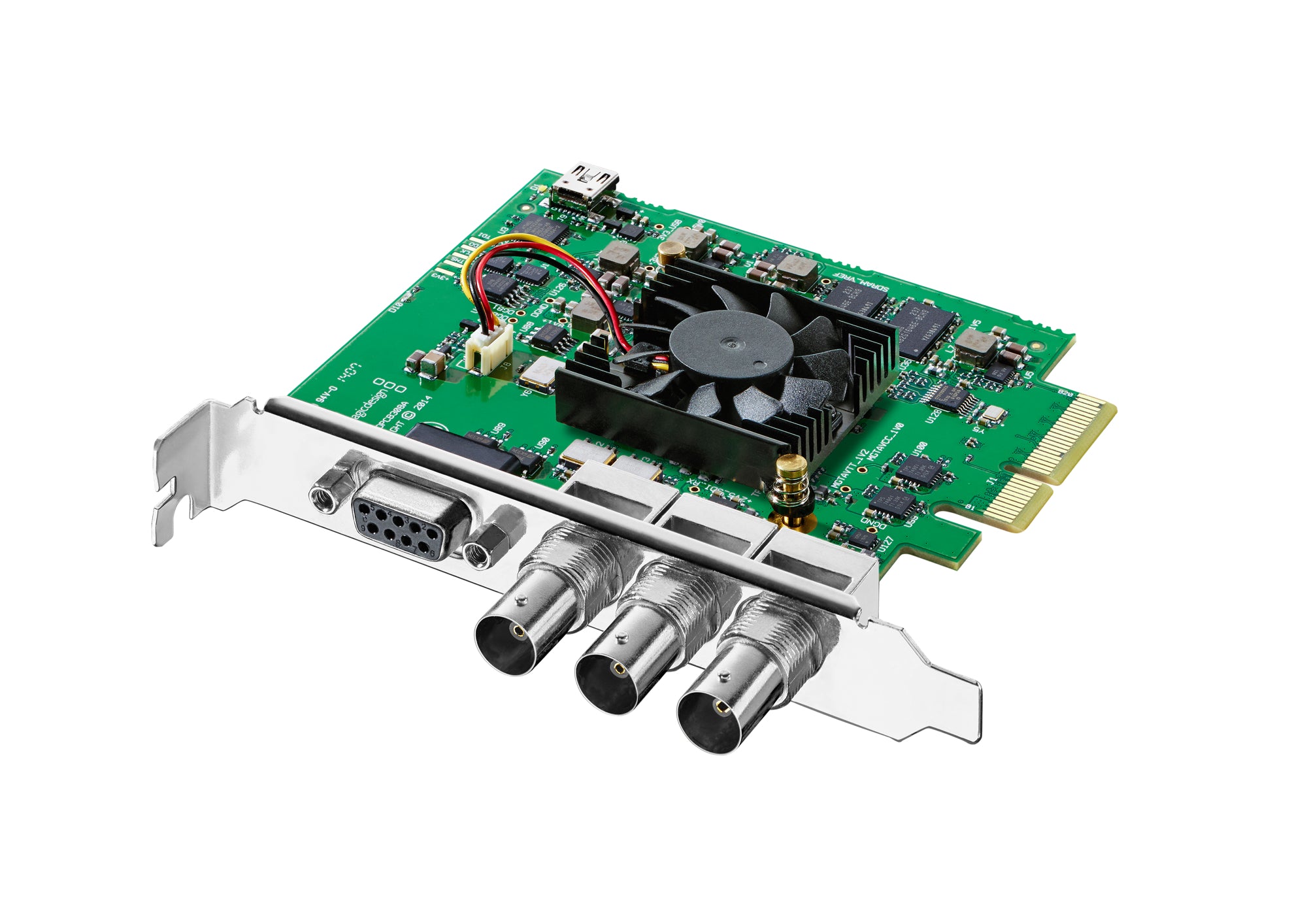

Blackmagic Design DeckLink SDI 4K Capture Card
Blackmagic Design DeckLink SDI 4K Capture Card
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
Key Features
- Single multi-rate SDI input and output for SD, HD, 3G-SDI, and 6G-SDI signals
- Supports 10-bit uncompressed and compressed video formats like ProRes and DNxHD
- Allows for SD to HD up-conversion and HD to SD down-conversion
- Hardware cross-conversion between 720p and 1080p on playback
- RS-422 deck control for controlling external recorders and decks
- Internal keying for chroma keying and compositing effects
- Reference input for frame synchronization with external devices
- Supports 16 channels of embedded SDI audio in HD, 2K, and 4K resolutions (8 channels in SD)
- Computer Interface: PCI Express x1 slot
- Software Compatibility: Mac OS X 10.13.6 or later, Windows 10 64-bit, Linux
Hurry and Save
- FREE Shipping for orders $150 above
- Add $25 for 2-day expedited shipping
- Ask about our Refer a Friend Program!
Got A Question? - Ask Our Team
Master Professional Video Workflows with Blackmagic Design DeckLink SDI 4K Capture Card
The Blackmagic Design DeckLink SDI 4K Capture Card stands out as an optimal choice for professionals seeking a robust, SDI-only video capture solution. This compact card efficiently handles SD, HD, 2K, and Ultra HD 4K formats via single-link 6G-SDI, making it the smallest and most cost-effective option in its category. It supports both uncompressed and compressed 10-bit video formats, including ProRes and DNxHD, and offers features like up-conversion from SD to HD, down-conversion from HD to SD, and cross-conversion between 720p and 1080p at playback.
Compatible with popular editing and effects software such as DaVinci Resolve, the DeckLink SDI 4K enhances workflow with its RS-422 deck control, internal keying for compositing, and frame synchronization capabilities. Whether you're working in broadcast, film, or web media, this capture card delivers top-notch performance and flexibility for all post-production environments.
More Details:
- Affordable SDI-Only Option: Exclusively designed for users needing premium SDI capture and playback without the complexity of HDMI.
- Compact and Cost-Effective: Recognized as the most compact and economical multi-rate SD/HD/Ultra HD SDI video card available today.
- Extensive Format Support: Easily manages a variety of video formats from SD to Ultra HD 4K using single-link 6G-SDI connections.
- Broad Software Compatibility: Seamlessly integrates with industry-leading software like DaVinci Resolve for editing and effects.
- Connections: 1x Single-link 6G-SDI input, 1x Single-link 6G-SDI output
- Video Formats:
- SD: NTSC and PAL
- HD: 720p50, 720p60, 1080i50, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p60
- 2K: 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080p29.97, 2048 x 1080p30, 2048 x 1080p50, 2048 x 1080p60
- UHD 4K: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p60
- DCI 4K: 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30
- Audio: 16 channels embedded SDI audio (HD, 2K, 4K), 8 channels embedded SDI audio (SD)
- Computer Interface: PCI Express x1 slot
- Software Compatibility: Mac OS X 10.13.6 or later, Windows 10 64-bit, Linux
- Power: +12V DC from PCIe slot
DaVinci Resolve
Fusion
Final Cut Pro X
Adobe Premiere Pro CC
Avid Media Composer
Adobe After Effects CC
Avid Pro Tools
Steinberg Cubase
Autodesk Smoke
Adobe Photoshop CC
What operating systems are compatible with the Blackmagic Design DeckLink SDI 4K Capture Card?
The DeckLink SDI 4K Capture Card is compatible with Mac OS X 10.13.6 or later, Windows 10 64-bit, and Linux operating systems.
What video formats does the DeckLink SDI 4K Capture Card support?
This capture card supports a wide range of video formats including SD (NTSC and PAL), HD (720p, 1080i, 1080p), 2K, UHD 4K, and DCI 4K.
Does the DeckLink SDI 4K Capture Card support audio embedding?
Yes, it supports 16 channels of embedded SDI audio for HD, 2K, and 4K resolutions, and 8 channels for SD resolutions.
Is there any capture or editing software included with the DeckLink SDI 4K?
No, the DeckLink SDI 4K does not include any capture or editing software. However, it is compatible with popular software like DaVinci Resolve.
What are the power requirements for the DeckLink SDI 4K Capture Card?
The capture card requires +12V DC from the PCIe slot.
Can the DeckLink SDI 4K perform up-conversion and down-conversion?
Yes, it allows for SD to HD up-conversion and HD to SD down-conversion. It also supports hardware cross-conversion between 720p and 1080p during playback.
What types of connections does the DeckLink SDI 4K offer?
It features a single multi-rate 6G-SDI input and a single multi-rate 6G-SDI output, supporting SD, HD, 3G-SDI, and 6G-SDI signals.
Does the DeckLink SDI 4K support internal keying?
Yes, the capture card supports internal keying for chroma keying and compositing effects.
What control options are available for external recorders and decks?
The DeckLink SDI 4K includes RS-422 deck control for managing external recorders and decks.
Is frame synchronization supported with external devices?
Yes, the card has a reference input for frame synchronization with external devices.
