Fujifilm X-S20 Mirrorless Camera (Black)

The Fujifilm X-S20 Mirrorless Camera: Compact Elegance Meets Photographic Power

The Fujifilm X-S20 Mirrorless Camera, sleek and easy to carry, is perfect for on-the-go photography. This new model from Fujifilm blends advanced features and technology into a portable form that’s great for both photos and videos. It has a 26.1-megapixel X-Trans CMOS 4 sensor and X-Processor 5 engine. These deliver top-notch performance, allowing 6.2K video recording and 20 fps shooting without crop.

The camera is built for vloggers, content creators, and travelers. It has special Auto and Vlog modes designed to simplify shooting. Its in-body image stabilizer provides up to seven stops of shake reduction. Battery life is significantly improved, too, handling twice as many shots per charge as the previous X-S10. Moreover, easy-to-use Vlog mode and 19 Film Simulation modes make it simple to capture high-quality, colorful footage right out of the camera.

Available styles (optional):

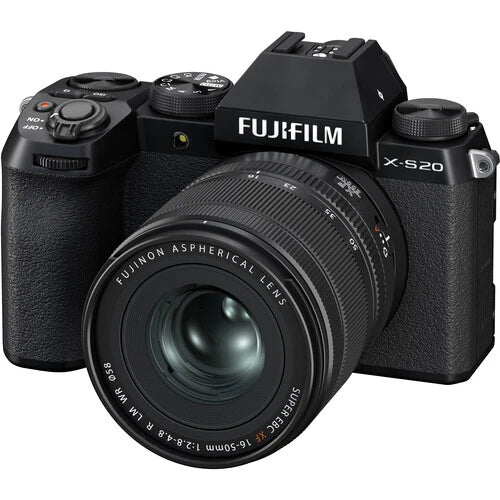

• Fujifilm X-S20 Mirrorless Digital Camera with 15-45mm Lens
• Fujifilm X-S20 Mirrorless Digital Camera with 18-55mm Lens

More camera details:

• Compact Body - The Fuji X-S20 features a large and easy-to-hold grip, which is a feature of the X-S series, as well as a large battery NP-W235 and a five-axis in-body image stabilization (IBIS) system that provides up to 7.0 stops of compensation. Despite this, the camera body only weighs 491g.
• Back-illuminated 26.1MP X-Trans CMOS 4 Sensor - X-S20 features a back-illuminated “X-Trans CMOS 4” sensor. Boasting a 26.1 MP resolution, X-S20 can chronicle your most extraordinary adventures and everyday moments with a unique filter array that controls moiré and false colors for an image that will help you share your true creative vision. The back-illuminated design works to enhance image quality while minimizing noise.
• Film Simulation Modes - 19 Film Simulation modes inside of X-S20 replicate the analog look of the classic photographic film stocks developed by Fujifilm for over 85 years. Reproduce the classic colors and tones that Fujifilm is known for, or add an artistic flair that will Build Your Legacy.
• Battery Life with NP-W235 750 Frames - X-S20 won’t stop working in the middle of your next venture; the battery capacity has increased by more than two folds from 325 to 750 frames compared to the X-S10.* Need a battery that will last all day? Throw X-S20 into economy mode and increase the battery life to 800 frames.
• Subject-detection autofocus - X-Processor 5 features subject-detection AF that is built using Deep-Learning AI Technology. In addition to providing incredible AF tracking and detection for human faces and eyes, the X-S20 Fujifilm mirrorless camera can now also automatically detect and track a broad range of subjects, which include animals, birds, cars, motorcycles, bicycles, airplanes, trains, insects, and drones.* This allows photographers to concentrate on composition and creativity, confident that X-S20 will track focus accurately. *Set “SUBJECT DETECTION SETTING” to “BIRD” when you want to detect insects and to “AIRPLANE” when you want to detect drones.
• Updated AF algorithm - FujiFilm X S20 incorporates an improved auto-focus prediction algorithm, enabling stable focusing even when recording continuously moving subjects. Auto-focus improvements are most notable in Zone AF and tricky low-contrast situations.
• IBIS 7.0 stops - X-S20 allows for comfortable hand-held shooting even in dark conditions, perfect for those bouts of midnight inspiration. With a 5-axis in-body image stabilization system, the X-S20 Fuji mirrorless camera offers up to seven stops of image stabilization for steady images and video.
• New Auto Mode - The AUTO mode, which allows the camera to automatically recognize/set the most optimal shooting setting for the scene, has a new Auto subject detection function. When AUTO is selected on the mode dial, the camera automatically detects the subject and tracks it while keeping it in focus. This eliminates the need to adjust the subject detection settings, making shooting even more comfortable.
• Product Priority mode - Are you recording a product video or unboxing? When the Product Priority mode is enabled, the focus naturally transitions from your face to the subject in front of you—it’s like having a built-in assistant.
• Background Defocus mode - Don’t sweat the technical details. Enable the Background Defocus mode to blur out your background naturally. Get that cinema look with only the tap of your finger.
• Tripod grip TG-BT1 - Need help with video selfies and low-angle shots? The TG-BT1 tripod grip makes it more comfortable to handle X-S20. You can even control X-S20 using the grip’s inbuilt controls.
• Support for FUJIFILM XApp - The X 20 works with the new “FUJIFILM XApp”, which extends the support for your photographic activity. The Images in the camera can be wirelessly transferred and viewed on a smartphone device, and the X-S20 can be operated remotely from the app.
• 6.2K/30p 4:2:2 10-bit internal recording - Fuji X S20 has advanced video performance in a compact, lightweight body, enabling you to create stunning movies up to 6.2K internally at 30P in 4:2:2 10-bit color. Combine that with 4K/60P video and 1080/240P high-speed video; you’re the director now.
• Support for Webcam - Using the X-S20 as Webcam couldn’t be much easier. Simply connect the X-S20 to a computer with a USB-TypeC cable and you are set! In addition, you can also control your shooting setting such as aperture or film simulation.
• RAW output via HDMI - Shoot like a pro by combining Fuji X S20 with an ATOMOS HDMI monitor recorder to record RAW video output as 12-bit Apple ProRes RAW at resolutions up to 6.2K, 29.97fps. Combined with Blackmagic Design Video Assist 12G, RAW video output from the camera can be recorded as Blackmagic RAW at resolutions up to 6.2K, 29.97fps.
• φ3.5mm Microphone & Headphone Jacks - Don’t neglect your audio, because the Fujifilm XS20 has dual 3.5mm jacks, so you can record audio with an external microphone and monitor with headphones. Despite its compact and lightweight body, X-S20 has high expandability with external devices to elevate your creation.
• Cooling fan “FAN-001” - The Fuji XS20 supports the FAN-001 Cooling Fan, which can be fitted to the camera’s rear without additional cables to extend continuous video recording time. There is no need to take a break when you’re in the middle of making your latest video.

Applications:

• Travel Photography: Its lightweight and compact design make it ideal for photographers on the go, ensuring portability without compromising performance.
• Vlogging and Content Creation: With advanced video capabilities (6.2K at 30p and 4K at 60p), Vlog mode, and Product Priority mode, it's perfect for YouTube content creators, unboxing videos, and vlogs.
• Portrait Photography: The Background Defocus mode allows users to achieve professional-looking blurred backgrounds with ease.
• Wildlife and Sports Photography: The subject-detection autofocus system, using AI to detect and track various subjects like animals, birds, and vehicles, makes it great for fast-moving subjects.
• Low-Light Photography: With its powerful 7.0-stop in-body image stabilization and a back-illuminated 26.1MP X-Trans CMOS 4 sensor, it performs well in low-light conditions.
• Cinematic Video Production: Offering 6.2K/30p video recording and RAW output via HDMI, this camera is also well-suited for professional videographers.
• Webcam Functionality: It can function as a high-quality webcam when connected to a computer via a USB-C cable, making it perfect for remote meetings and streaming.
• Film Simulations: The 19 built-in Film Simulation modes replicate classic Fujifilm film styles, perfect for photographers wanting a vintage or artistic aesthetic without post-processing.
• Remote Shooting: It supports the FUJIFILM XApp, allowing for wireless control and image transfer via smartphones.
• Extended Battery Life: With a battery life of up to 800 frames in economy mode, it's ideal for long shoots or extended travel days.

• 26.1MP APS-C X-Trans BSI CMOS 4 Sensor
• 5-Axis In-Body Image Stabilization
• 6.2K at 30 fps, 4K at 60 fps
• 2.36m-Dot 0.62x OLED EVF

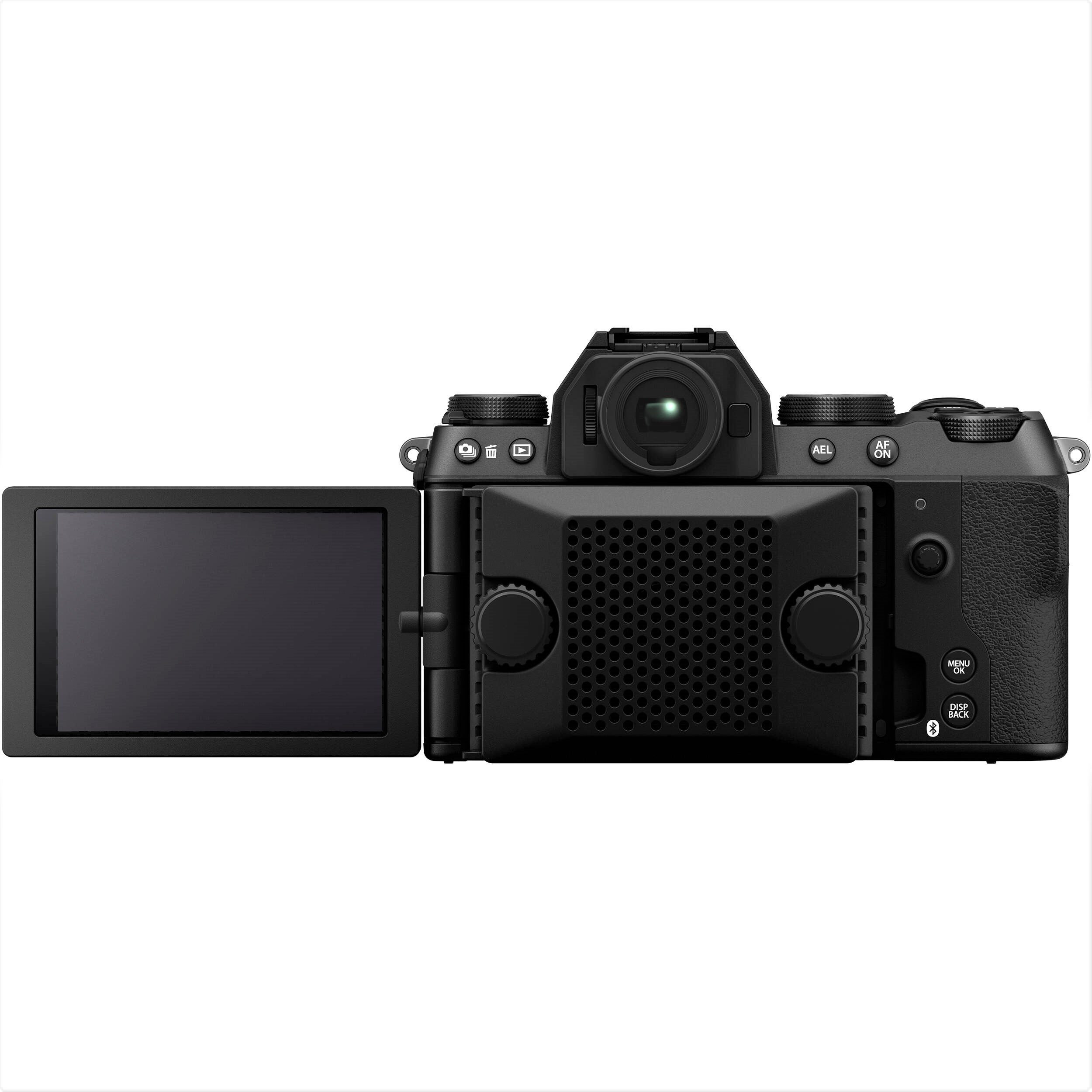

• 3.0" 1.84m-Dot Vari-Angle Touchscreen
• 19 Film Simulation Modes
• 5mm Microphone/Headphone Jack
• ISO 160-12800, up to 8 fps Shooting
• Bluetooth and Wi-Fi Connectivity
• New Auto Mode and Vlog Mode
• X-Processor 5 Image Processor

Number of Effective Pixels

26.1 millions pixels

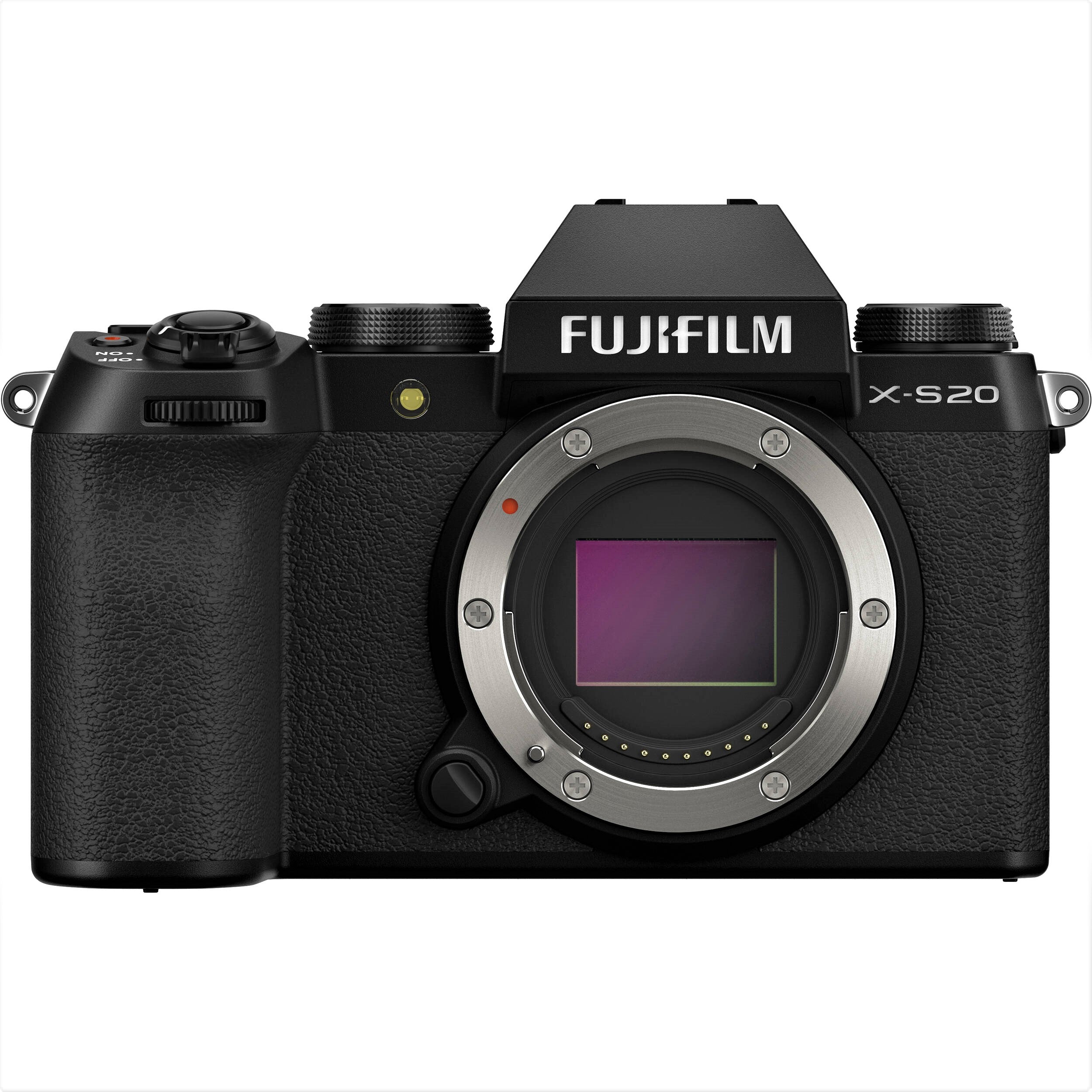

Image Sensor

23.5mm x 15.6mm (APS-C) X-Trans CMOS 4 with primary color filter

Sensor Cleaning System

Ultra Sonic Vibration

Storage Media

SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 *Please visit https://fujifilm-x.com/support/compatibility/cameras to check memory card compatibility.

File format (Still)

DCF compliant with the Design rule for Camera File System, JPEG-Exif Ver.2.32, HEIF-4:2:2 10bit, RAW-14bit RAW (RAF original format), TIFF-8bit / 16bit RGB (In-camera Raw Conversion Only)
*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing

Number of Recorded Pixels

L: [3:2] 6240 x 4160 [16:9] 6240 x 3512 [1:1] 4160 x 4160
M: [3:2] 4416 x 2944 [16:9] 4416 x 2488 [1:1] 2944 x 2944
S: [3:2] 3120 x 2080 [16:9] 3120 x 1760[1:1] 2080 x 2080

Lens Mount

FUJIFILM X mount

Sensitivity Standard Output

STILL: AUTO1/ AUTO2/ AUTO3/ ISO16012800 (1/3 step)
MOVIE: AUTO/ ISO12512800 (1/3 step)

Sensitivity Extended Output

STILL: ISO80/ISO100/ ISO125/ISO25600/ ISO51200
MOVIE: ISO25600

Exposure Control

TTL 256-zone metering/ Multi/ Spot/Average/ Center Weighted

Exposure Mode

P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure)

Exposure Compensation

STILL: -5.0EV+5.0EV (1/3EV step)/ MOVIE: -2.0EV+2.0EV (1/3EV step)

Image Stabilizer Mechanism

Image sensor shift mechanism with 5-axis compensation

Image Stabilizer Compensation Effect

Up to 7.0 stops (based on CIPA standard). Pitch/yaw shake only, with XF35mmF1.4 R lens attached.

Image Stabilizer Digital Image Stabilization

Yes, movie mode only

Image Stabilizer IS MODE BOOST

Yes, movie mode only

Shutter Type

Focal Plane Shutter

Shutter Speed Mechanical Shutter

P mode: 30 sec to 1/4000
A mode: 30sec to 1/4000
S/M mode: 15min to 1/4000
Bulb mode: up to 60min

Shutter Speed Electronic Shutter

P mode: 30 sec to 1/32000
A mode: 30sec to 1/32000
S/M mode: 15min to 1/32000
Bulb mode: 1sec Fixed

Shutter Speed Mechanical + Electronic Shutter

P mode: 30 sec to 1/32000
A mode: 30sec to 1/32000
S/M mode: 15min to 1/32000
Bulb mode: up to 60min
*Mechanical shutter works until 1/4000sec.

Shutter Speed Movie

6.2K: 1/4000 to 1/24
DCI 4K/4K: 1/4000 to 1/24 sec.
FHD: 1/4000 to 1/24 sec.
*Cannot choose slower shutter speed than framerate for some settings.

Synchronized Shutter Speed for Flash

Mechanical Shutter: 1/180sec. or slower

Continuous Shooting

Electronic Shutter Approx. 30fps (1.25x Crop) (JPEG: 407 frames, Compressed RAW: 88, Lossless Compressed RAW 62, Uncompressed RAW: 28 frames, Compressed RAW + JPEG: 41 frames, Lossless compressed RAW + JPEG 36 frames, Uncompressed RAW + JPEG: 28 frames)
Electronic Shutter Approx. 20fps (1.25x Crop) (JPEG: 1000+ frames, Compressed RAW: 104, Lossless Compressed RAW: 72, Uncompressed RAW: 30 frames, Compressed RAW + JPEG: 66, Lossless compressed RAW + JPEG: 53, Uncompressed RAW + JPEG: 30)
Electronic Shutter Approx. 30fps (1.25x Crop) (While half press 30 frames, After full press 75 frames)
Electronic Shutter Approx. 20fps (1.25x Crop) (While half press 20 frames, After full press 576 frames,)
Electronic Shutter Approx. 10fps (1.25x Crop) (While half press 10 frames, After full press 1000+ frames,)
Electronic Shutter Approx. 8fps (While half press 8 frames, After full press 1000+ frames,)
*Recordable frames depend on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames"

AE Bracketing

AE Bracketing (Frames: 2, 3, 5, 7, 9 Step: by 1/3EV step, up to 3EV steps)
Film simulation bracketing (Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100%, 200%, 400%)

Focus Mode

Single AF/ Continuous AF/ MF

Focus Type

Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)

Focus Low-light Performance

Contrast: -4.0EV
Phase Detection: -7.0EV
*XF50mmF1.0 attached

AF Frame Selection

Single point AF: 139/ 2517 (Changeable size of AF frame)
Zone AF: 33/ 55/ 77 from 117 areas on 139 grid
Wide/Tracking AF AF-S: Wide/ AF-C: Tracking
All

White Balance

Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1 - 3/ Color temperature selection (2500K10000K)/ Preset Daylight, Shade, Fluorescent Light-1, Fluorescent Light-2, Fluorescent Light-3, Incandescent Light, Underwater

Self-timer

10sec./2sec.

Interval Timer Shooting

Yes (Setting: Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)

Flash

EF-X8 Guide Number approx. (ISO200m) / approx. 5 (ISO100m)

Flash Sync Mode

Shoe Mount Flash: 1st Curtain/ 2nd Curtain AUTO FP (HSS)
Synchronized terminal: 1st Curtain/ 2nd Curtain.

Flash Mode

TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF Shoe Mount Flash TTL (TTL AUTO) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI
*When EF-X500 is set/ OFF Synchronized terminal MANUAL

Hot Shoe

Yes (Dedicated TTL Flash compatible)

Viewfinder EVF

"0..39 inch approx. 2.36 million dots OLED Color Viewfinder
Coverage of viewing area vs. capturing area: approx. 100%
Eyepoint: approx. 17.5mm (from the Rear End of the camera's Eyepiece) Diopter adjustment: -4~+2m-1
Magnification: 0.62 with 50mm lens (35mm equivalent) at infinity and Diopter set to -1.0m-1
Diagonal angle of view: approx. 31 (Horizontal angle of view: approx. 26 ) Built-in eye sensor"

LCD Monitor

3.0 inch vari-angle Touch Screen Color LCD Monitor
Aspect Ratio 3:2
Resolution: Approx. 1.84 million dots

Touch Screen Shooting Mode

Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), EVF Touch Screen Area Setting

Touch Screen Playback Mode

Swipe, Pinch-in / Pinch-out, Double-tap, Drag

File format (Movie)

HEVC/ H.265
Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)

MPEG-4, AVC/ H.264
Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)

MP4, MPEG-4, AVC/ H.264
Audio: AAC

Movie Compression

All Intra/Long-GOP

File Size / Frame Rate / Recording Time

6.2K [16:9] - 62403150
29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/ 100Mbps/ 50Mbps

DCI 4K [17:9] - 40962160
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/100Mbps/50Mbps

4K [16:9] - 38402160
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps

Full HD [17:9] -20481080
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/ 100Mbps/ 50Mbps

Full HD [16:9] - 19201080
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/ 100Mbps/ 50Mbps

Full HD High-speed rec. [17:9] - 2048x1080
240p/200p/ 120p/ 100p
360Mbps(recording)/ 200Mbps(recording)

Full HD High-speed rec. [16:9] - 1920x1080
240p/200p/ 120p/ 100p/
360Mbps(recording)/ 200Mbps(recording)

*For recording movies, use an SD memory card with UHS Speed Class 3 or higher.
*For recording movies at 360Mbps, use an SD memory card with Video Speed Class 60 or higher.
*Selectable bitrate will be changed depending on the setting.
*Recording length can shorten depending on the temperature and/or shooting conditions

Film Simulation Mode

19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg. Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter
ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)

Clarity setting

5 steps

Monochromatic Color

Yes

Grain Effect

Roughness STRONG, WEAK, OFF, Size LARGE, SMALL

Color Chrome Effect

STRONG, WEAK, OFF

Color chrome Blue

STRONG, WEAK, OFF

Dynamic Range Setting

AUTO, 100%, 200%, 400%
ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)

Dynamic Range Setting (Movie)

100%, 200%, 400%
ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)

Wireless Transmitter Standard

IEEE802.11a/b/g/n/ac (standard wireless protocol)

Wireless Transmitter Encryption

WEP/WPA/WPA2 mixed mode, WPA3

Wireless Transmitter Access Mode

Infrastructure

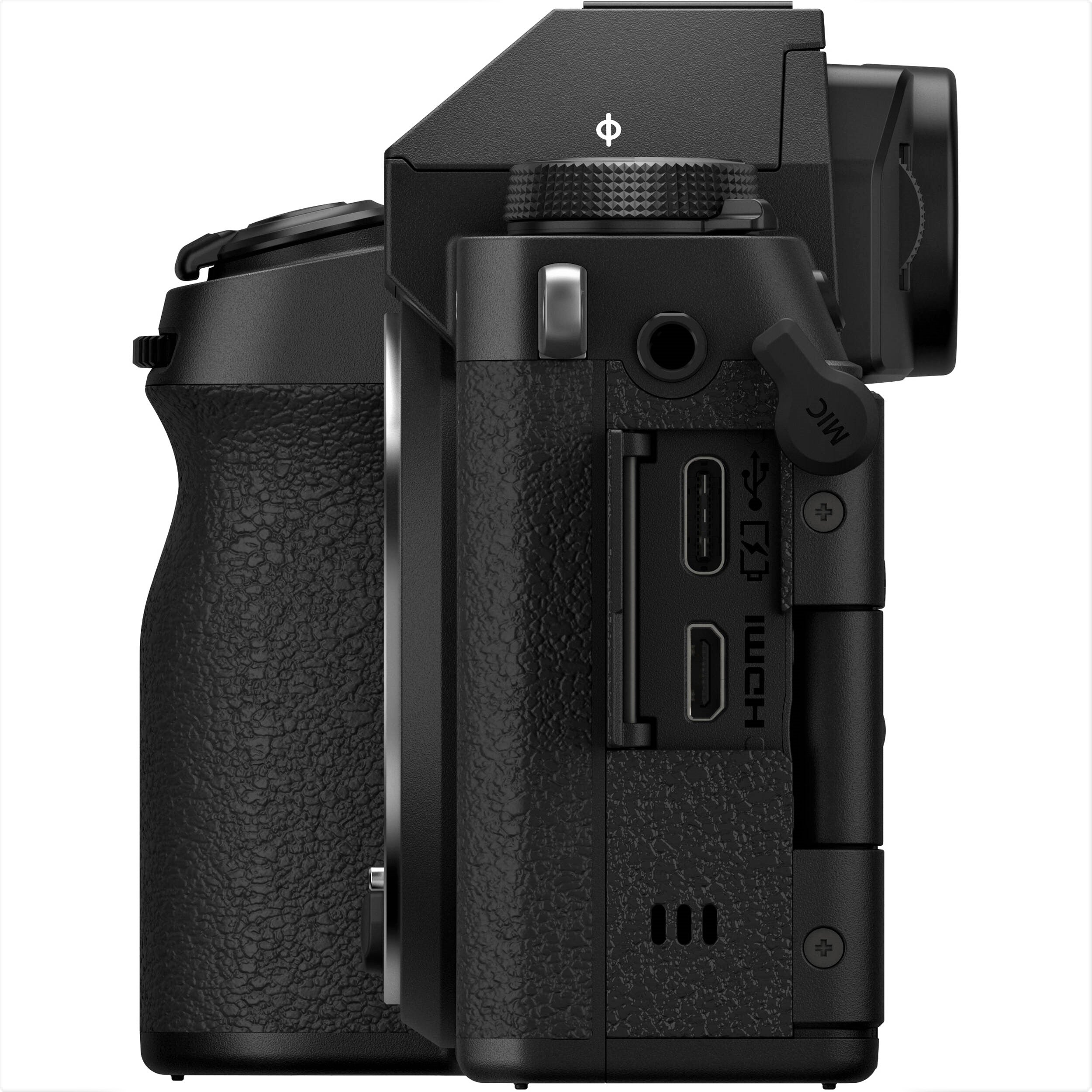

Terminal - Digital Interface

USB Type-C (USB3.2 Gen2x1)

Terminal - HDMI Output

HDMI connector (Type D)

Terminal - Others

3.5mm, stereo mini connector (Microphone),

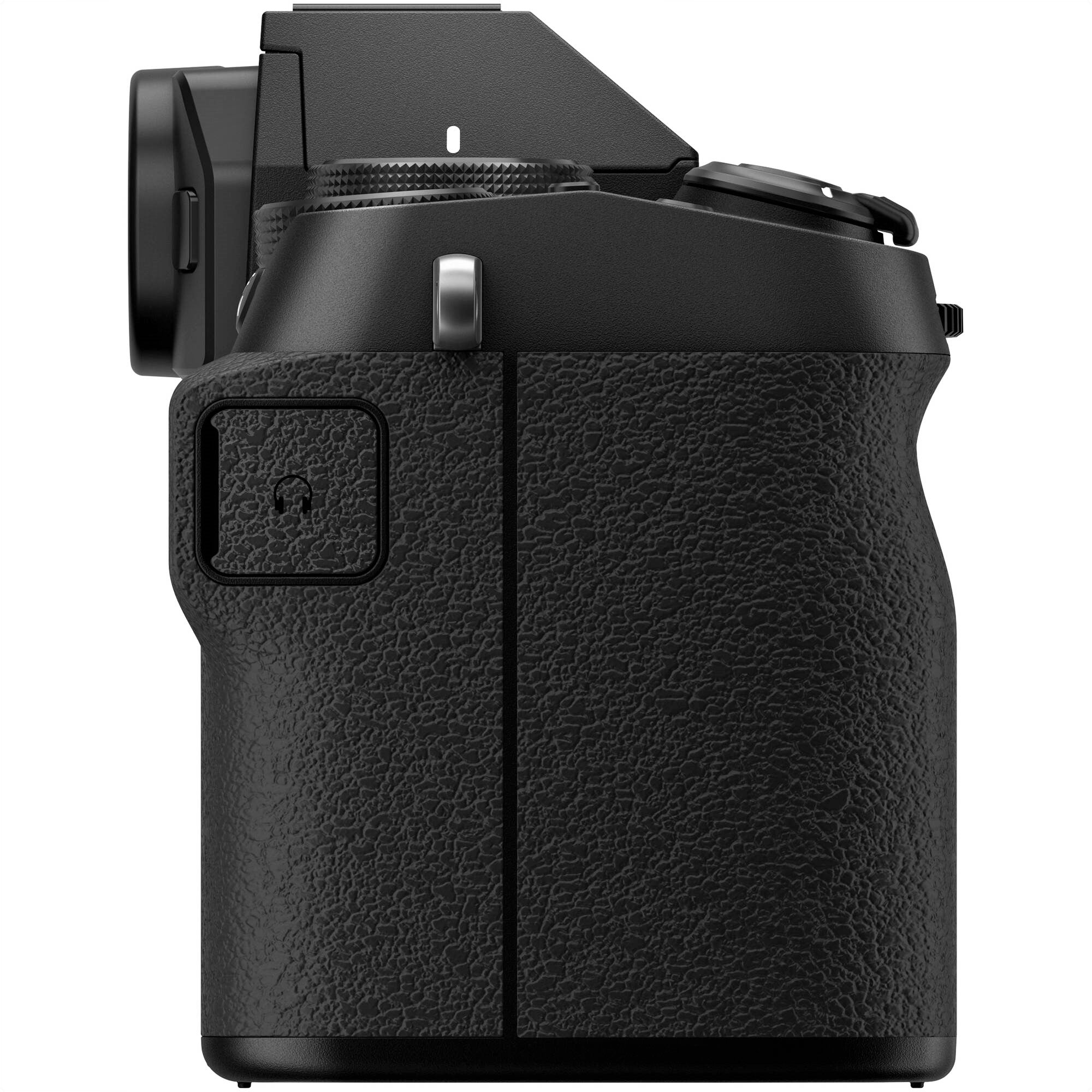

3.5mm, stereo mini connector (Headphone),
Hot shoe

Power Supply

NP-W235 Li-ion battery (included)

Battery Life for Still Images

Economy Mode Approx. 800 frames,
Normal Mode Approx. 750 frames
*When XF35mmF1.4 R is set

Actual Battery Life for Movie Capture

6.2K Approx. 85min. (29.97p)
4K Approx. 80min. (59.94p)
Full HD Approx. 95min. (59.94p)
Full HD Approx. 95min. (120P)

Continuance Battery Life for Movie Capture

6.2K Approx. 120min. (29.97p)
4K Approx. 110min. (59.94p)
Full HD Approx. 150min. (59.94p)
*Face detection is set to OFF
*Approximate number of frames or movie recording time that can be taken with a fully charged based on CIPA Standard.

Approximate External Camera Dimensions

(W) 127.7mm x (H) 85.1mm x (D)65.4mm - Minimum Depth 32.9mm

Camera Width (mm)

127.7

Camera Height (mm)

85.1

Camera Depth (mm)

65.4

Camera Minimum Depth (mm)

32.9

Camera Width (in)

5.03

Camera Height (in)

3.35

Camera Depth (in)

2.57

Camera Minimum Depth (in)

1.29

Camera Body Weight

Approx. 491g including battery and memory card, Approx. 410g excluding battery and memory card

Operating Temperature

0C-40C

Operating Humidity

10% - 80% (no condensation)

• Fujifilm X-S20 Mirrorless Digital Camera (Black)
• Li-ion Battery (NP-W235)
• AC Power Adapter (AC-5VJ)
• Plug Adapter
• USB Cable
• Shoulder Strap
• Body Cap
• Cooling Fan Connector Cover
• QR Code to Online Manual
• Limited Warranty

Frequently Asked Questions about Fujifilm X-S20

What is the weight of the Fujifilm X-S20?

The Fujifilm X-S20 weighs just 491 grams, making it a lightweight and portable option for photographers on the go.

Does the X-S20 support 4K video recording?

Yes, the X-S20 can shoot 4K video at up to 60fps. It also offers 6.2K video recording at up to 30fps for those seeking higher resolution.

What type of sensor does the X-S20 have?

The X-S20 features a 26.1-megapixel APS-C X-Trans BSI CMOS 4 sensor, ensuring high-quality images with rich details.

Is there in-body image stabilization?

Yes, the X-S20 comes with a 5-axis in-body image stabilization, helping to reduce camera shake and ensure sharp images even in challenging conditions.

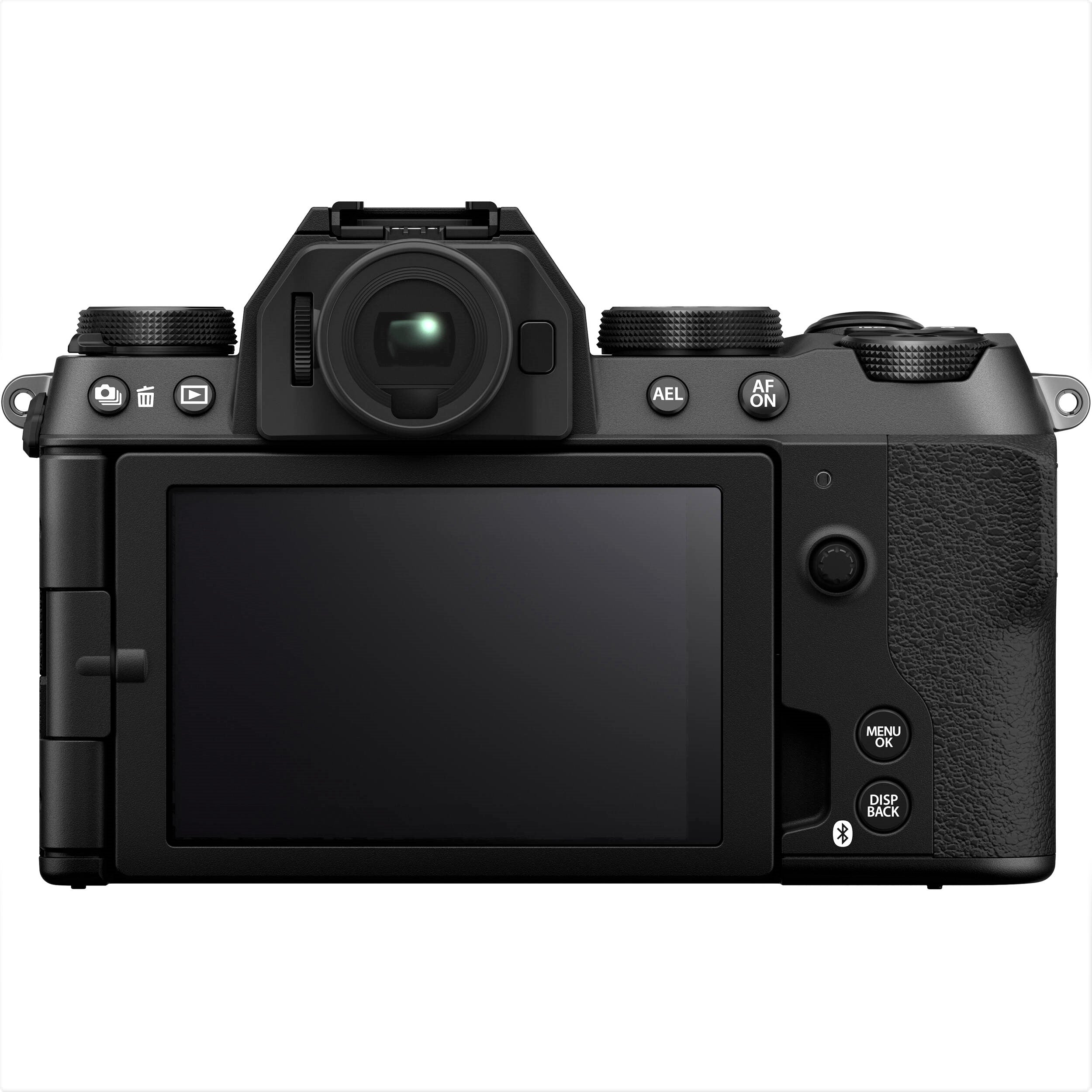

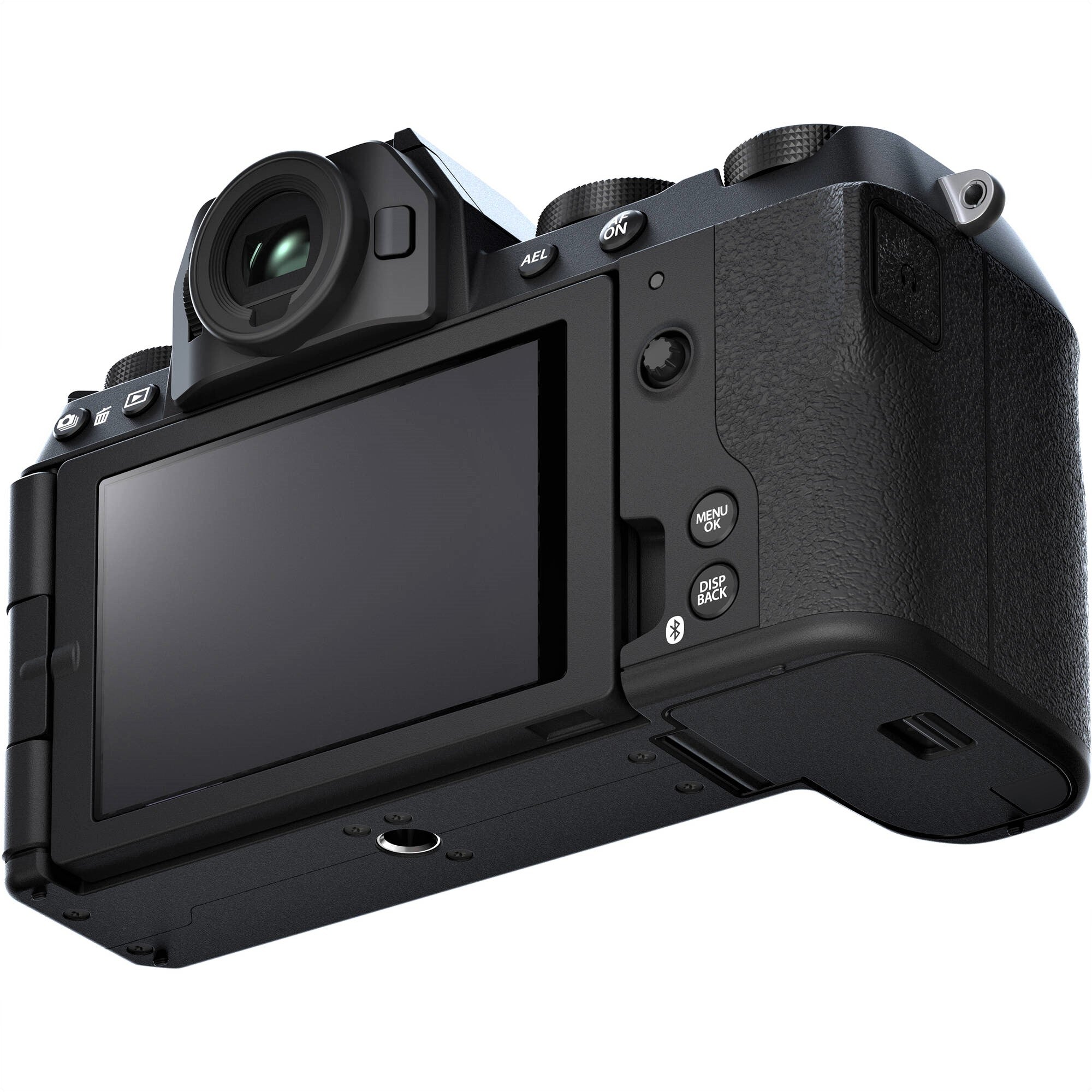

How does the touchscreen LCD function?

The X-S20 boasts a vari-angle touchscreen LCD, which is great for shooting selfies, vlogging, or capturing images from difficult angles.

What are the connectivity options on the X-S20?

The camera offers multiple connectivity options including Wi-Fi, Bluetooth, and USB-C, making it easy to transfer photos and videos or control the camera remotely.
