Sigma fp Mirrorless Camera with 45mm F2.8 DG DN Contemporary Lens
Default Title
Quantity:
Discover the perfect combination of power, beauty, and quality with the Sigma fp Mirrorless Camera with 45mm F2.8 DG DN Contemporary Lens. This ultimate pairing offers you a sleek cine-optimized camera body, combined with an equally elegant, normal-length, L-mount 45mm F2.8 DG DN Contemporary lens. Ready? Set. Shoot!
This pairing includes:

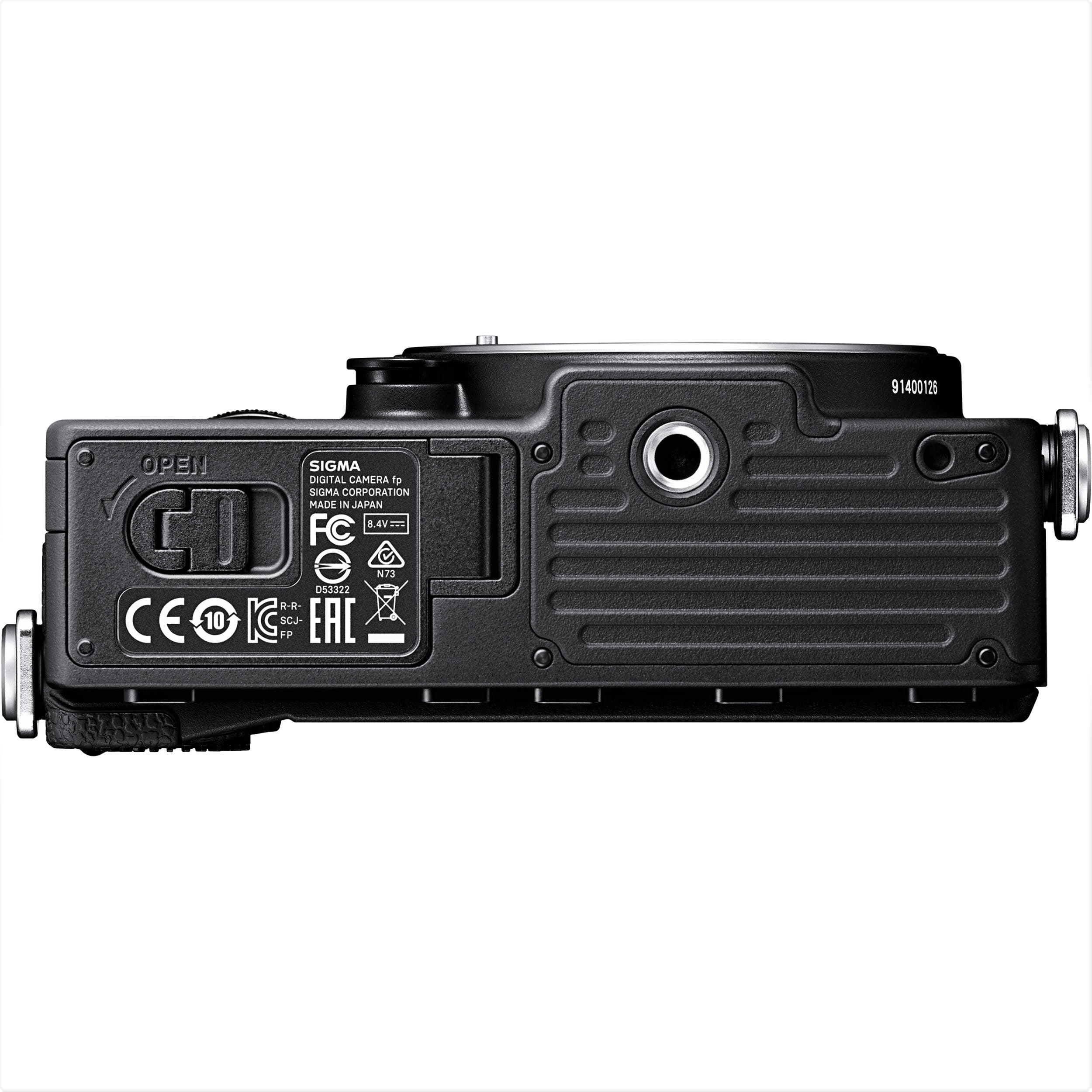

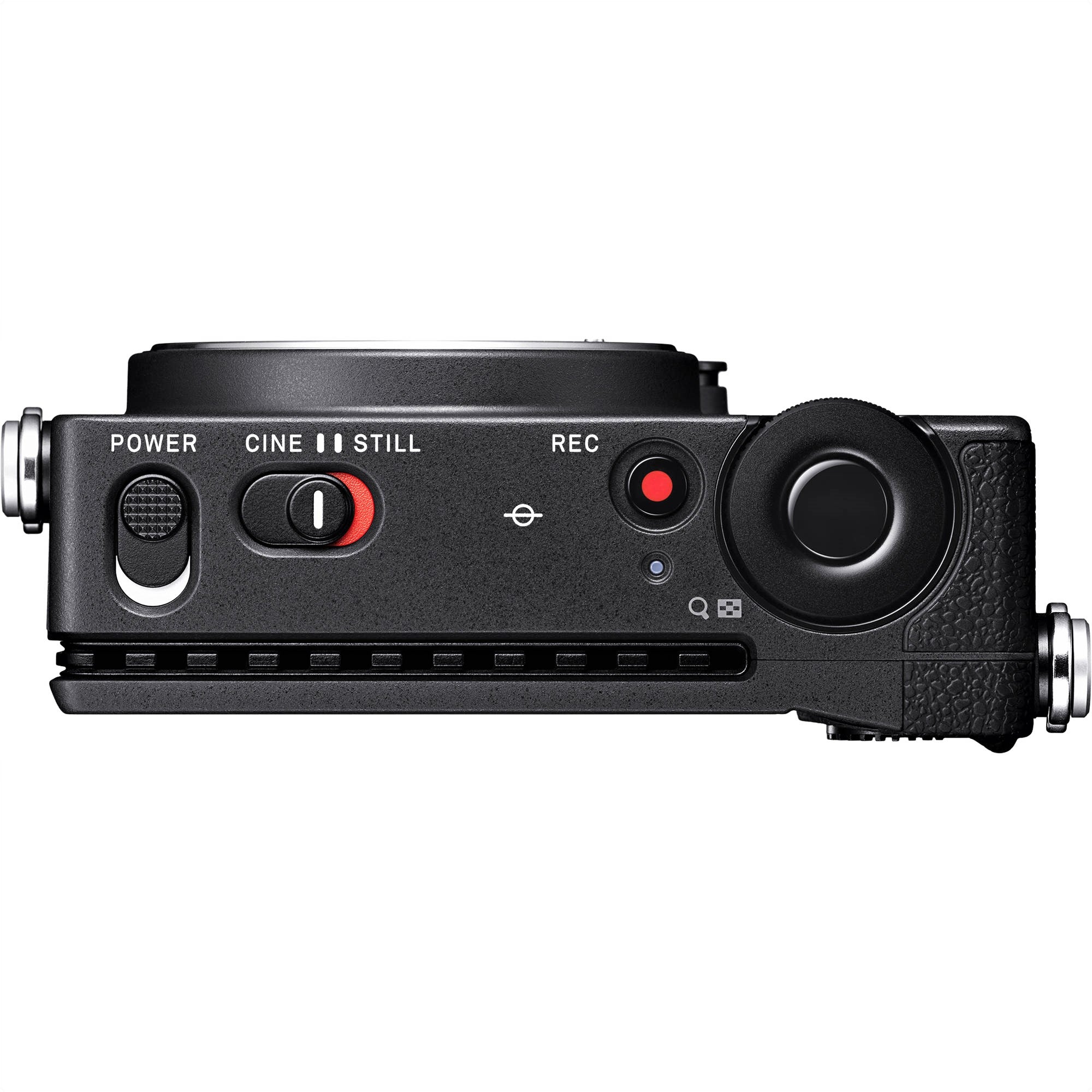

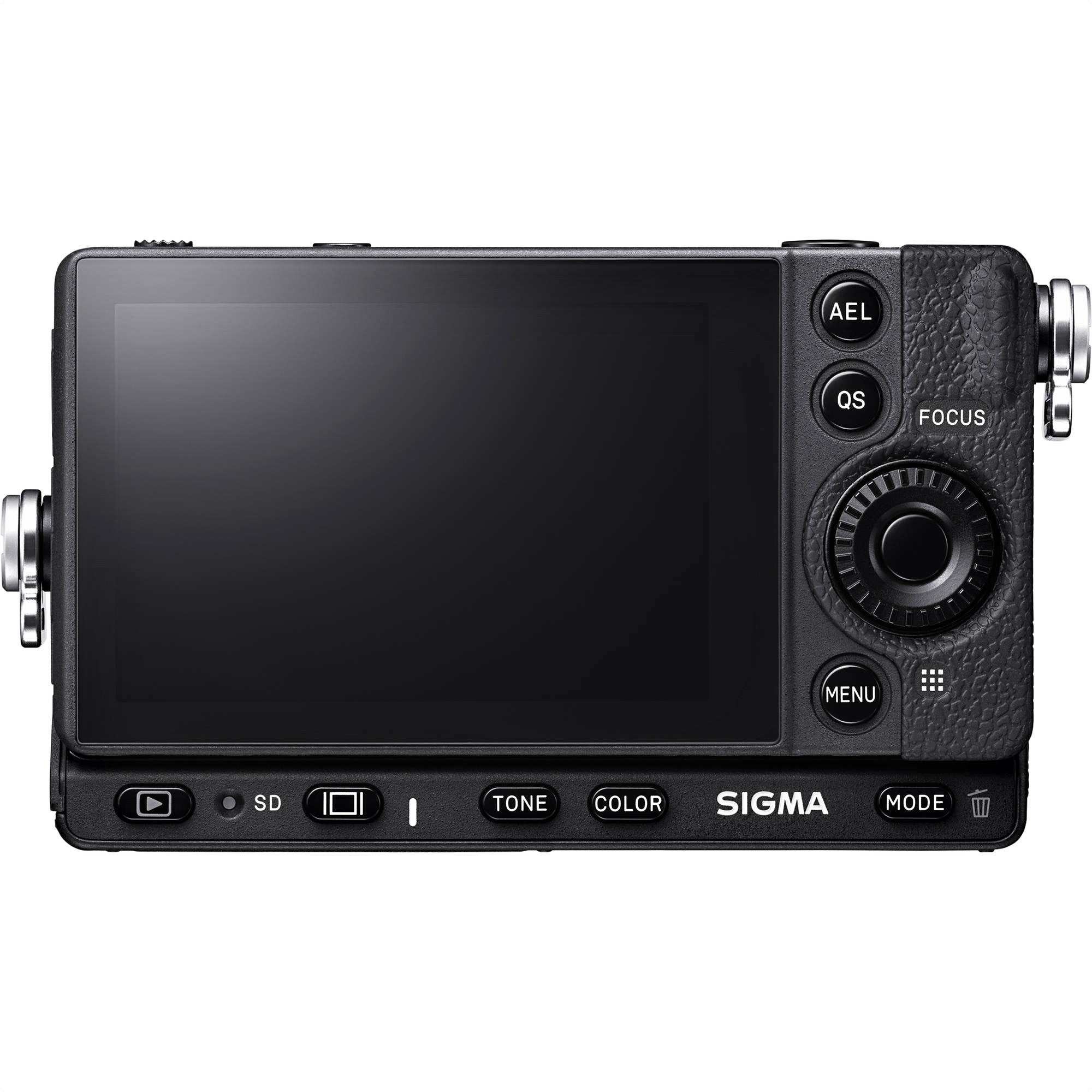

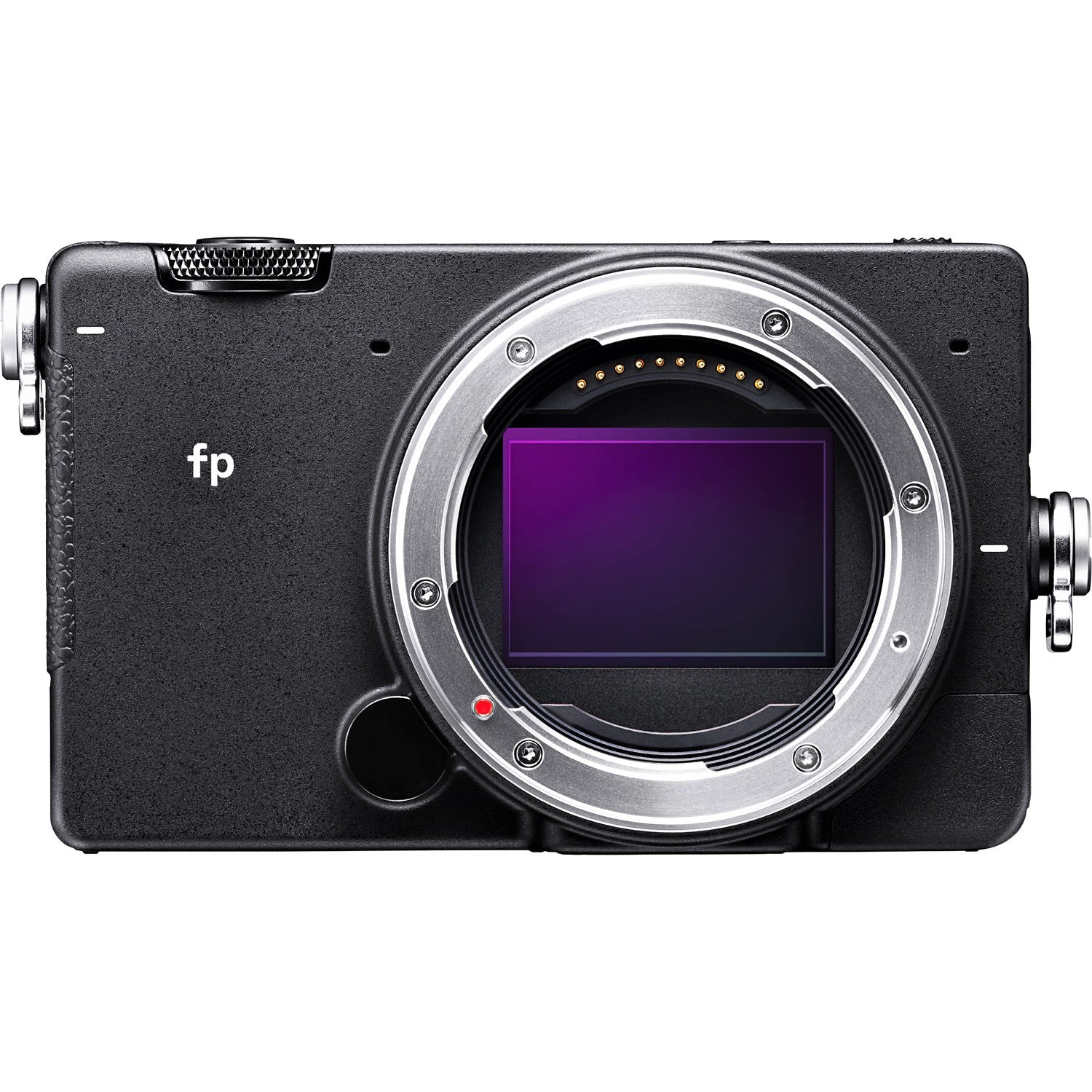

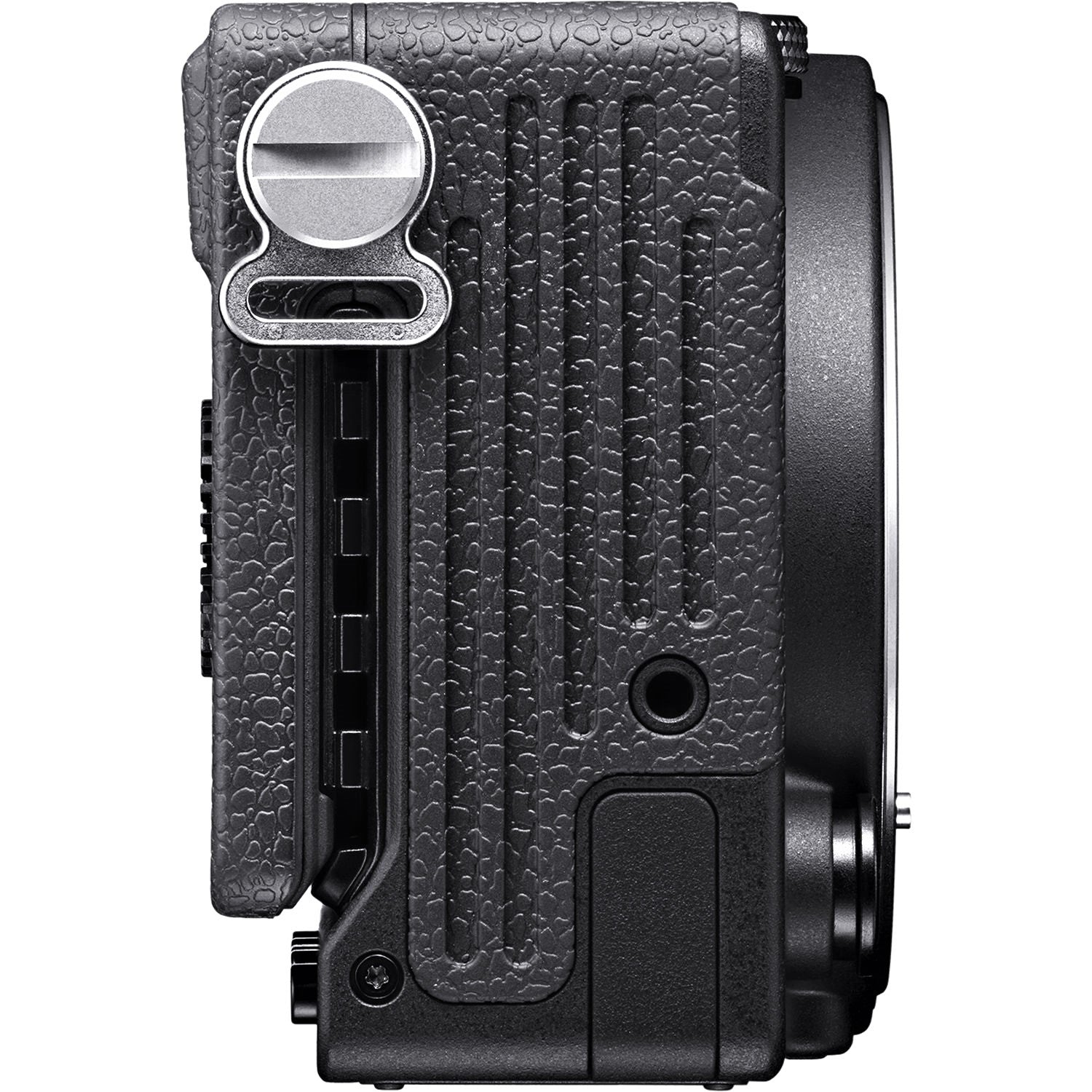

Sigma fp Mirrorless Camera
The Sigma fp Mirrorless Camera delivers high-spec functionality for stills and video in an extremely compact body that weighs under one pound. This camera and its fully electronic shutter provide a maximum resolution for raw and JPEG files of 6000 x 4000 and a shooting rate of 18 fps while its focus system employs contrast detection and a 49-point selection mode for AF measurement distance, as well as face detection, eye detection, and focus peaking driven by a full-frame 24.6MP BSI Bayer CMOS sensor, 14-bit color depth, electronic image stabilization, and Leica's L-mount lens interface.

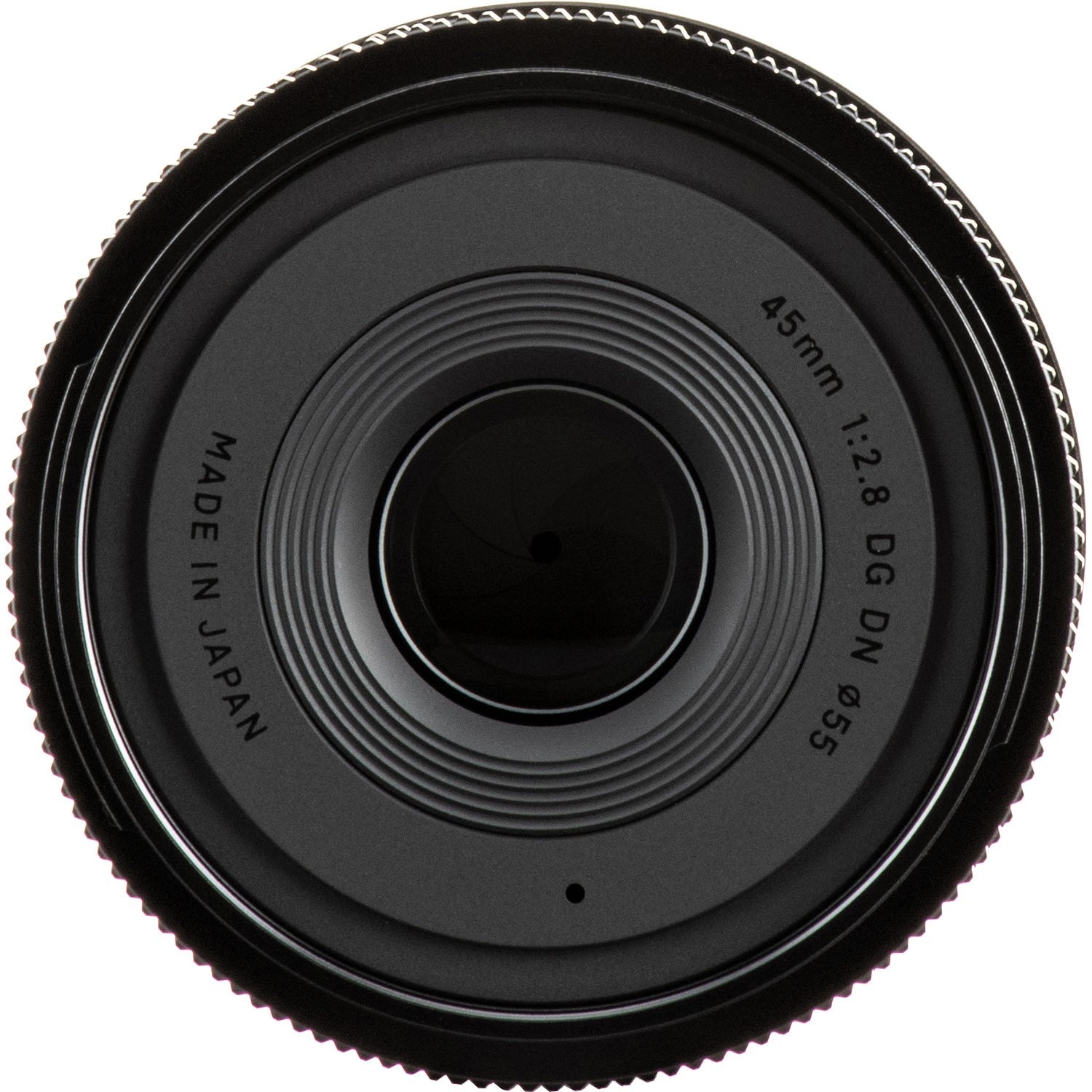

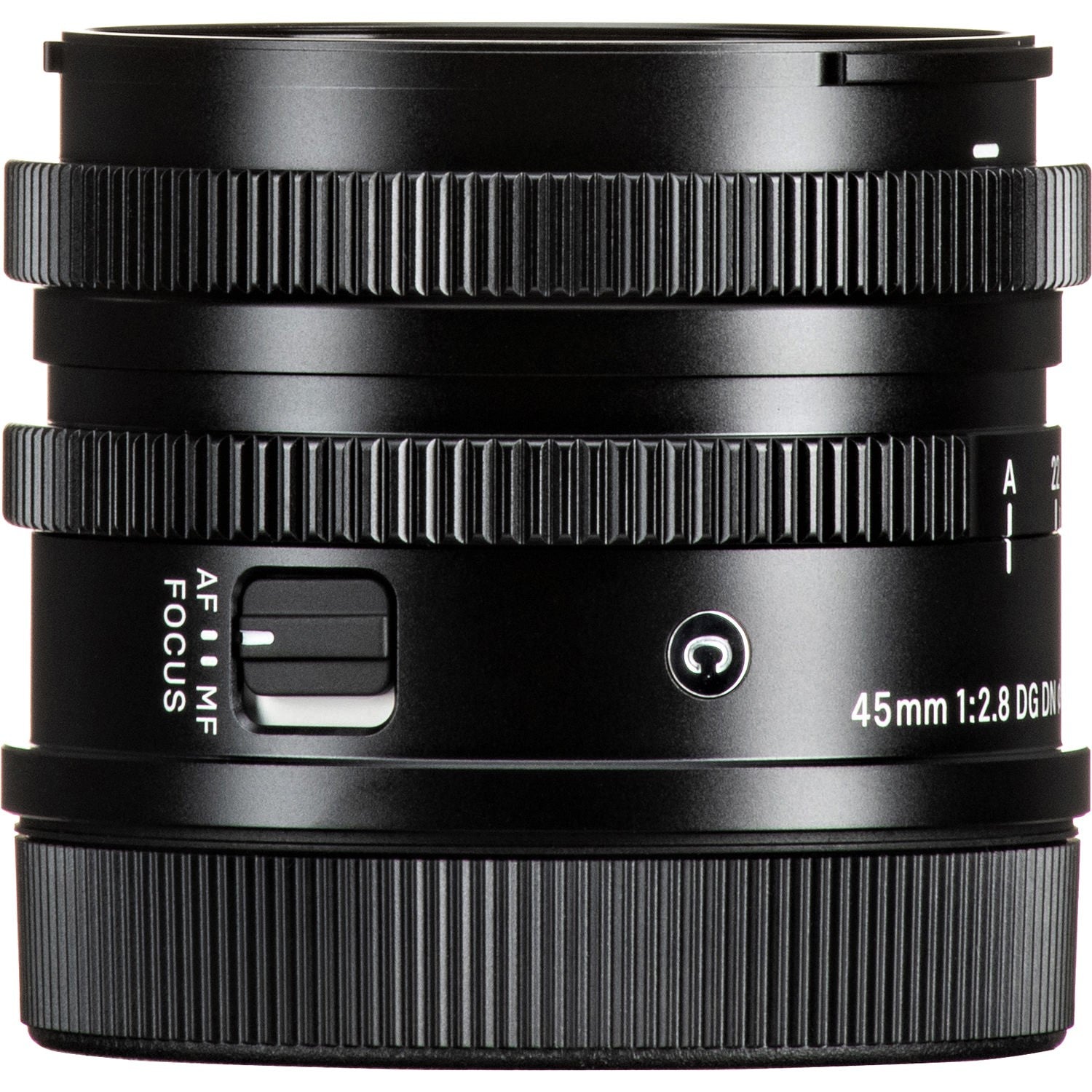

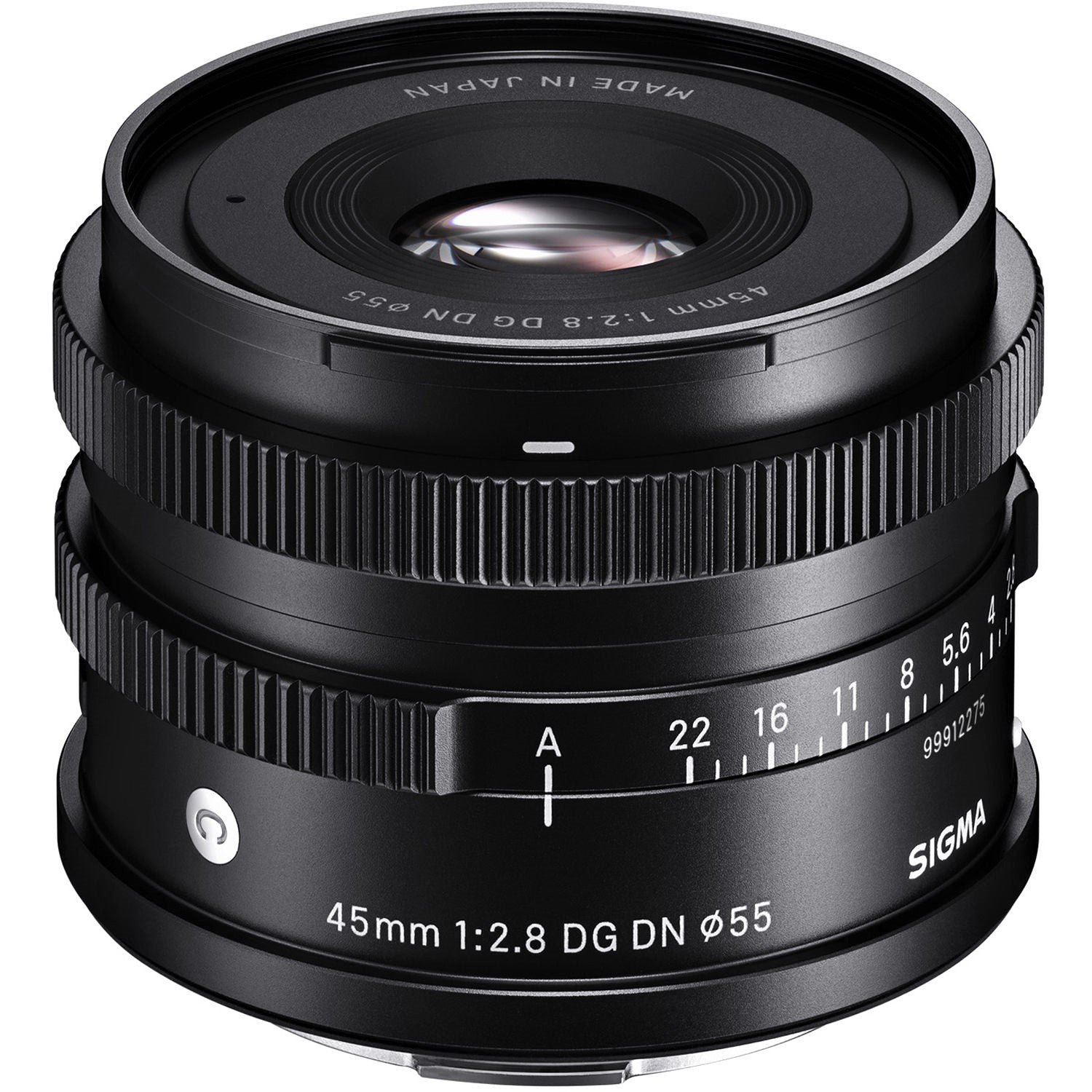

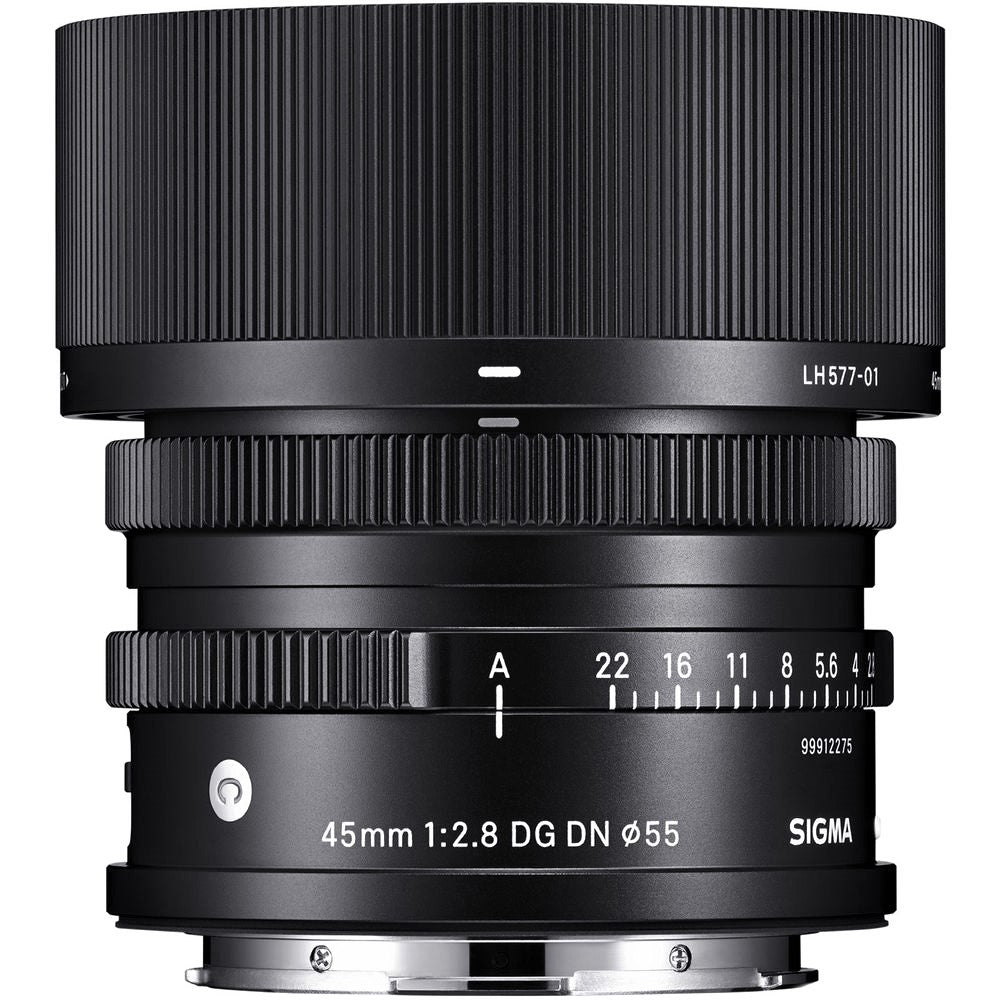

Sigma 45mm F2.8 DG DN Contemporary Lens for Leica L
Designed for small full-frame mirrorless cameras, the Sigma 45mm F2.8 DG DN Contemporary Lens for Leica L is a standard lens that pursues easy operability as a regular prime lens by balancing its easy-to-carry size and high optical performance, thereby embodying the Contemporary line’s development concept of “pursuing optimum balance.” It is the perfect first lens in the lineup dedicated to full-frame mirrorless cameras!
- 18 fps Shooting, ISO 102400
- 24.6MP Full-Frame BSI Bayer CMOS Sensor
- 3.15" 2.1m-Dot Touchscreen LCD
- 45mm f/2.8 DG DN Contemporary Lens
- 49-Point AF System
- UHD 4K30p Video with 12-Bit CinemaDNG
- Electronic Image Stabilization System
- Electronic Shutter & L Lens Mount
- USB 3.1 Gen 1 Type-C & Micro-HDMI 1.4
CAMERA SPECS
Format
- Type - Interchangeable-lens Mirrorless Type Digital Camera
- Memory Media - SD, SDHC, SDXC memory card (UHS-Ⅱ supported), Portable SSD (USB 3.0 connection, USB bus power supported)
- Lens Mount - L-Mount
Image Sensor
- Type - 35 mm full-frame (35.9 mm x 23.9 mm) Back-illuminated CMOS sensor
- Camera Effective Pixels / Total Pixels - Approx. 24.6 MP / Approx. 25.3 MP
- Aspect Ratio - 3:2
- Color Filter System - RGB Primary color filter
- Still Image File Format - Lossless compression RAW(DNG) data 12 bit,14 bit / JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible
- Image Aspect Ratio - [21:9] , [16:9] , [3:2] , [A Size (√2:1) ] , [4:3] , [7:6] , [1:1]
File Size
- RAW - HIGH : 6,000×4,000 (3,840×2,560) / LOW : 3,008×2,000 (1,920×1,280)
- JPEG - [21:9]
- HIGH : 6,000×2,576 (3,840×1,648)
- MED : 4,240×1,824 (2,736×1,168)
- LOW : 3,008×1,288 (1,920×824)
- JPEG - [16:9]
- HIGH : 6,000×3,376 (3,840×2,160)
- MED : 4,240×2,392 (2,736×1,536)
- LOW : 3,008×1,688 (1,920×1,080)
- JPEG - [3:2]
- HIGH : 6,000×4,000 (3,840×2,560)
- MED : 4,240×2,832 (2,736×1,824)
- LOW : 3,008×2,000 (1,920×1,280)
- JPEG - [A Size (√2:1) ]
- HIGH : 5,664×4,000 (3,616×2,560)
- MED : 4,000×2,832 (2,560×1,824)
- LOW : 2,832×2,000 (1,808×1,280)
- JPEG - [4:3]
- HIGH : 5,344×4,000 (3,408×2,560)
- MED : 3,776×2,832 (2,416×1,824)
- LOW : 2,672×2,000 (1,712×1,280)
- JPEG - [7:6]
- HIGH : 4,960×4,000 (3,184×2,560)
- MED : 3,520×2,832 (2,272×1,824)
- LOW : 2,480×2,000 (1,584×1,280)
- JPEG- [1:1]
- HIGH : 4,000×4,000 (2,560×2,560)
- MED : 2,832×2,832 (1,824×1,824)
- LOW : 2,000×2,000 (1,280×1,280)
Crop
- Equivalent to approx.1.5times the focal length of the lens (for 35 mm cameras)
Color Space
- sRGB, Adobe RGB
Movie Recording Format
Camera Internal Record
- Movie Format - CinemaDNG（8-bit, 10-bit, 12-bit）/ MOV: H.264 (ALL-I, GOP）
- Audio Format - Linear PCM (2 ch 48 kHz / 16 bit)
- Record Format / Frame rate - 3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p - 1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p, 119.88 p
- Continuous Shooting Enable Time - Up to 2 hours
- Cinema DNG Memory Media Limitation - SD Card (UHS-II): UHD 8 bit 25 p or less, FHD 12 bit 59.94 p or less / Portable SSD: UHD 12 bit 29.97 p or less, FHD 12 bit 100 p or less, FHD 8 bit 119.88 p or less
HDMI External Output
- Movie Format - 4:2:2 8-bit / 12-bit RAW: External recorder record: ATOMOS Ninja V, ATOMOS Ninja V+, ATOMOS Shogun CONNECT, Blackmagic Video Assist 12G supported
- Audio Format - Linear PCM (2 ch 48 kHz/16 bit)
- Record Format / Frame Rate - 4,096 x 2,160 (DCI 4K) / 24 p * Only for RAW output / 3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p / 1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p, 119.88 p
Focus
- AF System / Focus Mode - Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus
- AF Sensitivity Range / AF Mode - -5 to 18 EV (F1.4:ISO 100) / Auto, 49-point selection mode, Free Move mode, Face/Eye Detection AF mode, Tracking AF mode
- AF Lock - Half-press the shutter button, or press the AEL button (setting change required)
- Other Focus Functions - AF+MF, MF Magnification (Full Screen, PIP), MF Display, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification, Focus Ring Control (Non-linear, Linear)
Exposure Control
- Metering System - Evaluative, Spot, Center Weighted Average
- Metering Range - -5 to 18 EV (50 mm F1.4:ISO 100)
- Still Image Shooting Mode - (P) Program AE (Program Shift capable), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual
- Movie Shooting Mode - (P) Program AE, (S) Shutter Angle/Speed Priority AE, (A) Aperture Priority AE, (M) Manual
ISO Sensitivity (Recommended exposure value)
- Base ISO - [Still] ISO 100,640 / [Cine] CinemaDNG 12 bit / HDMI RAW: ISO 100, 3200 & MOV / CinemaDNG 10 bit, 8 bit, HDMI 4:2:2 8 bit: ISO 100, 640
- Settable Range - ISO 100-25600 / Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400
- Exposure Compensation - ±5 EV (in 1/3 stop increments) : ±3 EV at movie recording
- AE Lock - Half-press the shutter button, or press the AEL button (setting change required)
- Exposure Bracket - 3 shots, 5 shots stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)
- Exposure Tool - Brightness Level Monitor (Waveform, Histogram ), Zebra Pattern, False Color (False Color, EL ZONE)
Image Stabilization System
- Electronic system
White Balance
- 12 types - (Auto, Auto[Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Color Temperature[50K steps], Custom 1, Custom 2, Custom 3)
Shutter
- Shutter Type - Electronic shutter
- Shutter Speed - 30 to 1/8,000 sec., Bulb up to 300 sec. *Up to 1/4,000 sec. when using electronic image stabilization
- Self Timer - 2 sec., 10 sec. (Countdown Indicator)
Drive
- Drive Modes - Single Capture, Continuous, Self Timer, Interval Timer
- Continuous Drive Speed - High Speed: approx. 18 shots/ sec, Medium Speed: approx. 5 shots/ sec, Low Speed: approx. 3 shots/ sec.
- Number of Recordable Frames - HIGH: 12 frames, MED: 12 frames, LOW: 24 frames
Monitor
- Type / Coverage - TFT color LCD, Aspect Ratio 3:2, 3.15 type, Approx. 2.1M dots, Electrostatic capacitance system touch panel / Approx. 100%
Flash (when to use external flash)
- Built-in Flash - None
- Flash Mode - S-TTL Auto Exposure, Manual Flash, Wireless Flash, Multi Flash
- Optional Functions - Red-eye Reduction, Slow Synchronization, Rear Curtain Synchronization
- Flash Exposure Compensation - Max. ±3 EV in 1/3EV step increments
- Flash Sync. Speed - Max. 1/30 sec. *1/15 sec. or less at 14-bit RAW
- External Flash Support - Available when the HOT SHOE UNIT HU-11 (supplied with this product) is mounted. * S-TTL, Wireless support, X-sync
Color Mode
- 16 types - (Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Warm Gold, Teal and Orange, Sunset Red, Forest Green, Powder Blue, FOV Classic Blue, FOV Classic Yellow, Duotone, Monochrome, Off)
Cloud Connection
- Supported models - ATOMOS Ninja V+*, ATOMOS Shogun CONNECT *Available when the ATOMOS CONNECT is mounted.
Director’s Viewfinder
- Supported cameras
- ARRI - ARRICAM / ARRIFLEX, ALEXA LF/ ALEXA Mini LF, ALEXA SXT, ALEXA Mini, AMIRA, ALEXA65, ALEXA XT
- SONY - VENICE
- RED - MONSTRO 8K, HELIUM 8K, DRAGON 6K, EPIC MX 5K, GEMINI 5K, KOMODO 6K
- Frame Guide - 1.33:1, 1.85:1, 2.39:1, Custom 1, Custom 2
- Custom Frame - Input (Sensor Area, Aspect Ratio), Offset, Style (4 styles), Line (1 to 10 px), Color (White, Black, Red, Yellow, Green, Cyan, Blue, Magenta), Shading
Other Functions
- Save / Load Settings via QR code, Screenshot, Webcam, In-camera RAW development, Still image capture from recorded movie files, Cinemagraph, Fill Light, HDR shooting (Still, Cine), Still image shooting during movie shooting
Built-in Microphone / Speaker
- Stereo Microphone, Monaural Speaker
Display Language
- English, Japanese, German, French, Spanish, Italian, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Polish, Portuguese, Danish, Swedish, Norwegian, Finnish

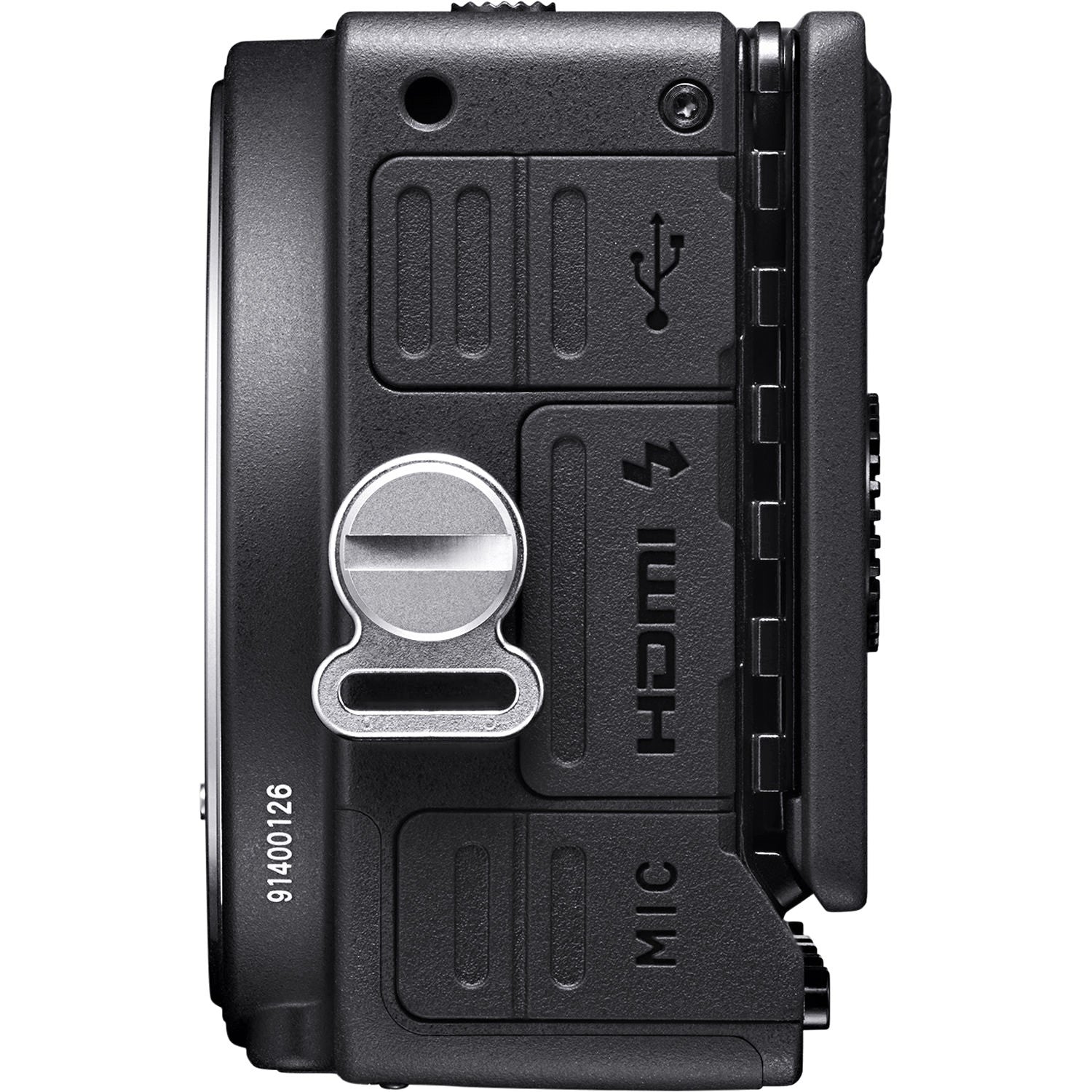

Interface
- USB Terminal - USB3.1 GEN1 Type-C (supports Mass Storage, Video Class(UVC), Camera Control)
- HDMI Terminal - Type D (Ver.1.4）
- Remote - Also used as an external microphone terminal
- Timecode Input - Also used as an external microphone terminal
- External Microphone Terminal - Φ3.5 mm stereo mini jack (Plug-in power support)
- Headphone Output Terminal - Φ3.5 mm stereo mini jack (can be connected when using the dedicated ELECTRONIC VIEWFINDER EVF-11)
- Flash-synchro Terminal - Dedicated terminal (with HOT SHOE UNIT HU-11 (supplied with this product) mounted)
Dust and Splash Resistant Structure*
- Provided *Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
Power
- Power - Li-ion Battery Pack BP-51 *Internal battery charge via USB terminal available. (the camera can not be used while charging)
- Number of Recordable Still Images - Approx. 280 images
- Minutes of Recordable Continuous Shooting - Approx. 70 min.
Dimensions and Weight
- Dimensions (W x H x D) - 112.6 x 69.9 x 45.3 mm / 4.4 x 2.8 x 1.8 in.
- Weight - 422 g / 14.9 oz.(including battery and SD card), 370 g / 13.0 oz.(Camera body only)
Operating Environment
- Operating Temperature - 32 – 104 °F / 0 – +40 °C
- Operating Humidity - 85 % or less (non-condensing)
Supplied Accessories
- Li-ion Battery Pack BP-51
- Strap
- STRAP HOLDER SH-11
- USB AC ADAPTER UAC-11
- USB CABLE (A-C) SUC-11
- HOT SHOE UNIT HU-11
- Body Cap
- Instruction Manual
- Limited Warranty
- Warranty Sticker
Optional Accessories
- HAND GRIP HG-11
- LARGE HAND GRIP HG-21
- LCD VIEWFINDER LVF-11
- ELECTRONIC VIEWFINDER EVF-11
- BASE PLATE BPL-11
- CABLE RELEASE CR-41
- BASE GRIP BG-11
- DC CONNECTOR CN-21
- BATTERY CHARGER BC-71
- AC ADAPTER SAC-7P
- STRAP HOLDER SH-11 (2pcs)
Sigma fp Mirrorless Camera
- Sigma BP-51 Lithium-Ion Battery Pack (7.2V, 1200mAh)
- Strap
- Strap Holder
- USB AC Adapter
- USB Type-A to Type-C Cable
- Hot Shoe Unit
- Body Cap
- Limited Warranty
Sigma 45mm F2.8 DG DN Contemporary Lens for Leica L
- Sigma Lens Cap
- Sigma Rear Lens Cap

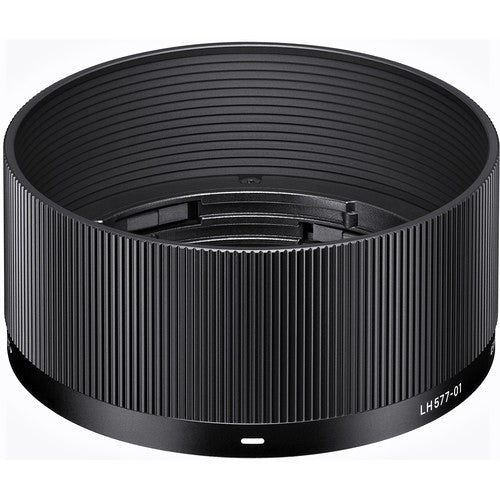

- Sigma Lens Hood
- Limited 1-Year Warranty
- Limited 3-Year U.S.A. Warranty Extension
