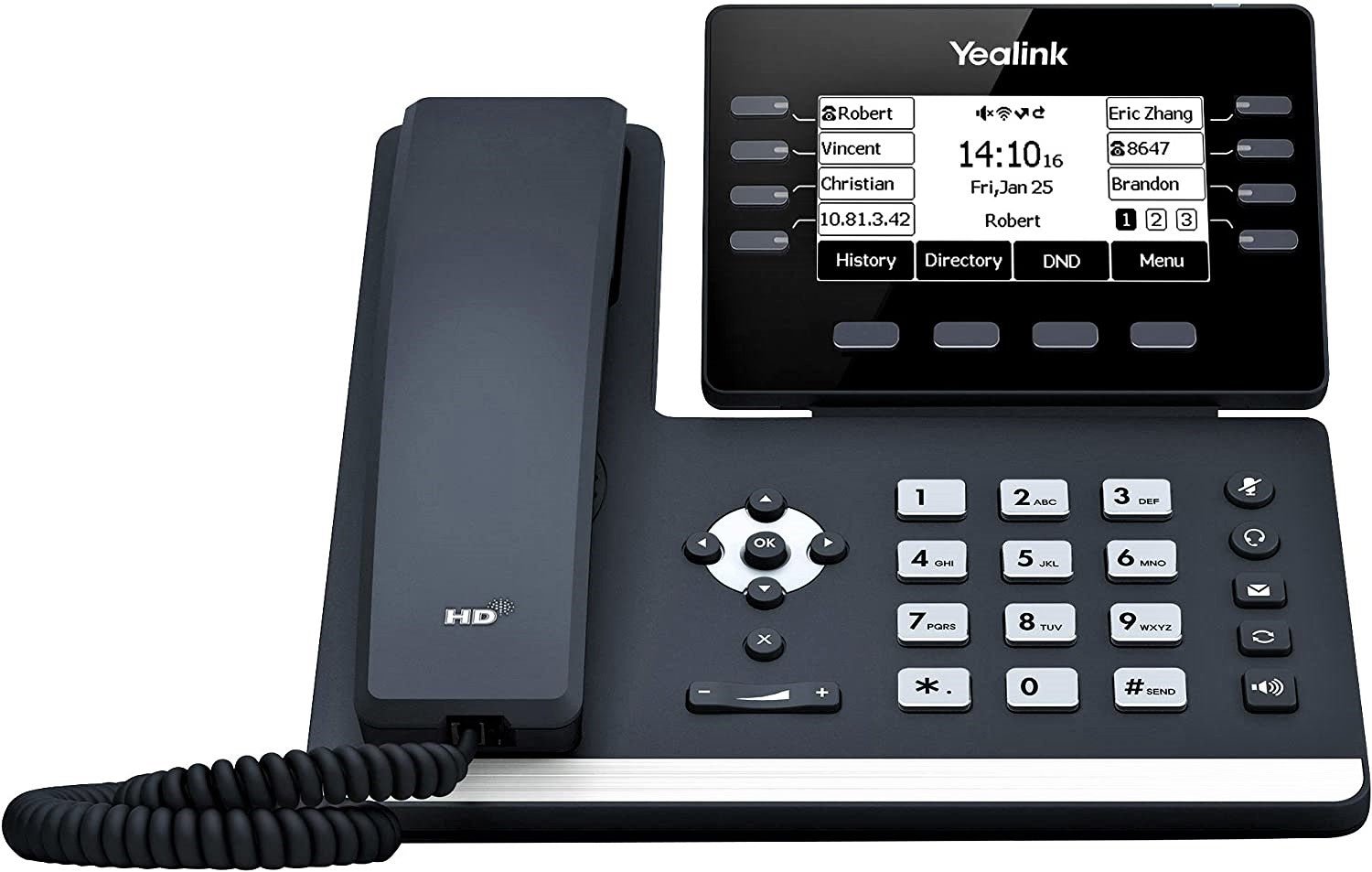

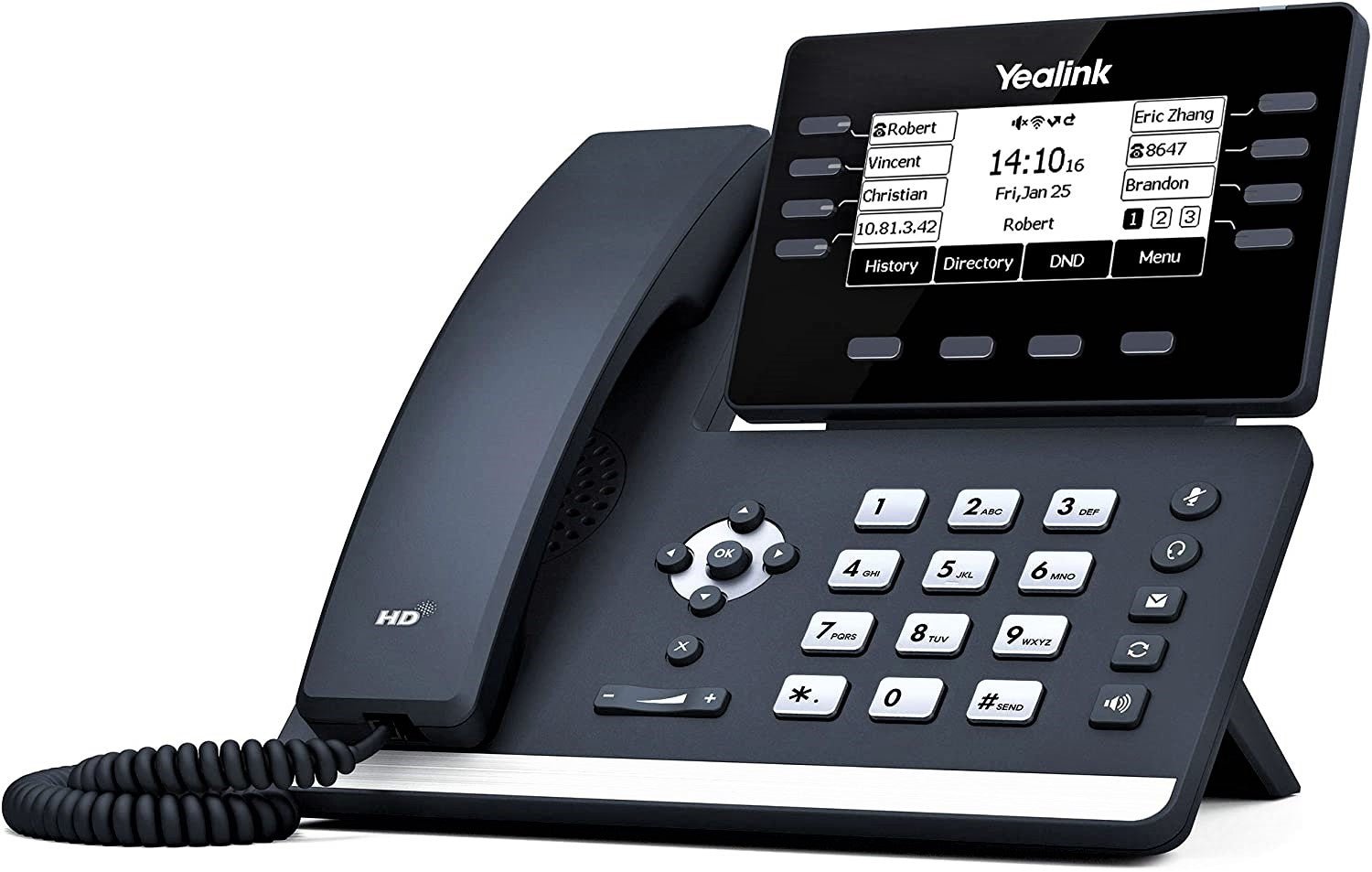

Yealink SIP-T53 IP Phone

Yealink SIP-T53 IP Phone: Affordable Excellence in Business Communication

The Yealink SIP-T53 IP Phone is a solid pick for small businesses and individual users. It offers a mix of function and affordability. You get HD Voice and Acoustic Shield technologies with this phone. These ensure clear sound and cut down on noise. That means you can talk without disruptions. The phone is easy to use thanks to its friendly interface and adjustable 3.7-inch LCD. It’s also comfy to view. Plus, it’s compatible with hearing aids. The T53 works well for people with hearing challenges.

You can use up to 12 SIP accounts. It supports fast internet and optional PoE too. This makes the phone flexible for various professional settings. Other perks? It has an 8-line key setup and can be mounted on a wall. The Yealink SIP-T53 offers dependability and functionality. And it’s easy on your budget.

More Details:

• Superior Call Quality: Features Yealink's Optimal HD Voice technology and Acoustic Shield technology, ensuring every conversation is crystal-clear.
• Comfort Viewing: Comes with a 3.7-inch adjustable graphical LCD for enhanced viewing comfort.
• Accessibility Compliant: Equipped with a HAC (Hearing Aid Compatible) handset, making it accessible for users with hearing impairments.
• Ease of Use: Boasts an intuitive user interface for streamlined navigation and operation.
• Affordable Communication: Provides essential features at a competitive price point, making it an economical choice for small businesses.

Applications:

• Small Business Communication: Perfect for small offices requiring reliable, clear voice communications without the high costs associated with more advanced systems.
• Home Offices: Enhances productivity in home office setups with its easy-to-use features and superior sound quality.
• Customer Service Centers: Offers quick line access and superior audio capabilities, making it suitable for high-call-volume environments like customer service centers.
• Conference Rooms: With its hands-free speakerphone and noise reduction technology, it’s ideal for facilitating small group discussions in a conference setting.
• Medical Practices: Due to its Hearing Aid Compatibility, it serves well in medical environments where clear communication is crucial.

• High Expandability - A built-in USB 2.0 port allows you to enjoy USB call recording via a USB flash drive. Via this USB port, you also can connect a wired/wireless USB headset without connecting Yealink EHS36 anymore, and connect up to 3 Yealink expansion modules EXP50 which can be programmed with up to 180 paperless DSS keys.
• Efficient Installation and Provisioning - The Yealink SIP-T53 supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings. Furthermore, a unified firmware and auto-p template that applies to T53/T53W/T54W/T57W phone models, saves even more time and costs for businesses, as well as simplifies the management and maintenance.
• User-Friendly - Yealink SIP-T53 IP Phone features an adjustable 3.7-inch graphical LCD that you can readily adjust to a comfortable viewing angle according to yourself. As to the audio quality, the SIP-T53 is coupled with the latest version of Yealink Optimal HD Voice technologies, including Yealink Acoustic Shield technology, which effectively eliminates background distractions and noises and delivers crystal clear voice even in a noisy environment. Meanwhile, complying with the latest Hearing Aid Compatibility (HAC) Regulations, its HAC handset helps the person who is with hearing loss to hear the voice more clearly.
• Wireless Transmission - Yealink SIP-T53 IP Phone not only furnishes you with Bluetooth connectivity, including Bluetooth headsets and mobile contacts synchronization, when working with Yealink Bluetooth USB Dongle BT40 but also the Wi-Fi connectivity when working with Yealink Wi-Fi USB Dongle WF40/WF50. Notably, you can access the 5G Wi-Fi connectivity handily if you use WF50. Also if you want to expand your horizons for busy environments, or, share one phone system with your small team by adding multiple handsets, just simply turn your IP phone into a corded-cordless phone via DECT technology. Moreover, the IP phone can function with Yealink VC Desktop together to share content from your laptop, making collaboration much easier than before.

Audio

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield
• Smart Noise Filtering
• Audio codec: Opus, G.722, PCMU (G.711A), PCMA (G.711µ), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
• DTMF: In-band, Out-of-band (RFC 2833), and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone

• 12 VoIP accounts
• Call hold, mute, DND, redial, call return, auto answer
• One-touch speed dial, call forward, call waiting, call transfer
• Group listening, hotline, SMS, emergency call
• 5-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Built-in dual-band Wi-Fi:
• Network standard: IEEE802.11a/b/g/n
• Transmission rate: Up to 433Mbps (dynamic)
• Frequency range: 2.4GHz/5.0GHz
• Built-in Bluetooth for:
• Bluetooth headset
• Mobile contacts synchronization
• Bluetooth call
• Simultaneous connection of one headset and one mobile phone
• USB port (2.0 compliant) for:
• Wired/wireless USB headset
• USB call recording through USB flash drive
• Color-screen expansion modules EXP50 (up to 3)
• Wireless Headset Adapter EHS40
• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:
• Basic functions: Answer/end, call mute
• Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
• Content Sharing (via Yealink VCD)
• Enhanced DSS key

Directory

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

Corded-Cordless Phone (via DECT Dongle DD10K)

• Up to 4 DECT cordless handsets
• Up to 4 concurrent calls
• Support Yealink W52H/W53H/W56H/DD Phone/CP930W
• Slave Handset for Master Deskset

IP-PBX

• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating, Executive and Assistant
• Call park, call pickup
• Centralized call recording, call recording

Display and Indicator

• 3.7" 360x160-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Power saving

Feature keys

• 8 line keys with LED
• 8 line keys can be programmed with up to 21 various features (3-page view)
• 5 features keys: mute, headset, message, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• Volume control keys
• Illuminated mute/headset/hands-free speakerphone key

Interface

• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 2
• 1 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Broadsoft device management
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS1.3)
• HTTPS certificate manager
• AES encryption for configuration file (AES256)
• Digest authentication
• OpenVPN, IEEE802.1X, L2TP VPN
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE
• WPA2/WPA3
• Secure boot
• GARP (Generic Attribute Registration Protocol)

Other

• Color: Classic Grey
• Wall mountable (optional)
• External Yealink AC adapter (optional): AC 100~240V input and DC 5V/1.2A output
• USB output currency: 5V 500mA
• Power consumption (PSU): 1.3W-2.3W
• Power consumption (PoE): 1.8W-3.1W
• Dimension (W*D*H*T): 212mm*210.6mm*174.5mm*41.7mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Packages

• Package content:
•  Yealink SIP-T53 IP phone
• Handset with handset cord
• Ethernet Cable
• Stand
• Quick Start Guide
• Power Adapter (Optional)
• Qty/CTN: 5 PCS
•  N.W/CTN: 5.8 kg
• G.W/CTN: 6.4 kg
• Giftbox size: 238mm*237mm*103mm
• Carton Meas: 538mm*244mm*250mm
