AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.



Blackmagic Design
Blackmagic Design UltraStudio Monitor 3G 3G-SDI/HDMI Playback Device

Blackmagic Design UltraStudio Monitor 3G 3G-SDI/HDMI Playback Device
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States

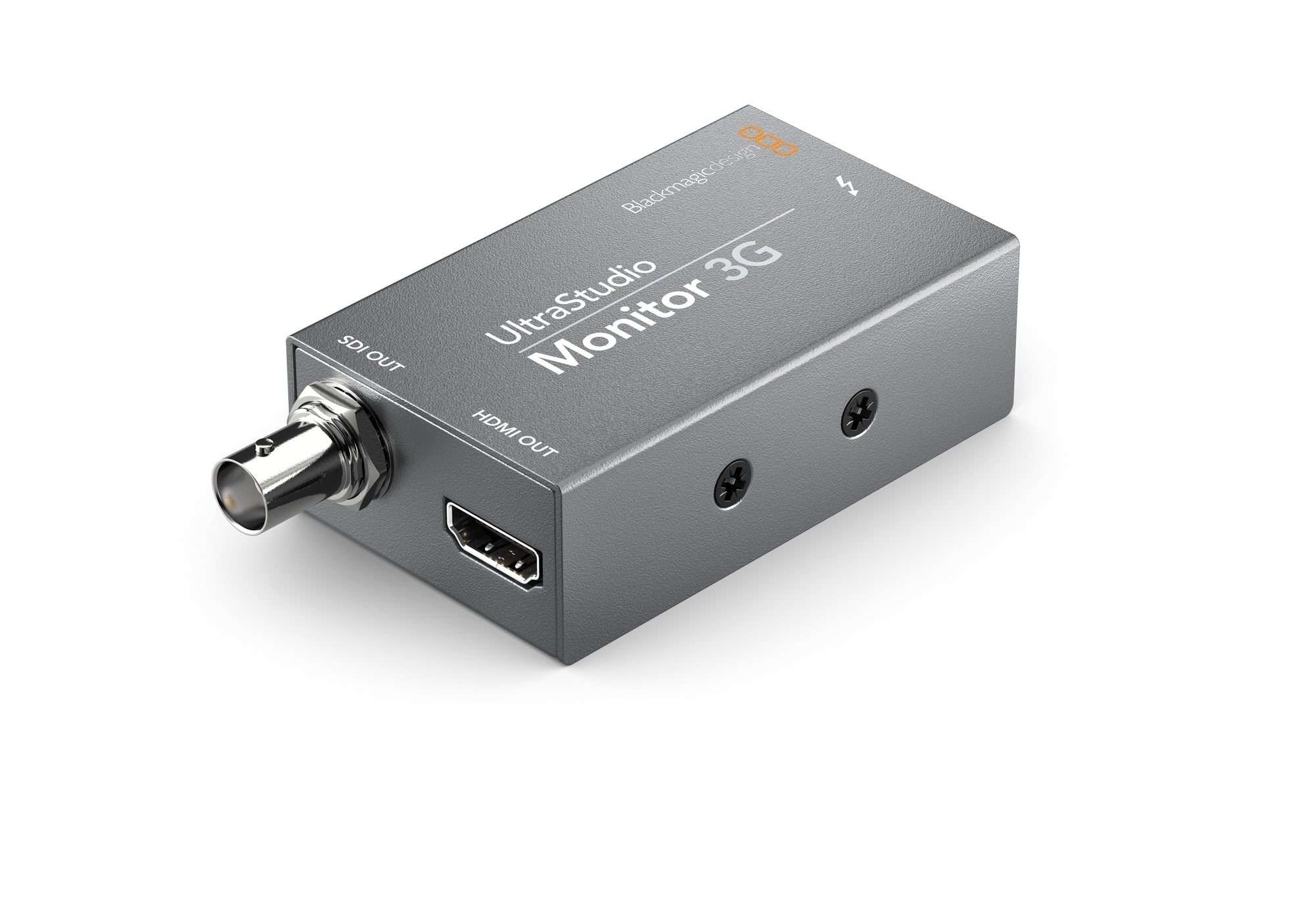

Blackmagic Design UltraStudio Monitor 3G
Get the world’s smallest 3G-SDI and HDMI video playback from your Thunderbolt 3 laptop or desktop computer! UltraStudio Monitor 3G supports broadcast quality 10 bit professional SDI and HDMI monitoring from popular editing software such as DaVinci Resolve, Final Cut Pro X, Media Composer and Adobe Premiere Pro CC, plus high end broadcast graphics and titling systems.
Supported Codecs
- Ultra-Portable Playback Device
- Outputs Footage from Computer to Monitor
- Thunderbolt, SDI, HDMI / Embedded Audio
- Supports Resolutions up to 1080p60
Input
Video Input Connectors | 1 x Thunderbolt |
Audio Input Connectors | None |
Output
Video Output Connectors | 1 x BNC (3G-SDI) 1 x HDMI |
Output Video Format | SDI 1080p at 60 fps HDMI 1080p at 60 fps |
Packaging Info
Package Weight | 0.61 lb |
Box Dimensions (LxWxH) | 5.2 x 5.1 x 1.6" |
