Yealink W78P DECT Phone System

Yealink W78P DECT Phone System
9420 E DoubleTree Ranch Rd #107
9420 E DoubleTree Ranch Rd #107
Scottsdale AZ 85258
United States
An ideal solution for small and medium-sized businesses, the Yealink W78P DECT Phone System is a high-performance SIP cordless phone system that can register 10 Yealink DECT W78H handsets. This DECT phone features more functions, lines, and mobility and supports up to 10 SIP accounts and 20 simultaneous calls, improving signal strength and responsiveness to provide a stable and good experience for your mobile communications. What's more, you can enjoy maximum freedom and flexibility with W78H. You can either choose a Bluetooth headset or a wired headset on demand with Bluetooth 5.1 and a 3.5 mm headset jack. Thanks to the vibration alarm, you are guaranteed not to miss any call, even in noisy and stressful situations!
This phone system includes:

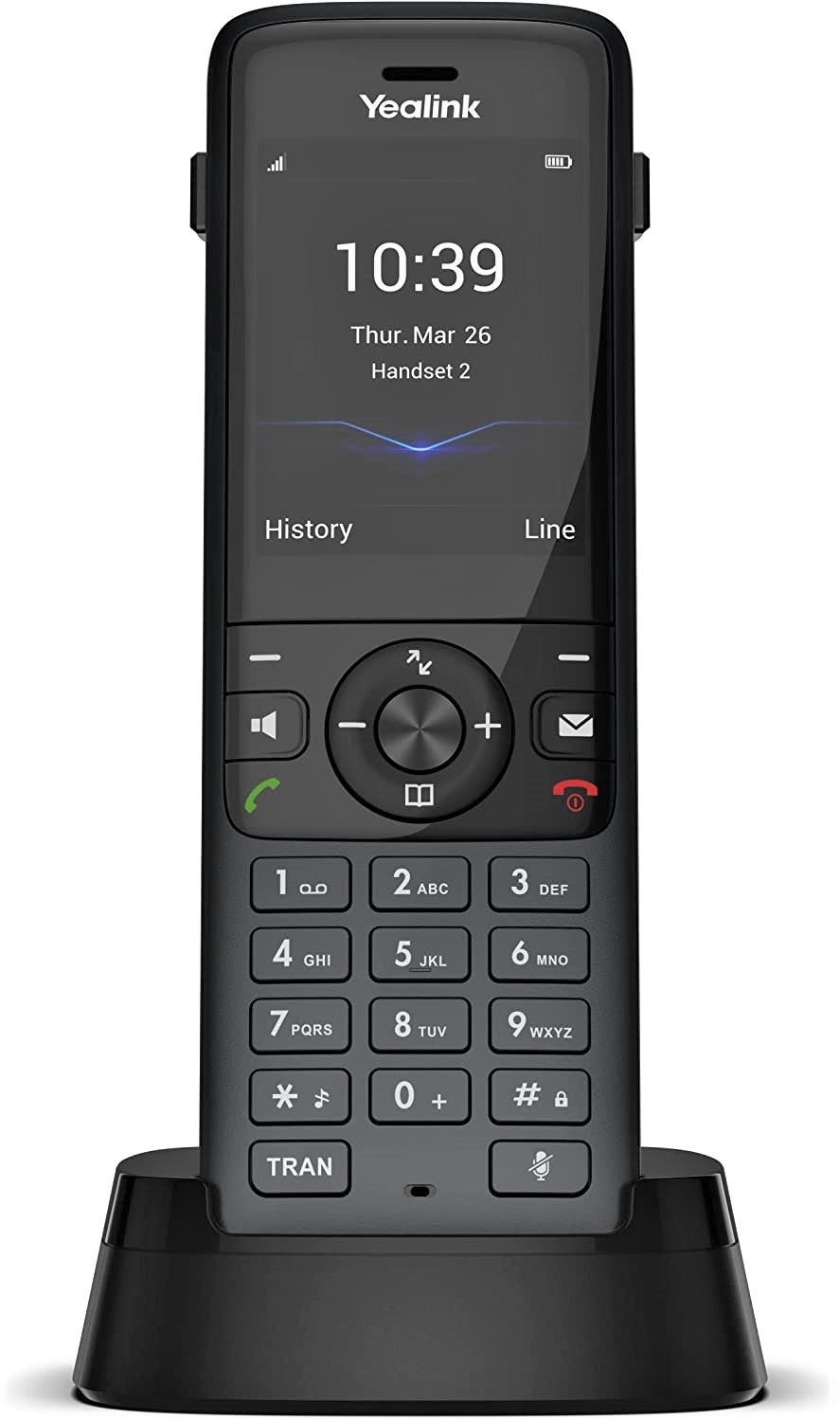

With the Yealink W78H DECT Handset, you can enjoy a crystal-clear audio experience and never miss any important information during a call. This handset is a high-end, modern-stylish wireless handset designed for business use with a 2.4'' screen. Its new ID design makes it more sleek, convenient to carry, and durable; the graphical color display will provide you with a comfortable and joyful user experience for all-day work. The W78H is perfectly compatible with Yealink W70B and can support 10 handsets, 10 SIP accounts, and 20 simultaneous calls (2 calls per handset). Also, W78H is perfectly compatible with the W80/W90 multi-cell system, supporting the seamless roaming and handover feature and providing you with more options for your office expansion.
The Yealink W70B DECT IP Base Station is the DECT IP base station for small and medium-sized businesses. Paring with up to a total of 10 Yealink W73H/W56H/W59R/CP930W/color screen DDPhone (T54W+DD10K) DECT handsets, W70B allows you to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges.
A powerful chip ensuring better and higher performance, this DECT IP base station not only supports up to 10 VoIP accounts and 20 simultaneous calls but also speeds up its startup and signal connection, provides no perception upgrade, and slashes its upgrade downtime as well. Designed in a modern and elegant style, this compact DECT IP base station possesses a wire-hidden design, presenting a concise and tidy desk to you even being mounted to the wall. By supporting Opus codec, Yealink W70B consistently delivers excellent and professional audio quality in both high-bandwidth and poor network conditions, compared with other wideband or narrowband audio codecs.
- 2.4" 240 x 320 TFT color screen with intuitive user interface
- Flexible Noise Reduction (FNR)/Noise Cancellation
- Headset connection via Bluetooth or 3.5 mm jack
- High-performance SIP cordless phone system
- Quick charge: 10-minute charge time for 2-hour talk time
- Support Opus audio codec
- TLS and SRTP security encryption
- Up to 10 DECT cordless handsets
- Up to 10 SIP accounts
- Up to 166-hour standby time (in ideal conditions)
- Up to 20 simultaneous calls
- Up to 21-hour talk time (in ideal conditions)
- Vibration alarm guarantees you not to miss any call even in noisy situations
- Wall mountable charger
Phone
- Up to 20 simultaneous calls
- Up to 10 handsets
- Up to 10 SIP accounts
- Up to 2 simultaneous calls per handset
- Up to 6 repeaters per base station (RT30)
- Built-in Bluetooth for Bluetooth headset
- Vibration alarm
- Alarm functions: push-button/no-movement/ man down/running
- Handset selection for receiving call
- Handset and number selection for placing call
- Paging, intercom, auto answer, dial plan
- Call hold, call transfer, 3-way conference
- Switching between calls
- Call waiting, mute, silence, DND
- Caller ID with name and number
- Anonymous call/Anonymous call rejection
- Call forward: Always/Busy/No Answer
- Speed dial/Voicemail/Redial
- Message Waiting Indication (MWI)
- Music on hold (server-based)
- Local phonebook for up to 1000 entries (stored in the base)
- Remote phonebook/LDAP/XML phonebook
- Phonebook search/import/export
- 100 call history per handset: All/Placed/Missed/ Received
- Direct IP call without SIP proxy
- Reset to factory, reboot
- Keypad lock, emergency call
- Broadsoft directory, BroadSoft call log
- Broadworks feature key synchronization
- Shared Call Appearance (SCA)
- XML browser
- Action URI
Personalization
- 9 ringer melodies
- Screen saver
- Multilingual user interface
Management
- Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
- Auto-provision with PnP
- Handset upgrade: OTA (Over-The-Air)/ No Perception Upgrade
- Configuration: browser/phone/auto-provision
- Trace package and system log export
Audio
- Full-duplex speakerphone
- Hearing Aid Compatibility (HAC) compliant
- Flexible Noise Reduction (FNR)/Noise Cancellation
- Receiver volume control: 5 steps
- Ringer volume control: 5 steps+off
- Multiple advisory tones
- Acoustic warning for low battery status
- DTMF
- Wideband codec: Opus, AMR-WB (optional), G.722
- Narrowband codec: PCMU, PCMA, G.726, G.729, G.729A, iLBC
- VAD, CNG, AGC, PLC, AJB
- AEC
- Support VQ-RTCPXR (RFC6035), RTCP-XR
Network
- SIP v1 (RFC2543), v2 (RFC3261)
- SNTP/NTP
- VLAN (802.1Q and 802.1P)
- 802.1x, LLDP
- STUN Client (NAT Traversal)
- UDP/TCP/TLS
- IP assignment: Static/DHCP
- Support outbound proxy server backup
Security
- Open VPN
- Transport Layer Security (TLS)
- HTTPS (server/client), SRTP (RFC3711)
- Digest authentication
- Secure configuration file via AES encryption
- Support SHA256/SHA512/SHA384
- Three-level configuration mode: Admin/Var/User
DECT
- Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US), 1902 – 1906 MHz (TH), 1910 – 1920 MHz (BR)
- DECT Standards: CAT-iq2.0
Interface
- 1 x RJ45 10/100M Ethernet port
- Power over Ethernet (IEEE 802.3af), Class 1
Physical
- Indoor Range: 50 m (in ideal conditions)
- Outdoor Range: 300 m (in ideal conditions)
- Battery: 1010 mAh, Lithium-ion, 3.7 V, 3.73 WH
- Up to 21 hours of talk time (in ideal conditions)
- Up to 166 hours of standby time (in ideal conditions)
- 2.4'' 240 x 320-pixel TFT color screen
- Desktop or wall mountable
- LCD backlight, key backlight
- Energy-saving ECO mode/ECO Mode+
- Backlit keypad with 25 keys:
- Standard ITU telephone keypad, 12 keys, 4x3, with star and pound/hash key
- 5 navigation keys (left, right, up, down, OK)
- 2 softkeys
- 6 function keys (Speaker, message, Off-hook, Cancel, TRAN, Mute)
- 3 side keys (volume up/down, alarm)
- 6 shortcut keys
- Three LED indicators on W70B:
- 1 x Registration LED
- 1 x Network Status LED
- 1 x Power Indicator LED
- External Yealink AC adapter: AC 100-240V Input and DC 5V/600mA Output
- Color: Handset: Black; Base: Classic Grey
- Handset size: 157 mm x 51 mm x 24 mm
- Base station size: 130 mm x 100 mm x 25.1 mm
- Operating humidity: 10-95%
- Handset operating temperature: 0 to 40°C (+32- 104°F)
- Handset/Base station storage temperature: -30 to 70°C (-22-158°F)
- Base station operating temperature: -10 to +45 °C (+14 to 113 °F)
Package
- Package contents:
- W78H Handset with Belt Clip
- W70B Base Station
- Base Stand
- Charger Cradle
- Two Power Adapters
- Ethernet Cable
- Rechargeable Battery
- Decorative Cover
- Quick Start Guide
- Qty/CNT: 10 PCS
- Giftbox size: 205 mm × 182 mm × 95 mm
- Carton meas: 502 mm × 378 mm × 215 mm
- N.W: 6.836 Kg • G.W: 7.546 Kg
