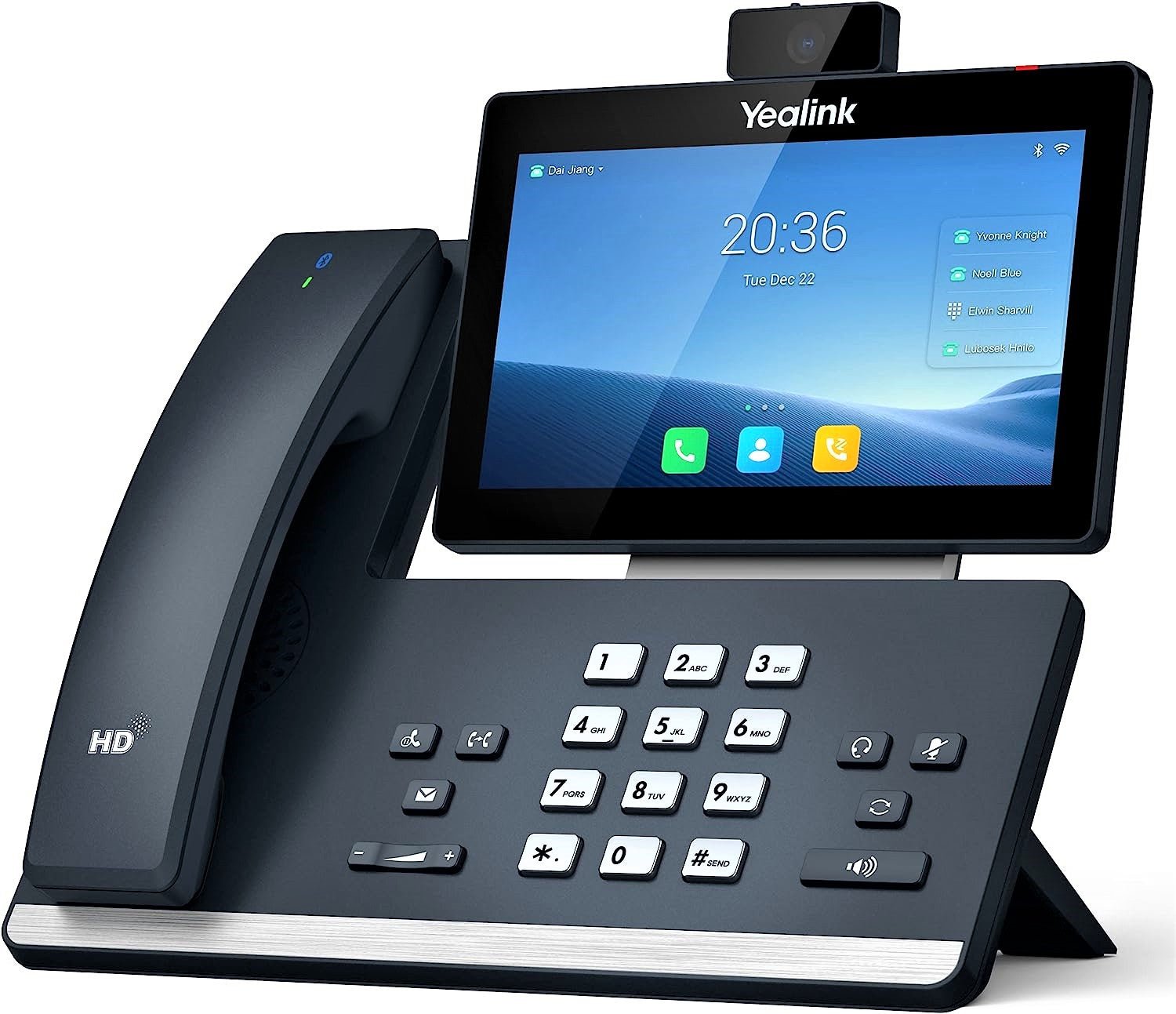

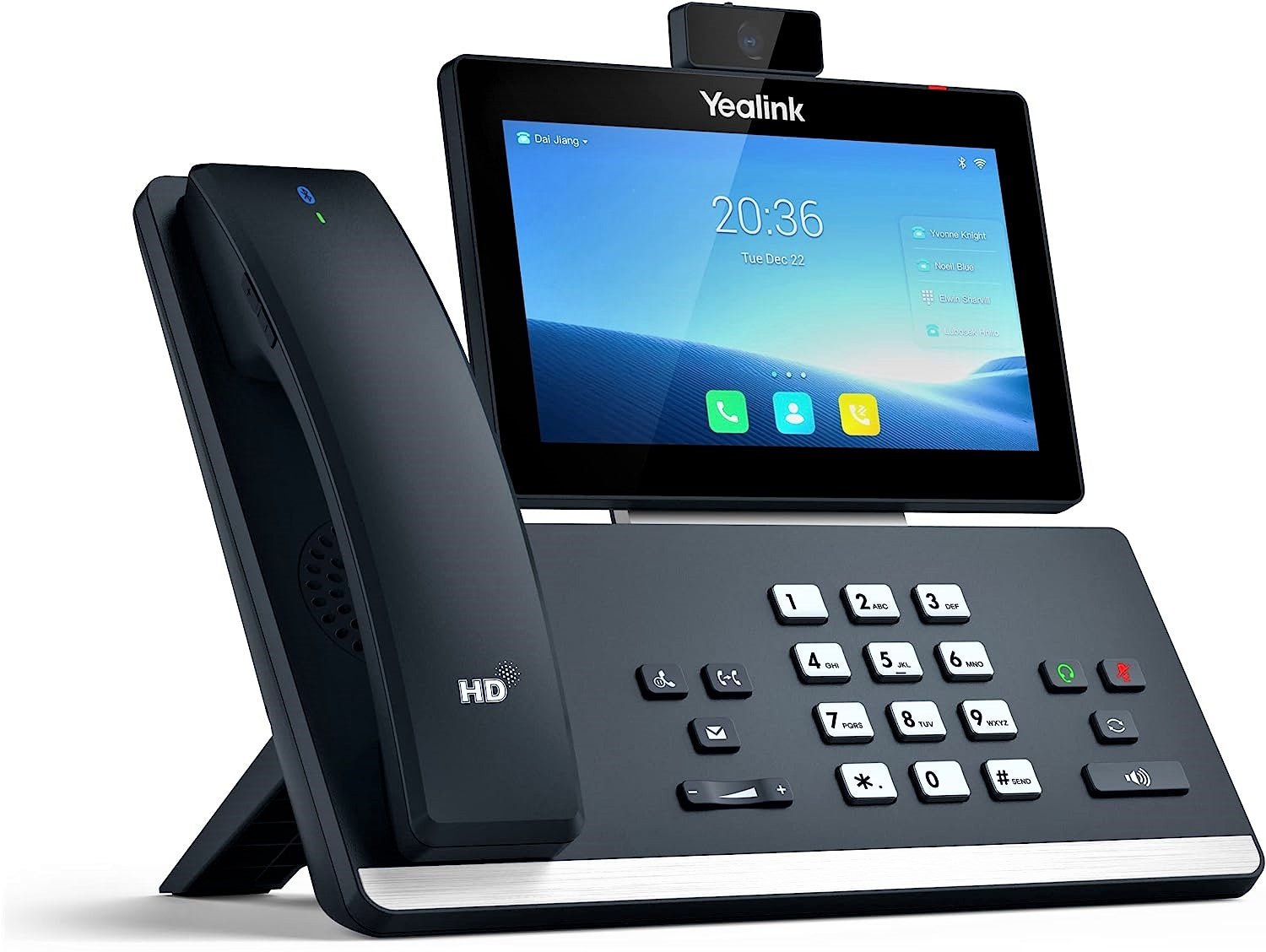

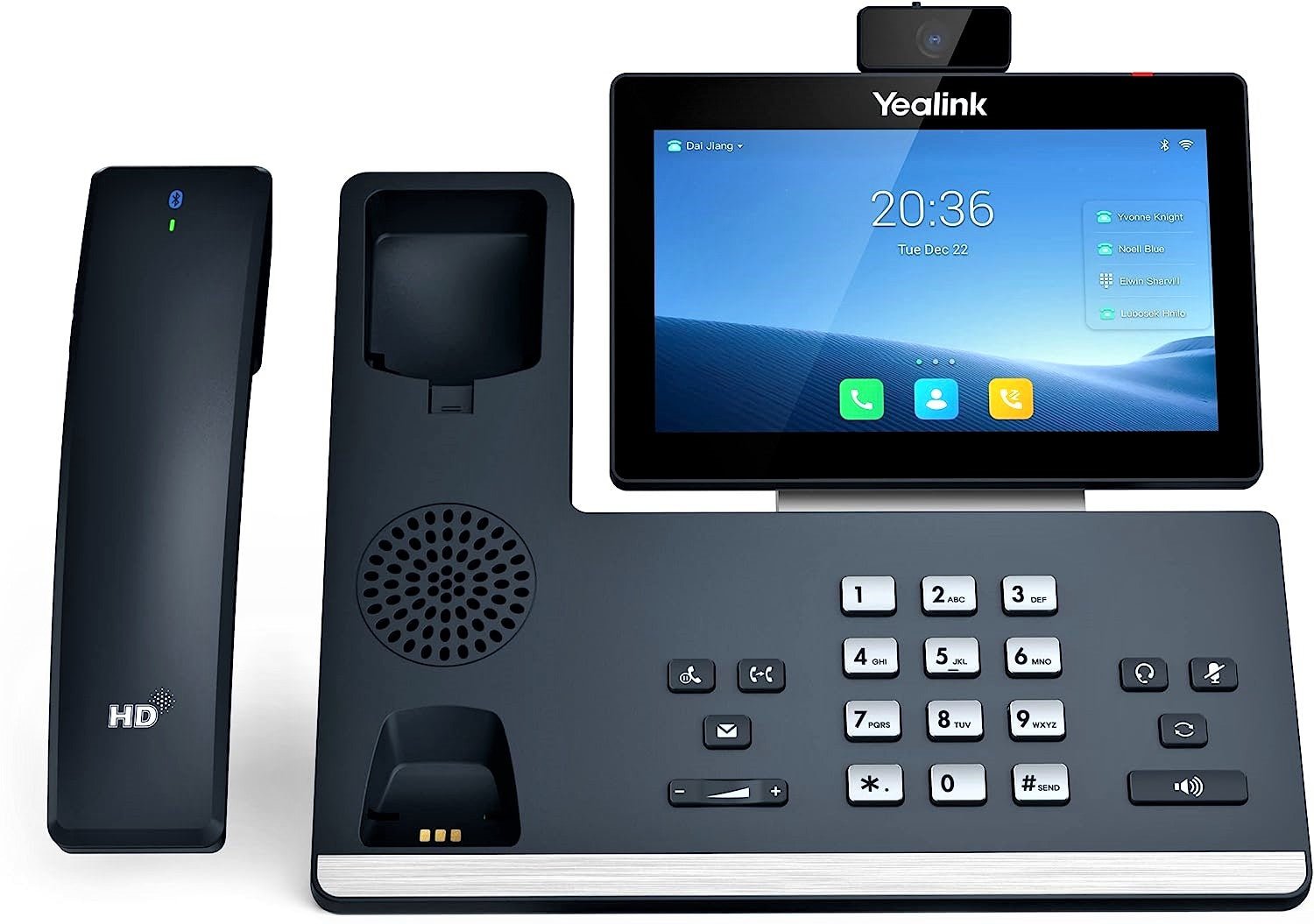

Yealink SIP-T58W Pro with Camera IP Phone

A simple-to-use smart business phone, the Yealink SIP-T58W Pro with Camera IP Phone provides an enriched HD audio and video calling experience for business professionals. This smart business phone enables productivity-enhancing visual communication with the ease of a standard phone. Pro means that this phone supports Yealink Bluetooth handset BTH58, with which users are free to move around when on a call – no more missed calls when they leave their desks.

The Yealink Bluetooth handset offers more office flexibility for users with a range of up to 10 meters (30 feet). Based on the Android 9.0 operating system, the SIP-T58W Pro with camera adopts a new user interface, which is more concise and business, greatly improving users' work efficiency. This SIP-T58W Pro with a camera also integrates with IP video intercom systems from major vendors in the market, delivering true cost-efficiency to customers.

• Next-Gen Desktop Collaboration - Featuring a vivid 7-inch touchable and adjustable color screen, the T58W(Pro) with Camera is positioned to bring premium-level, industry-leading communication journey with the new UI, five-megapixel camera, and multi-way audio/video mixed conferencing.
• Free from Cord Constraints, Free from Distracting Noise - Adopting the innovative Bluetooth handset, Yealink T58W Pro with Camera pervades wireless communication by allowing the user to move around freely and conveniently. The professional hardware and the cutting-edge acoustic algorithm of Yealink make the T58W Series an expert at eliminating noise and keeping every conversation clear and focused.
• Take Smart Business Phone to the Next Level - Boost by the upgraded chipsets, the T58W Series comes with enhanced system performance with fast response and reinforced processing capacity. The adoption of Android 9.0 OS also improves data encryption, authority management, response speed, and integrability to meet the requirements of modern business and future sustainability.
• Enterprise-level Security, Provision, and Management - Taking data security as one of the most significant concerns, the new set of phones adopt Arm TrustZone technology to safeguard various ARM-based data and applications. By supporting the Yealink/Unify Square Device Management Platform, the management, provision, and update of the T58W Series can be implemented in a streamlined and simplified manner.

Audio

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield, Noise Proof
• Smart Noise Filtering
• Audio codec: Opus, G.722, PCMU (G.711A), PCMA (G.711μ), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
• DTMF: In-band, Out-of-band (RFC 2833), and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Video

• Video codec: H.264 High Profile, H.264, VP8
• Video quality: 720P (1280x720)-30fps ( ≥ 512 kbps)
• Yealink CAM50 camera:
• 5 mega-pixel
• Plug and play
• Adjustable
• With privacy shutter and LED indicator
• Vertical tilt angle adjustable: 47±3°
• Field of view (FOV): 75°±5°
• Self-view (local video preview)

Display and Indicator

• LCD screen:
• 7” 1024 x 600 capacitive adjustable touchscreen
• Vertical tilt angle adjustable: 48°
• 5 points multi-touch surface
• Screensaver and Wallpaper
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number, and photo

Android Bundled Applications

• FileManager/Email/Calendar/Camera/Gallery/ Recorder/Calculator/Browser/Message
• Third-party Android application support

Phone

• Yealink’s SDK (Software Development Kit)
• 16 SIP accounts
• Call hold, call forward, call waiting, call transfer
• One-touch speed dial, hotline, mute, DND
• Group listening, emergency call
• Redial, call return, auto answer
• Direct IP call without SIP proxy
• Ring tone select/import/delete
• Set date time manually or automatically
• Dial plan, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• 3-party video conferencing
• 10-party audio/video mixed conferencing (up to two video calls)
• Data import/export via Bluetooth, email, etc.
• DoorPhone features: Preview, One-button Open, Monitoring
• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:
• Basic functions: Answer/end, call mute
• Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
• Analog PSTN calls via CPN10
• Wireless Access Point (AP mode)

Corded-Cordless Phone (via DECT Dongle DD10K)

• Up to 4 DECT cordless handsets
• Up to 4 concurrent calls
• Support Yealink W73H/W53H/W56H/W59R/DD Phone/CP930W
• Slave Handset for Master Deskset

IP-PBX

• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Remote office, hot desking, intercom, paging
• Call completion
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup
• Music on hold
• Call recording

Directory

• Local phonebook up to 1000 entries
• Blocklist
• XML/LDAP remote phonebook
• Google contacts
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

Feature keys

• 27 one-touch DSS keys
• 7 feature keys: hold, transfer, message, headset, mute, redial, speakerphone
• Volume control keys
• Illuminated mute/headset/hands-free speakerphone key

Interface

• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• Built-in dual-band Wi-Fi:
• Network standard: IEEE802.11a/b/g/n
• Frequency range: 2.4GHz/5.0GHz
• Built-in Bluetooth 4.2 for
• Bluetooth Handset BTH58
• Bluetooth headsets
• Pairing mobile devices
• Simultaneous connection of one headset and one mobile phone
• 1 x USB 2.0 port (on the top of the phone) for:
• Yealink CAM50 camera
• 1 x USB 2.0 port (on the rear of the phone) for:
• USB flash drive
• USB headset
• Color-screen expansion modules
• Wireless Headset Adapter EHS40
• 1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• Supports up to 3 color-screen expansion modules

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS
• Auto provision with PnP, Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log
• Only the administrator can install/uninstall apps via autop
• Setup Assistant wizard
• Supports Yealink Device Management Platform (YMDP/YMCS)
• Supports Unify Square Device Management Platform

Network and Security

• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP
• Transport Layer Security (TLS1.3)
• HTTPS certificate manager
• AES encryption for configuration file (AES256)
• Adb encryption authenticated
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X, L2TP VPN
• WPA2/WPA3
• Secure boot
• GARP (Generic Attribute Registration Protocol)

Others

• Color: Classic Grey
• Wall mountable (optional)
• External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
• USB output currency: 5V 500mA
• Power consumption (PSU): 2.5W~7.5W
• Power consumption (PoE): 3.3W~9W
• Dimension (W*D*H*T): 259.4mm*220mm*239mm*42.6mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C (+32~104°F)

Package

• Package content:
• Yealink SIP-T58W Pro with camera IP phone
• Handset: Wired handset with handset cord (Optional) BTH58 Bluetooth handset
• Ethernet Cable
• Stand
• Yealink CAM50 camera
• Quick Start Guide
• Power Adapter (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 8.880 kg
• G.W/CTN: 9.558 kg
• Giftbox size: 324 mm*293 mm*128 mm
• Carton Meas: 680 mm*303 mm*342 mm
